The switch was difficult to find on the bedside table at night, simply because it is so small. The switch also slips around quite a bit on a smooth surface. So I designed two different bases to make the switch more prominent.

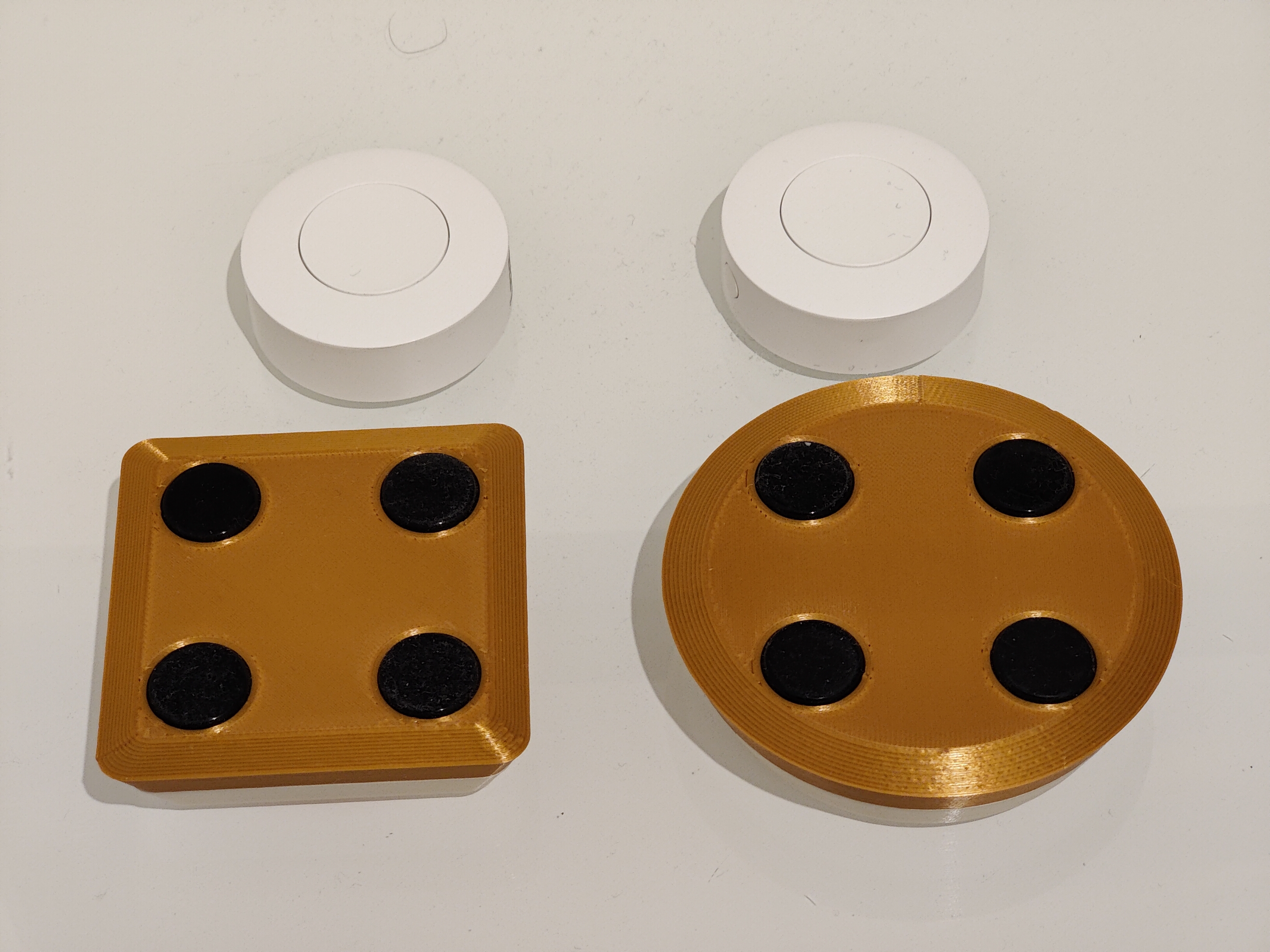

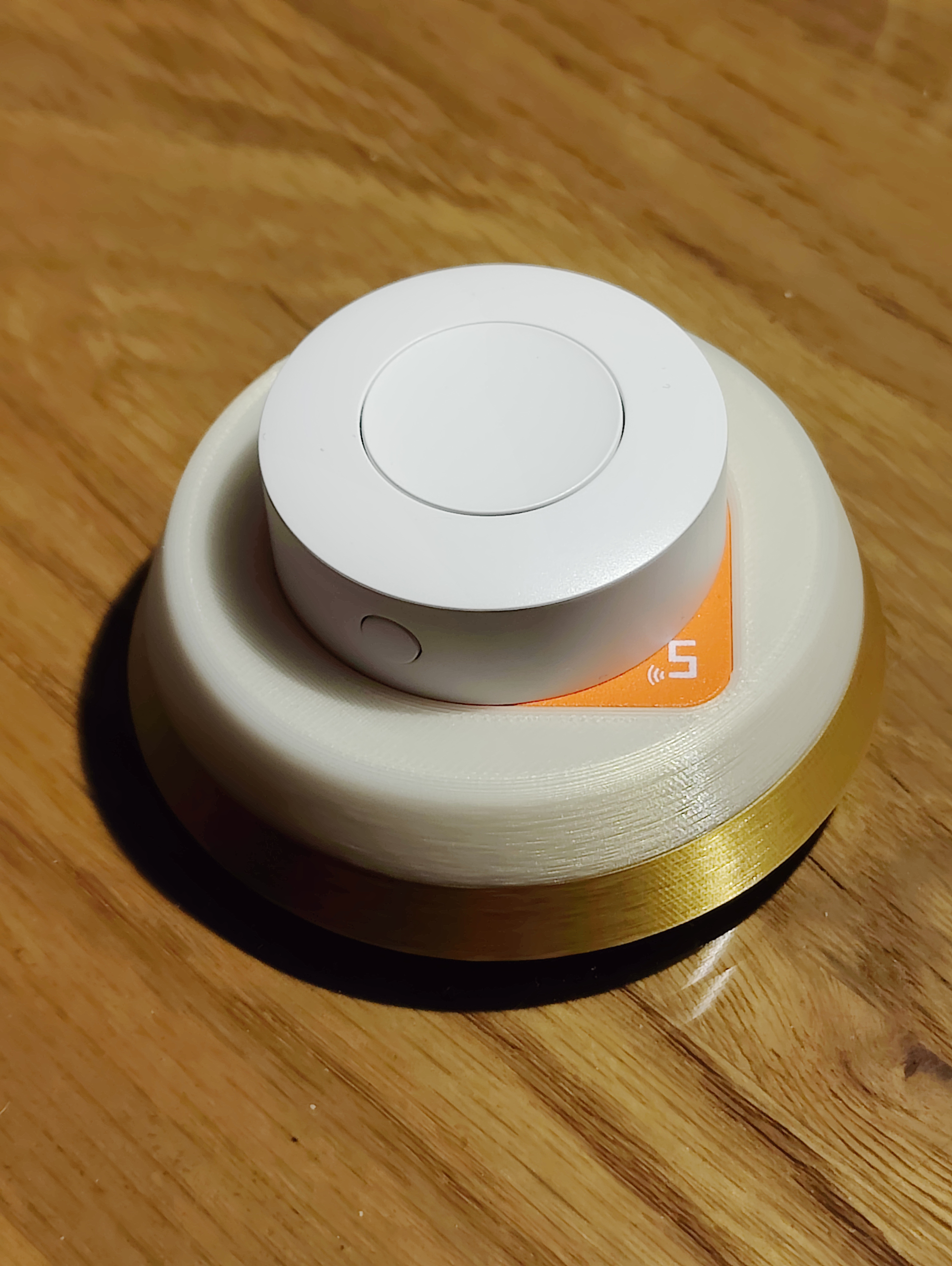

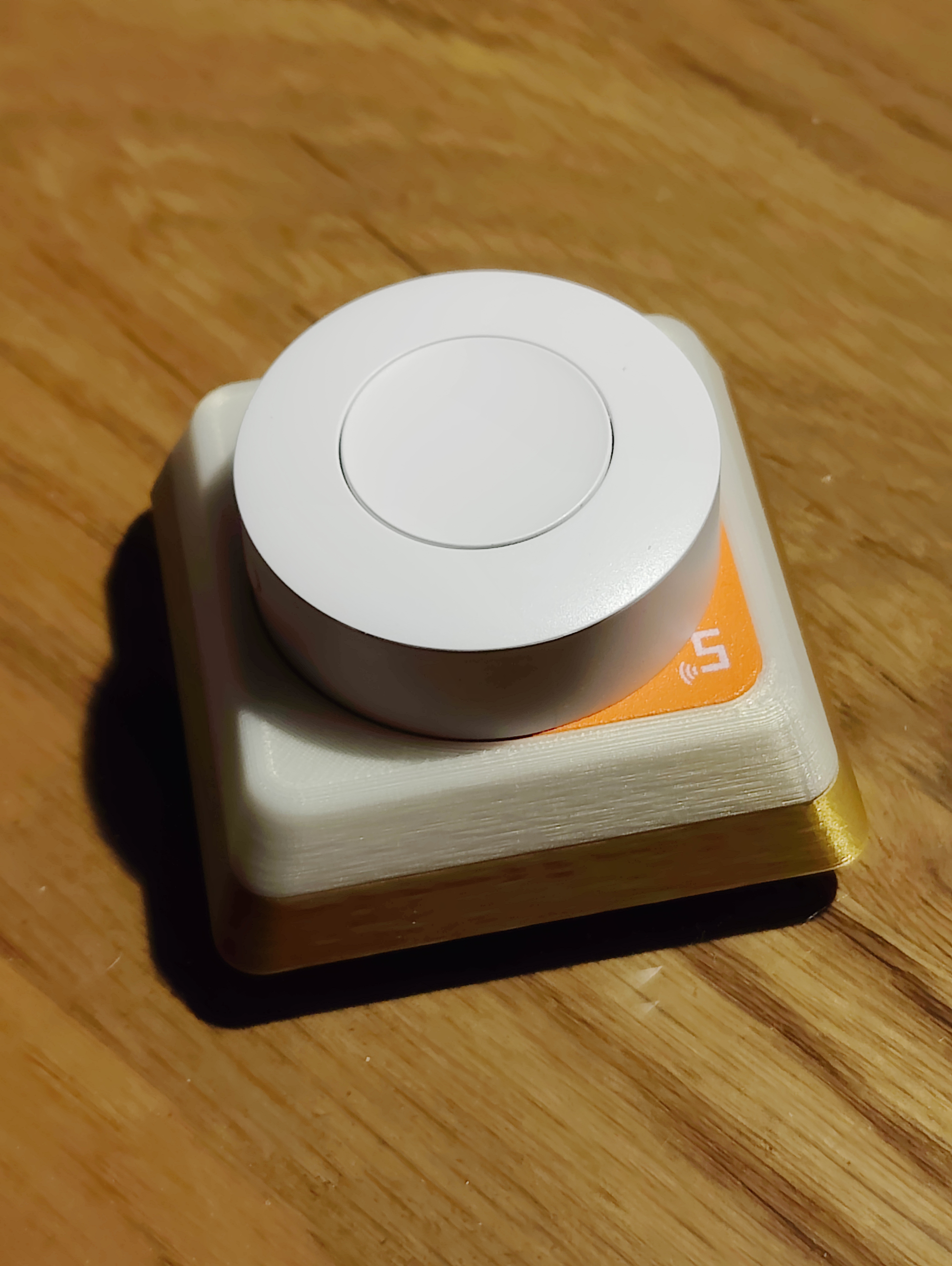

The V2 is a round base, the V3 is a square one. Both versions have holes on the underside for attaching anti-slip pads (15 mm diameter). I used the one from I bought on Aliexpress.

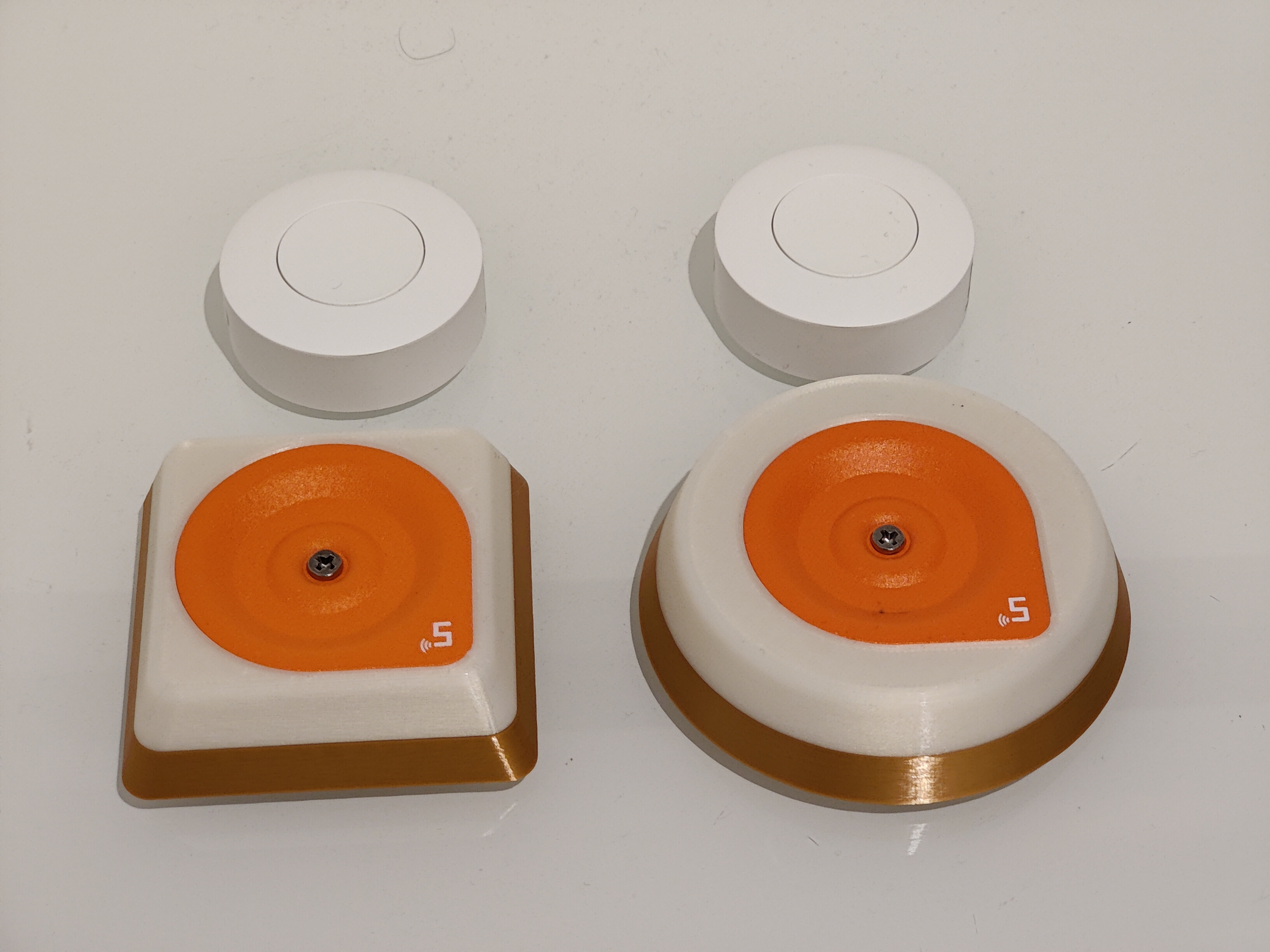

To assemble a base, print the top, the bottom, and a pair of connectors. The connectors are there to ensure that the parts are nicely aligned. Use the screw and the metal plate supplied with the switch to put the three parts together. Then simply attach the anti-slip pads and place the switch on top.
The bases shown in the photos are printed with Prusament PLA Vanilla White (top) and Prusament PLA Blend Viva La Bronze (bottom).
The bases were designed with FreeCAD 1.0.
