Square Stacks 3D Printer Enclosure (Also A Photography Lightbox)

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Kategoria
Other Printer Parts & Upgrades
Licencja
Creative Commons — Attribution — Noncommercial
SzczegółyWydruki i komentarzeRemiksyKolekcjePowiązane
  • Lightweight and "somewhat modular" 3D printer enclosure.
  • Easy to build - Just a screwdriver. No funky drilling, soldering, cutting, sawing, heat insets.
  • Measures about 640 mm / 25.2 inch cube.
  • Does not take forever to print, does not burn a hole in your wallet.
  • Can double up as photography lightbox, soldering station, painting booth, recording booth.
  • Feel free to remix, here's a link to my Tinkercad.

HOW TO BUILD

QUICK VIDEO
PARTS TO PRINT

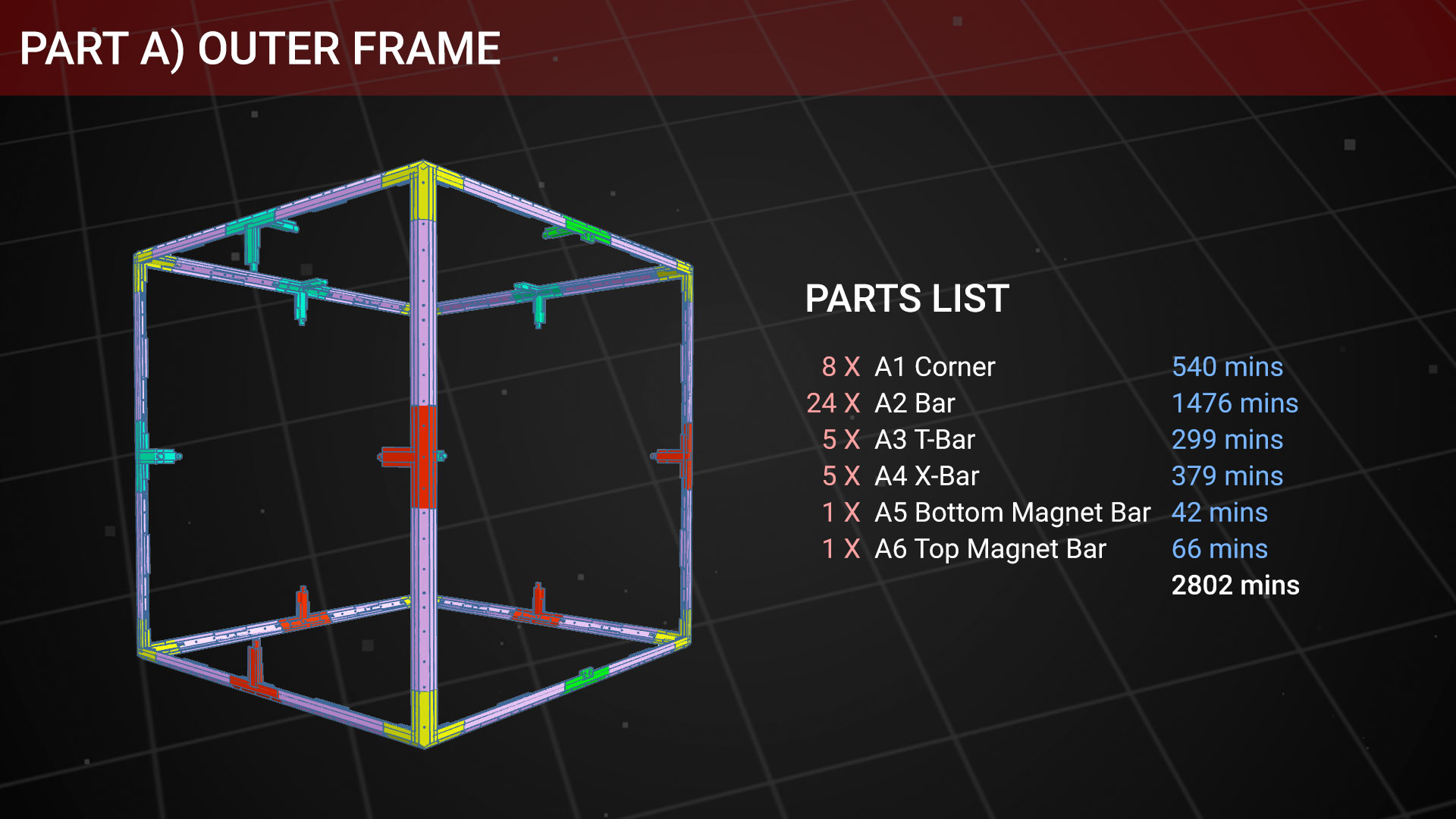

A) Outer Frame - 2802 mins

  • 8 X A1 Corner - 540 mins
  • 24 X A2 Bar - 1476 mins
  • 5 X A3 T-Bar - 299 mins
  • 5 X A4 X-Bar - 379 mins
  • 1 X A5 Top Magnet Bar  - 42 mins
  • 1 X A6 Bottom Magnet Bar  - 66 mins

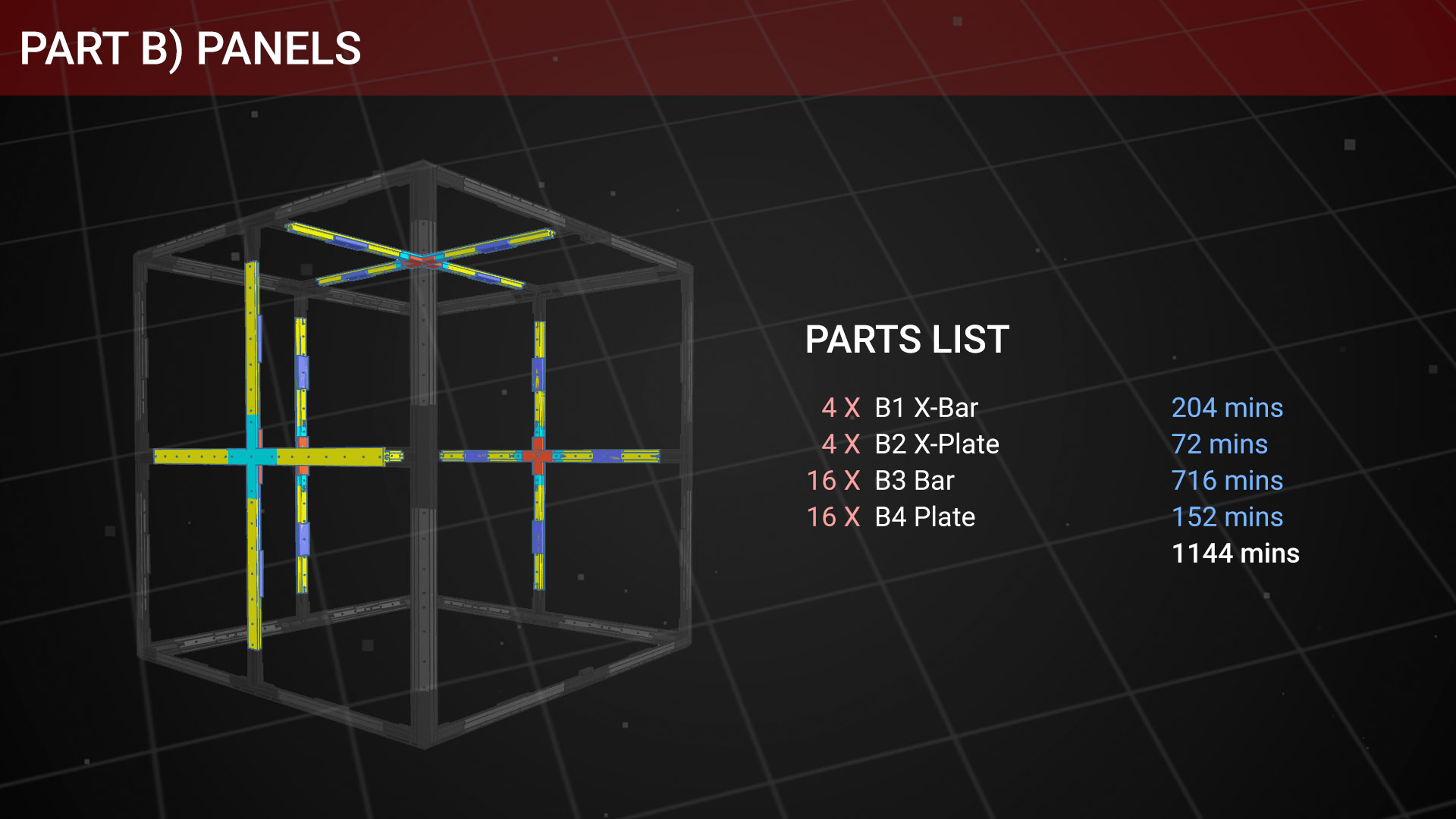

B) Panels - 1144 mins

  • 4 X B1 X-Bar - 204 mins
  • 4 X B2 X-Plate - 72 mins
  • 16 X B3 Bar - 716 mins
  • 16 X B4 Plate - 152 mins

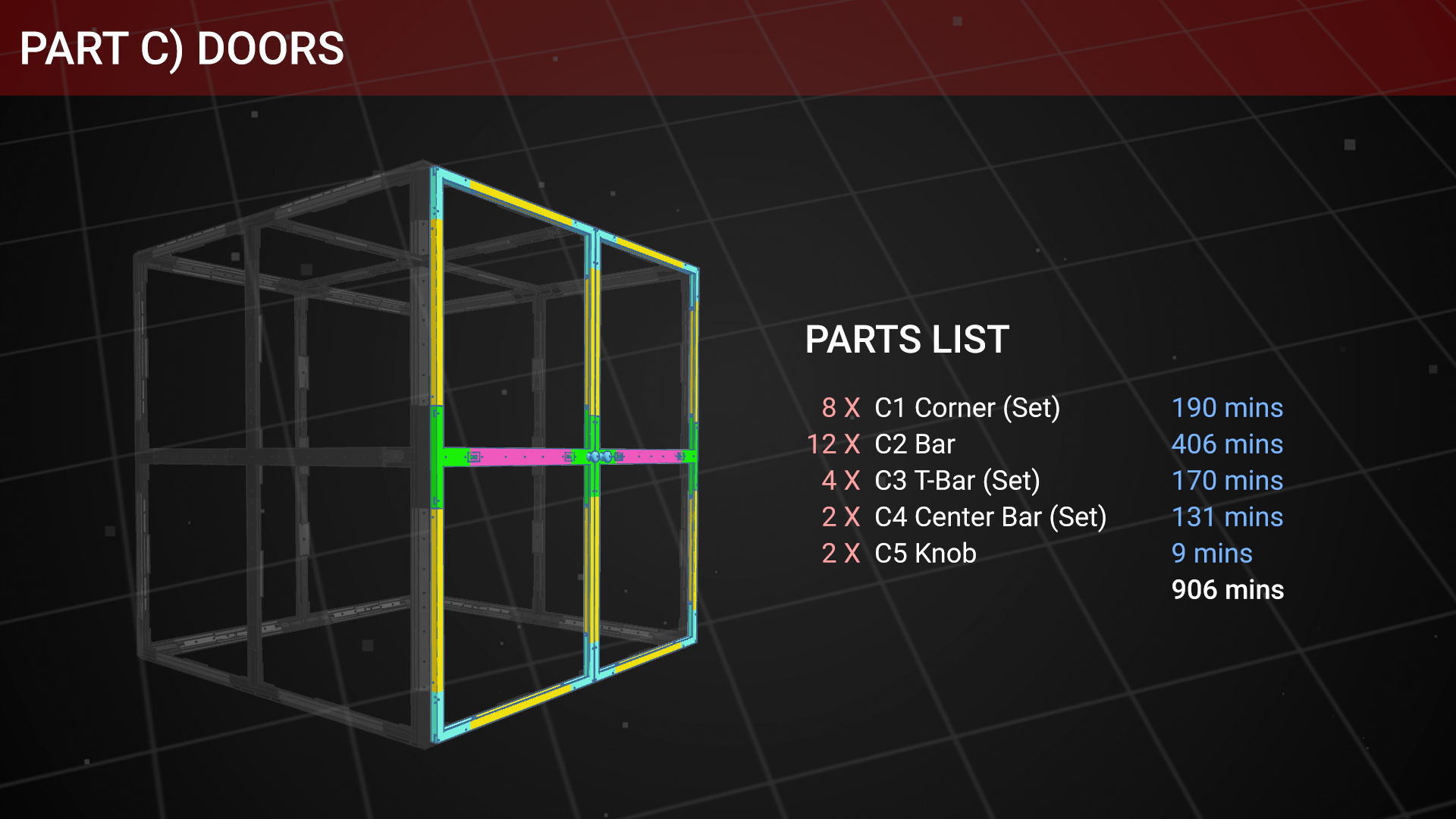

C) Doors - 906 mins

  • 8 X C1 Corner (Set) - 190 mins
  • 12 X C2 Bar - 406 mins
  • 4 X C3 T-Bar (Set) - 170 mins
  • 2 X C4 Center Bar (Set) - 131 mins
  • 2 X C5 Door Knob - 9 mins

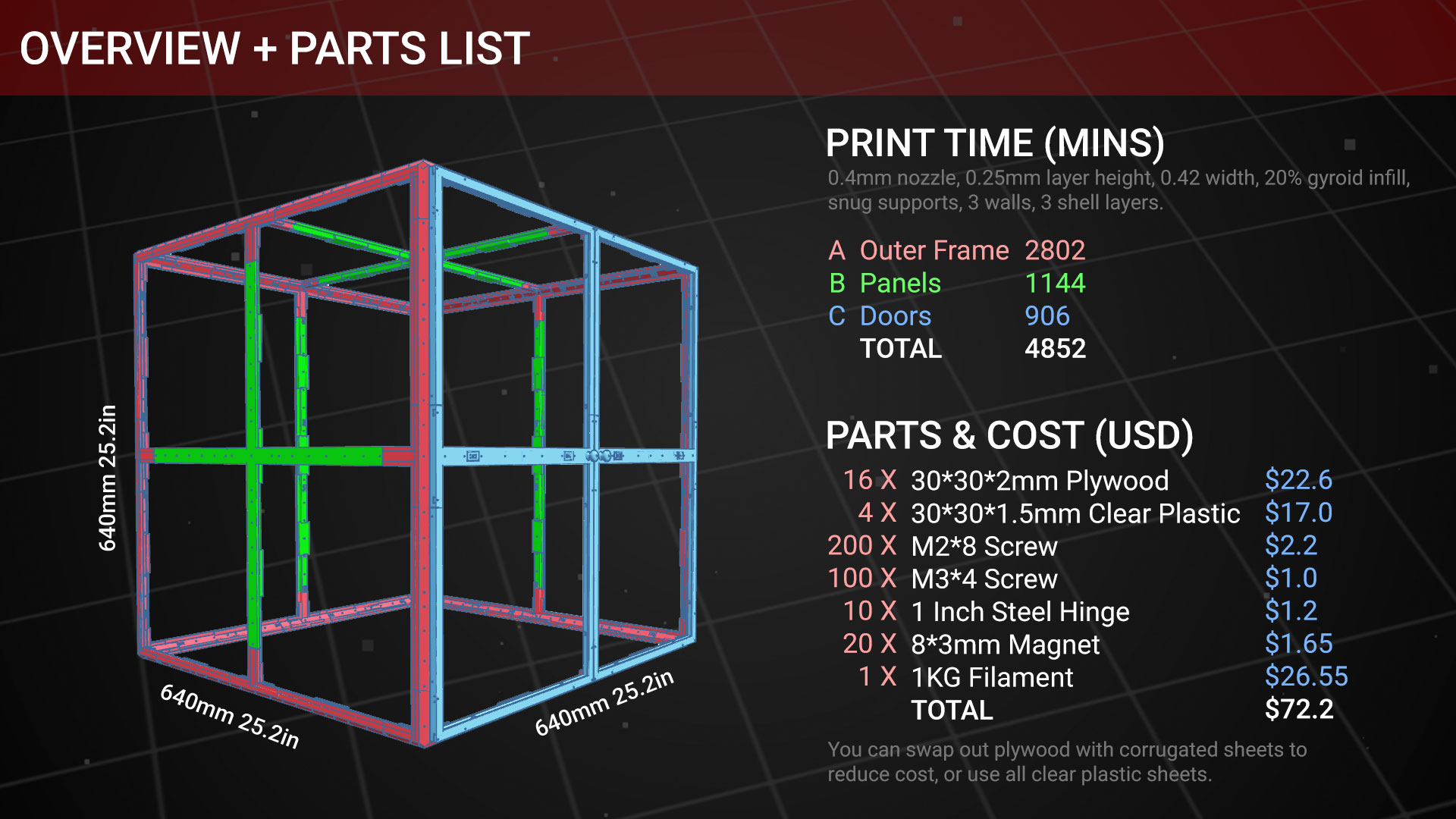

Total 4852 mins or 80.9 hours, that is about 3.3 days of continuous printing. You should be able to print all the parts within 4-5 days, complete the entire build within 1 week.

MY PRINT SETTINGS
  • 0.4mm nozzle, 0.25mm layer height, 0.42mm line width.
  • At least 3 walls, 3 top & bottom shell layers, 20% gyroid infill.
  • Optional - Alternate extra wall, in/out/in wall order.
  • Snug supports, 0.27mm top & bottom z distance, 2 interface layers, 1mm top interface spacing.
OPTIONAL PARTS

W) Honeycomb Storage Wall (HSW) - Mounts onto left and right sides of wall. Each wall requires:

  • 2 X W1 End Bar
  • 2 X W2 Center Bar
  • 1 X W3 Center Connector

X) Cable Management

  • X1 Cable Clip - Attach to any point, use these to hold cables.
  • X2 Grommet - Use as cable passthrough or ventilation.
    • Print the grommet.
    • Use grommet as template to cut a hole in the square sheet.
    • Mount the grommet.

Y) LED Holders

  • Y1 - A simple clip to hold 8mm LED strips under the HSW
  • Y2 26cm/10inch ring light holder - Print 4 of these, add 8X3mm magnets, attach to top wall. Stick magnet plates onto the ring light.

Z) Misc

  • Z1 - Reinforces A5-A6, reduces the slack.
  • Z2 - A simple magnet clip to hold photography backdrops in place.
    • Print 2 X top mount, add 8*3mm magnets, attach to rear top A2 bars.
    • Print 2 X clips, add 8*3 magnets, slap on top of the mount.
    • Alternate - 2 X middle mount, attach to rear center B3 bars.
  • Z3 - TH05 temperature hygrometer holder, mounted on the door middle bar.
  • Z4 - Creality Nebula Camera holder. Add four 8X3mm to the holder, attach the holder to the door… Or anywhere you want to mount the camera.
NOTE : KIND-OF-MODULAR
  • You can add more “square sheets” along the depth and height.
  • But if you add more sheets along the width - You will have to somehow deal with the doors.

PARTS LIST (AFFILIATE LINKS)

These are my affiliate links, they do not cost more. But I will make a small commission for every sale, that will help to offset some costs of my future projects.

REQUIRED PARTS
Item
Qty
Price (USD)
30 X 30 X 2 mm Plywood Sheets16$22.6
30 X 30 X 1.5 mm Clear Plastic Sheets4$17
M2 X 8 Self-Tapping Screws200$2.2
M3 X 4 Self-Tapping Screws100$1.0
1 Inch Steel Hinges10$1.2
8 X 3 mm Round Magnets20$1.65
2 KG Filament Pack1$26.55
TOTAL $72.2

You can swap out plywood with corrugated sheets to reduce the cost, or use all clear plastic sheets.

OPTIONAL PARTS
Item
Price (USD)
USB Electric Screwdriver$10-20
TH05 Temperature Humidity Sensor$3
26 cm / 10 inch Ring Light$10
3M LED Cob Strip$5
Photography Backdrop$5
Delta 120 mm Fan (Fume Extractor)$10
12V USB PWM$3
Fan Filter$4
100w USB Charger$15
30 cm / 12 inch Acoustic Panels (24 Pack)$16

CREDITS

UPDATE HISTORY

Version 4

  • Reworked entire framework - Simplified, reinforced, somewhat modular, uses square sheets, less screws.

Version 3

  • Added thermometer-hygrometer and grommet.
  • Added bottom brace and wall storage.
  • Added top LED mount.

Version 2

  • Slightly reinforced parts - C1, C2, C3 (Corners). E6, E7 (Left & Right bars).
  • Added additional screw holes to bottom section for future expansion - A1, A2, A3, A4, A5
  • Added additional screw holes to top section for future expansion - E1, E2, E3, E4, E5, E6, E7
  • Added extra screw hole to bottom hinge bars - B1, B2
