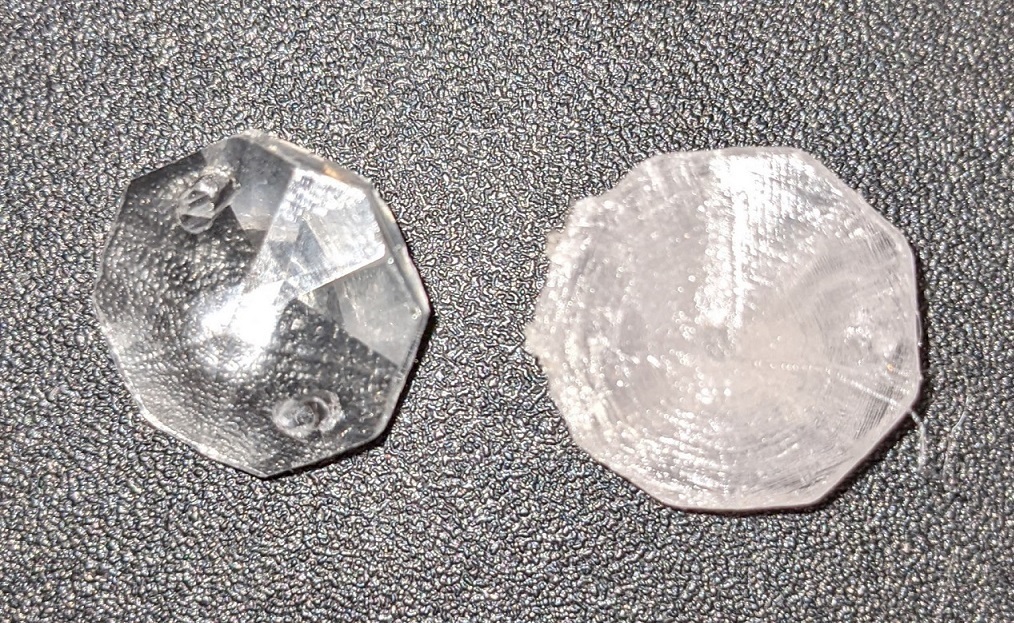

My wife ordered a chandelier from Amazon and it was missing 2 pieces so I 3d printed them.
Chandelier:
https://www.amazon.com/gp/product/B013TME0HO/ref=ppx\_yo\_dt\_b\_search\_asin\_title?ie=UTF8&psc=1
Print Settings
Printer Brand:
Prusa
Printer:
I3 MK3S
No
Supports:
Yes
0.05mm
Infill:
100%
Filament:
Overture PETG Clear
Notes:
112% extruder multiplier
5% infill perimeters/overlap
3D printed lenses and other cool transparent objects:
https://blog.prusaprinters.org/3d-printed-lens-and-other-transparent-objects\_31231/
Post-Printing
1.5mm holes were filled due to 112% extrusion multiplier, need to re-drill.
sand and polish.
How I Designed This
I took an existing piece from the chandelier to measure it with a digital caliper and then designed the part in OpenSCAD.
Part size is 16mm x 8.8mm
