I needed a clear organizer for the most used small tools on my desk, where each tool would have its own place.
I created this for electronics needs, but it can be used in any hobby.

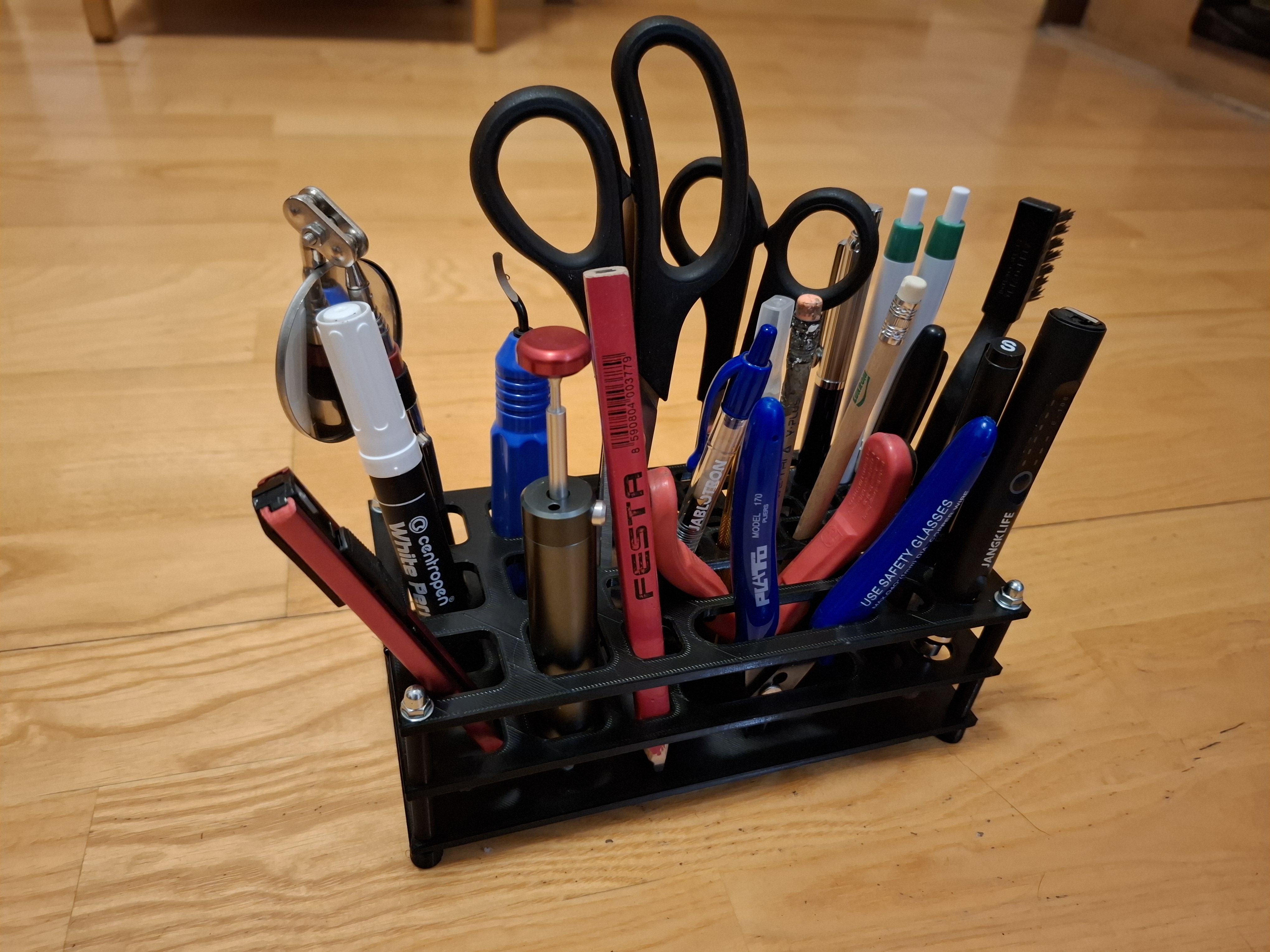

There is place for pencils, small pliers, screwdrivers, solder sucker, scisors, solder tips etc…

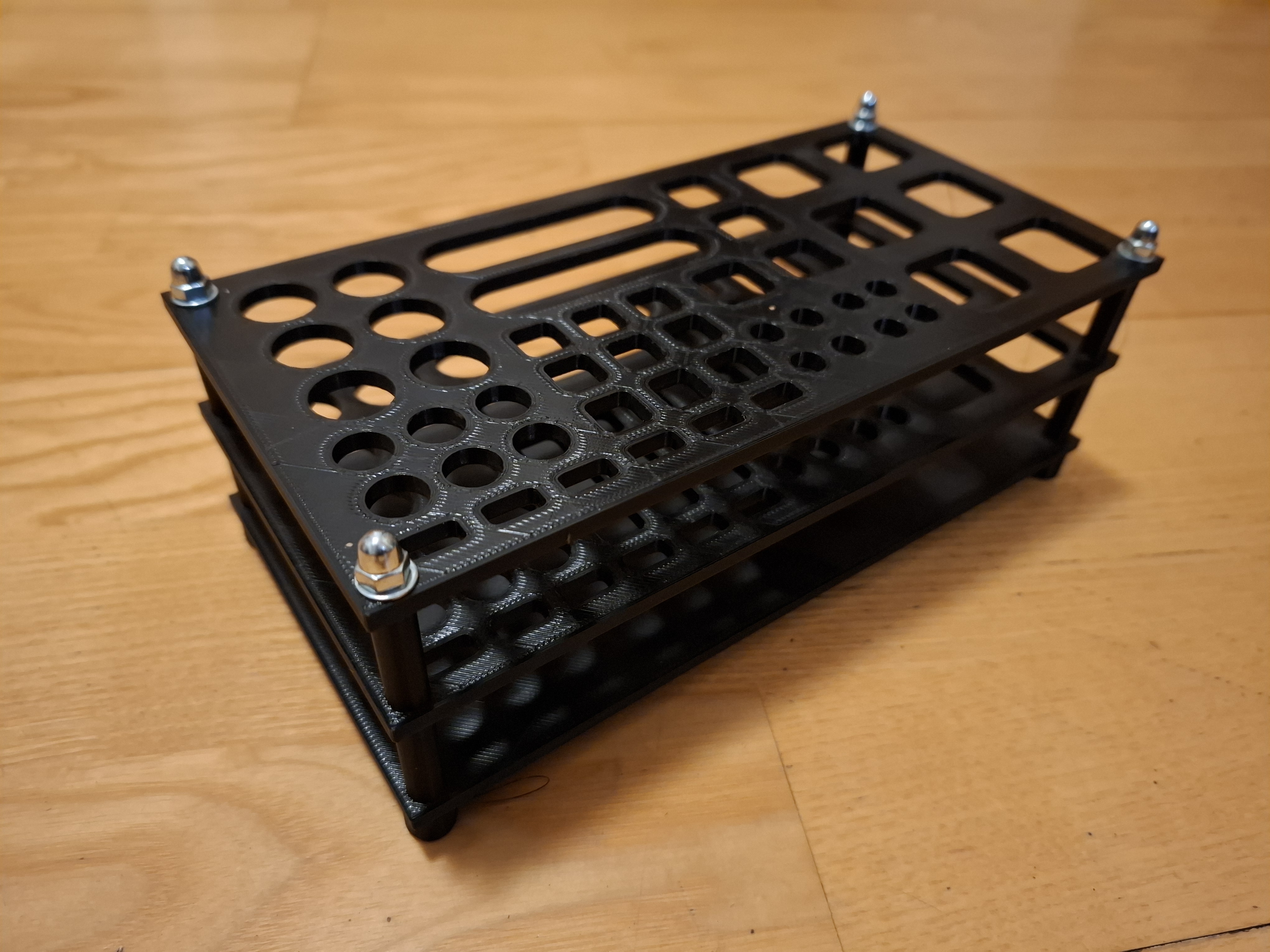

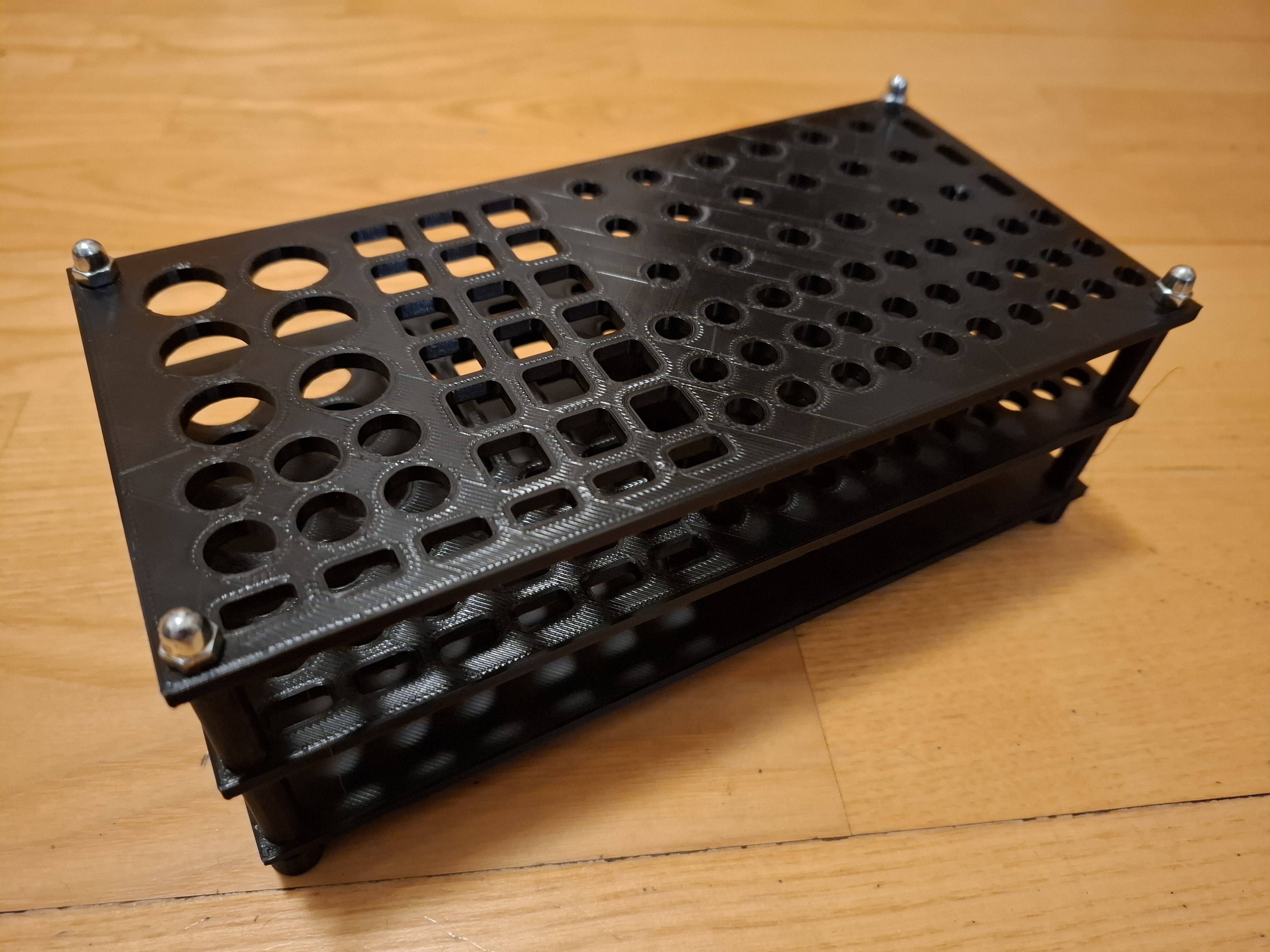

There are two types of top, choose the one that suits your tools better or make both like I did. You need to print for one organizer:
- 2x table tool organizer top type 1 OR 2x table tool organizer top type 2
- 1x table tool organizer bottom
- 8x table tool organizer column
- 4x table tool organizer foot,top cover
You also need:
- 4x M4 threaded rods, 69mm long
- 4x M4 lock nut
- 4x M4 cap nut
Assemble it according to photos, it is very easy and intuitive. If the feet and covers do not hold on to the nuts, glue them.

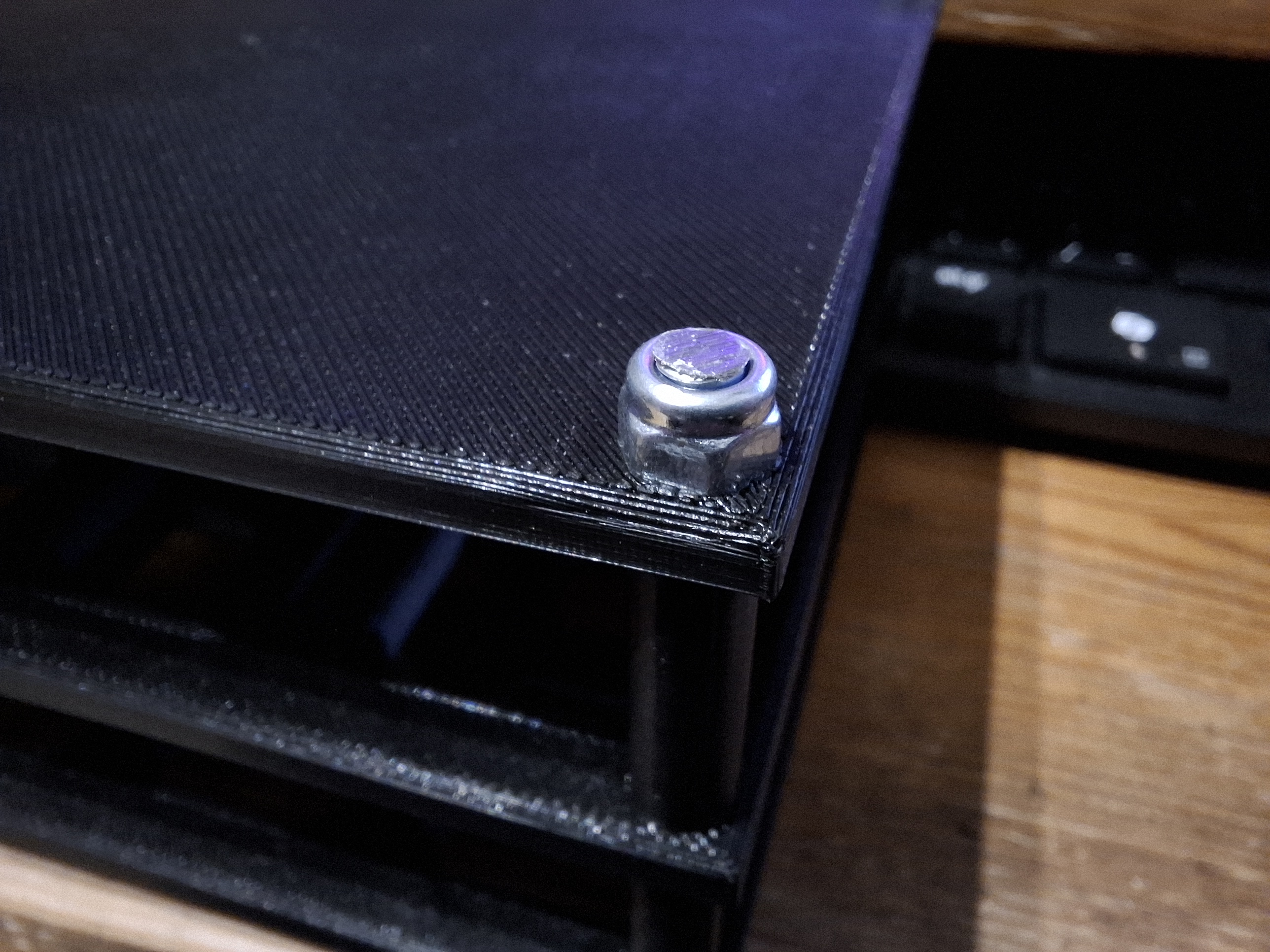

Lock nuts on bottom, cap nuts on top. Then attach or glue the foots onto the lock nuts.
