Diy F-16C Viper flight stick for Arduino mini

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Kategoria
Other Gadgets
Licencja
Creative Commons — Attribution

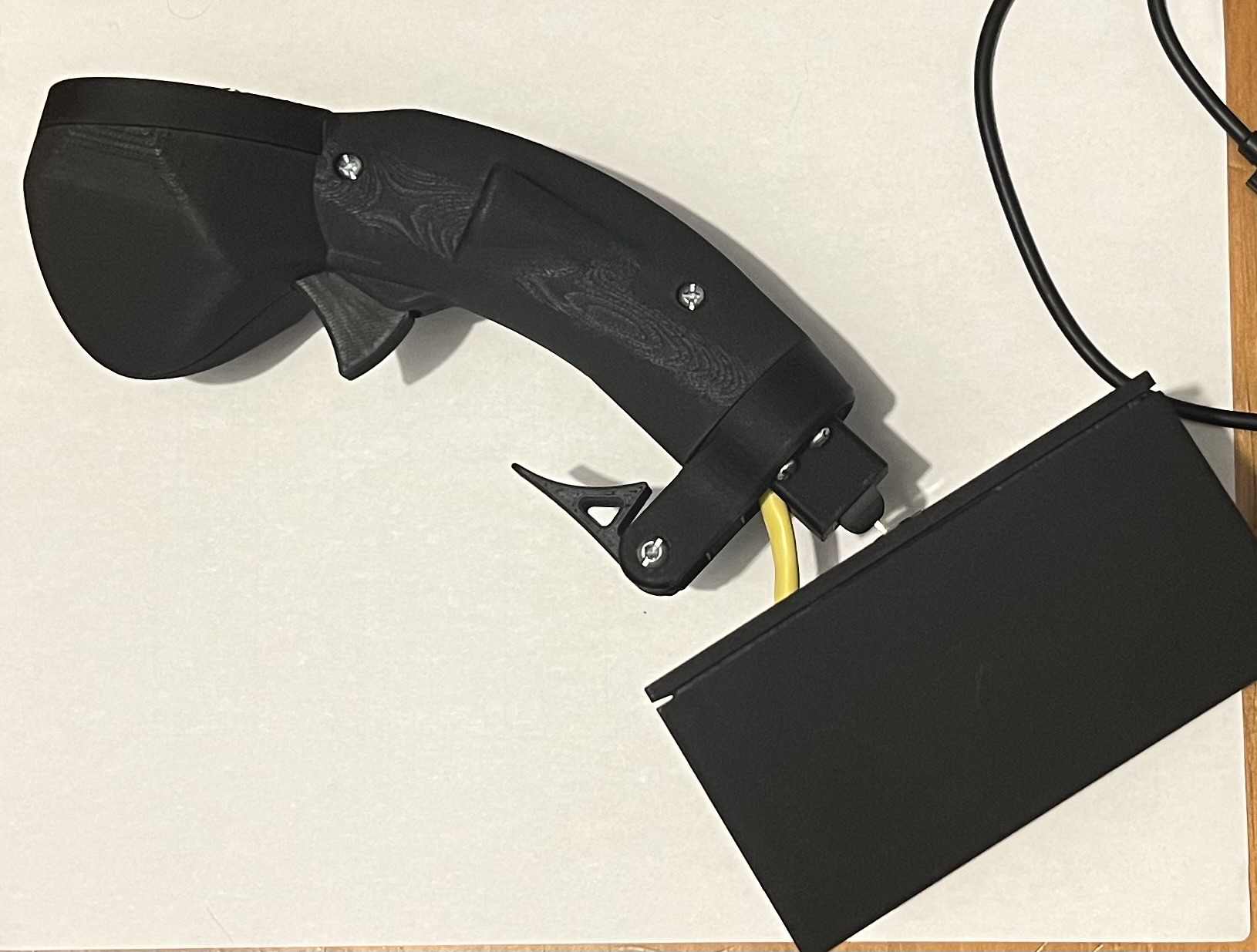

For an Internet of Things Arduino class, I made a modded version of an F-16C Viper flight stick, and for an Arduino Mini and some Arduino kit supplies, the game I was playing at the time of making it was Elite Dangerous, and so I put the logo on the flight stick because why not? Also, the box is meant to have a potentiometer for throttle, but I printed the wrong version, so that's why it's not in the photo. :/

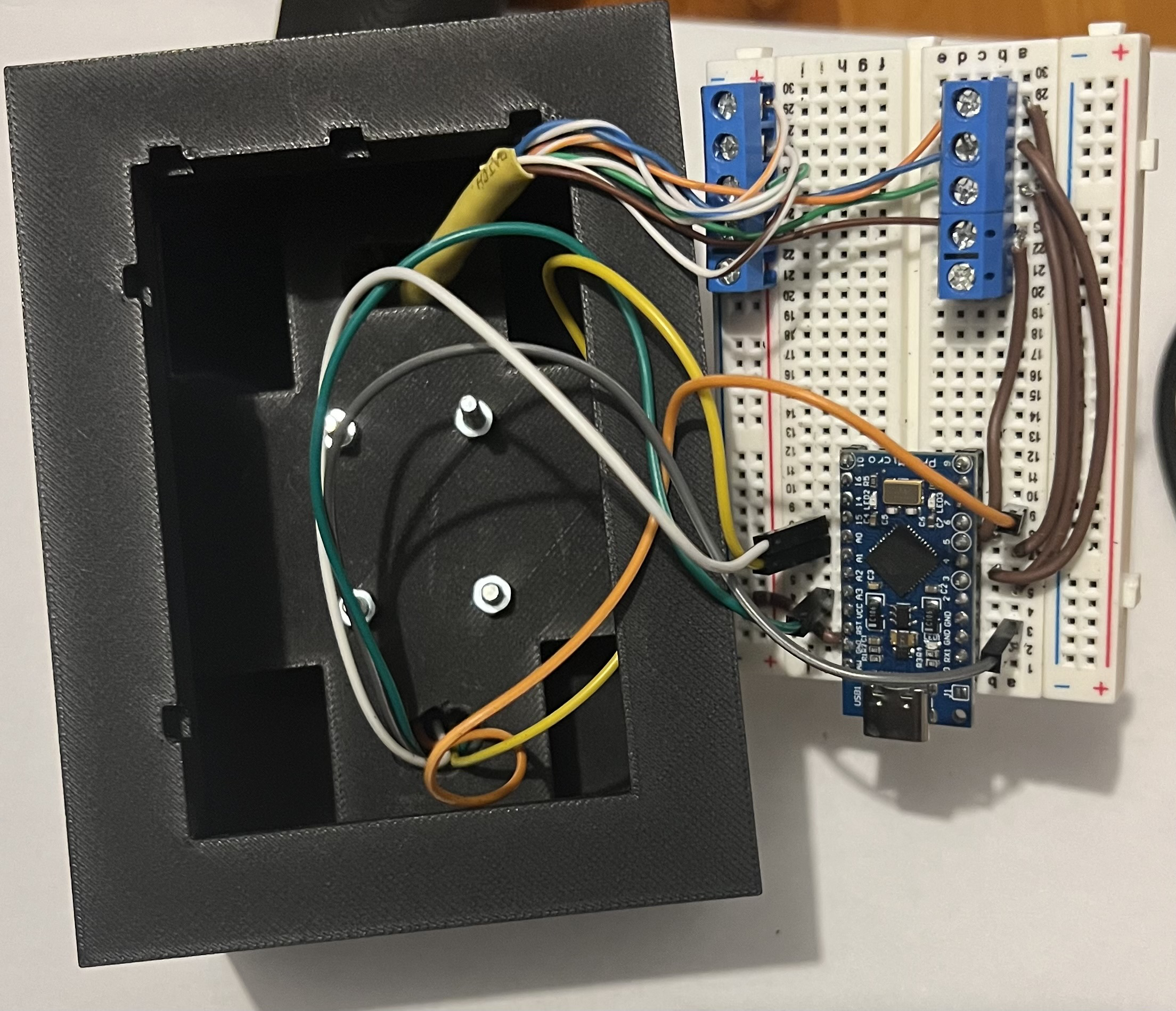

Part list:

16 m5 Screws
6 micro momentary tactile tact touch push button
12 small cables (I used some cat5 ethernet cable wiring for the button in the handle but would need more cables for more buttons (2 per button))
10 ports on a screw terminal blocks
1 Arduino mini

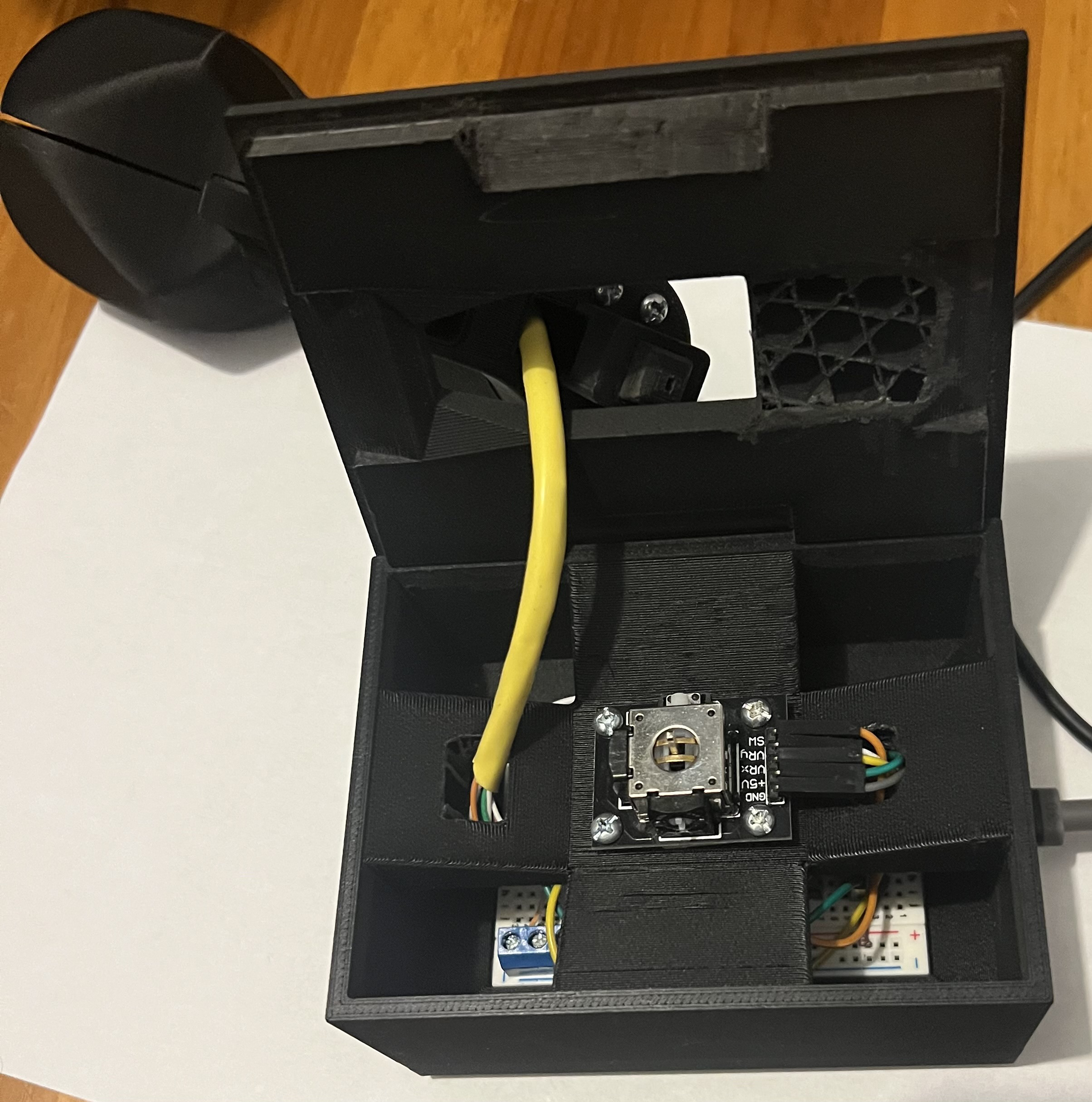

1 thumb joystick module dual-axis sensor
1 10K OHM linear rotary potentiometer


Edit:

This project is not finished and probably will never get finished. Sorry. :/
