Potentiometer Knob
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Music
- Licencja
- Creative Commons — Attribution

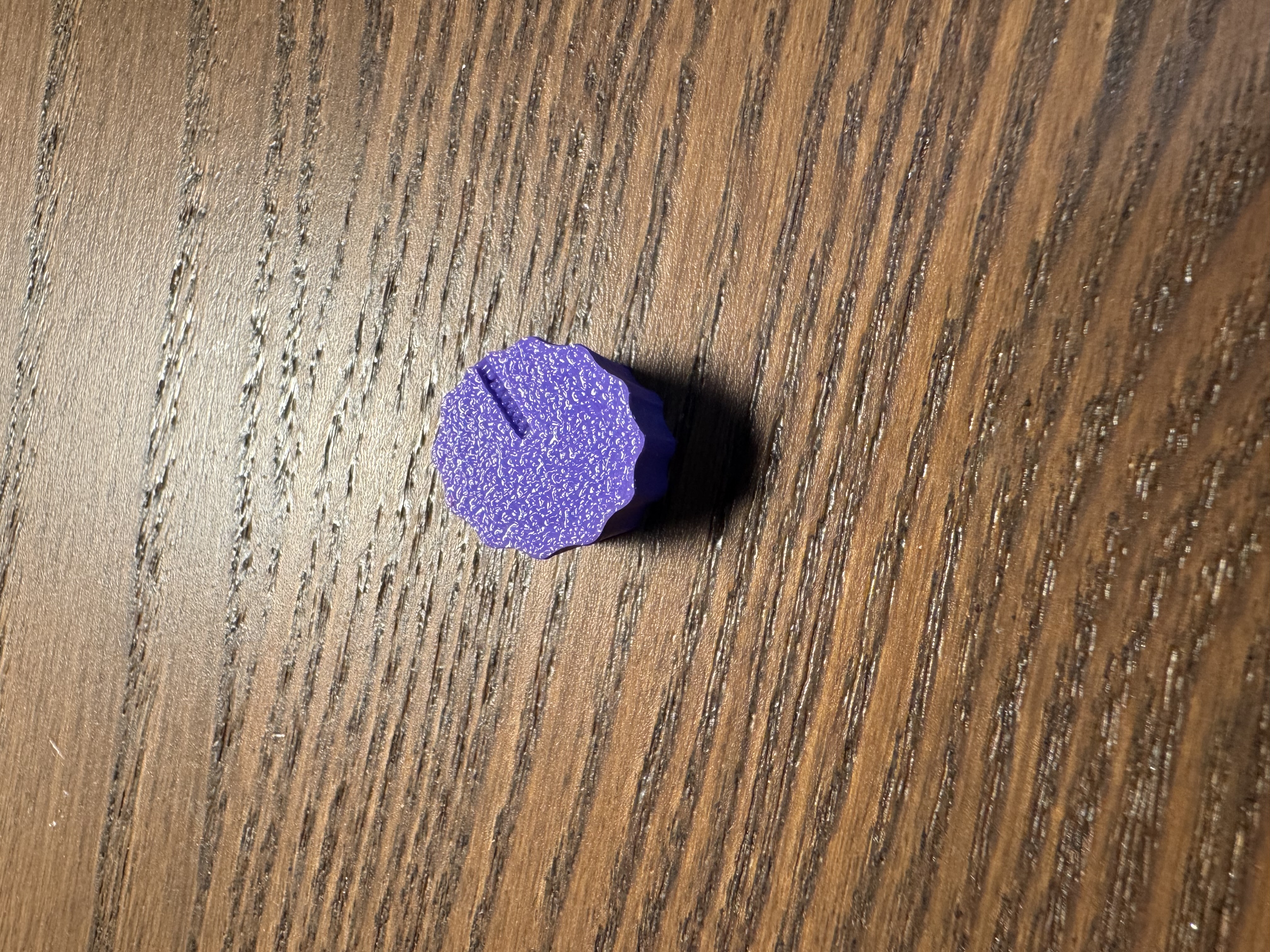

I designed this knob for my guitar pedal builds, though it should fit any ¼" (6.35mm) potentiometer shaft. Specifically, I designed this to fit these poteiometers:
https://stompboxparts.com/pots/16mm-potentiometer-short-pcb-leg/

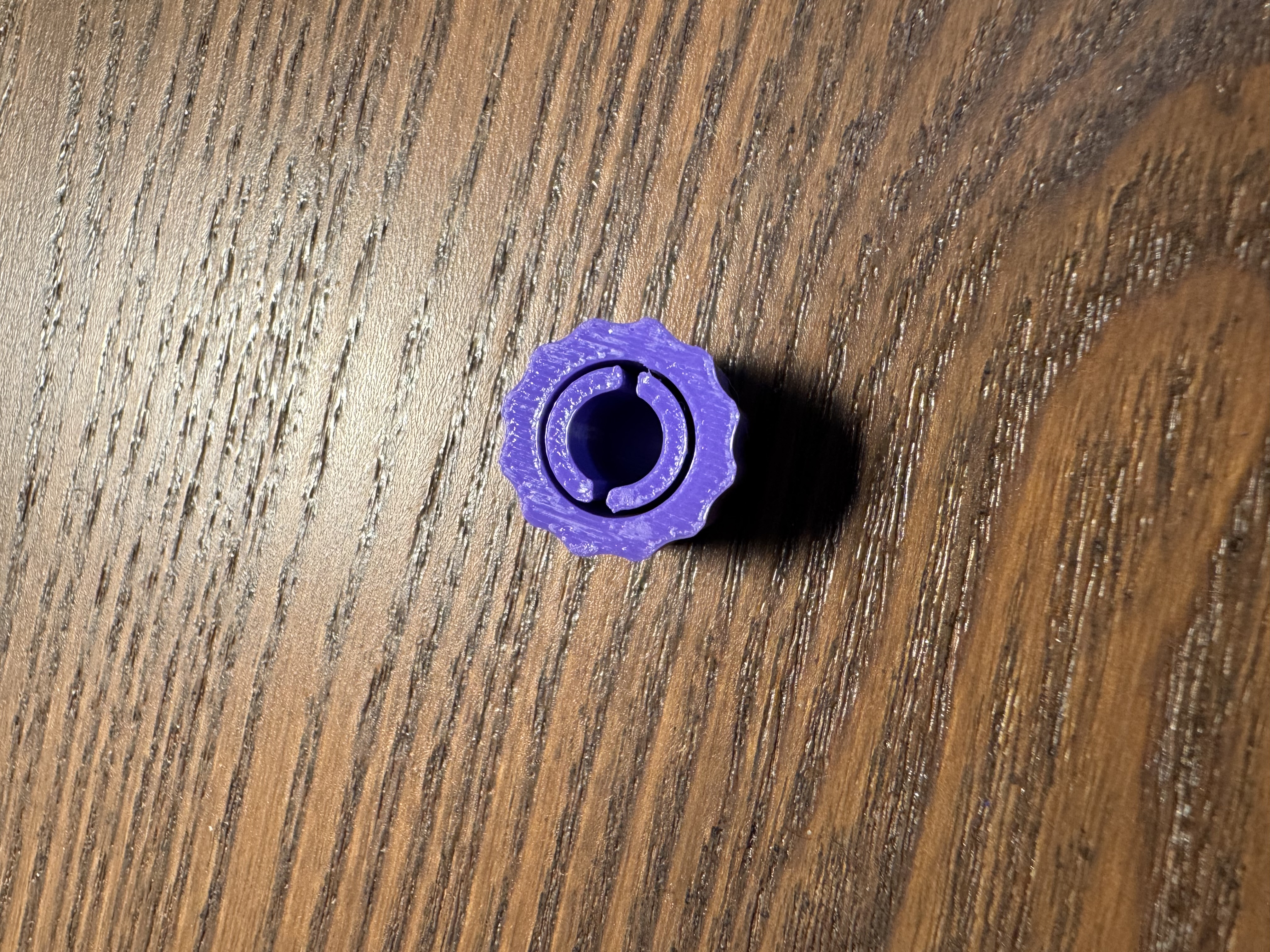

I designed to fit the poteiometer shaft pretty tightly (no added tolerance), so I added a couple “cut outs” to the element that hugs the shaft.

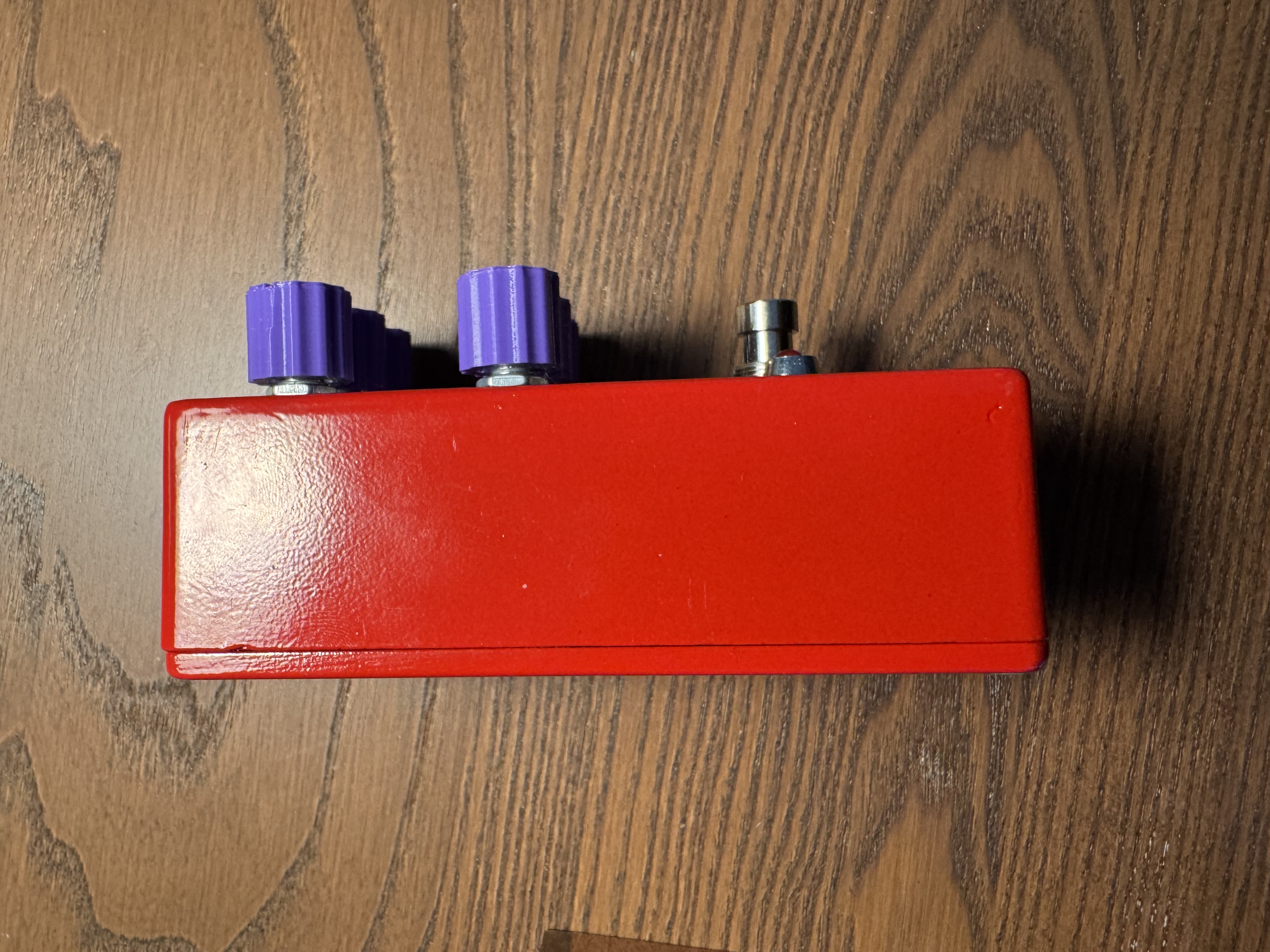

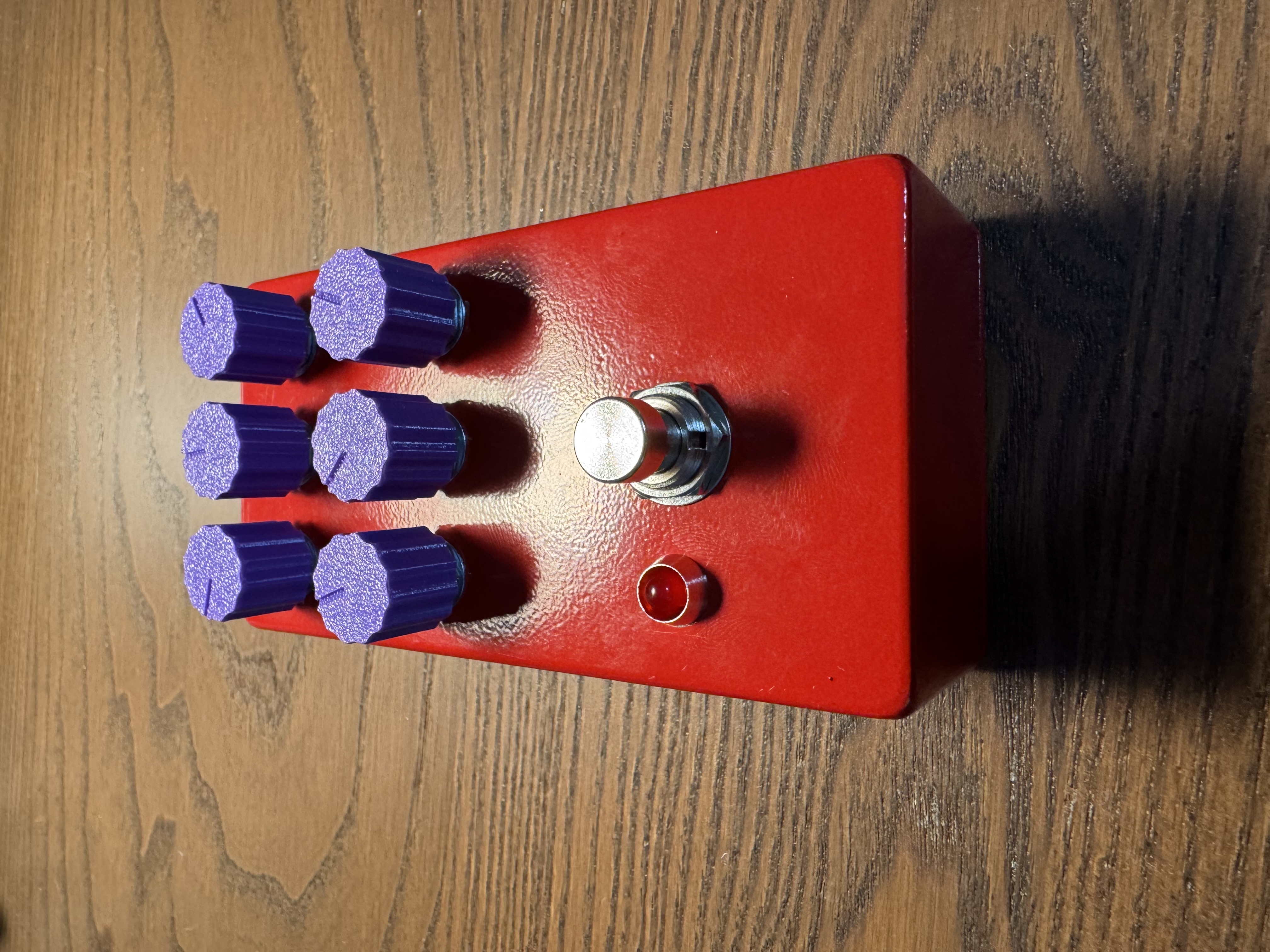

I would probably recommend printing these in a material like PETG - something that has a little flex to it and won't deform like PLA might under stress. The prints shown are in Inland PETG.
There were certain design elements that I went back and forth on:
- Did I want the position indicator to bleed over the side of the knob?
- How deep or long did I want the position indicator to run?
- Did I want any filleting to soften the edges?
- How high should the knob sit?
To circumvent the vast number of variables there could be, I've included the STEP file. Have at it.
