CANTEX Meshtastic Mounting Solution for a CANTEX 4"x4"x2" outdoor electrical box. This is specific to the RAK19007 WisBlock Base Board and DFRobot Solar Power Manager 5V.
Home Depot:
Cantex 4 in. x 4 in. x 2 in. Junction Box R5133705 - The Home Depot
DFRobot:
Solar Power Manager 5V - DFRobot
RAK:
RAK19007: WisBlock Base Board 2nd Gen With USB type C connector & GNSS modules
18650 Battery Holder:
18650 SMD Battery Box SMT Battery Holder
Recommend printing preferably in ABS/ASA if it's going to be outside and subjected to direct sun or freezing temperatures.
Hardware Required:
3M VHB Tape to permanently hold the mount and battery holder to the CANTEX box
4 x M2.5 x 6mm bolts for WisBlock board
4 x M3 x 6mm bolts for the Solar Power Manager

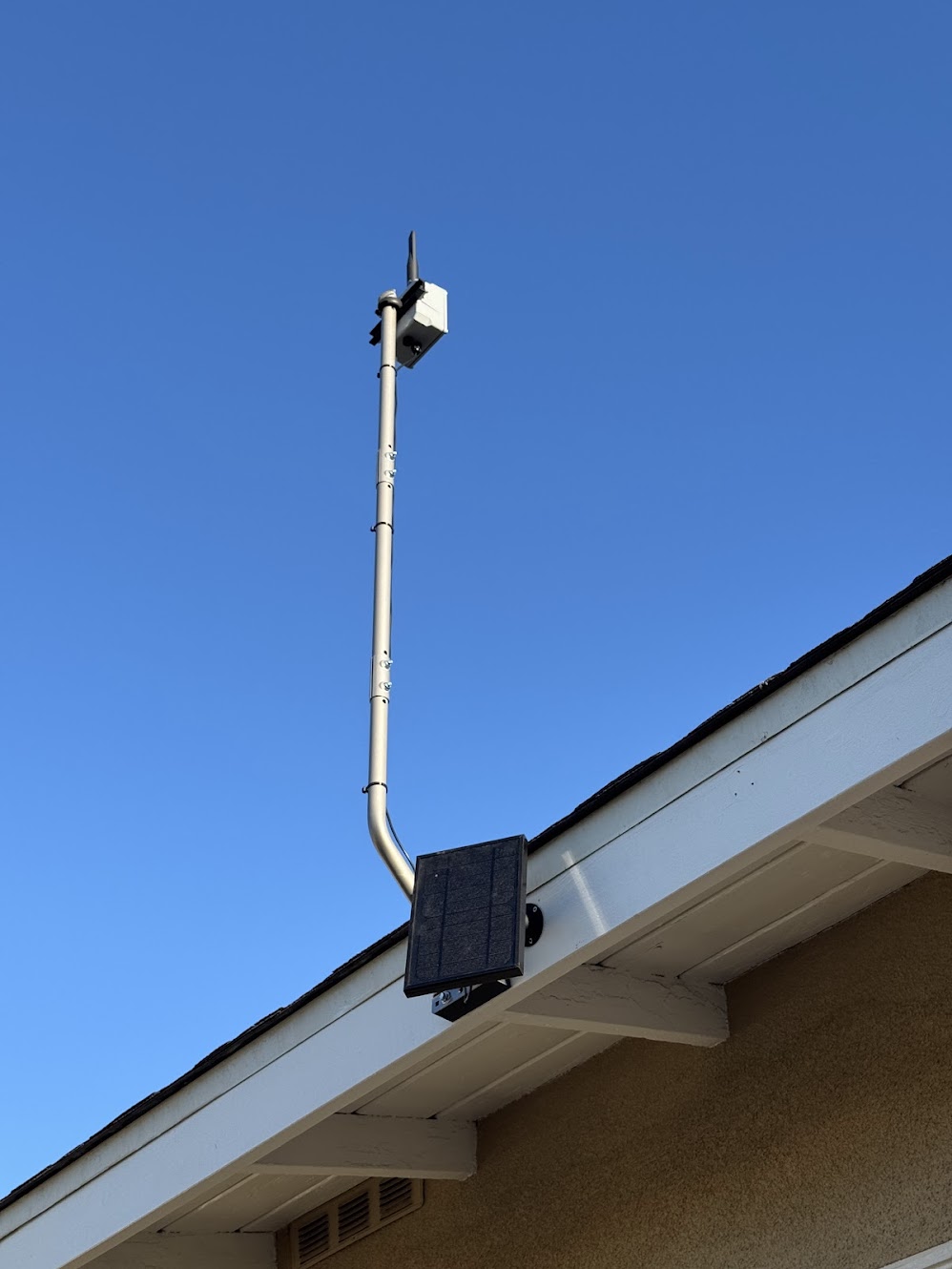

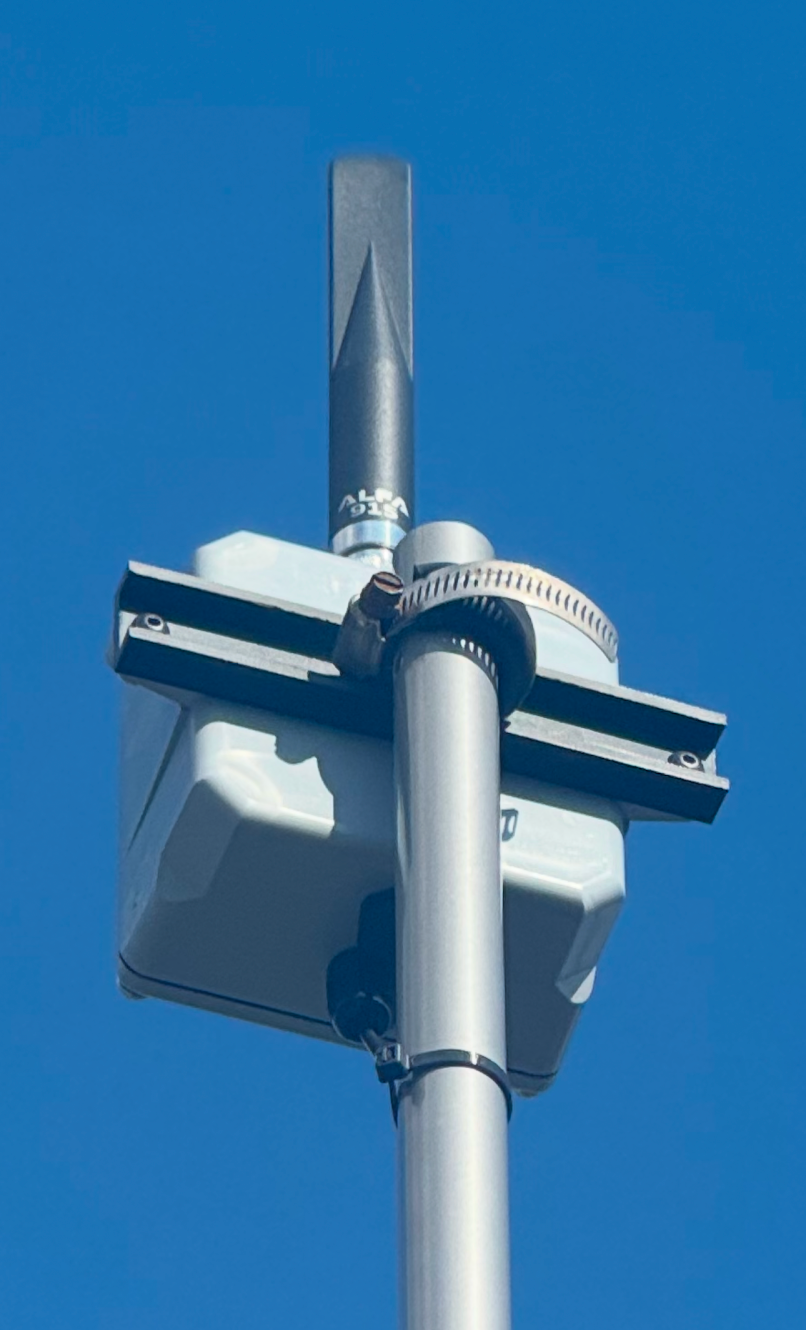

I've also included a 1" pole mount for the CANTEX box. Stainless steel hose clamp can be purchased at your local Home Depot or Lowes.
Cable gland and breather used in my build
