Rigid Bed Mounts for K1 or K1 Max when PRtouch sensors are removed. Option for silicon spacers or Magnets.
- Ocena
- 0 / 5
- Polubienia
- 14
- Pobrania
- 52
- Wydruki
- 0
- Wyświetlenia
- 515
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Printer Parts & Upgrades
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
Rigid Bed Mounts for K1 or K1 Max when PRTtouch sensors are removed and Cartgrapher 3D or other eddy sensor or touch sensor on tool head is used.

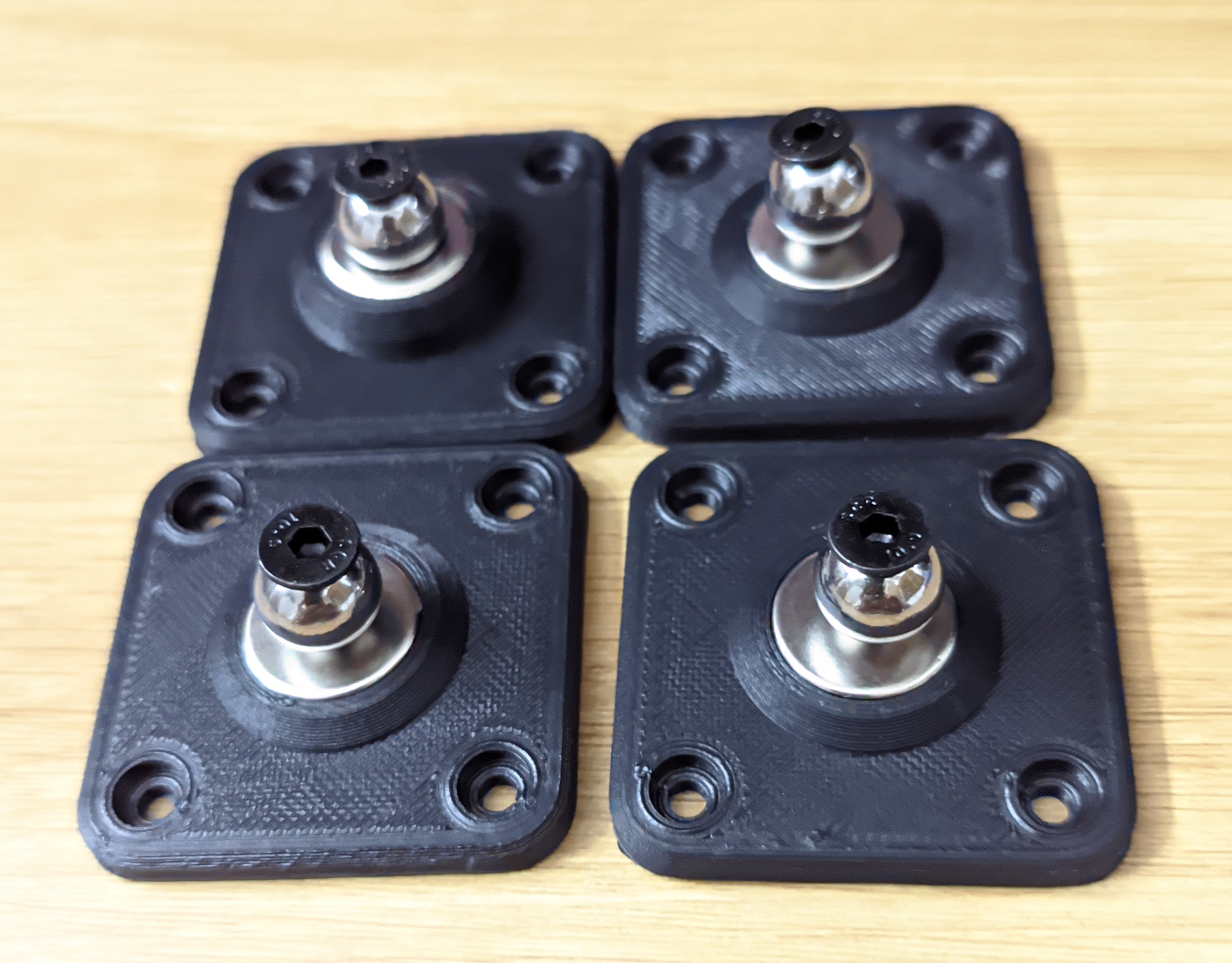

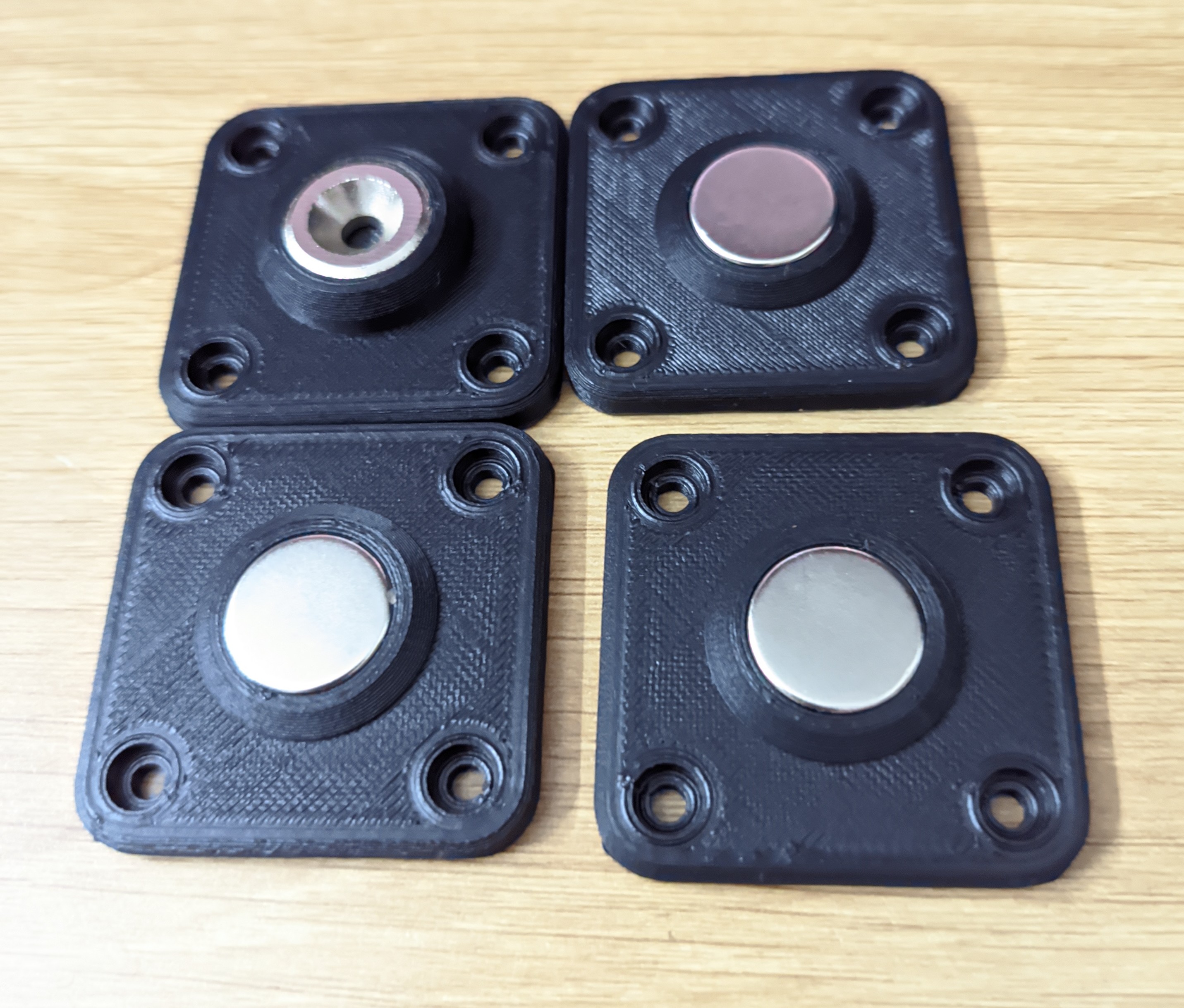

Option for silicon spacers or Magnets with 10mm Kossel Steel Balls M4.
Magnetic Mounts should reduce bed warping as the heated bed can expand and contract horizontally as it heats and cools. Having fixed mount with screws causes it to bend up or down as it can not expand horizontally. Have tested for many months with no issues.
Parametric Design using OpenSCAD.
STL's are only examples, edit with OpenSCAD to match you needs.

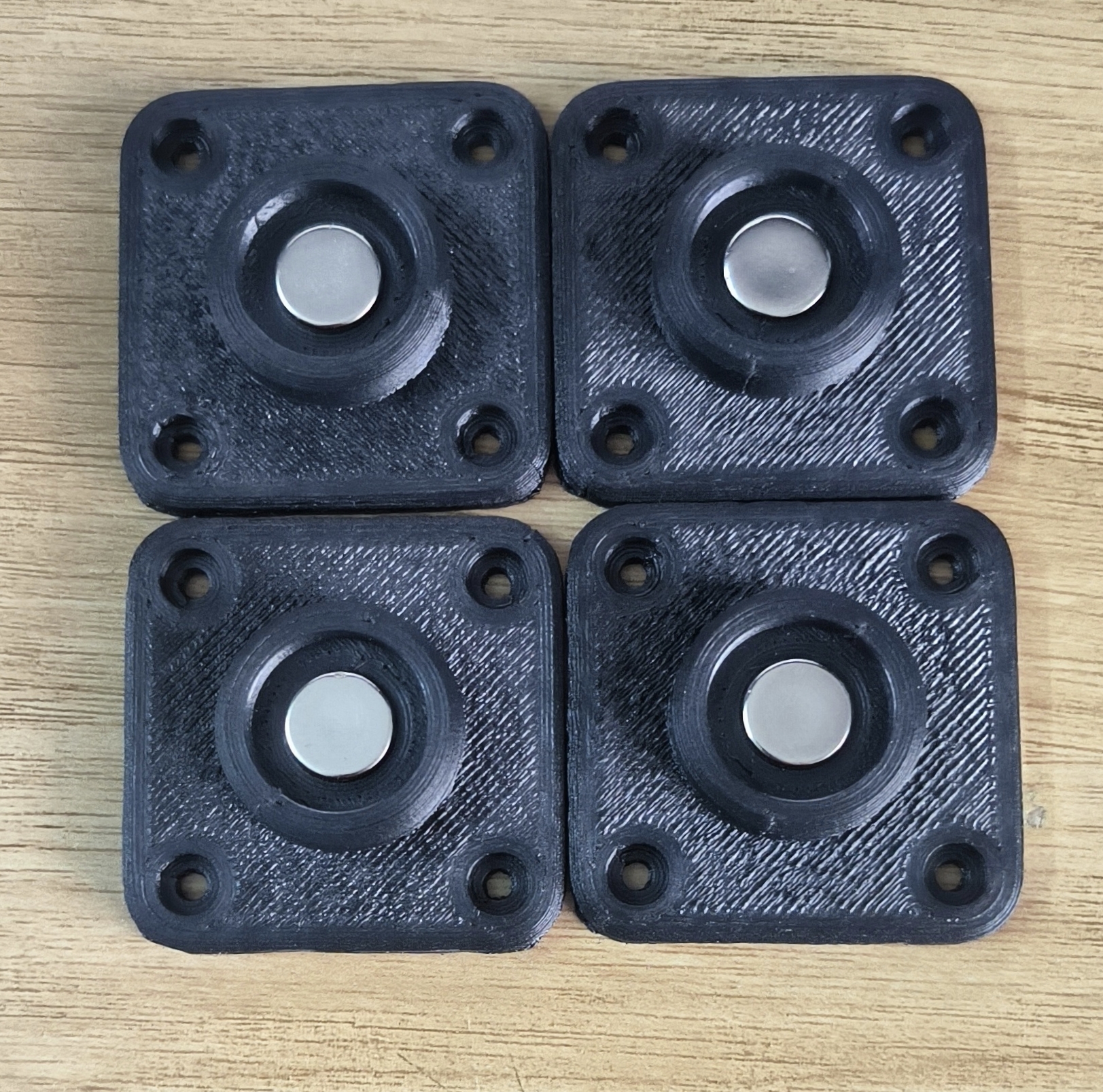

STL for magnetic show common sizes of magnet sold as 15mm x 5mm or 10mm x 5mm with guard rail.
(actual sizes may be different and should be measured with calipers when designing hole size)
