A remix of Dan Malm's universal rack shelf builder - https://github.com/wildegnux/universal-rack-shelf
This audio/video patchbay is designed for use with McBig's 10 inch rack - https://www.printables.com/model/427461-10-inch-server-rack - thanks to both of them.

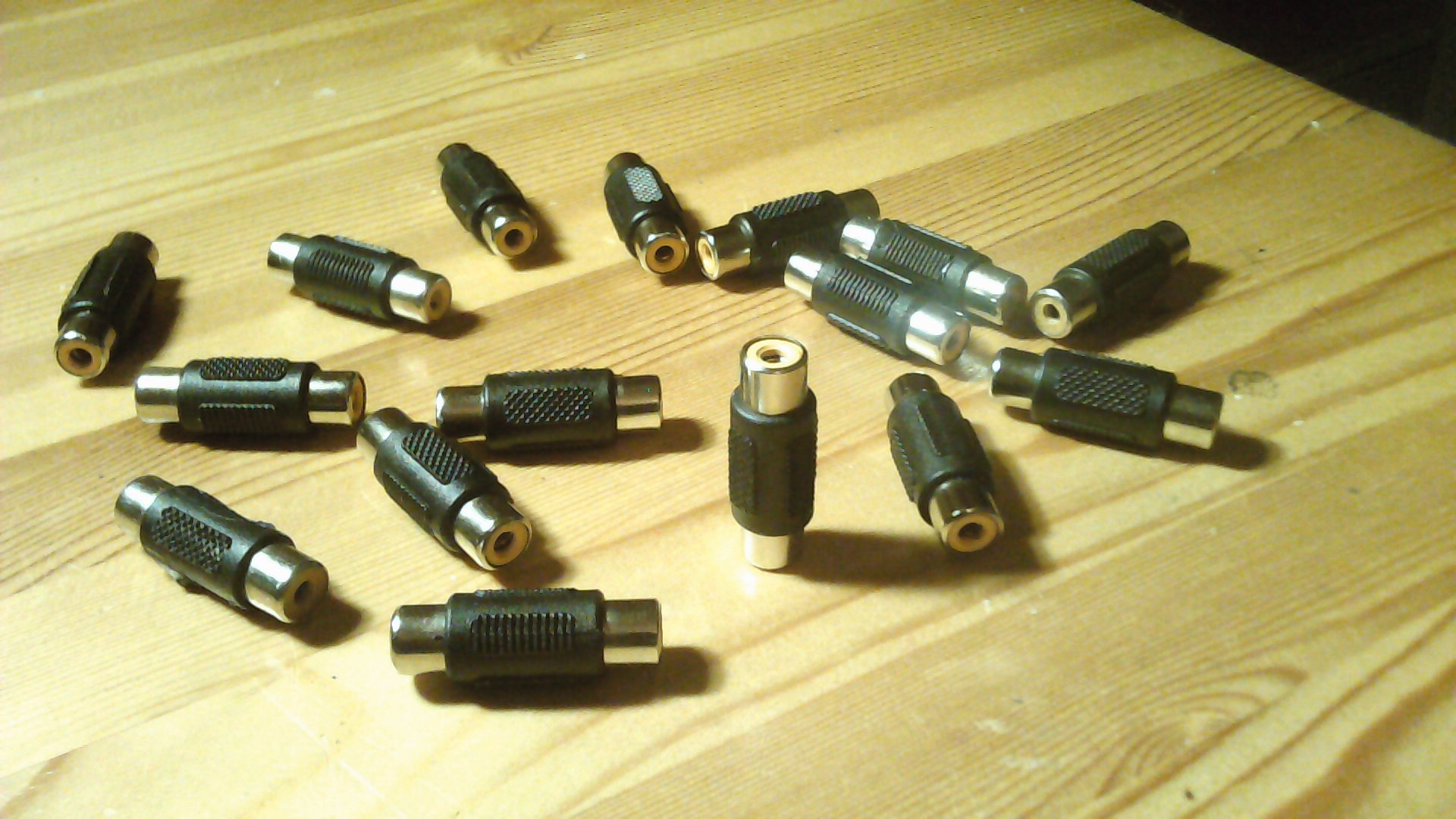

This holds 16 RCA couplers like this - https://www.ebay.co.uk/itm/192928693130 - so no soldering is needed. :)
No special print settings. I used Jayo recycled black PLA+. The front is rotated to fit a 25x20 printbed.

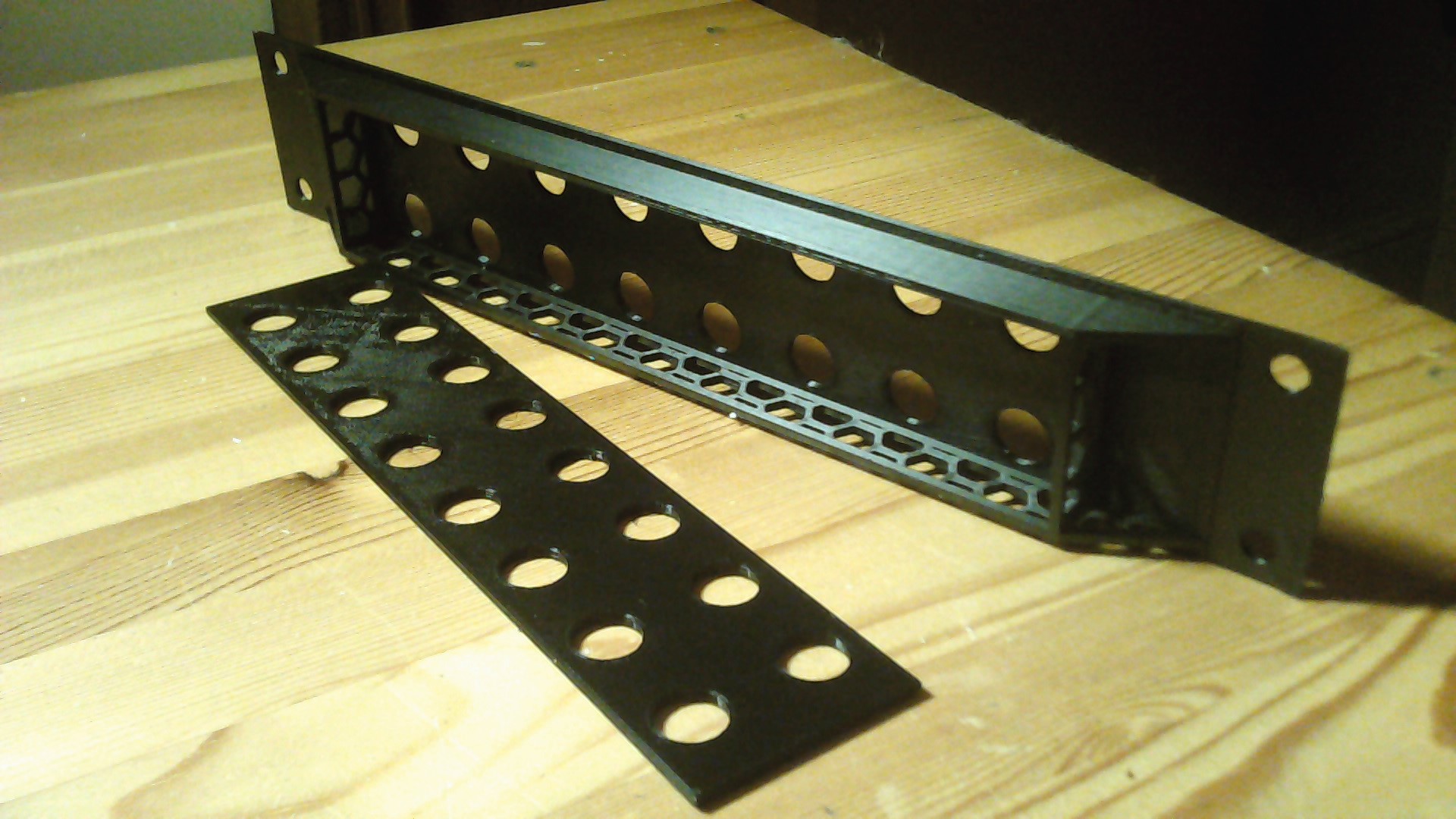

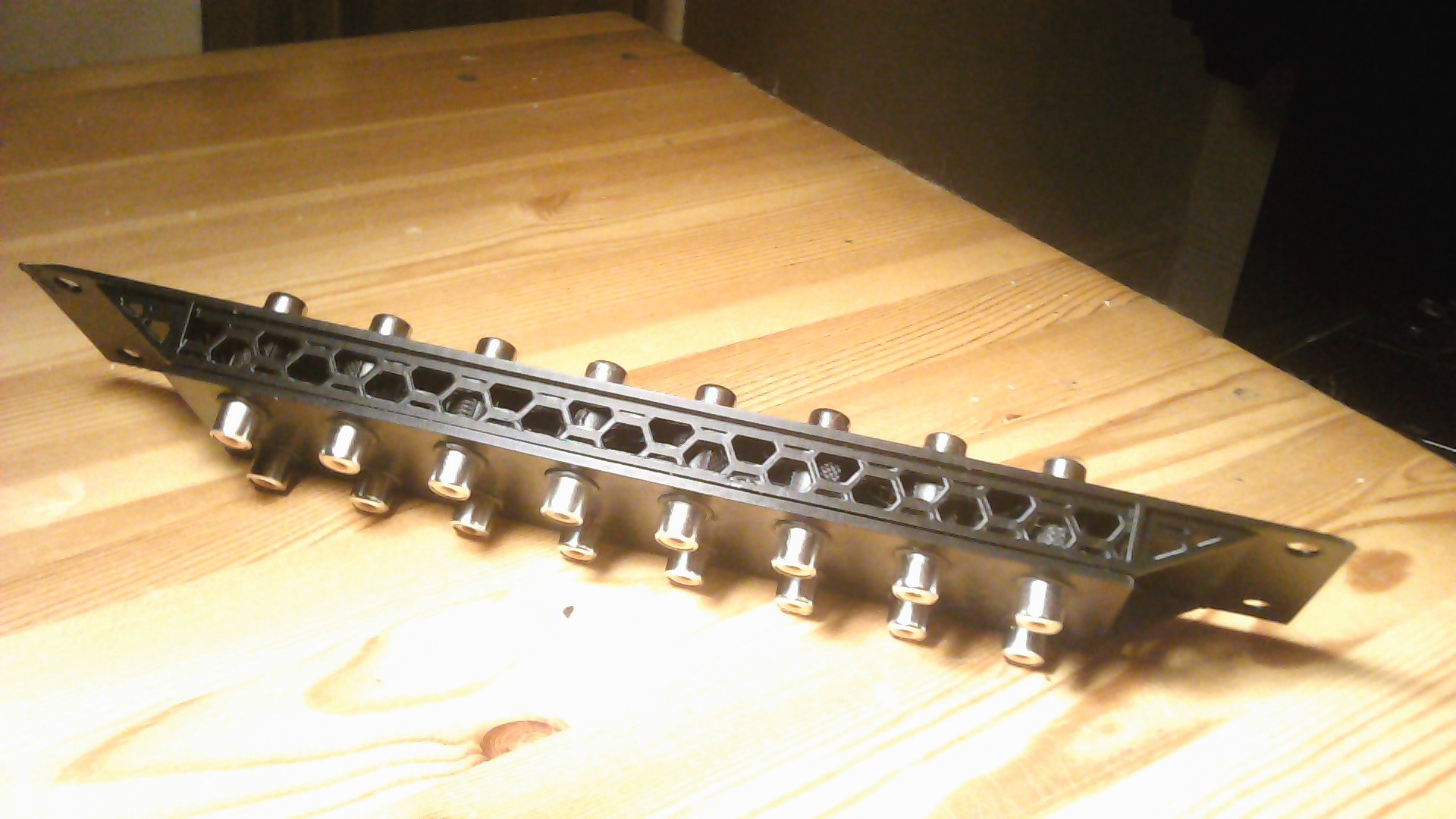

To assemble, press the couplers into the front part, then press on the back part. It's a very tight fit, but ensure the ‘shoulders’ of the couplers fit through the parts.
For patching, it's cheapest to get 15-cm triple RCA cables and separate them - https://www.ebay.co.uk/itm/351766769308
Hope someone finds this useful.
