BlueRetro is an open source project that allows you to use modern Bluetooth based controllers on retro consoles. Find out more at the Github and Hackaday sites.

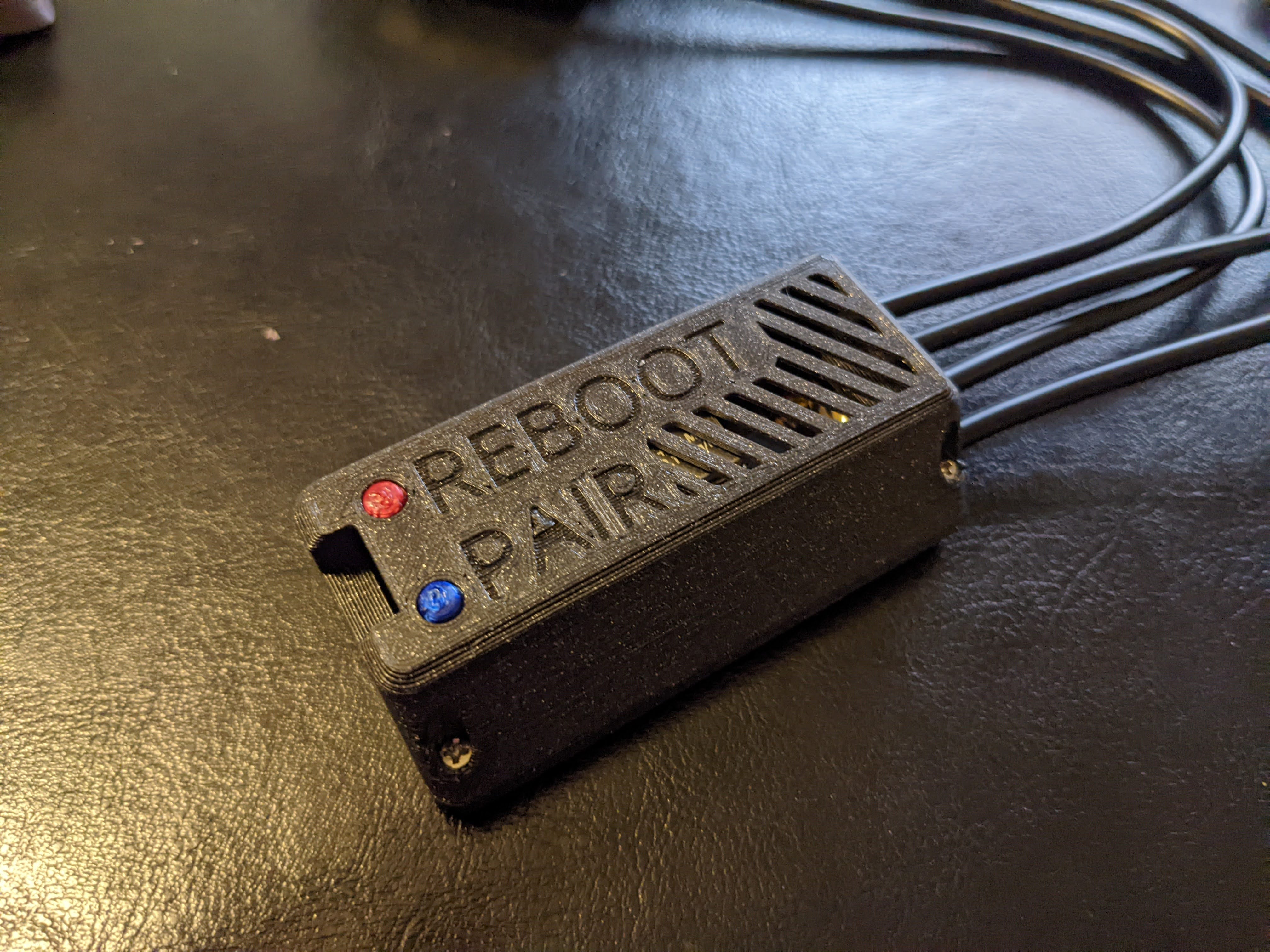

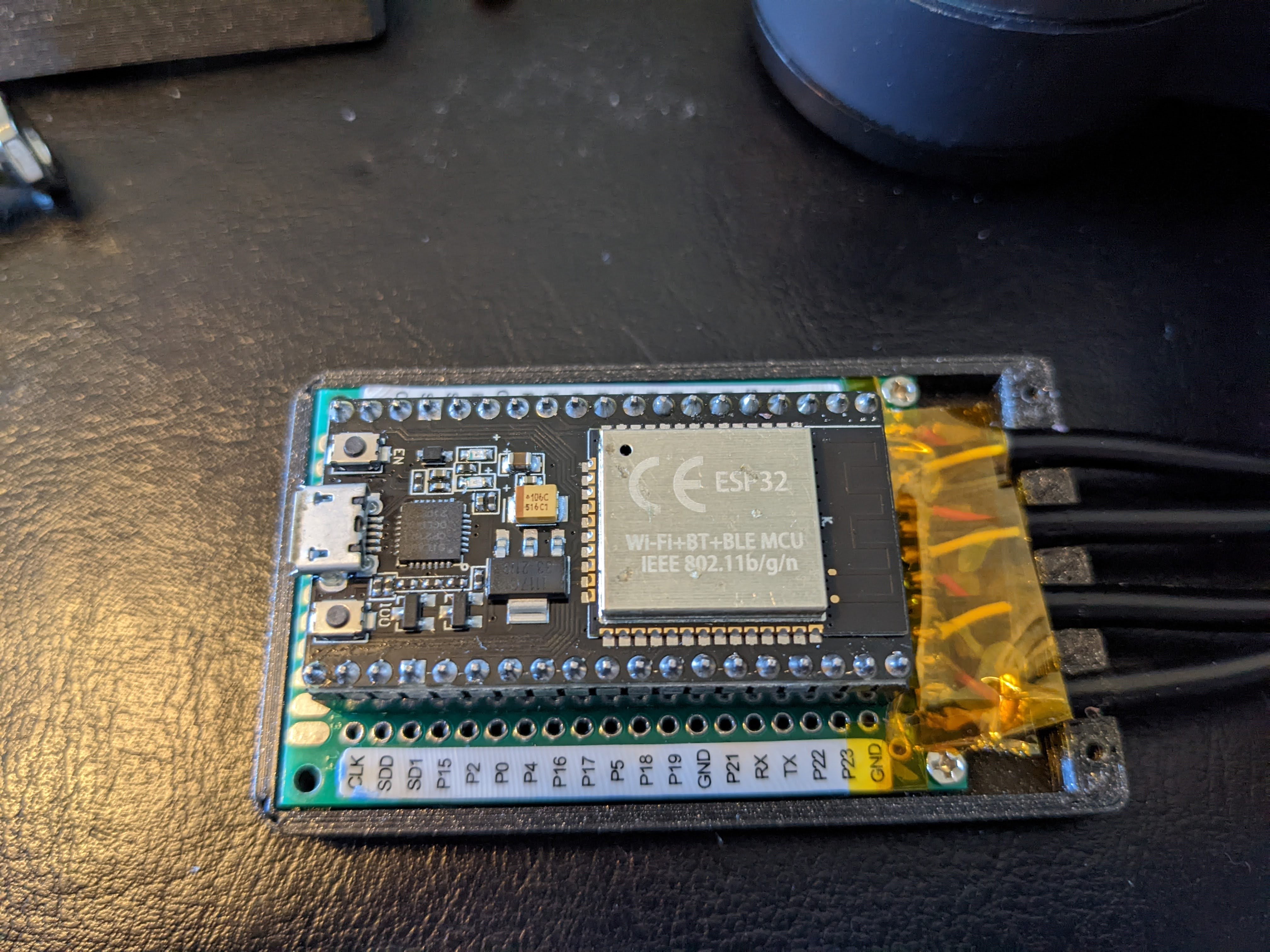

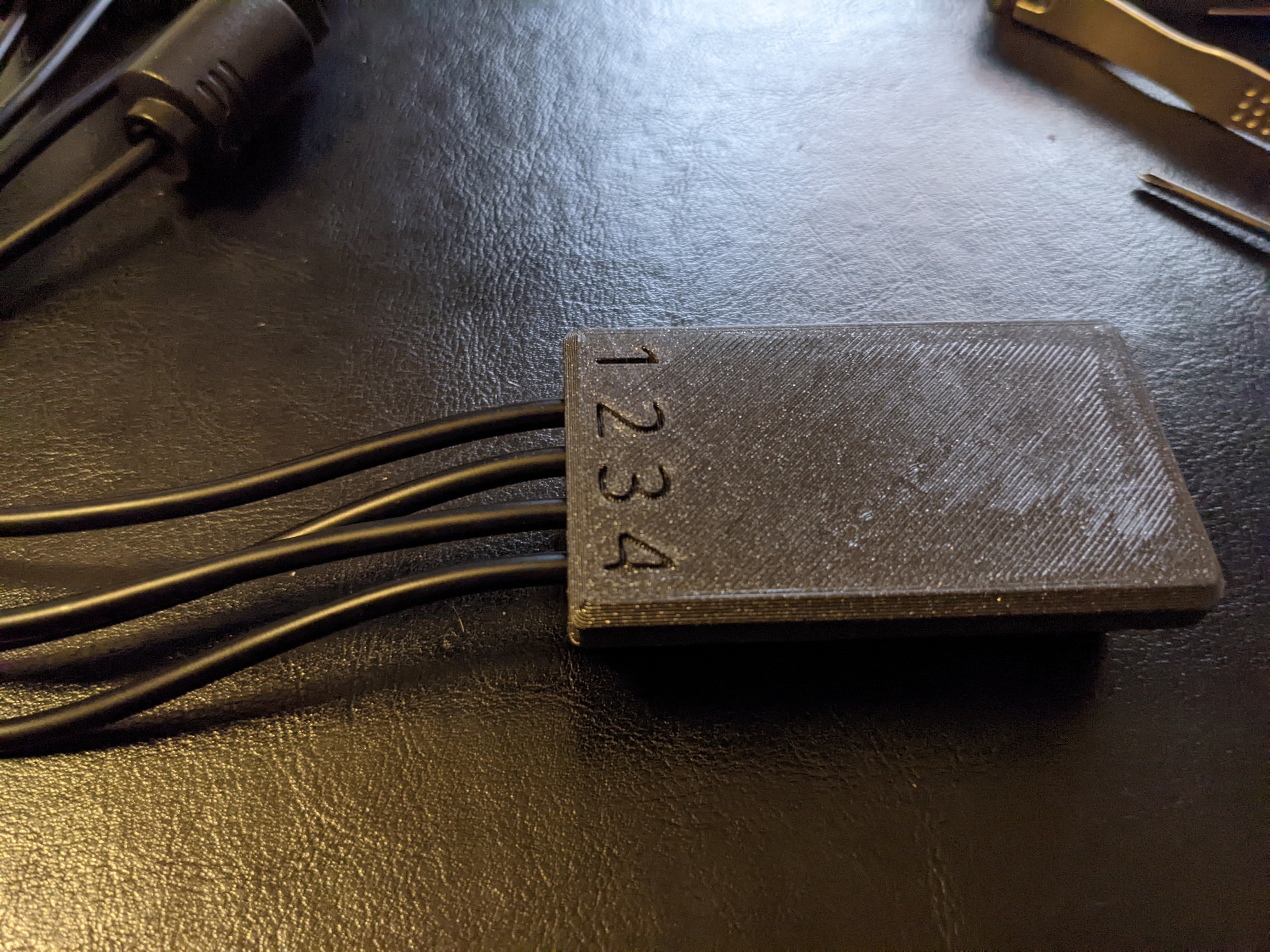

This case will hold a BlueRetro build using a ESP32 mounted on a 60x40mm prototype PCB. Through holes provide strain relief for up to four controller cables with a diameter of 4mm.
Mine is built and tested with N64 controller extension cables, but any cable with a 4mm diameter will work. Larger cables will require a remix or drilling out of the strain relief holes. Smaller cables will require a remix or a little material wrapped around the cable as a shim.
Uses 4x 10MM M2 self tapping screws for the case and 2x 5mm M2 screws for the PCB.
Prints with no support, just punch out the sacrificial layer in the holes on the top piece.
