Legami Pen Carousel V2
After some suggestions and overall much likes for the first Legami Pen Carousel, i decided to optimize the whole thing in several ways:
Changes:
- 2x 608 Ball Bearing on top of each other
- Better fitting, smother turning
- Works in both directions

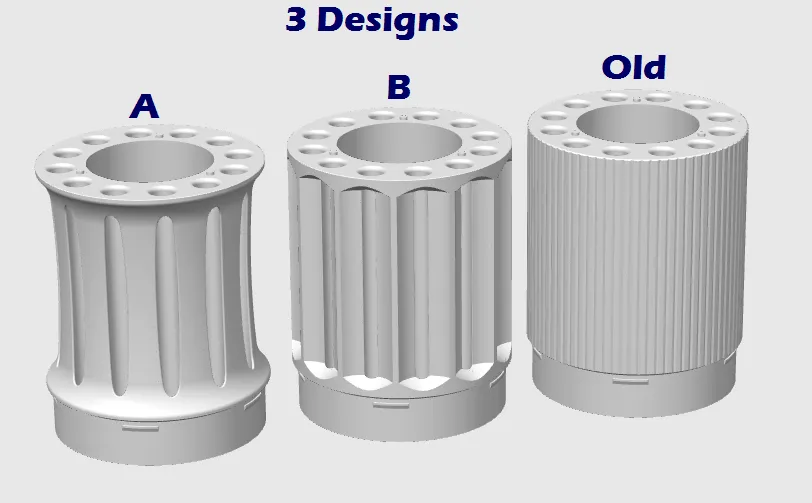

- 3 Designs
- Cutouts for pen shaft (Design A+B)
- Helical stair

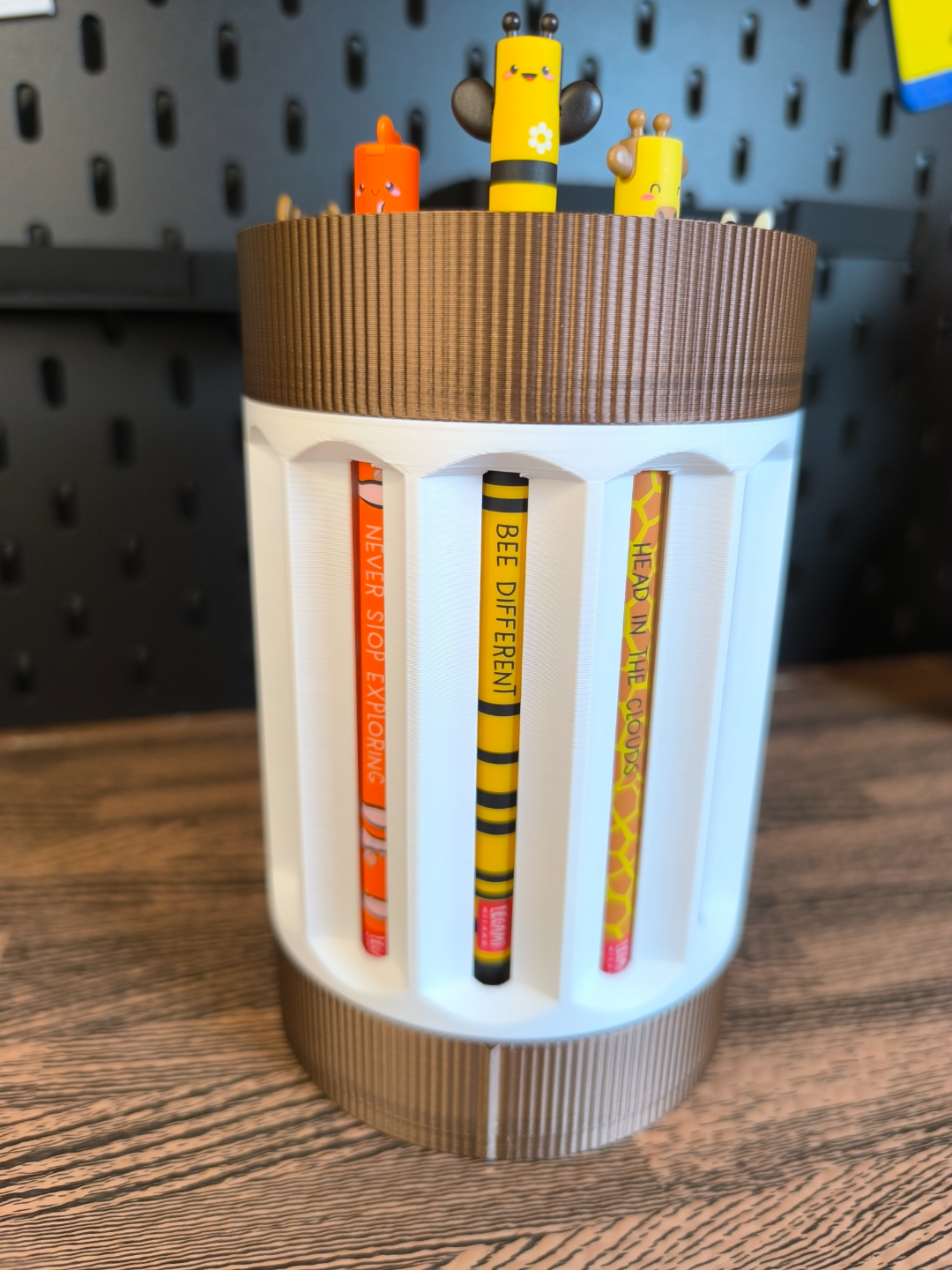

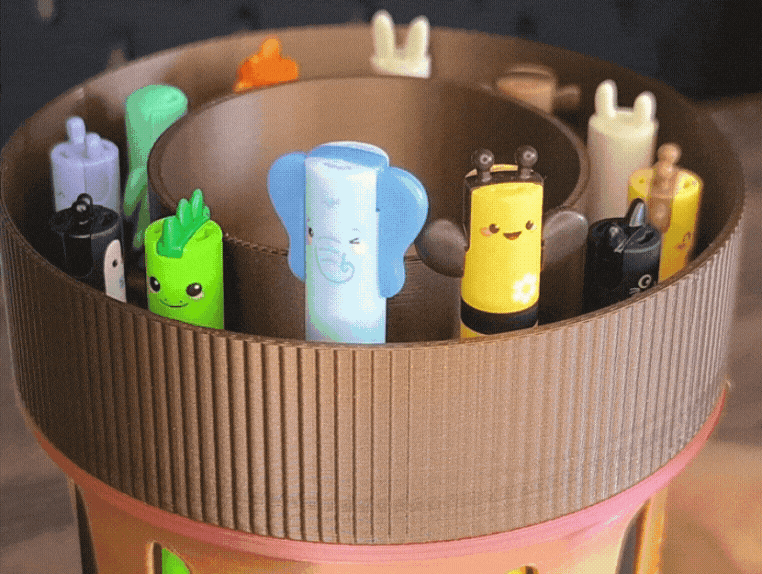

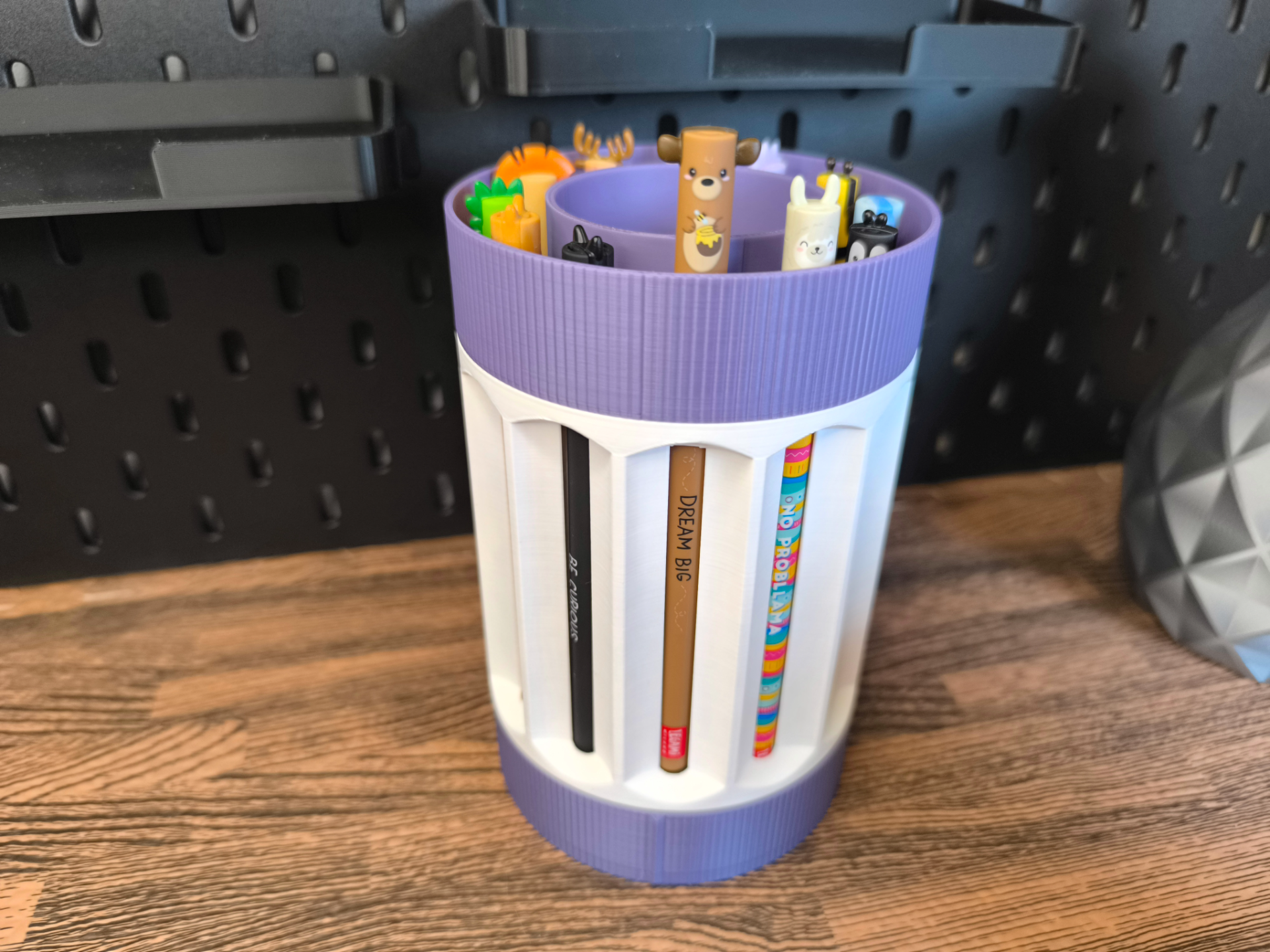

You can insert 12 Legami Milano eraseable pens or similar (Ø <10mm) and turn the carousel. When turning, one pen is pushed upwards and becomes visible.
In the middle is a space for e.G. more pens, ruler and scissors.

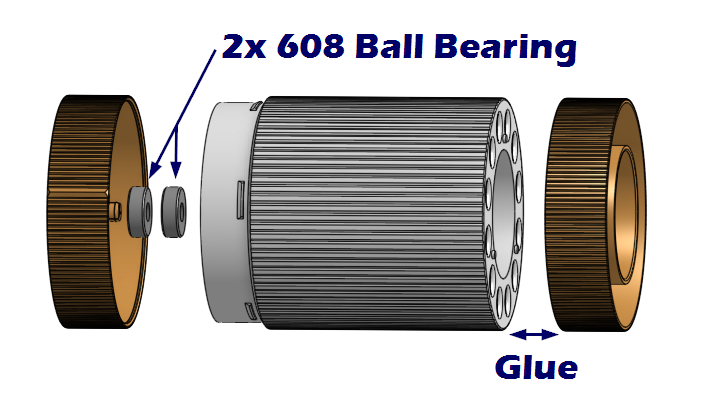

Assembly:
The Carousel needs 3 printed parts and two Ball Bearing size 608, known as Skateboard Bearing.
The Ball Bearing is pressed in and the upper part is glued to the middle section.
You will like it! Happy Printing😃
