Steampunk Ceiling Lamp

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

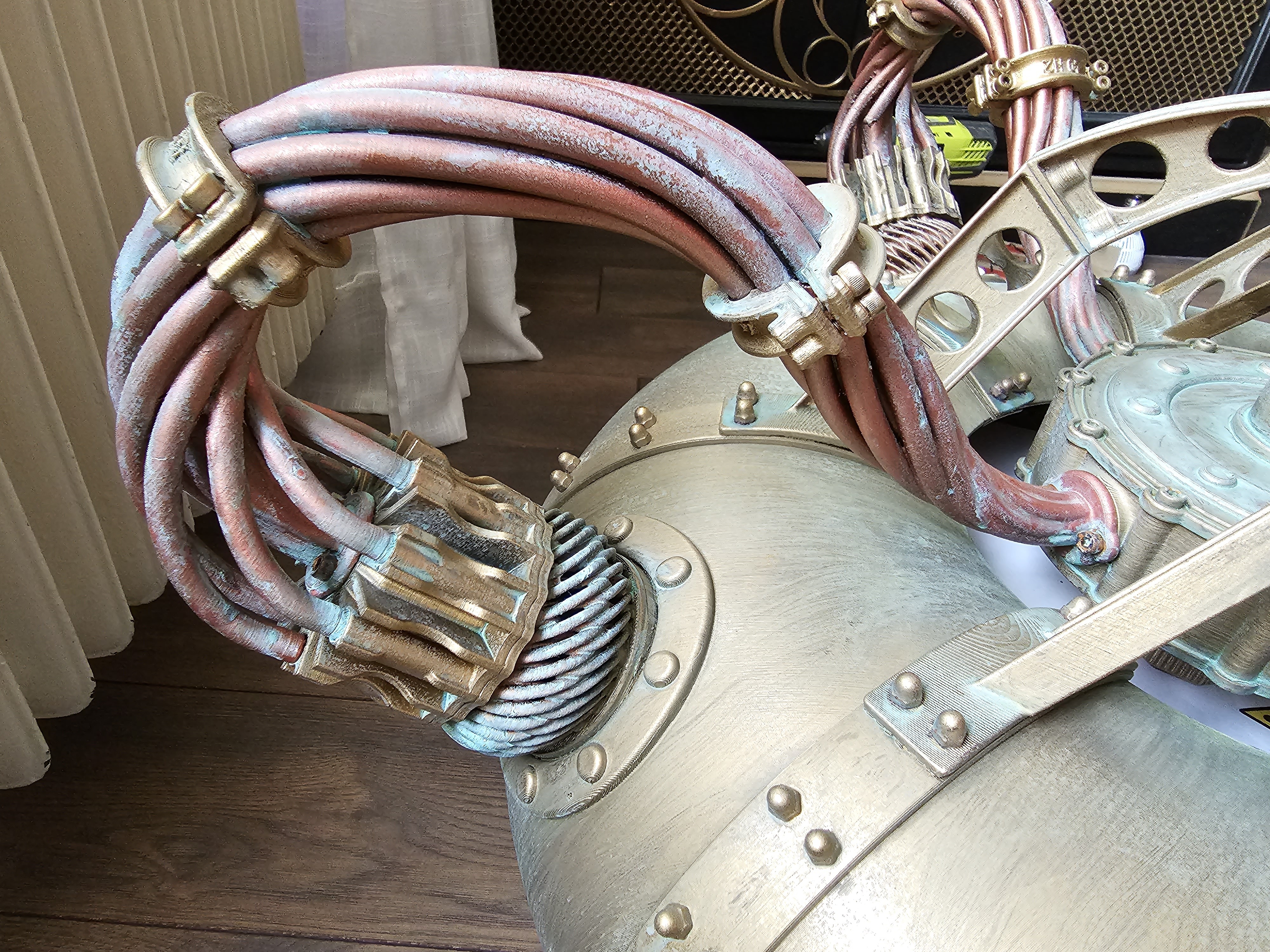

Tried to make the parts use minimum support. The "cables" are the most support heavy pieces.

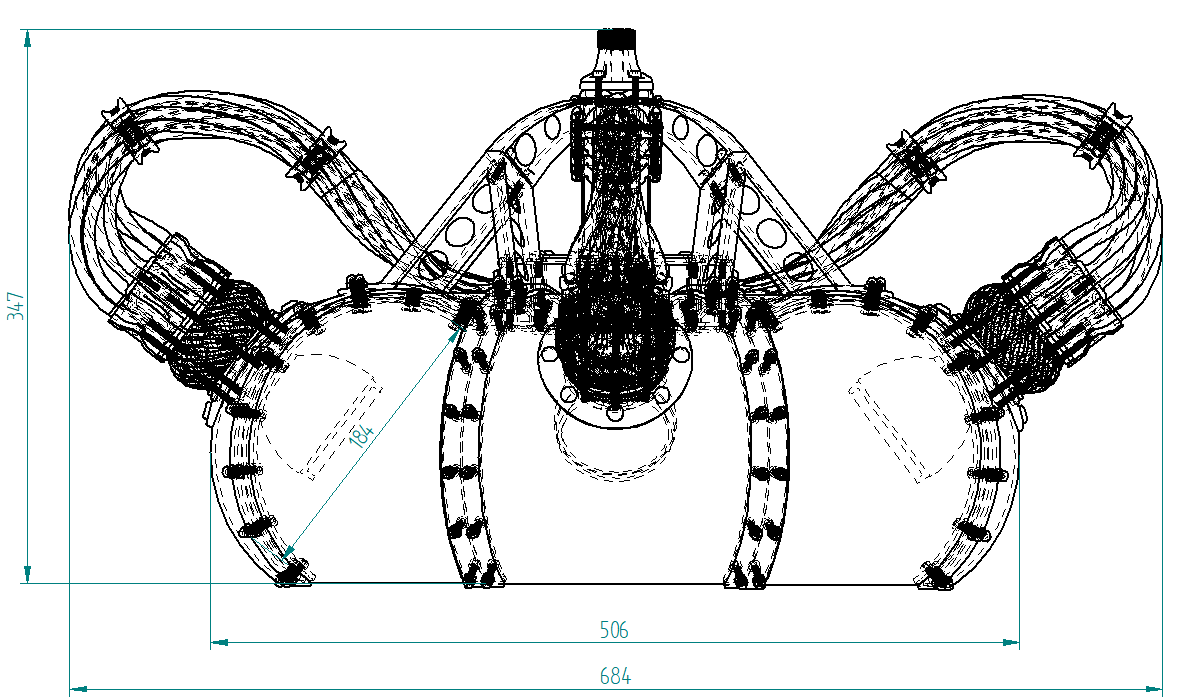

Size Ø506xH347mm. Across the "cables" 684mm

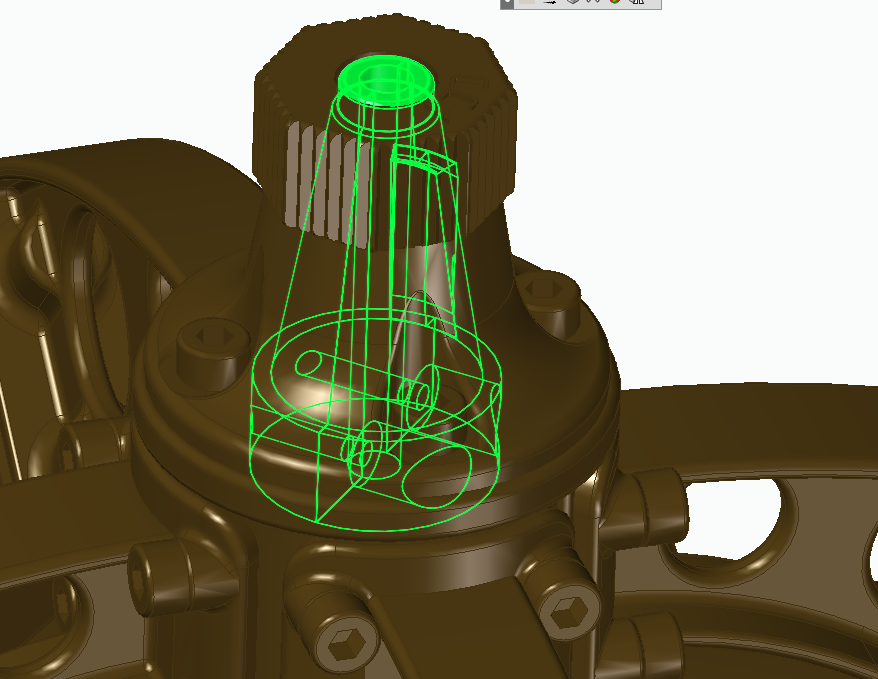

Update: Now includes a cableclamp fitting 5mm cables called P1.

3D Parts needed:

B1 x8

B2 x8

B3 x4

B4 x4

C1 x4

C2 x4

C3 x4

CC1 x1

H1 x4

H2 x4

J1 x1

J2 x1

J3 x1

K1 x4

LH1 x4

LH2 x4
P1 x1

R1 x5

R2 x5

Screws needed:

M4x10 x74

M4x12 x96

M4x16 x82

M4x30 x64

M4 Cap nut x128

Others:

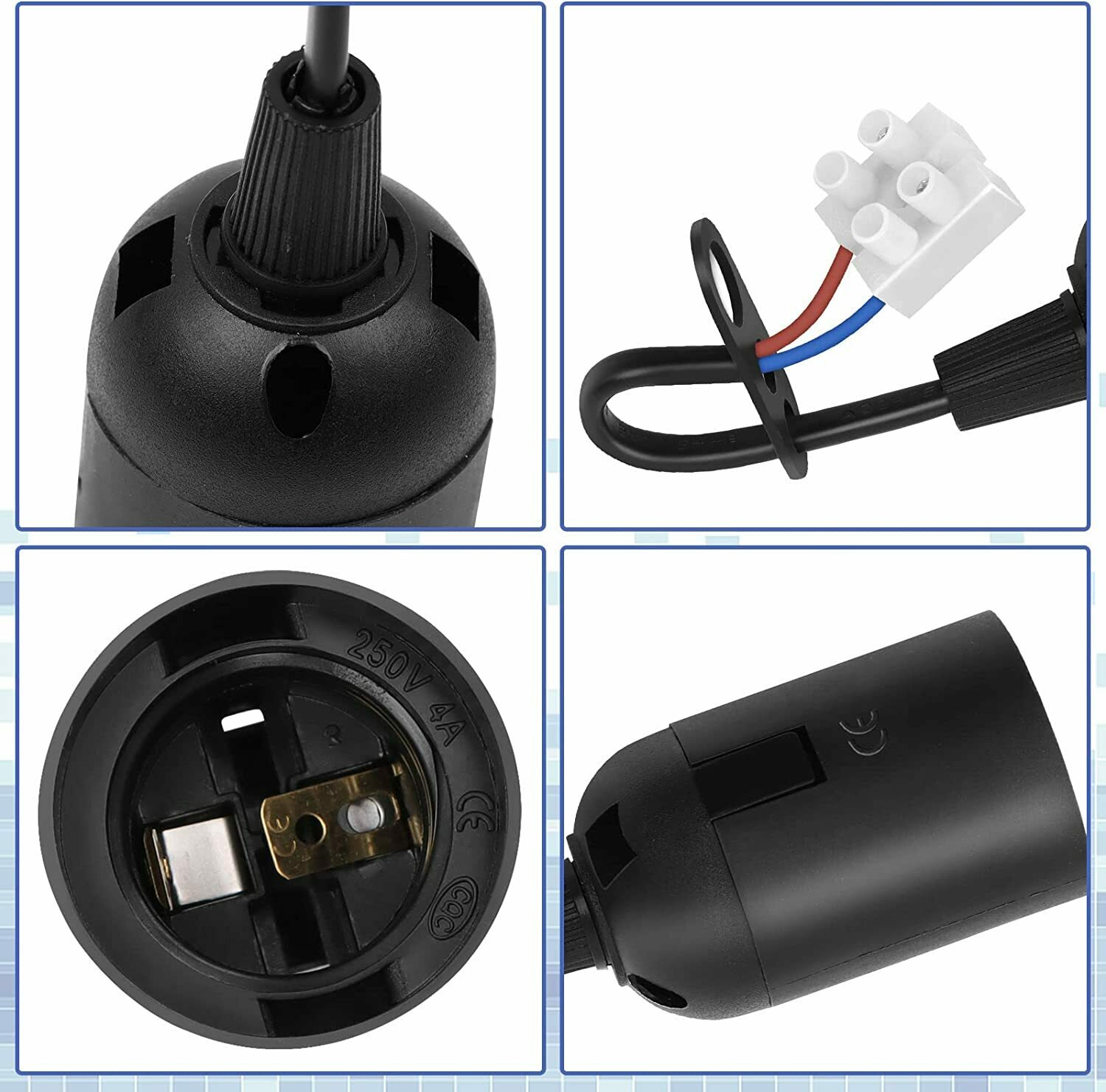

Lamp socket as shown in the picture x4.

Cable connectors.

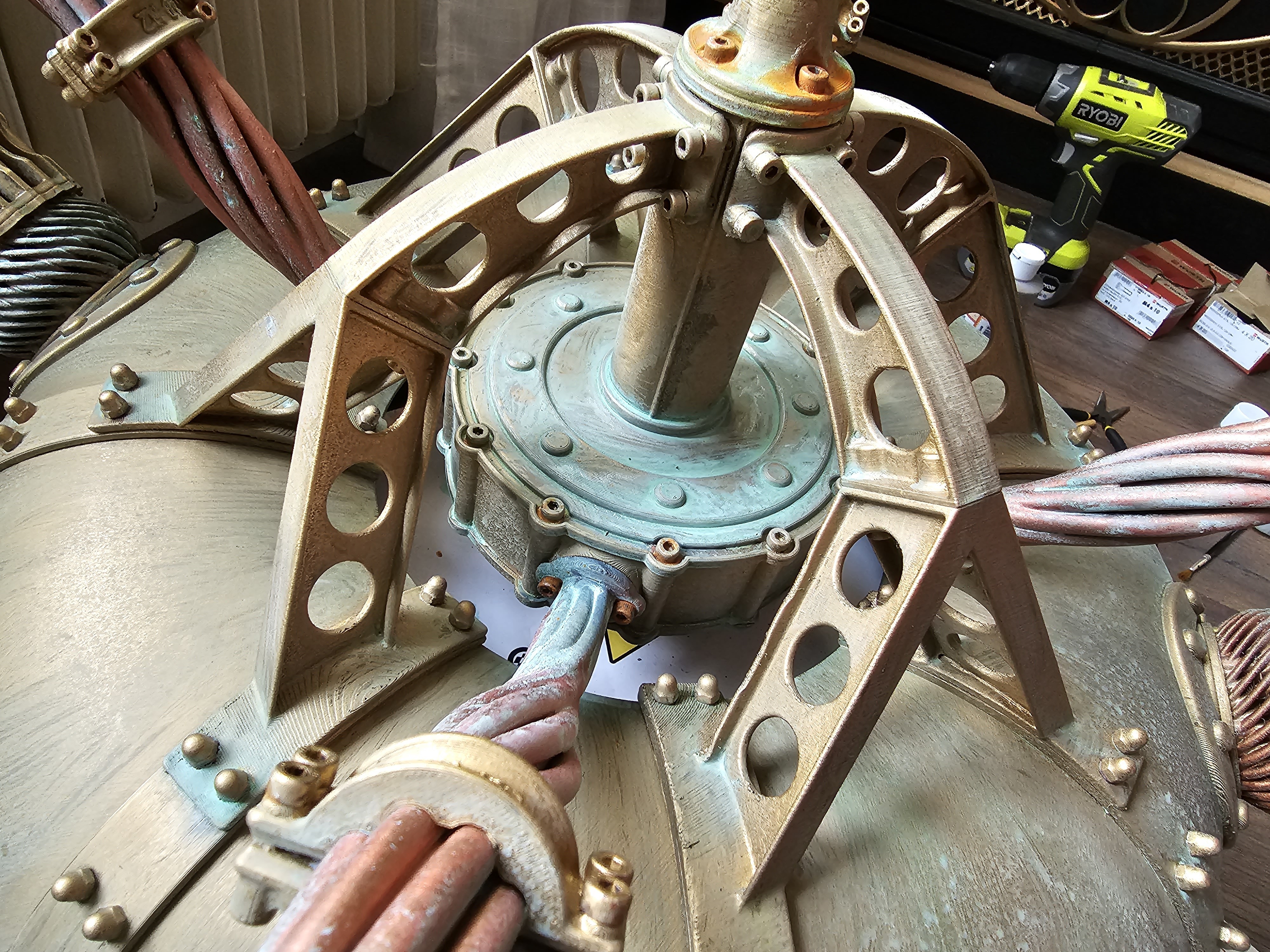

Cableclamp to secure main cable. There are 2 types shown in the pictures that work.

Cables to connect everything in the junction box.

3D printing settings

Printed in PLA
0.2mm on all parts apart from 0.3 R1 & R2 and 0.1mm H1 & H2.
15% infill.
May need a brim on B1, B2 and R2.

Testprinted on Prusa I3 MK3S+
