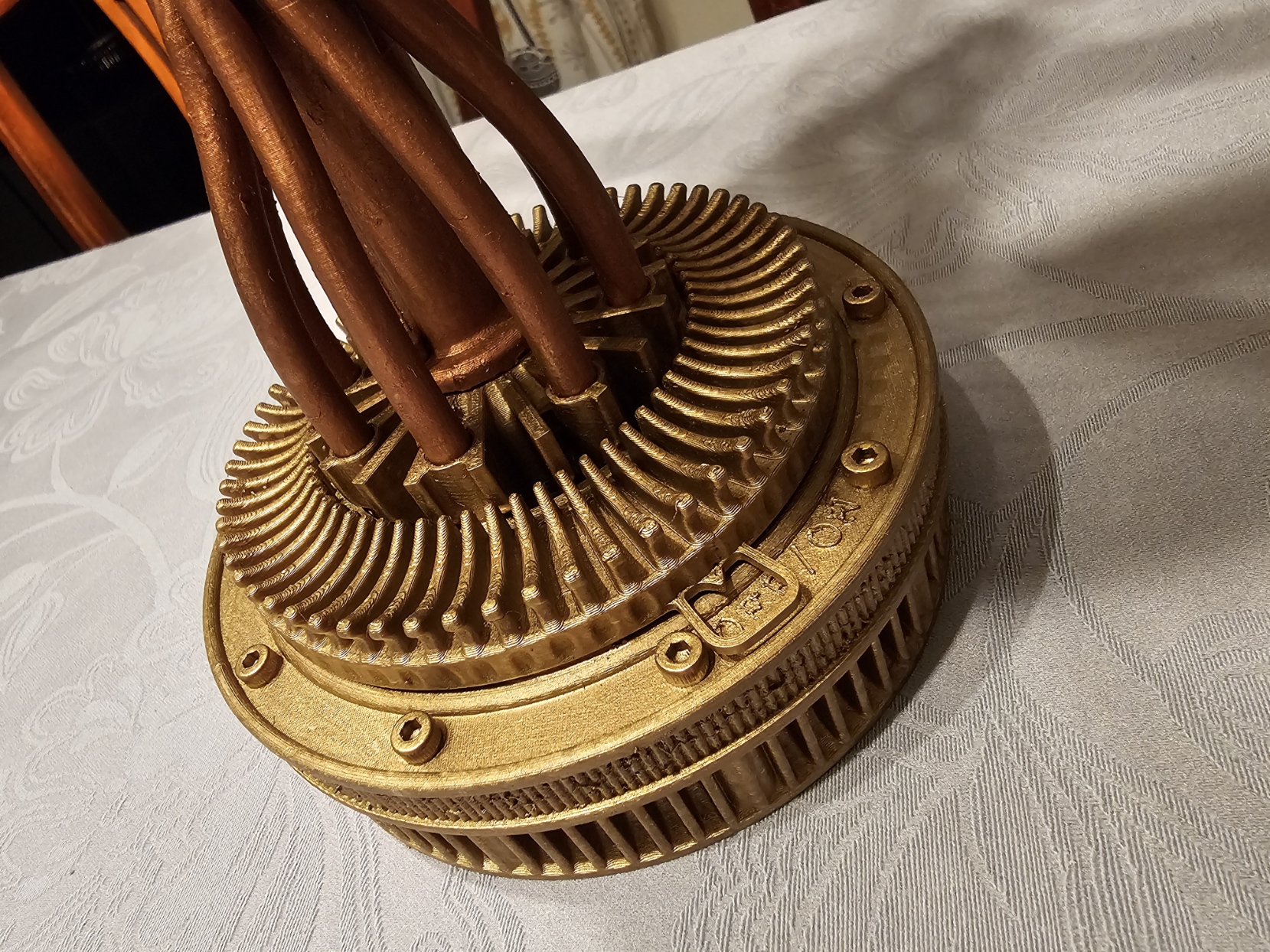

Steampunk Table Lamp
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Electronics
- Licencja
- Standard Digital File License
3D printing settings
Testprinted on a Prusa Mk4+
Only parts needing support is C1 and P1.
Make sure to set P1 supports to "On buildplate only"
I managed to print C1 with supports only going up to the first flange on the under side.
The upper part of C1 has a bigger radius at the connection between the flange and the pipe to help with printing.
Everything is designed to print on a 250x210xH220 build size printer.

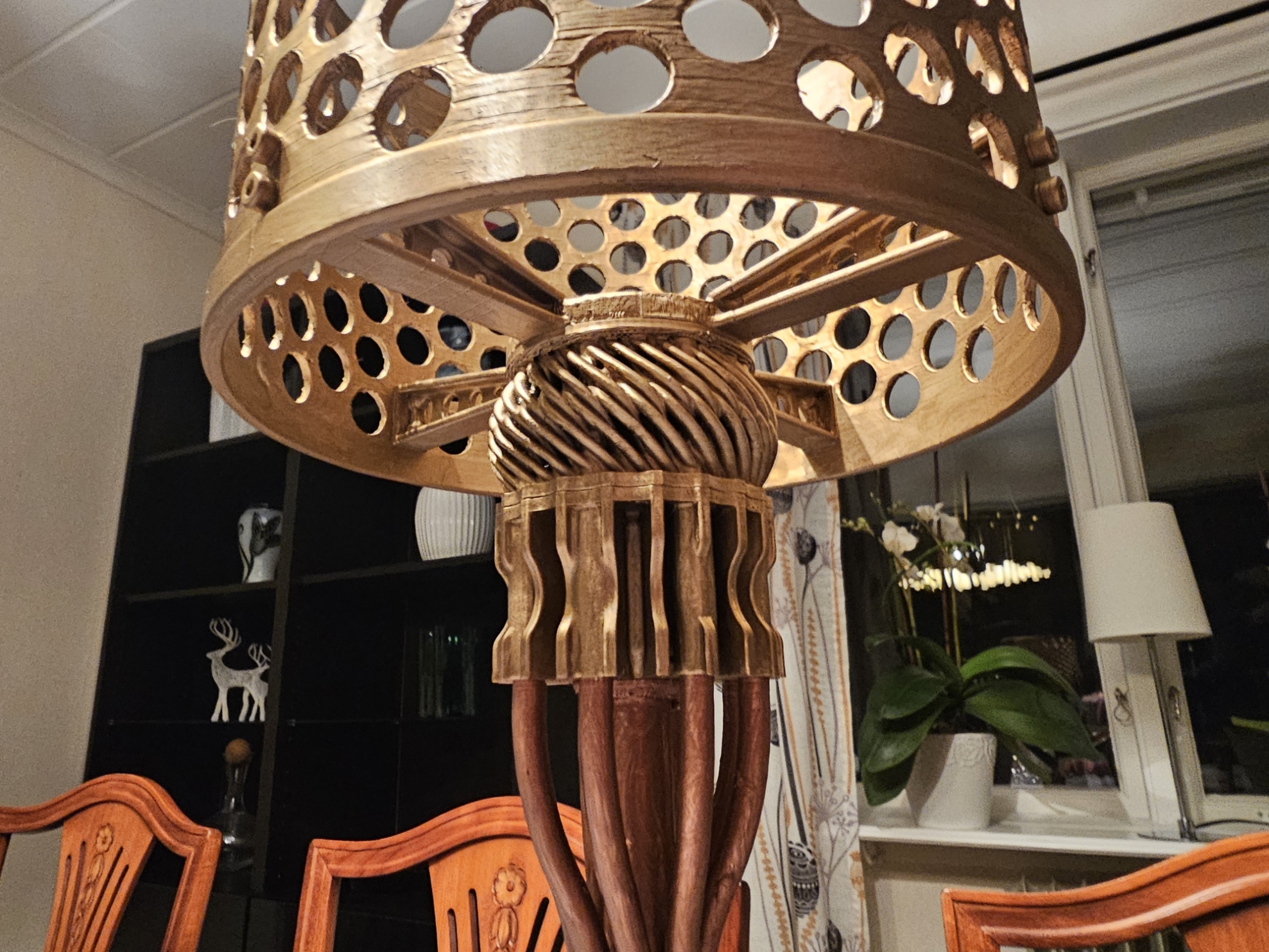

Switch is hidden and the lamp is activated twisting the ring at the bottom of the shaft.
Printed at 0.2 layer height in PETG.

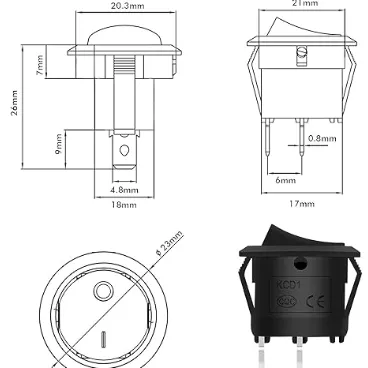

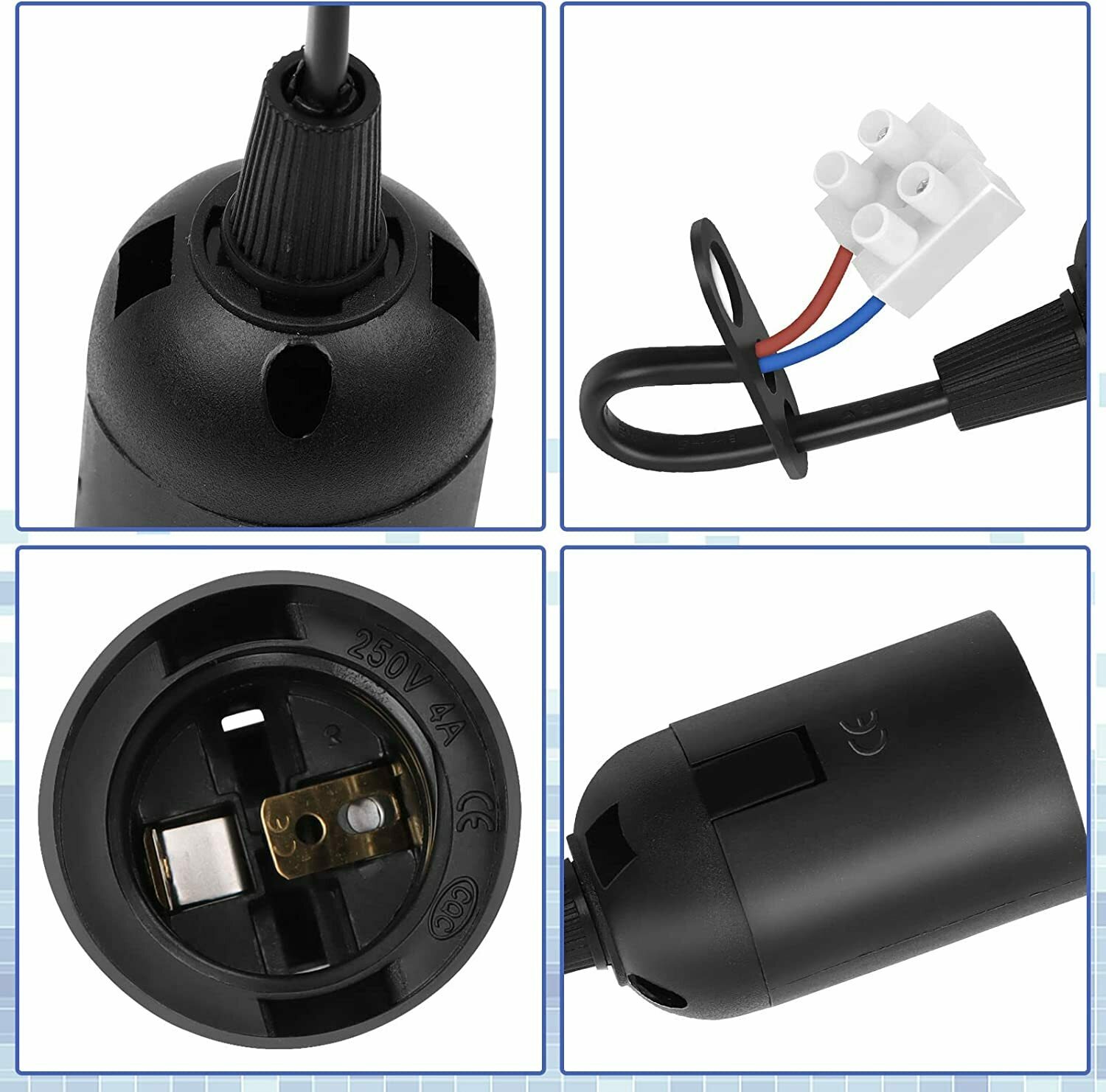

Uses a 21mm rocker switch and 37mm lampsocket.
Everything is assembled with M4x10 and M4x30 bolts.
