Gaudi Lizard keychain (NO AMS, NO GLUE)

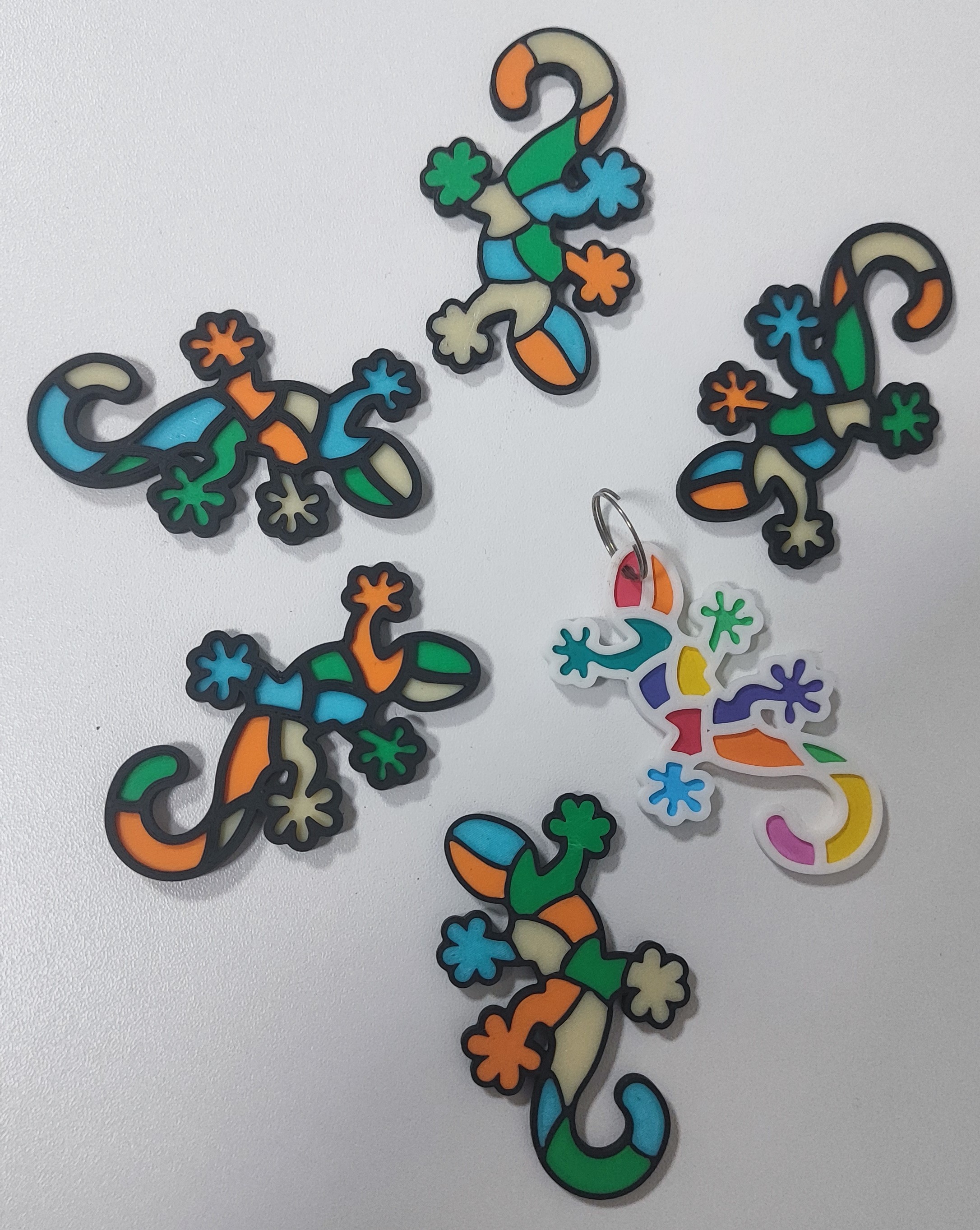

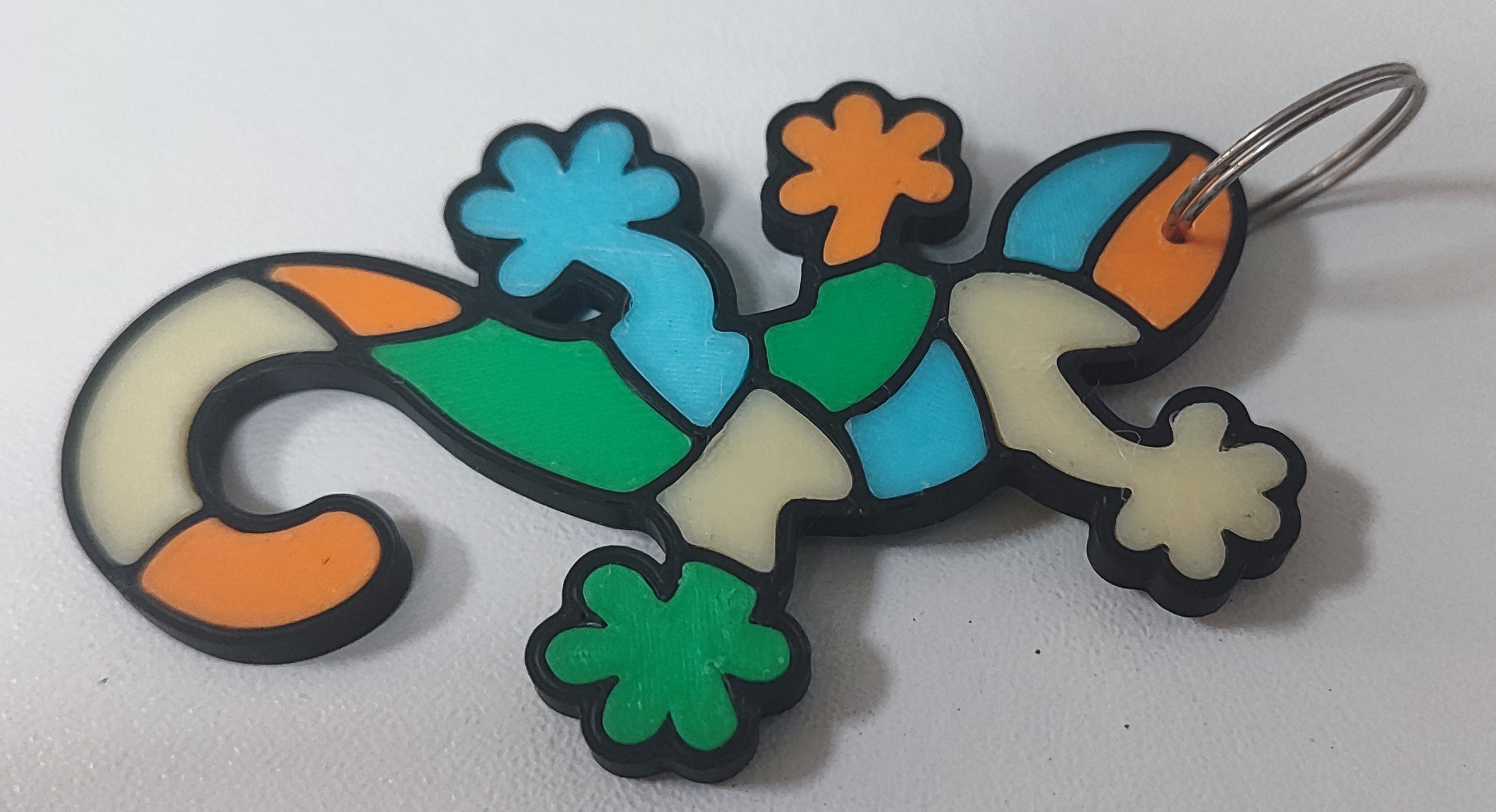

This vibrant mosaic-styled lizard is a decor keychain inspired by my visit to Park Guell in Barcelona.

I designed this model so that you dont need an AMS or glue to put it together.

There are 2 main parts of this model, the frame of the lizard printed in black and the inner elements printed in whatever color you wish.

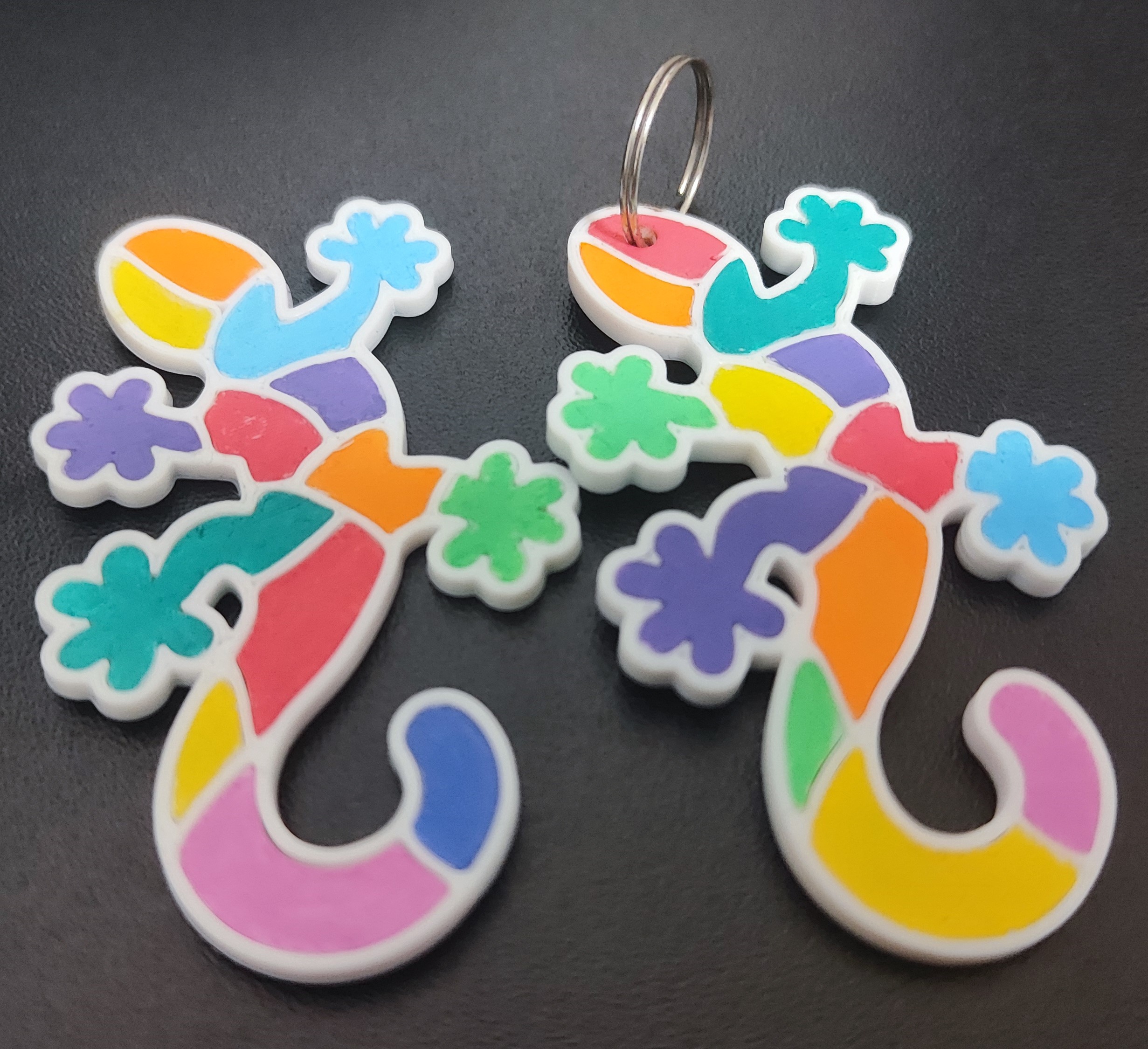

You can also print all the inner elements with white filament, and use acrylic markers or paint to color the pieces individually.

Important print settings:

• Line width: 0.35 This is a small model with narrow details so you need a smaller line width than the default. I found that 0.35 is optimal.
• External perimeters first

Instructions:

The model by default does not contain the hole for the keyring, you have to add it in the slicer as a negative part modifier to your desired location!

After printing wait for the parts to cool down on your build plate and remove them gently to avoid the deformation of parts!

The model is designed with VERY tight tolerances so it doesnt come apart easily in someone's pockets. Most of the parts will easily snap in place by hand, but when you encounter a stubborn part save your fingers when you assemble the inner parts into the frame and use a blunt object to snap in the tight pieces.

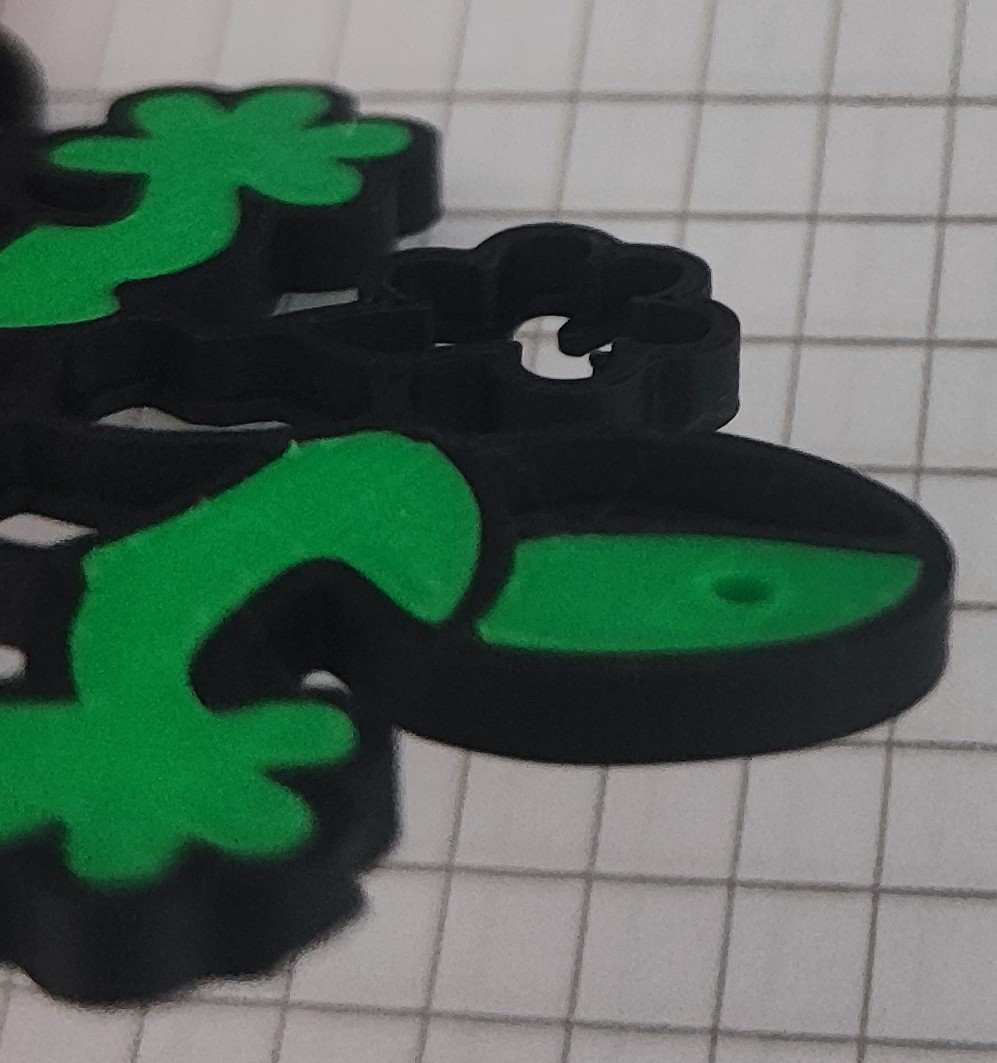

Place in half of the inner part to its place. Check twice to make sure you got the right place and right orientation for the part.

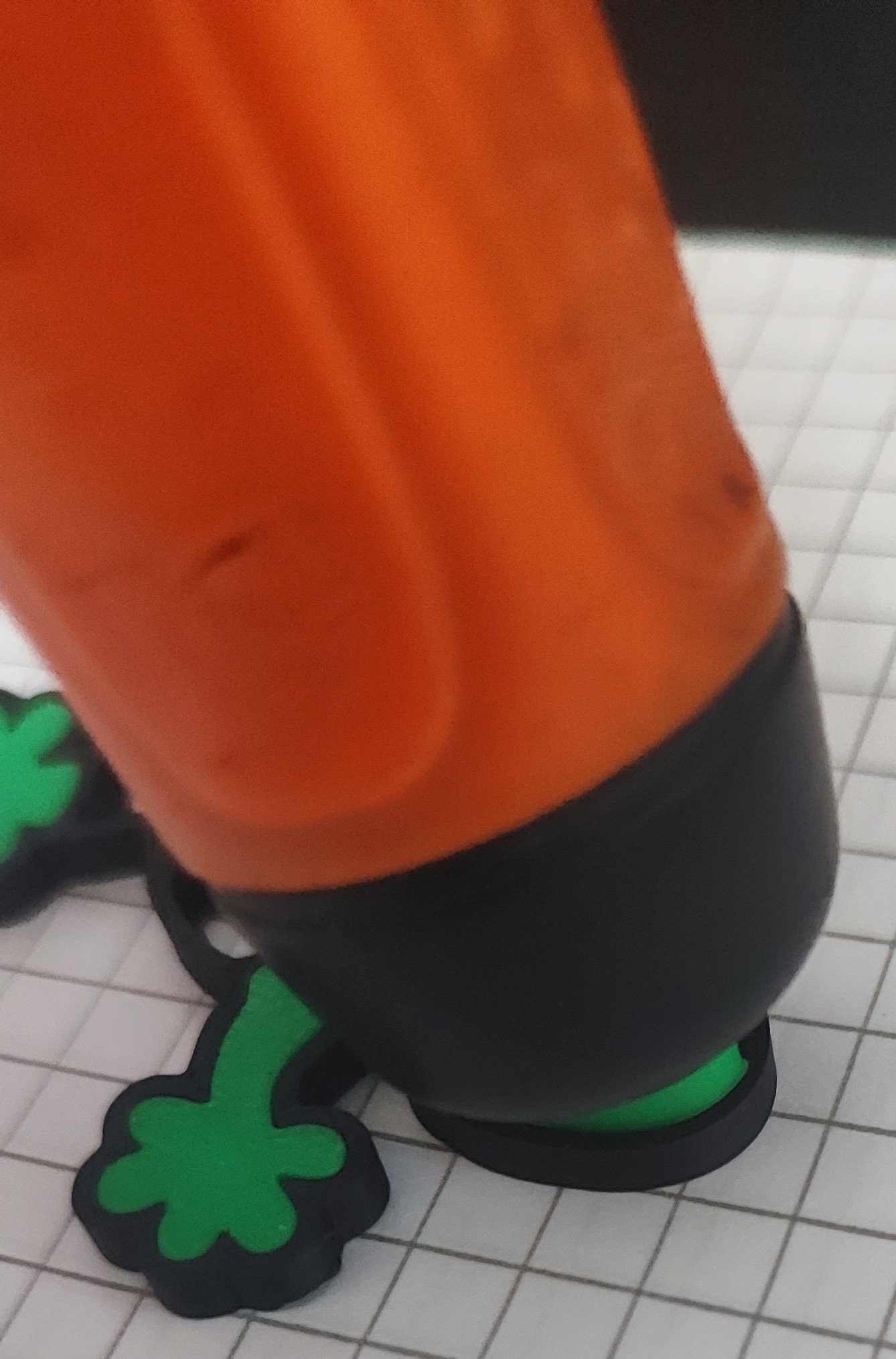

Place the blunt, plastic handle of a screwdriver gently on the other end of the inner part.

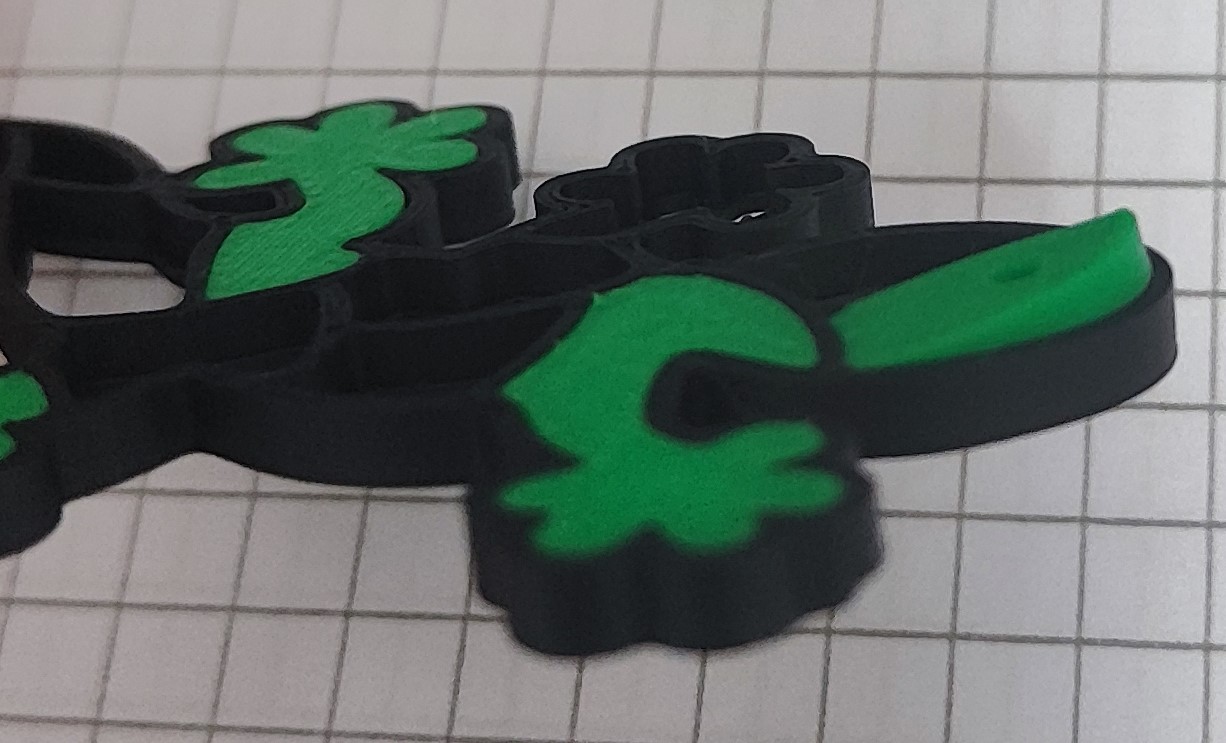

Push down on the handle firmly, and the place will snap in its place.
