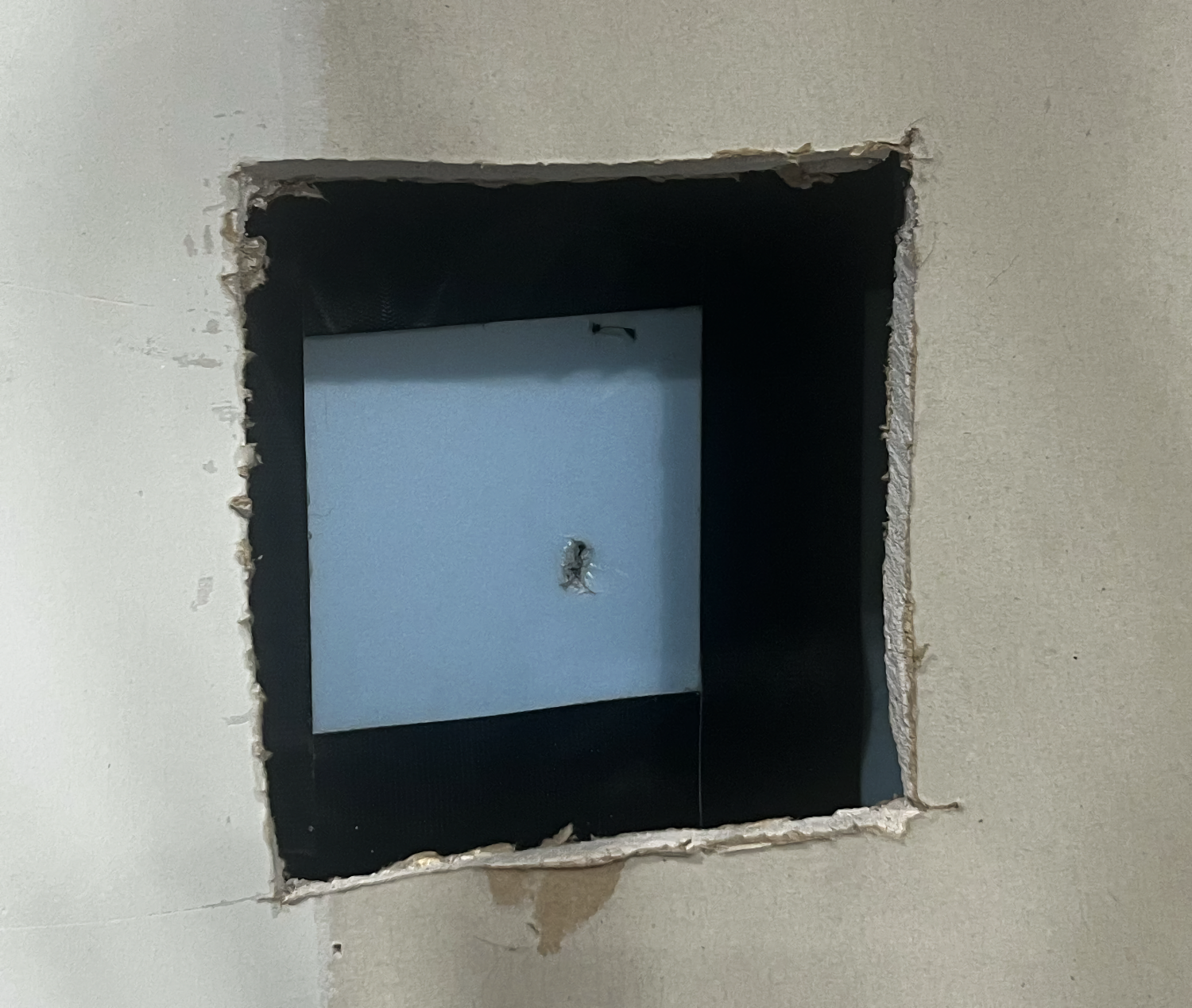

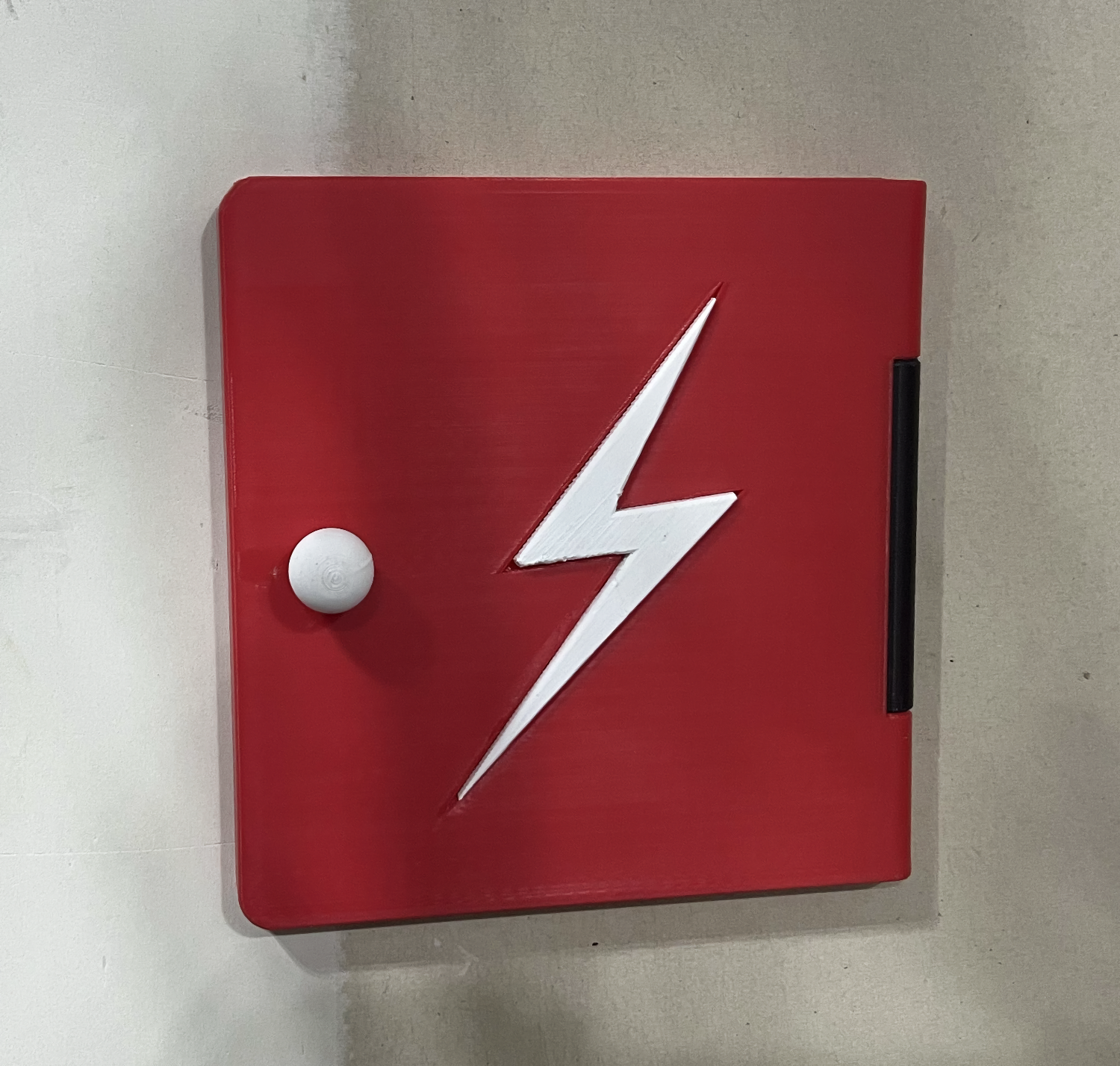

I had a hole in my garage wall after some electrical work. I thought there may be a reason to access this work later, so I didn't have the contractor patch the sheetrock. I made a hatch for it.

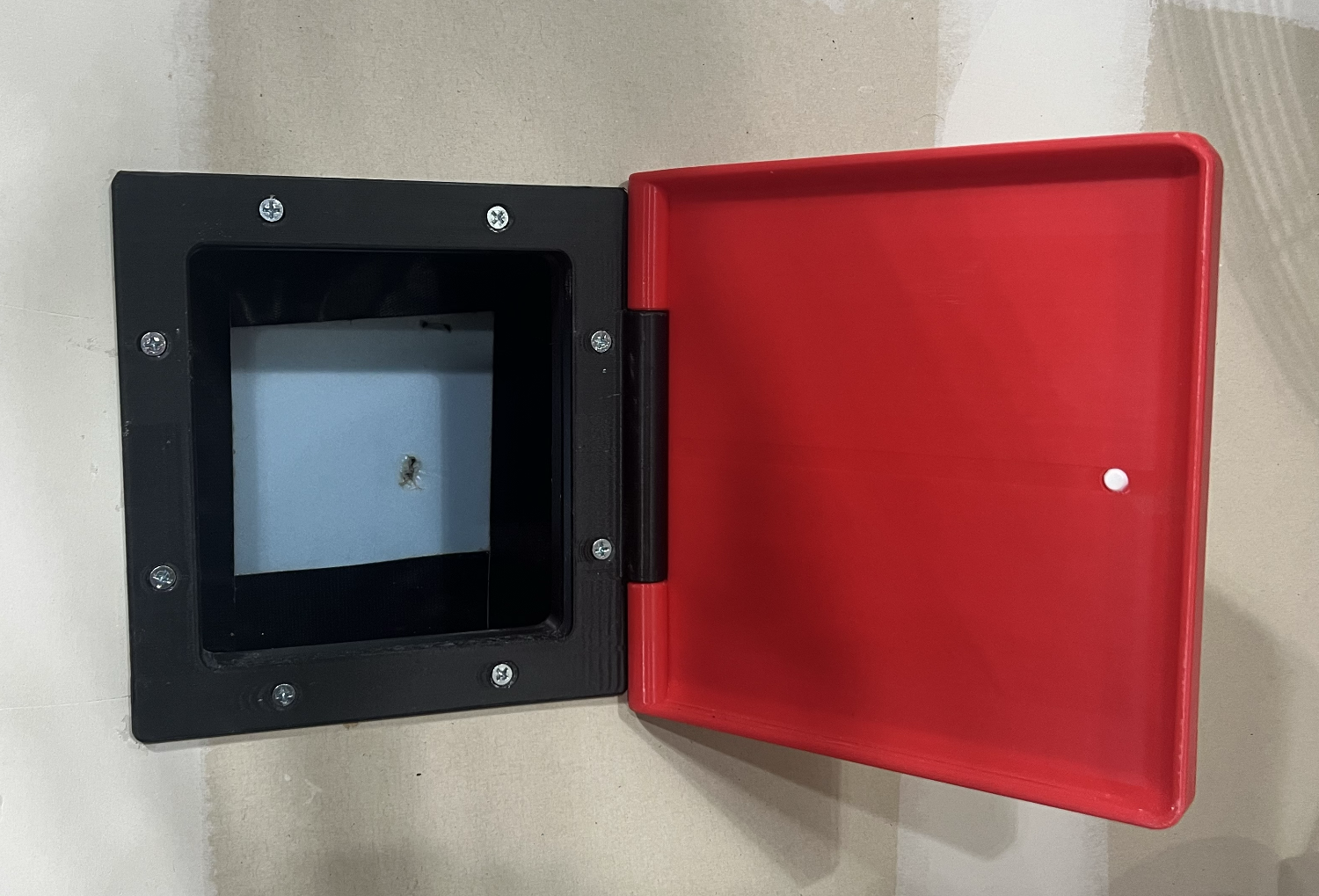

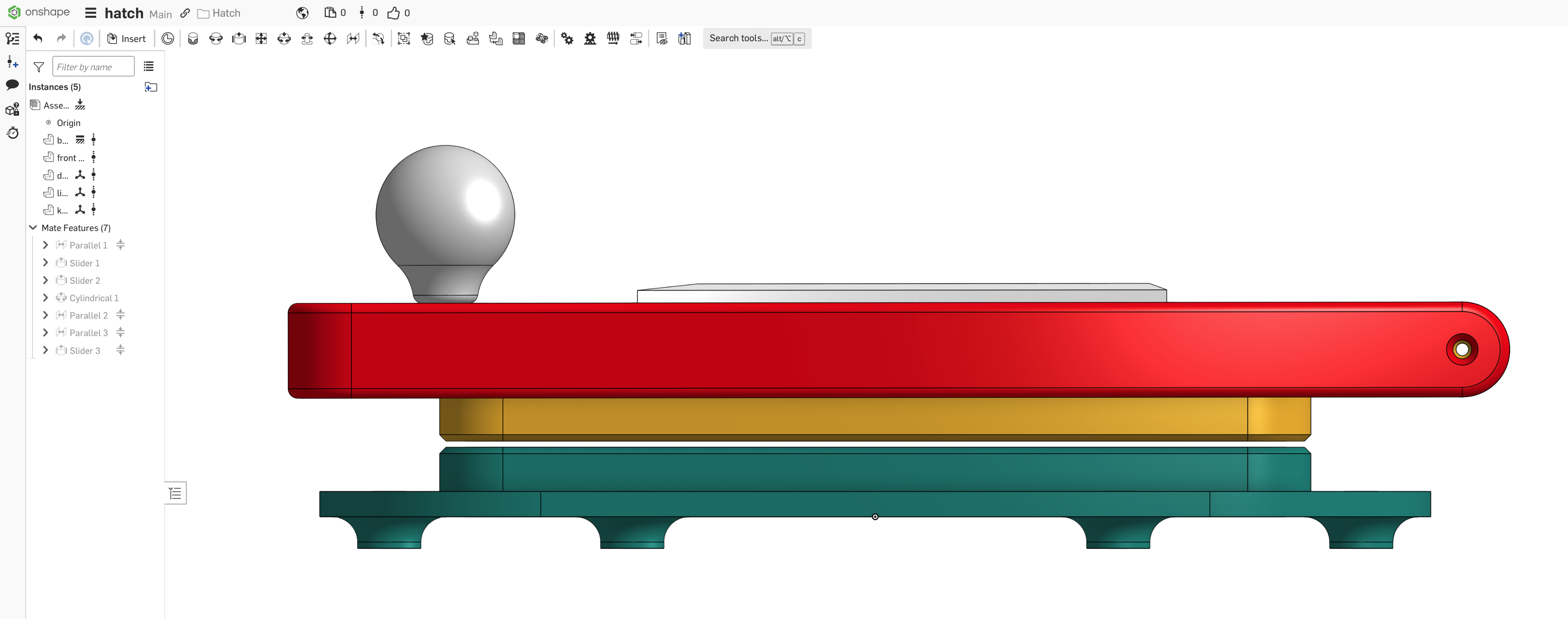

The hatch has a frame that is installed behind the sheetrock and a frame in front of it. The frames, when screwed together, grasp the sheetrock, so you do not have to find a stud to screw it into. The holes are sized for #8 wood screws. The length of the screws will be dependent on the thickness of the sheetrock, but 1-1/4" worked for me.

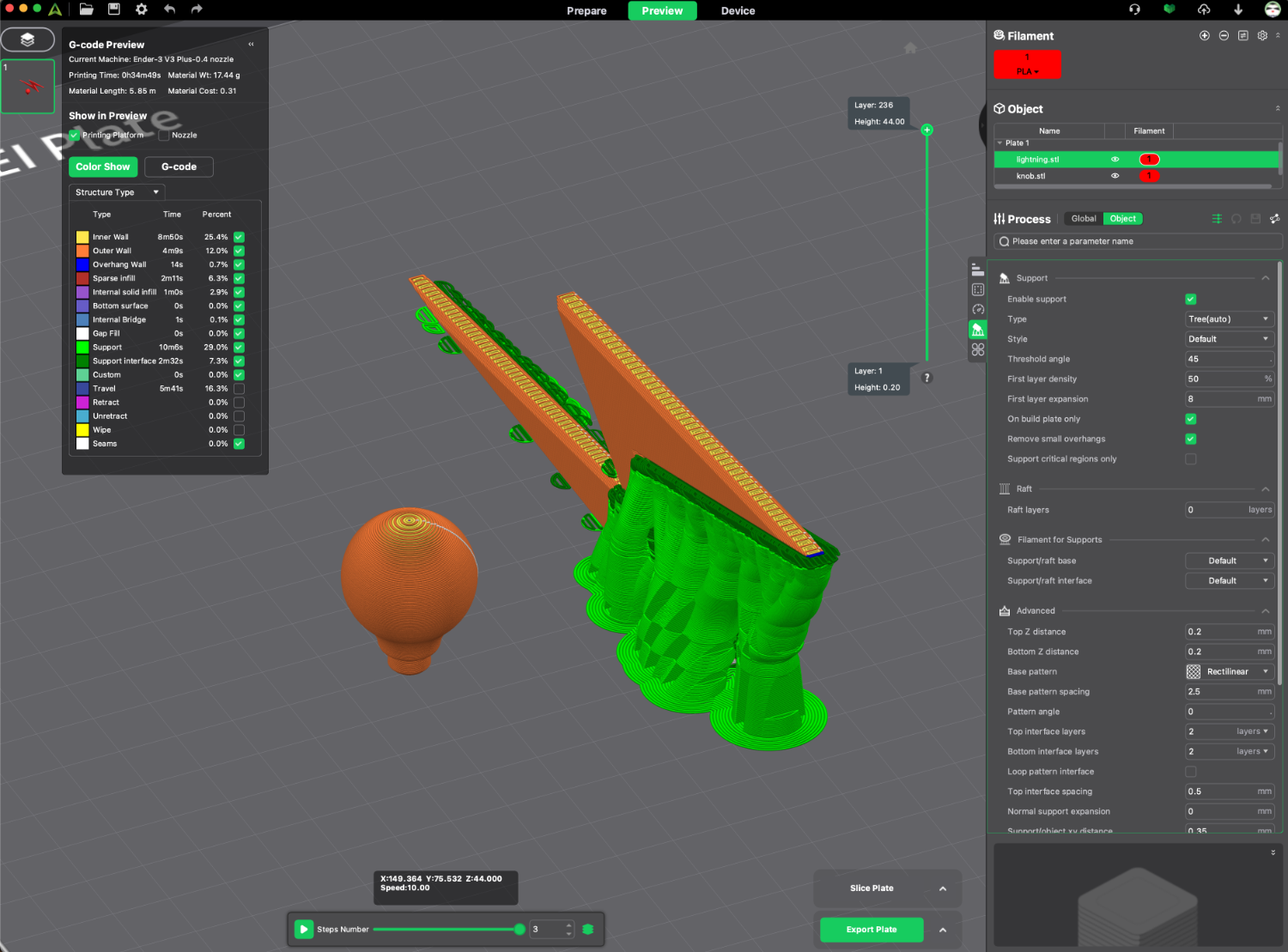

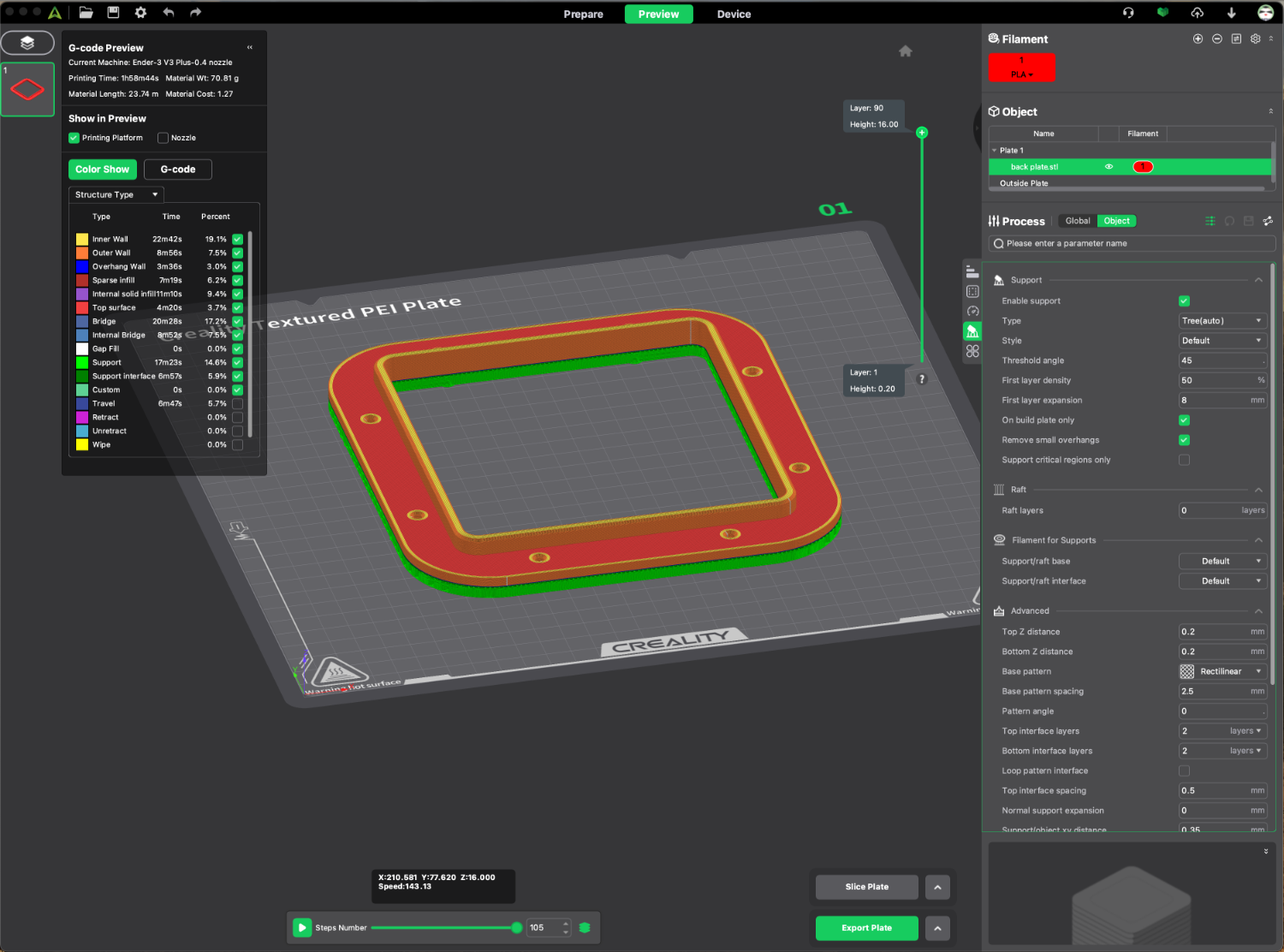

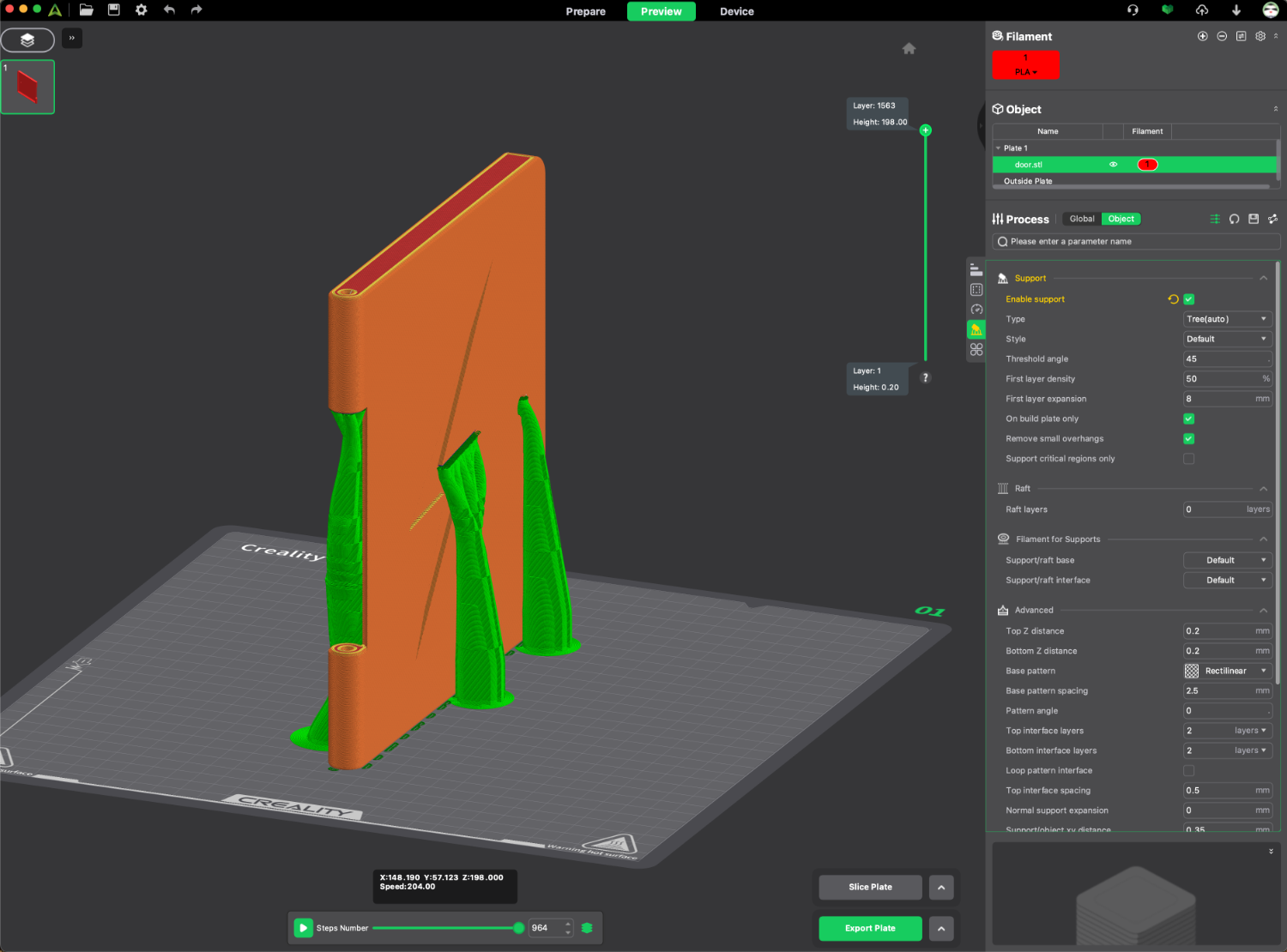

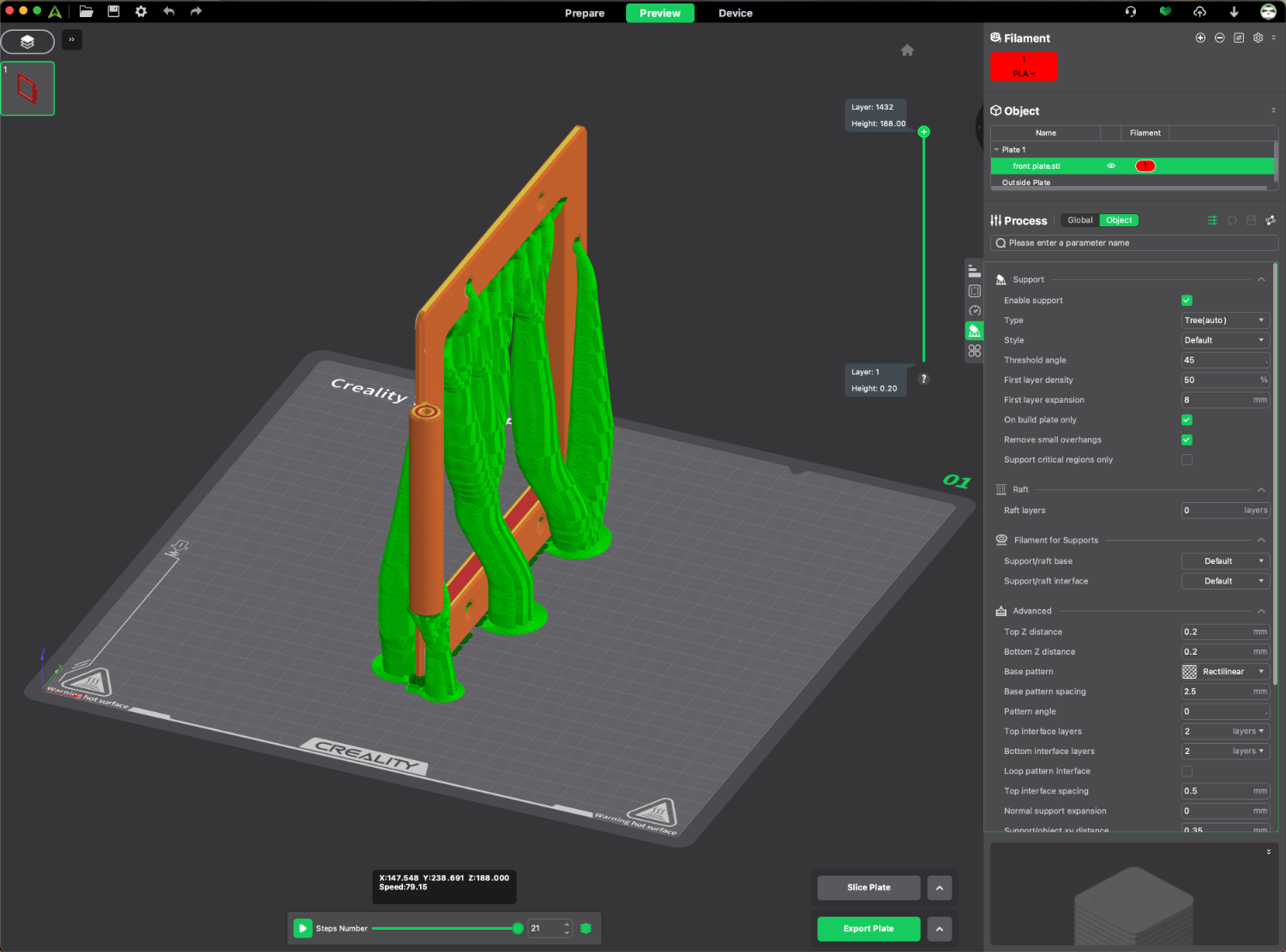

I built many of the parts in a vertical orientation to prevent the hole for the hinge pin from filling up with supports. The hinge pin is a straight piece of a metal coat hanger. (see images)

When you insert the hinge pin:

  1. slide it all the way through the door and the front plate, until it is flush with the opposite end of the hinge pin holes of both parts
  2. mark the end that is sticking out, so you can trim it to length with wire cutters
  3. remove it and trim it.
  4. reinsert it until only about 2 or 3 inches (50mm-75mm) extends out of the hinge pin hole
  5. slightly bend it (just 5º or so). This give it some resistance to opening & closing so you don't have to add a latch or magnets.
  6. push the pin in, until it is fully inside the hole with none extending out.

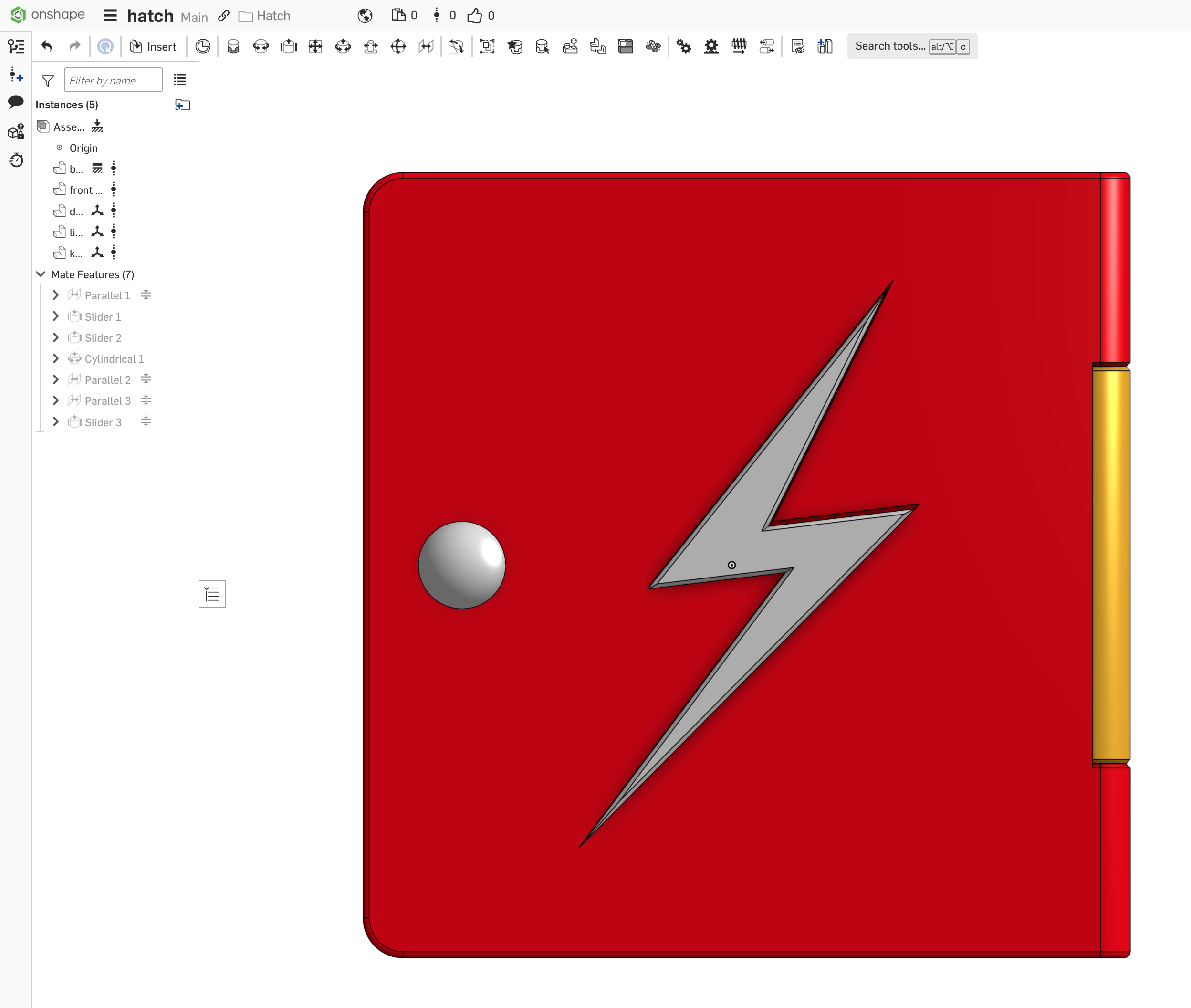

If you are an Onshape user, you can copy the CAD files and customize the size and remove the lightning bolt or replace it with whatever symbol you want. Here are the file links:

  1. door & lightning bolt - https://cad.onshape.com/documents/ebc3c7d4d9df1da6ee0e2c4b/w/09e3fcd02831635b122908aa/e/f62c147b377076f277e9b57a
  2. knob - https://cad.onshape.com/documents/253b560d1eea72ecf6848f98/w/f99d52284f636995d6a1cffe/e/ac958121a61e99a234e43f94
  3. front plate - https://cad.onshape.com/documents/fa153f6b61f2b55b1d645be5/w/c5ee11fcf4b36e80f6b5c05d/e/abf32cbba798e77f90d73bb1
  4. rear plate - https://cad.onshape.com/documents/151776ff351503a6d14f2be5/w/a8a38718fe7410fc6e4cf0f4/e/e881343f65bfe5fc05a27f52
  5. hatch assembly - https://cad.onshape.com/documents/bf963c9bf9a5ffb845942455/w/ef8fa26c0082624112918cdb/e/80022f48375697c88000978f
