Hammerhead Nose
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- RC & Robotics
- Licencja
- Creative Commons — Attribution — Noncommercial

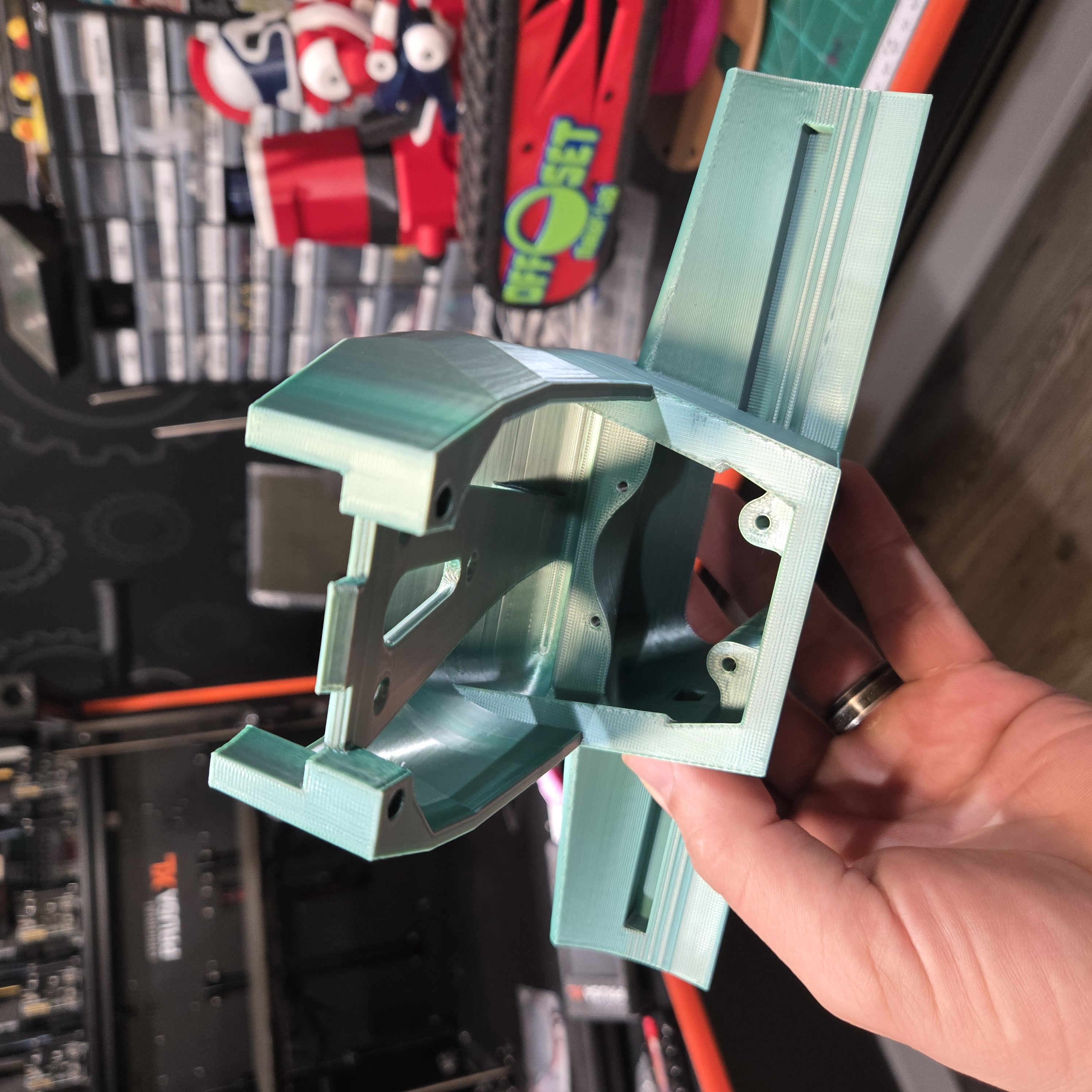

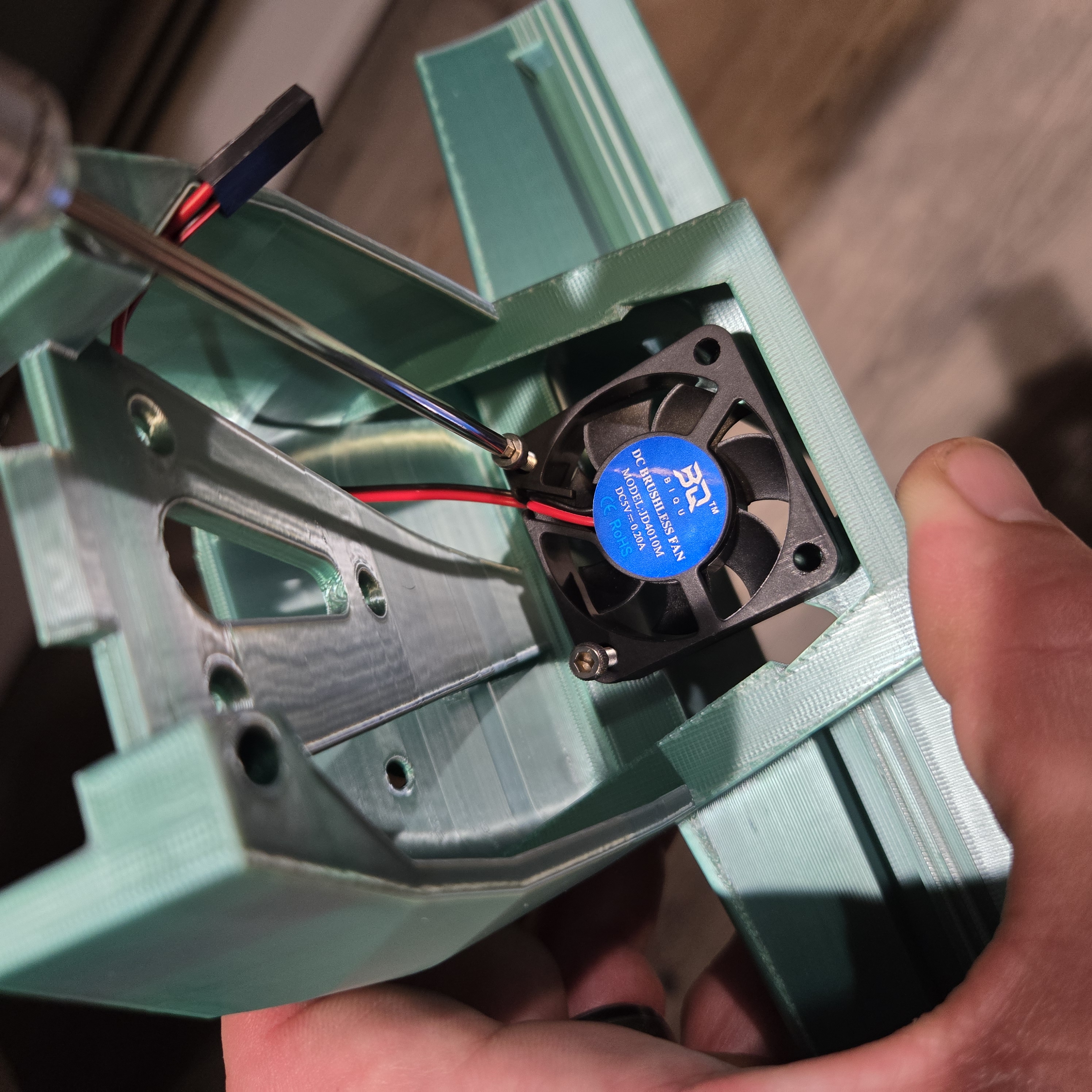

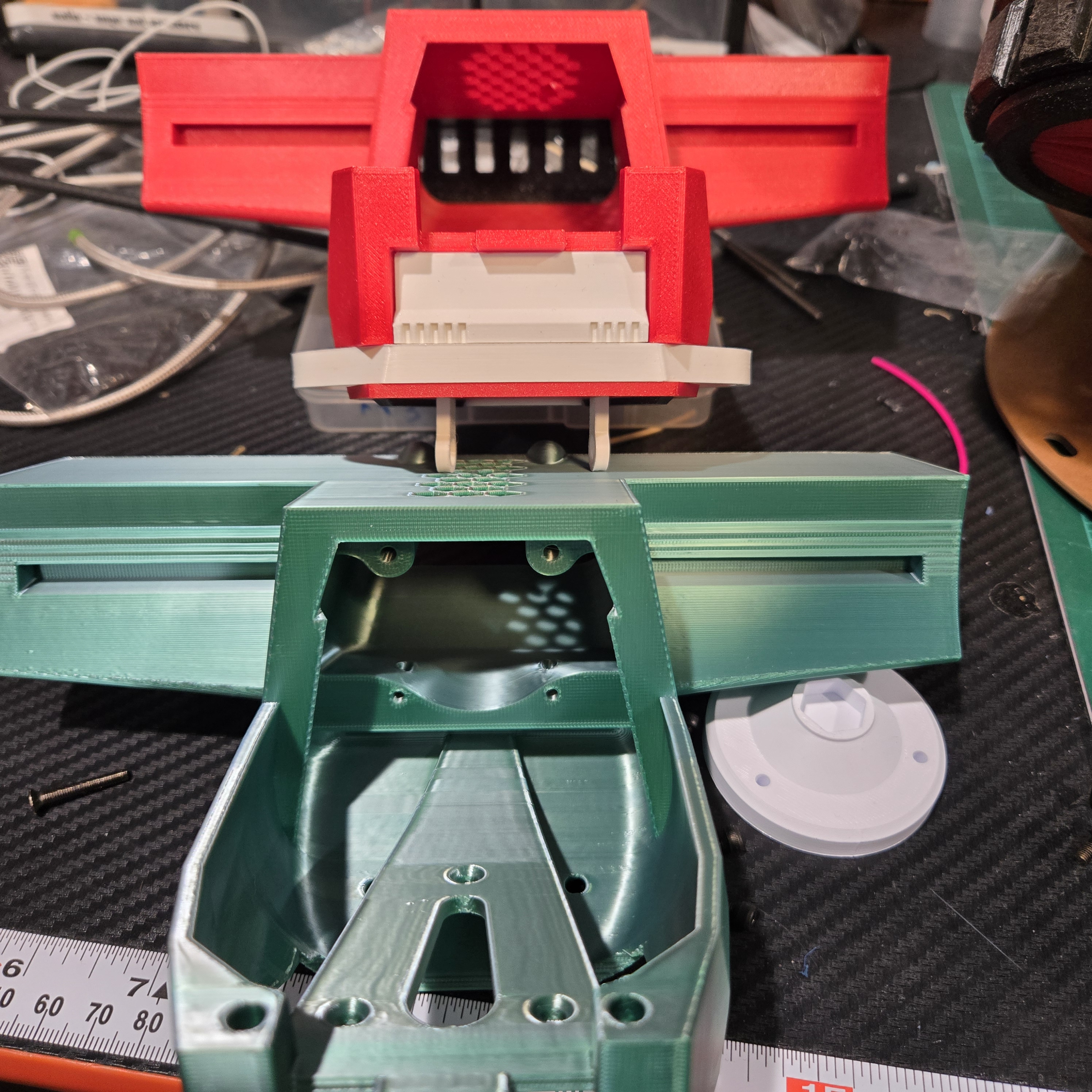

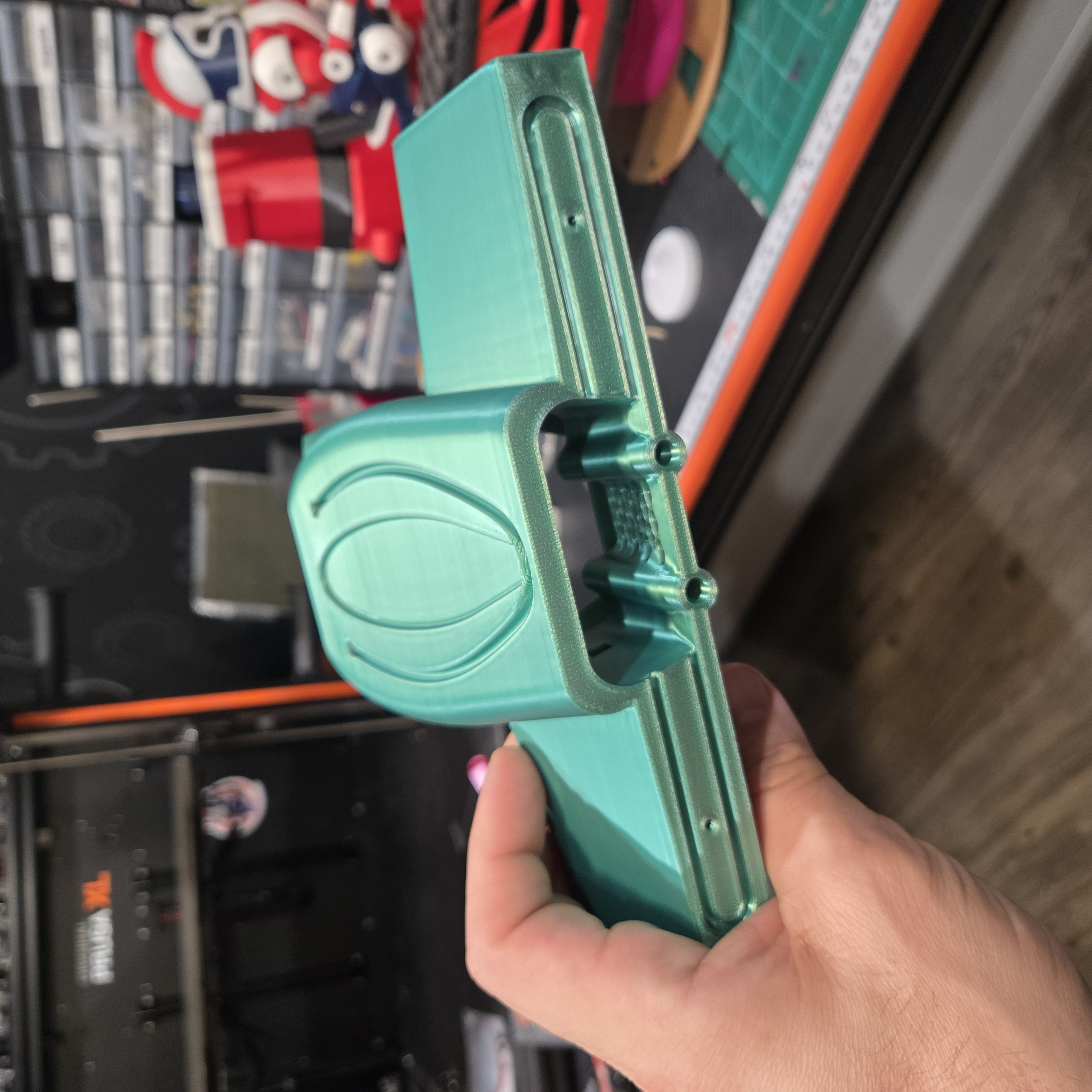

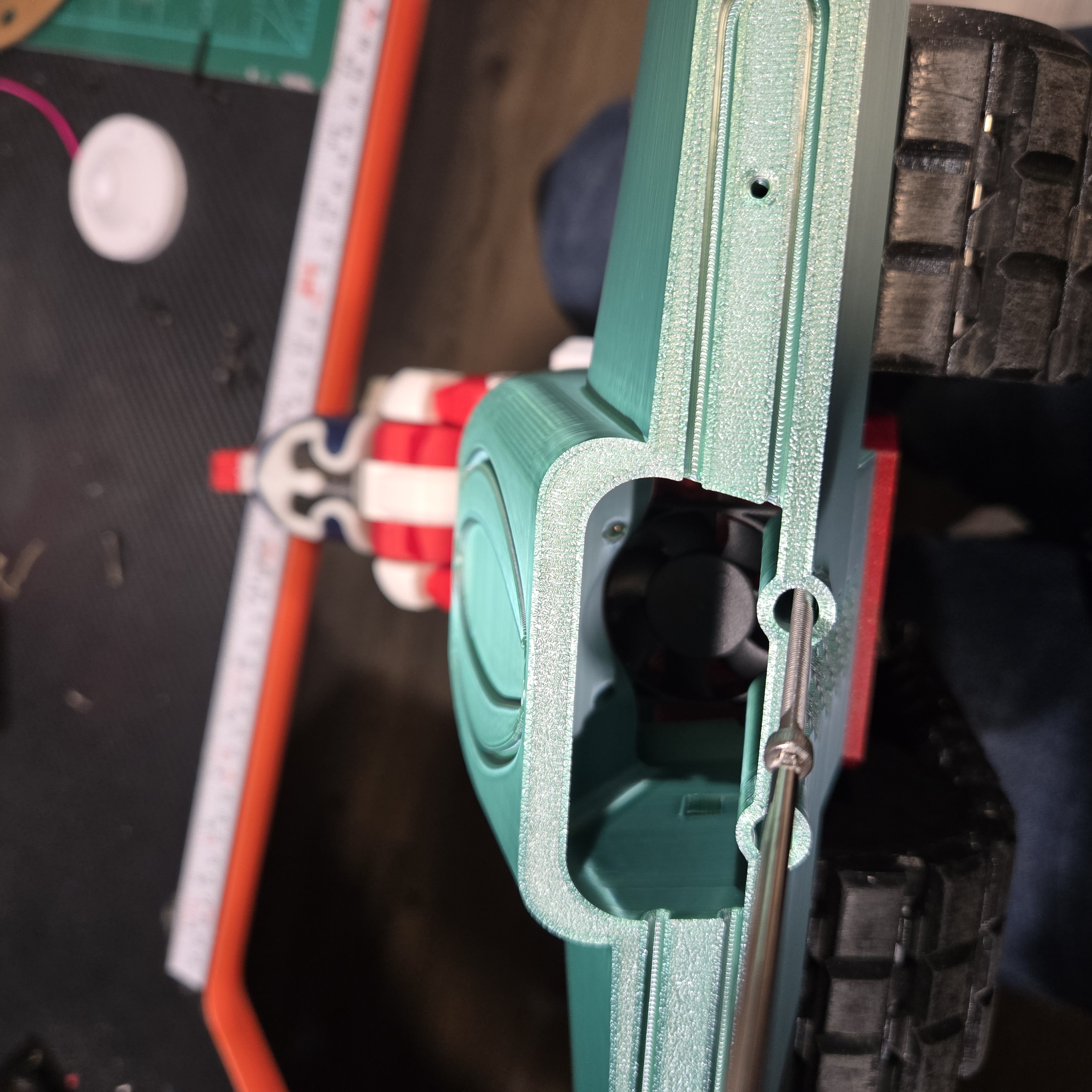

Update 5/31/2025: New Hammerhead Nose released for beta testing. The new nose connects to the main fame with four m3 bolts instead of two. Instead of the fan mounting to the frame, the fan is mounted in the nose with two m3x16mm bolts. The new nose is then mounted to the frame like the old one underneath the frame and two m3x35mm bolts insert through the front of the nose into the main frame where the bolts for the fan used to mount. This should strengthen the nose and prevent it from breaking off from hard impacts

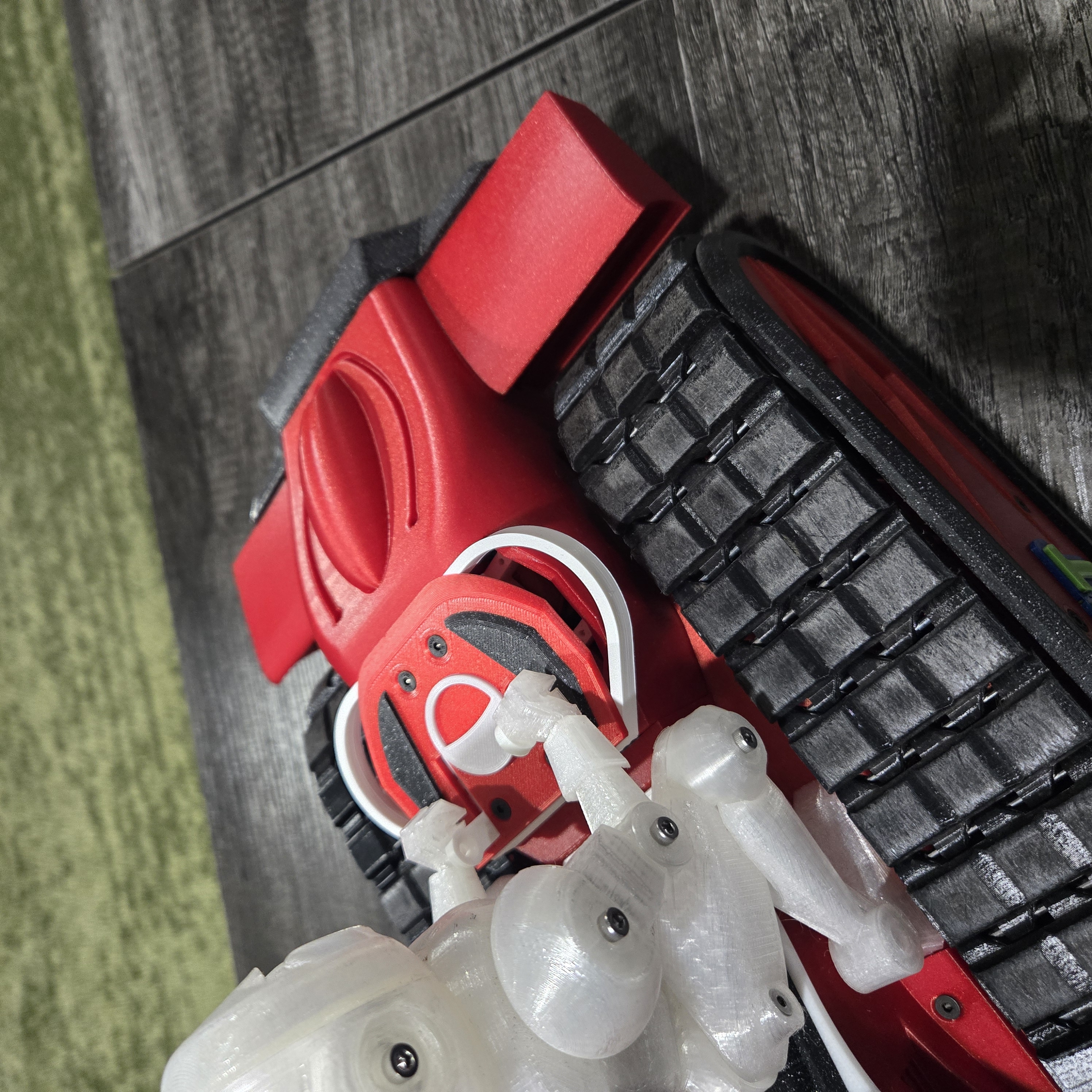

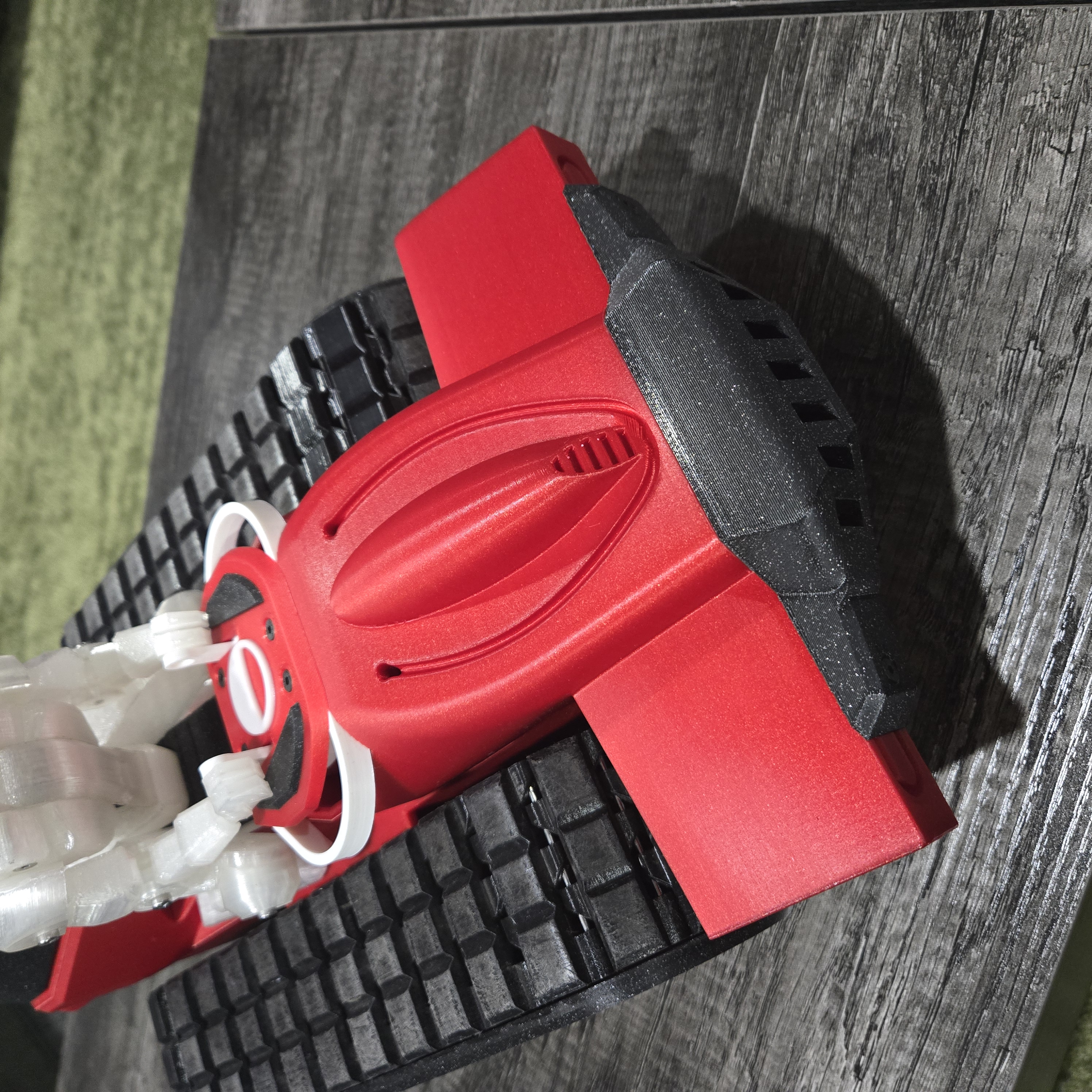

A throwback to the original Death Racer mod Mr. Baddeley put together and released for ERRF 2022! Along with updated mounting points to make it compatible with the Piranha revision, the files have been beefed up a little to add strength.
Additional hardware required is just two m3x20mm bolts, but if you're feeling adventurous, there are channels incorporated for led noodle lights like Adafruit n00ds https://www.adafruit.com/product/5503?gad_source=1&gclid=CjwKCAiAwaG9BhAREiwAdhv6Y30fvl4PRfH9Vb-98P0PDf8yCYS3qfFLtNjY4z7uBeL0krndWJMUbhoCz68QAvD_BwE
