Hello everyone :)

As we announces we want to present you our new Lamp. Our Origimi Lamp comes in a modern & timless design. The free-form shape gives the lamp a unique look that doesn't exist anywhere else. The lighting ambience is just great. Happy printing :)

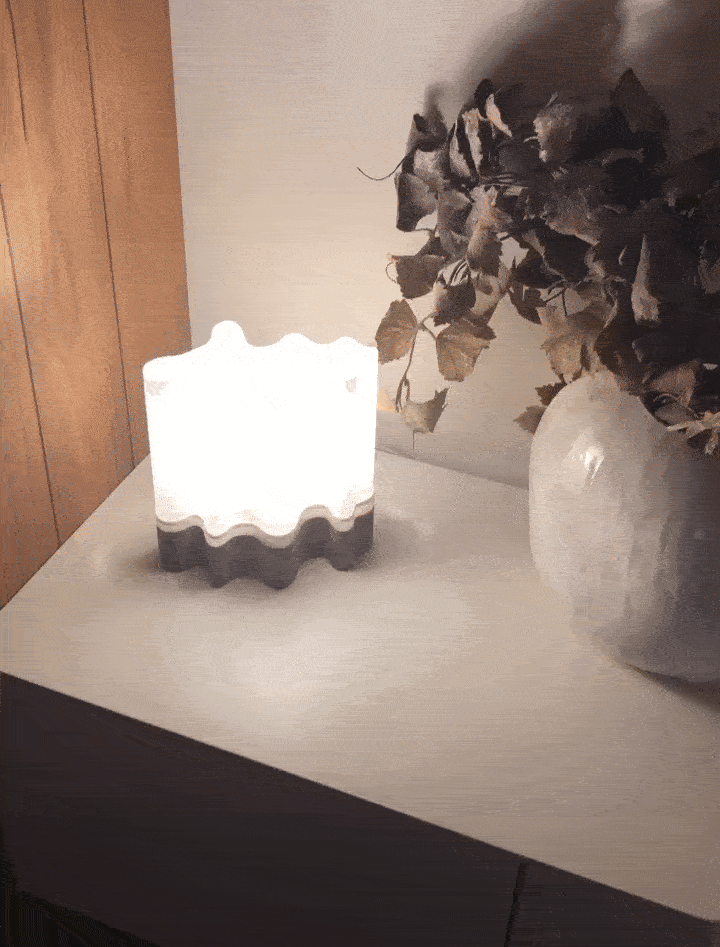

SHORT VIDEO PREVIEW OF THE LAMP:

• https://www.instagram.com/reel/DF8e5ZDIgNs/

★ WHAT DO YOU NEED?

• You need only a standard E14-Socket. (for example this one: https://amzn.eu/d/cIyh6AD)

★ VARIANTS OF THE LAMPSHADE:

• LAMPSHADE WITHOUT PATTERN (RECOMMEND)
• LAMPSHADE WITH PATTERN

★ MOUNTING INSTRUCTIONS:

• Print out the base, one of the lampshades and the lampshade-holder
• Be carfeul when you remove the supports from the lampshade-holder
• Be careful when you remove the lampshade from the print bed
• Place the lampshade on the lampshade-holder in the right position and click in the lampshade. This step requires some patience and skill.
• Afte you install the lampshade on the lampshade-holder you can place the assembly on the base. Insert the E14-Socket from below through the base and counter with the nut of the E14 socket.

★ RECOMMEND PRINT-SETTINGS (BASE):

• Filament: Bambulab PLA Matte brown & grey (used in our make)
• Infill: 10% Gyroid or Grid
• Layer Height: 0.2mm or 0,16mm
• Walls: 2
• Nozzle Size: 0.4mm
• Support Structure: None needed, ensuring a hassle-free printing process.
• Brim: None needed, but when you have adhesion problems than activate the brim
• Fuzzy Skin Settings (Settings --> Other --> Fuzzy Skin: All Walls / Fuzzy skin point distance: 0,5mm / Fuzzy skin thickness: 0,3mm

★ RECOMMEND PRINT-SETTINGS (LAMPSHADE HOLDER):

• Filament: Bambulab PLA Matte brown, white & grey (used in our make)
• Infill: 10% Gyroid or Grid
• Layer Height: 0.2mm or 0,16mm
• Walls: 2
• Nozzle Size: 0.4mm
• Support Structure: needed!
• Brim: None needed, but when you have adhesion problems than activate the brim

★ RECOMMEND PRINT-SETTINGS (LAMPSHADE):

• Filament: Bambulab PLA Matte brown, white & grey (used in our make)
• Infill: 10% Gyroid or Grid
• Layer Height: 0.2mm or 0,16mm
• Walls: 2
• Nozzle Size: 0.4mm
• Support Structure: None needed, ensuring a hassle-free printing process.
• Brim: None needed, but when you have adhesion problems than activate the brim
• Fuzzy Skin Settings (Settings --> Other --> Fuzzy Skin): All Walls / Fuzzy skin point distance: 0,3mm / Fuzzy skin thickness: 0,2mm
• Vasemode Settings  (Settings --> Other --> Spiral vase): Activate
