Purge Bucket for Neptune 4+ Left side attachment
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Printer Parts & Upgrades
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
Parts List :
PTFE tube (stretch the PTFE before hand)
1 M3 screw for ptfe approx 20mm (stretch the PTFE before hand)

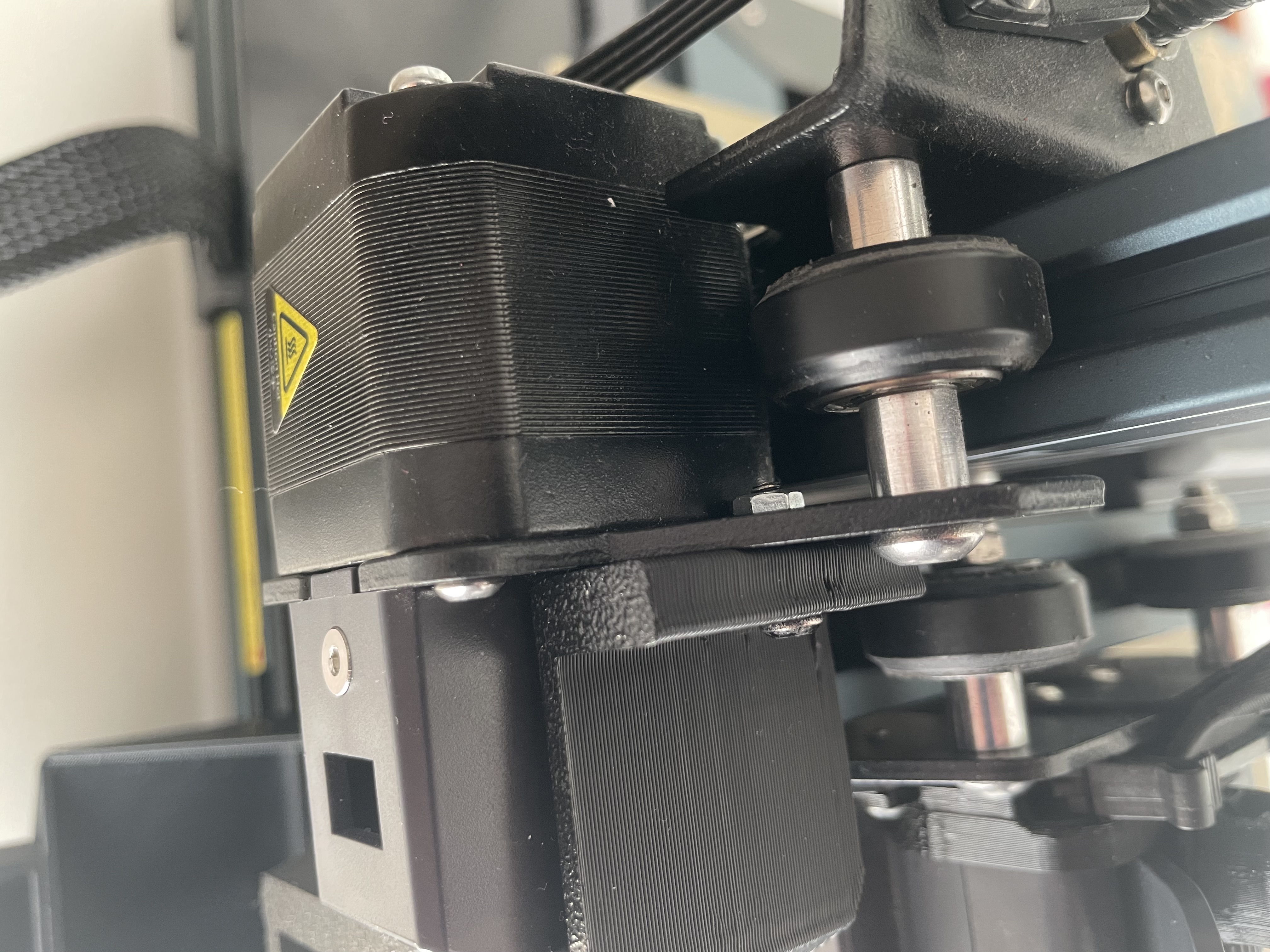

2x m3 screw approx 10mm for attaching to the printer
3x m3 nut
Tape
IMPORTANT:
The STL file is slightly modified for easier assembly and usage from the one that I printed

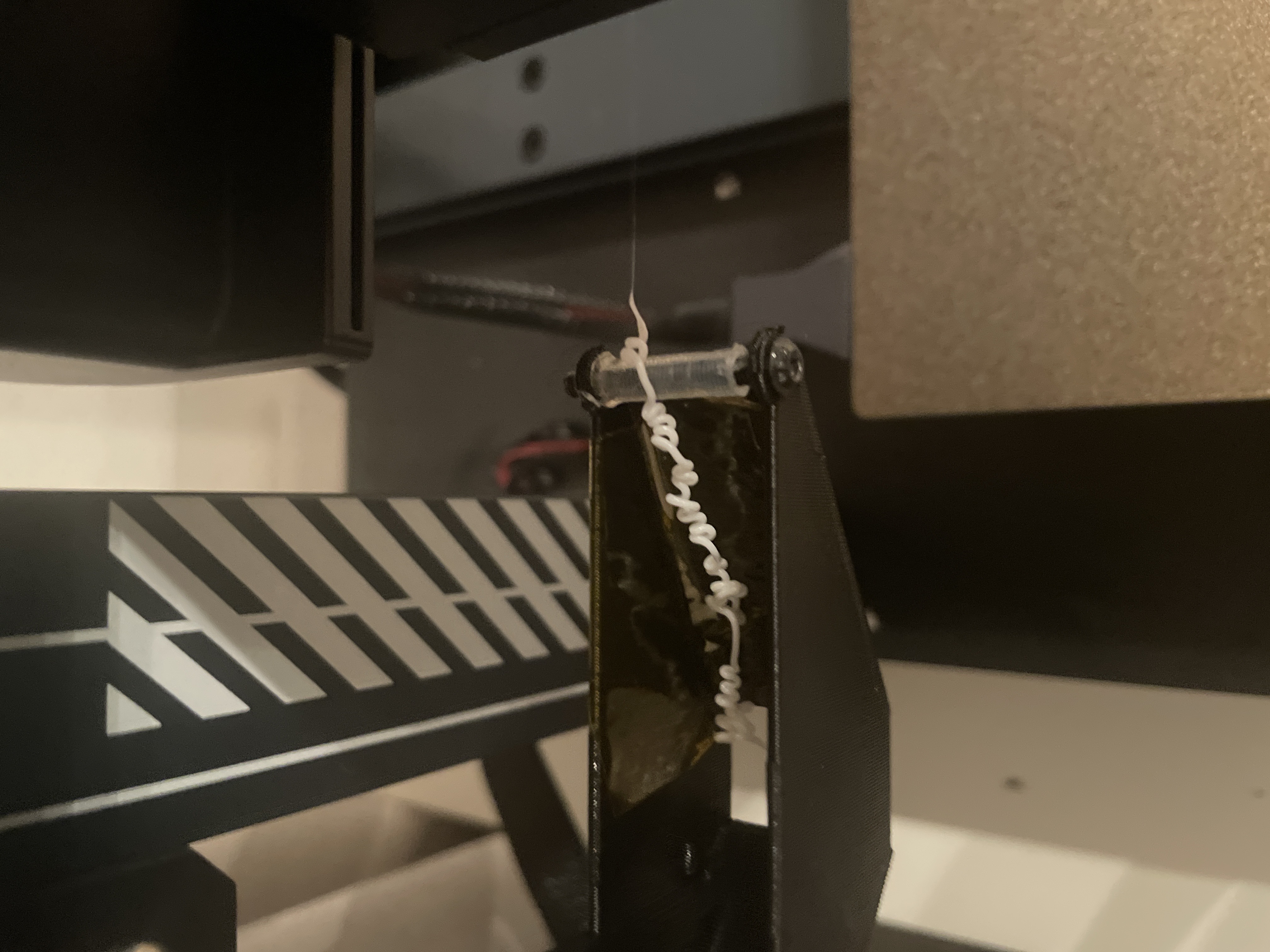

It is necessary to make it so that the purge filament moves down the chute, I used thermal tape and some vegetable oil >_< (EDIT: The vegetable oil stopped being a sufficient lubricant after some tiem and it actually made it stick more, some proffesional lubrication is probably a smart option or just replacing the tape and adding new vegetable oil every now and then :) )it works pretty well but also results in long lines of waste, I wasn't able to find a better solution though
I also recommend the use of the stopper from the original model that I remixed
I do have a purge bucket but I am working on a 2 bucket design that uses 6x3mm round magnets but it could be a while before I need enough things to justify to going to the store, for now the bucket by @DanVystrcil_1418479 should be sufficient as long as you mirror it

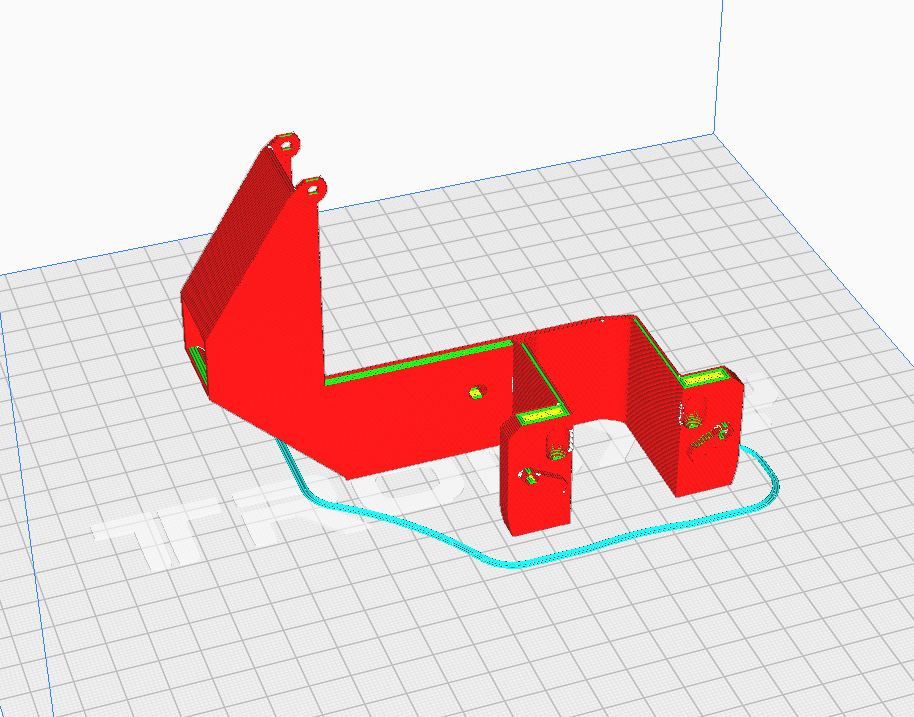

Print Settings :
I printed with 0.6mm nozzle and 0.375 layer height but do whatever is best for you
PETG
without support or brim
