Picture frames 6x8 size

Picture size 6x8in and 1mm gap between two parts of each frame for your photo

These are frames that can be joined together in groups of three or more according to your wishes.

I made 5 different types as you can see in each picture down below.

Each frame consists of 2 parts, the part that has a letter (A,B,C...) and is marked, this is the front part of the frame, and the back part of the frame is made by yourself by mirroring the model through the x plane

To assemble one frame you also need 4 plugs, I called them connectors, but pay attention. Connectors that you need to use to assemble one frame, print on 97% scale, those connectors that connect the frames to each other, print on 100%, I test fitted them so here shouldn't be a problem. In some types you can stack more frames in the middle of the chain because parts are same i will show it in the pictures below.

To connect frames together you need 4 connectors printed at 100% scale

Types where you can fit more middle frames.

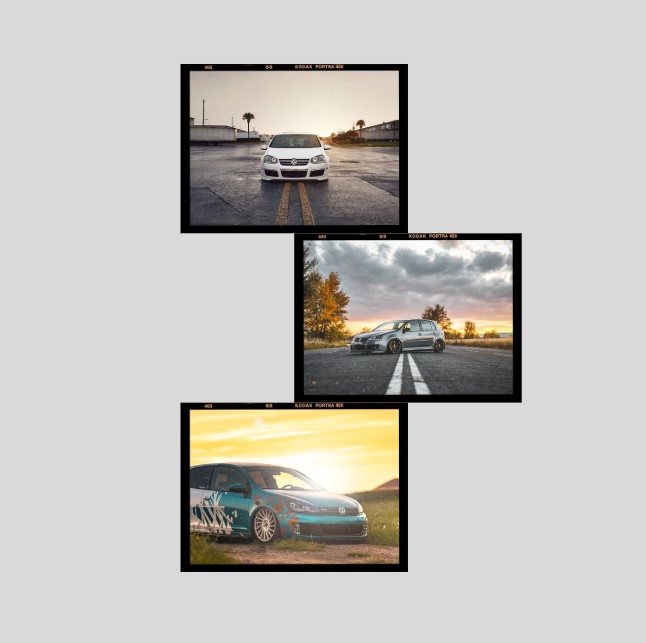

• Zigzag (A B B* B B*B B*…………B A*)

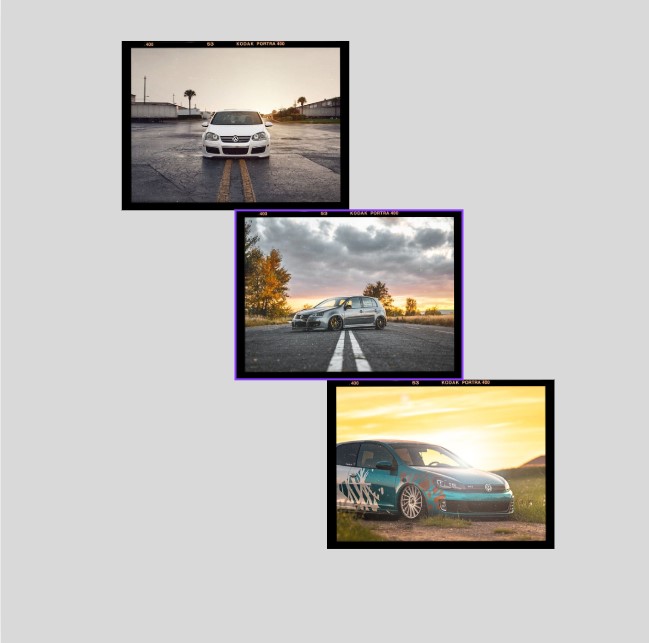

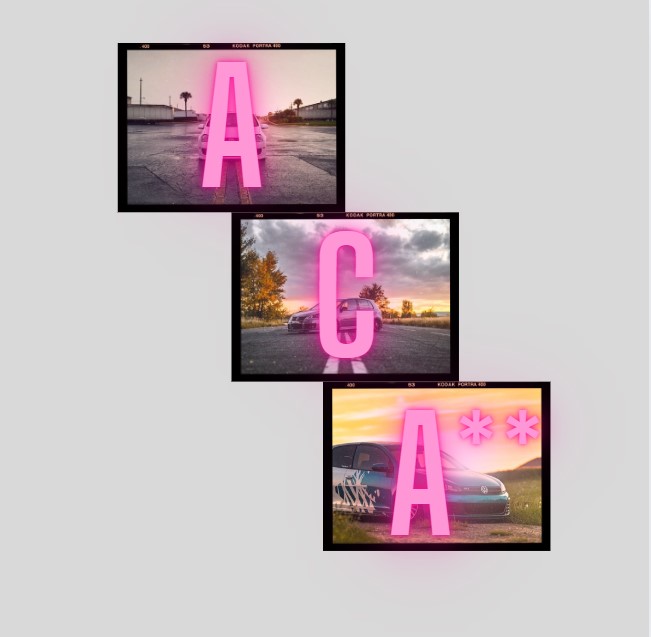

• Linear (A C C C C C C C ………….C A**)

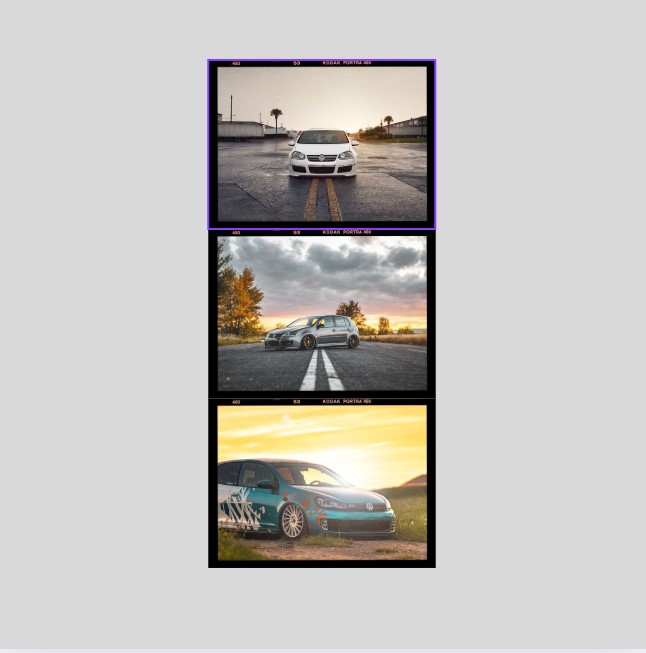

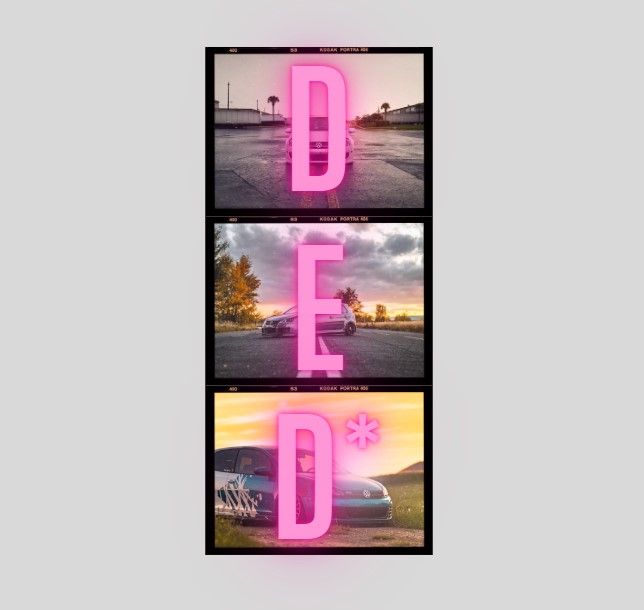

• Vertical (D E E E E E E E…………..E D*)

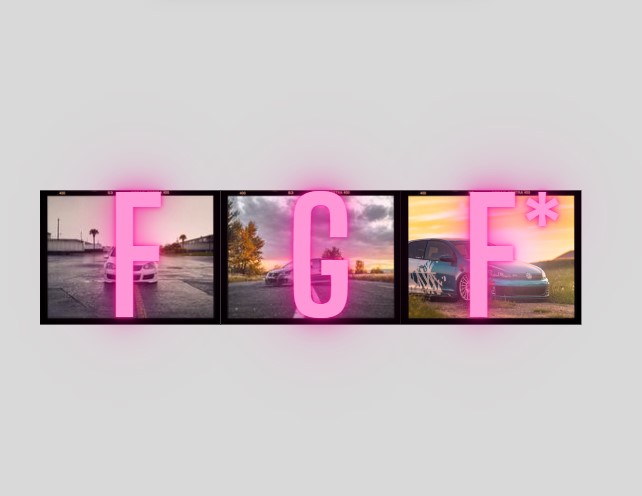

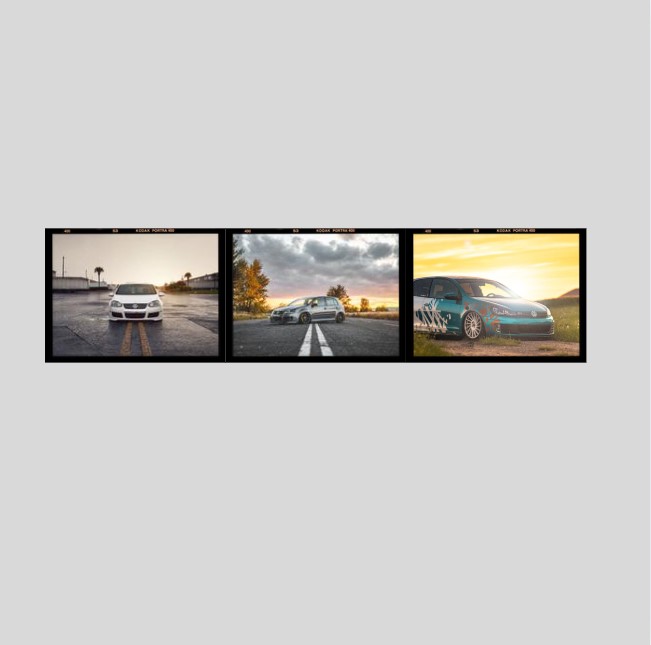

• Horizontal (F G G G G ……………G F*)

!GOOD TO KNOW BEFORE PRINTING!

1. Linear style bottom frame A** was mirrored it twice. First mirrored x plane and than y plane to get right frame. (sign **)
2. If the letter have * in the name it means its a mirrored version but its the same model
3. I1 and I2 are different frames so be careful when slicing you dont mix it up
4. I added all the frames files from A to I2 so you can experiment or create something new yourself

If you have problems with printing connectors add a little bit of a glue to the plate or clean your plate with alcohol.

I really hope you can do awesome creations with this frames it helped me very much create a perfect design for my three photos. If you like the design please upload and rate my design:)
