Transportable DJ-Set

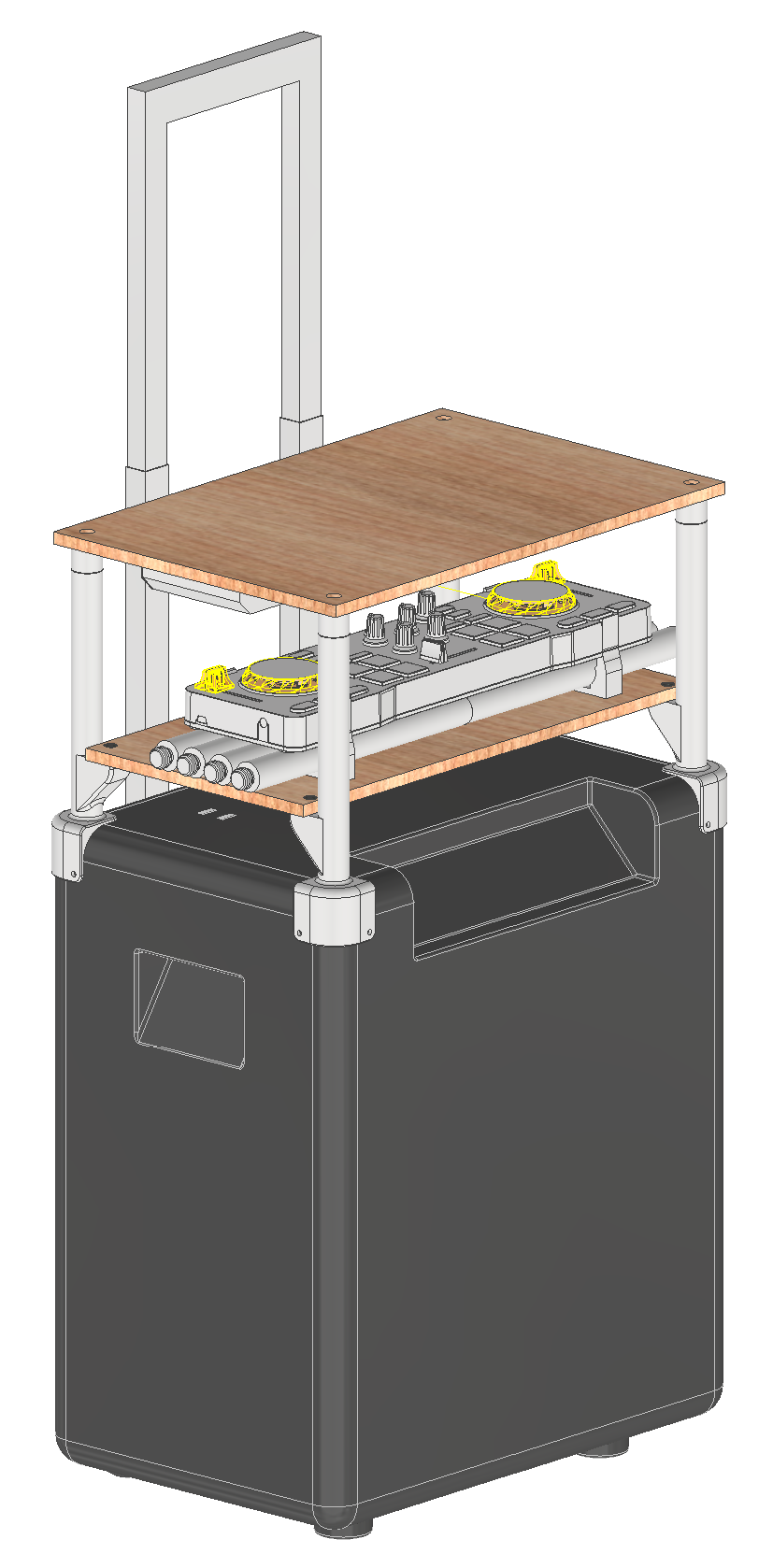

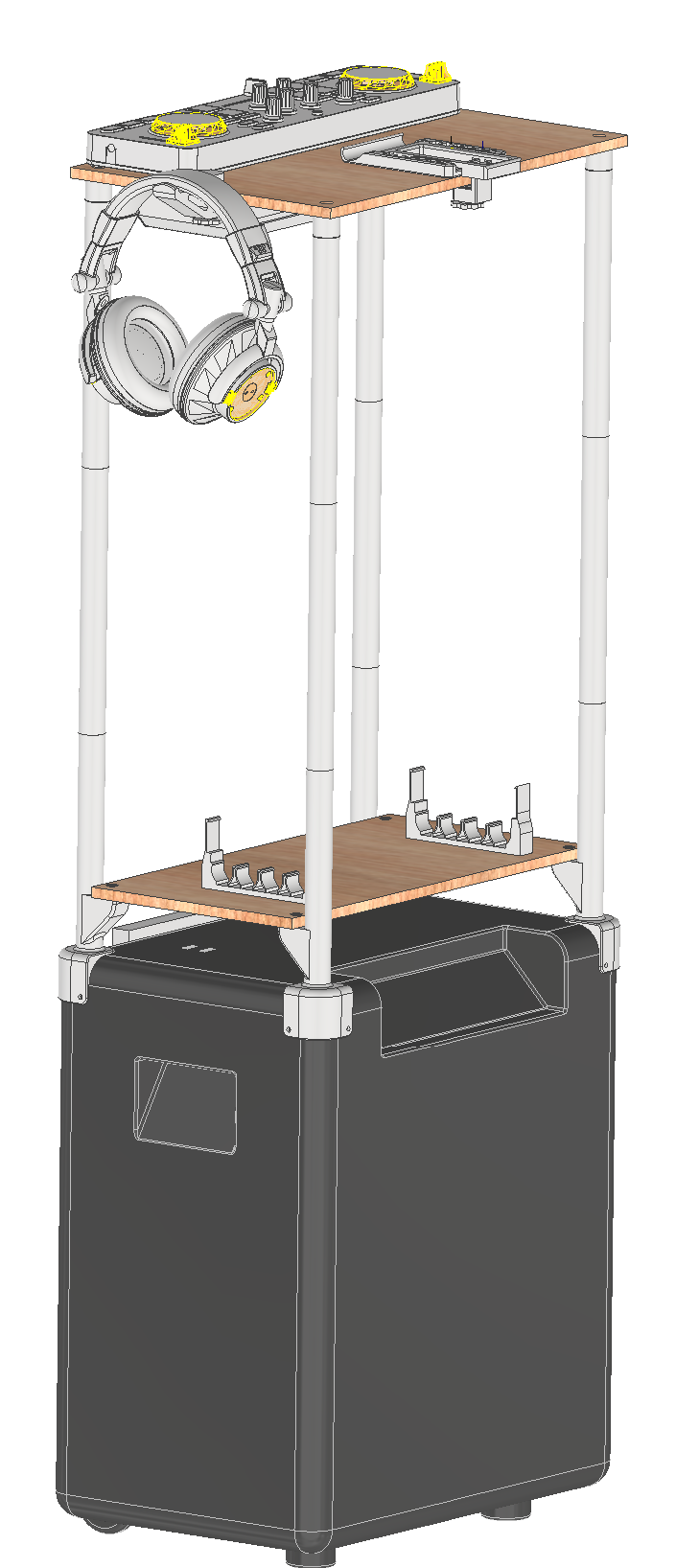

I build a table for the DJControl Mix on top of my ION Audio Ipa56c.

ION Audio Ipa56c is not in production anymore.

Maybe you will find some of them at second-hand-websites.

I will make some upgreats soon.

I prined everthing with PLA.

For the parts with a thread:

0.1 layer / 40 % infill

For the other parts:

0.2 layer / 15 % infill

You need to build:

1x ION Audio Ipa56c

1x DJCONTROL MIX

1x Tablet or Smartphone

1x Headphones

1x Wood 365x240x8 mm

1x Wood 365x185x8 mm

4x Magnet D10x2

2x Screw ISO 14581:2013 M3x6

4x Screw ISO 14581:2013 M3x12

4x Screw ISO 10642 M4x16

6x Threaded Insert M3x3

4x Threaded Insert M4x6.35

Improvements that I want to do in the version 2.0:

• Holder for my tablet (for the transport)
• Holder for the headphones (for the transport)
• More and/or biger drawler
• Holder for the DJControl Mix (for the party)
• Holder for a drink or a Beer
• Cable management system (Form the Box (2x USB-A) to the top)
• Some other small improvements for a better handling

I still don't have the DJControl Mix. It would be easier to make the improvements, if I would have it ;)
