TPU cover for an old pair of Sheffield, England made Scissors. Good for EDC.

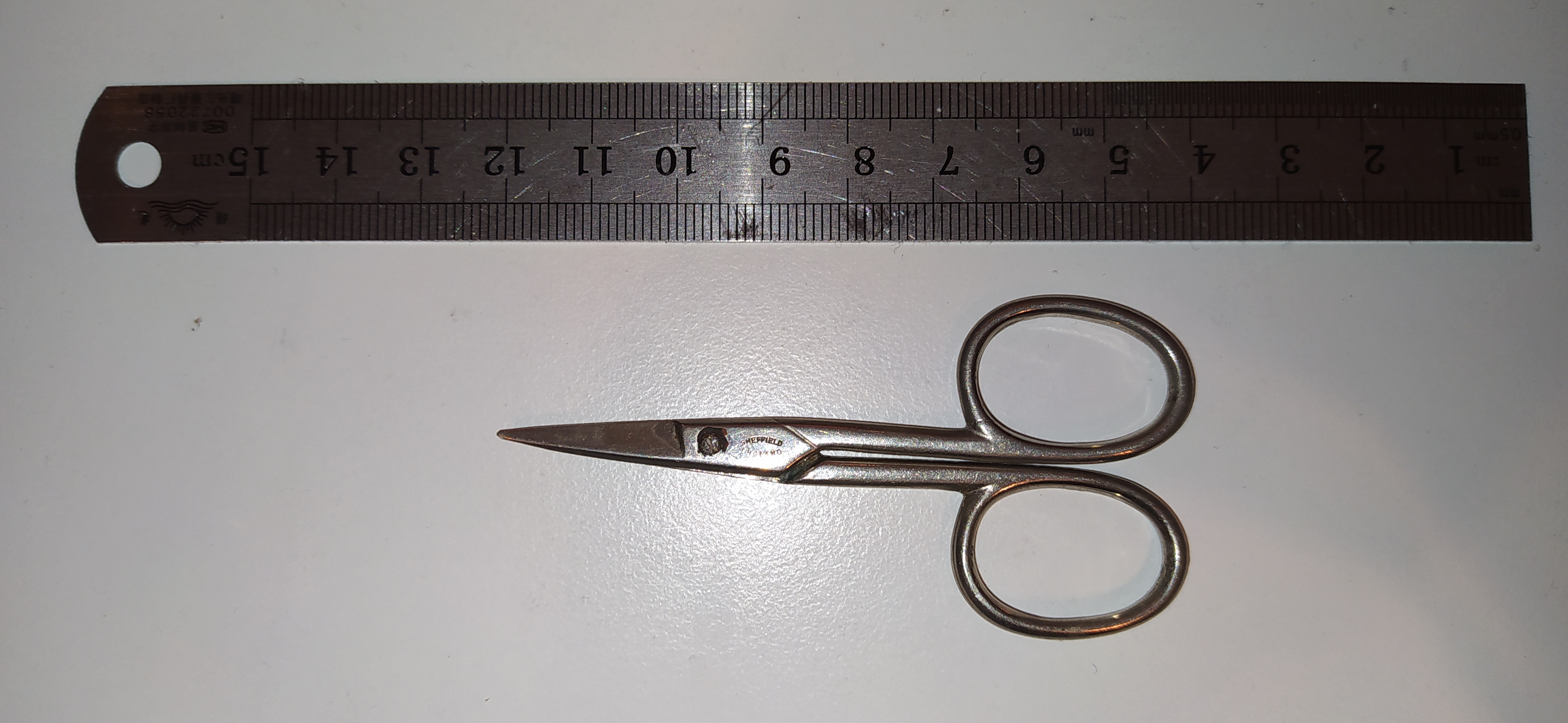

I found these scissors in the bin (trash, garbage) at my local hackspace because they had become rather loose. A few light taps (like 6) with a hammer on the rivet and it works perfectly now.
I thought they'd be quite nice as an EDC tool so I designed this cover for it.
I really doubt that anyone will have a lot of use for this print, but I thought I'd share just in case.
Scissor dimensions…
- Length = 80mm,
- blade length = 21mm,
- Width at handles = 39mm,
- Max thickness = 4mm,
- Max width at blades = 7.7mm.
Print Settings…
- TPU,
- 0.4mm nozzle,
- 210°C nozzle, cold bed,
- Layer height 0.2 (0.3 first layer),
- Must have bridging fan speed set very high,
- No brim,
- No supports,
- Print in supplied orientation.
