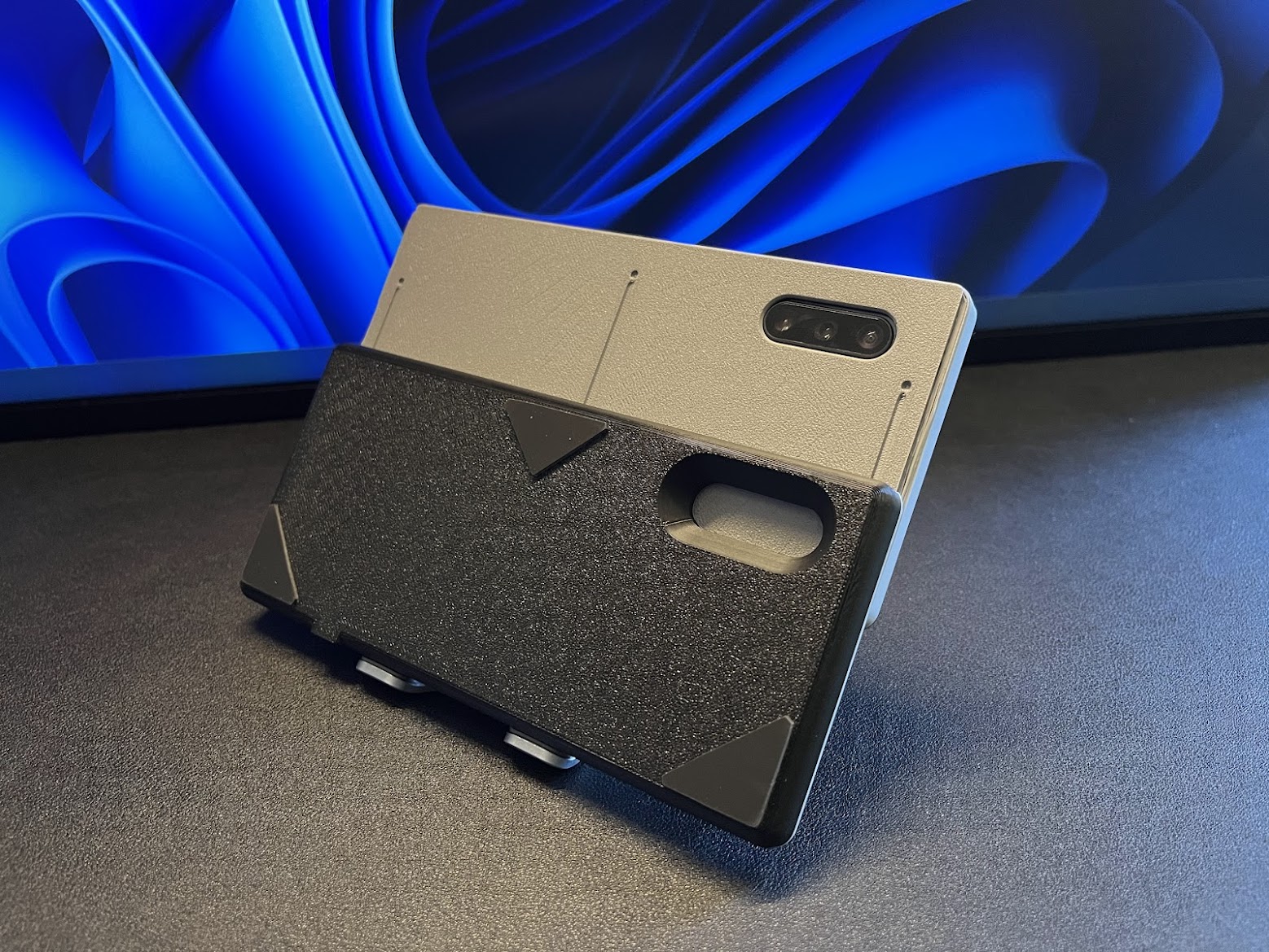

Note10+ Slider Terminal Case

This is a Bluetooth sliding keyboard case for the Samsung Note10+. This is the first complete iteration of this design, but it still requires a decent amount of refinement to be where I'd want it.

Issues/Action Items:

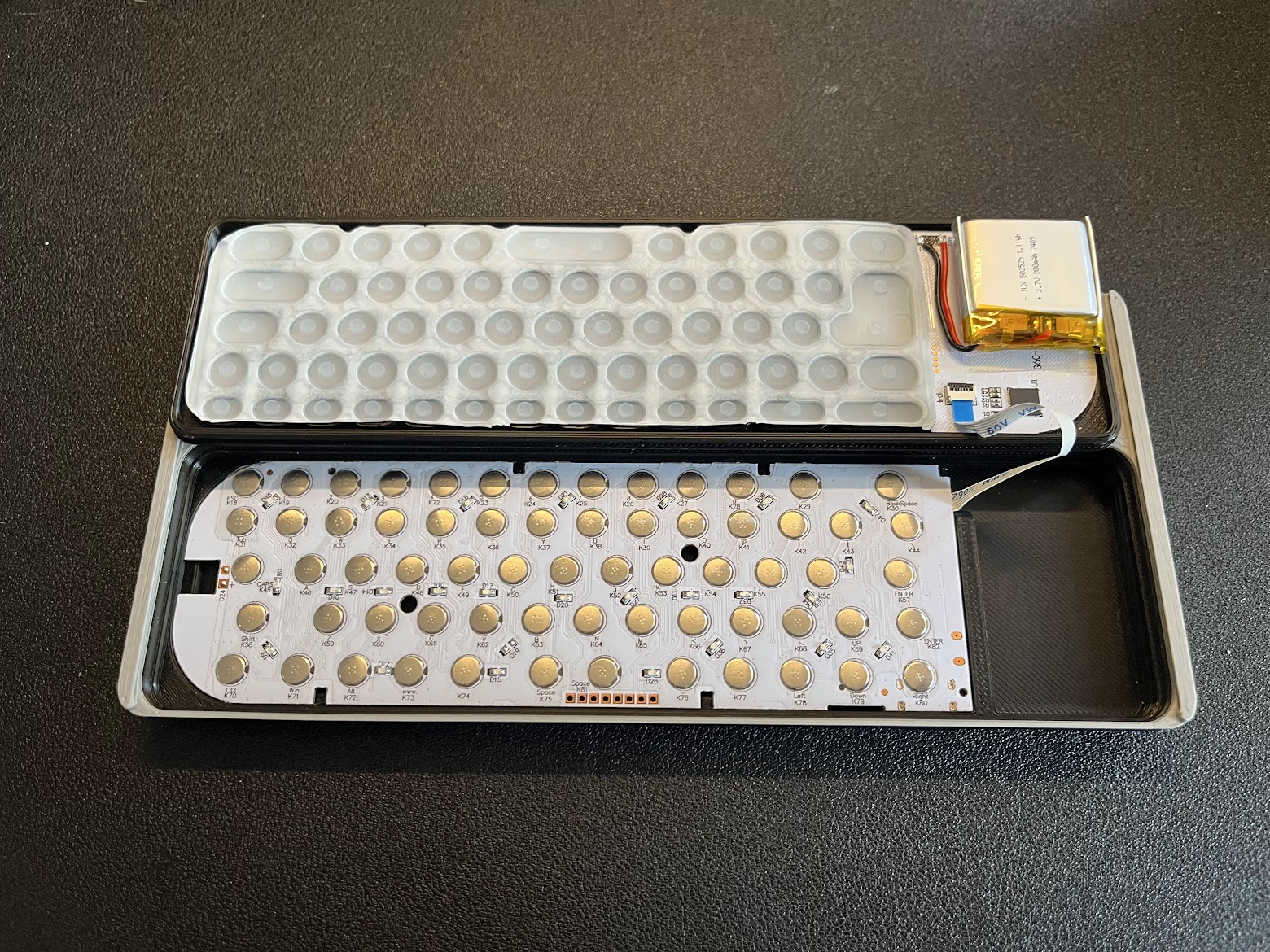

1. The keyboard bezel does not perfectly line up with the PCB. It does not affect functionality, but it's still a change that needs to be made.
2. Keyboard has a 1467P gyro IC that will disable the keyboard/trackpad input when tilted past 90 degrees vertical and switch to the remote input on the other side. I have contacted an OEM seller on Alibaba to see if they can special order one with the gyro disabled.
3. Top case can slide out from the top of the keyboard relatively easily when pushed beyond the detents of the spring plungers of the open position(future iteration will have a latch to prevent this). Detents are also slightly too large so the phone will rattle slightly until this is updated.
4. Opening for the S-Pen is too narrow to remove while installed in the case. The entire corner will need to be cut out or a printed attachment to the end of the S-Pen will need to be added.
5. Bottom case only provides a cutout for the cameras, no flashlight or sensors. If required, use in opened position


Keyboard: G60S Pro Bluetooth Keyboard/Remote

Ball spring plungers: 3x4 spring plungers, unknown force rating https://www.amazon.com/dp/B0CNVCLZQJ?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

Material: Standard PLA
