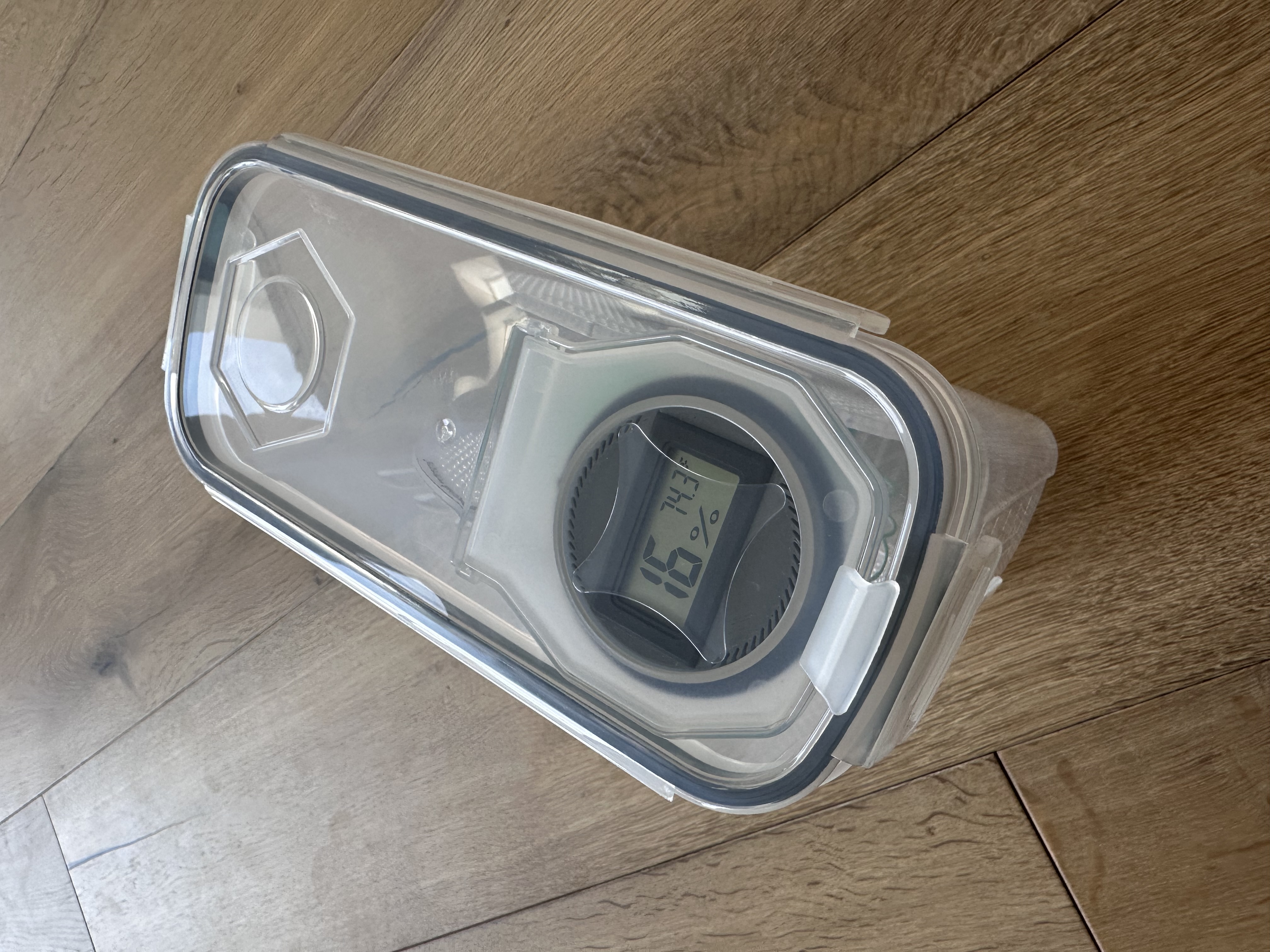

Why another Hygrometer holder for a cereal container?

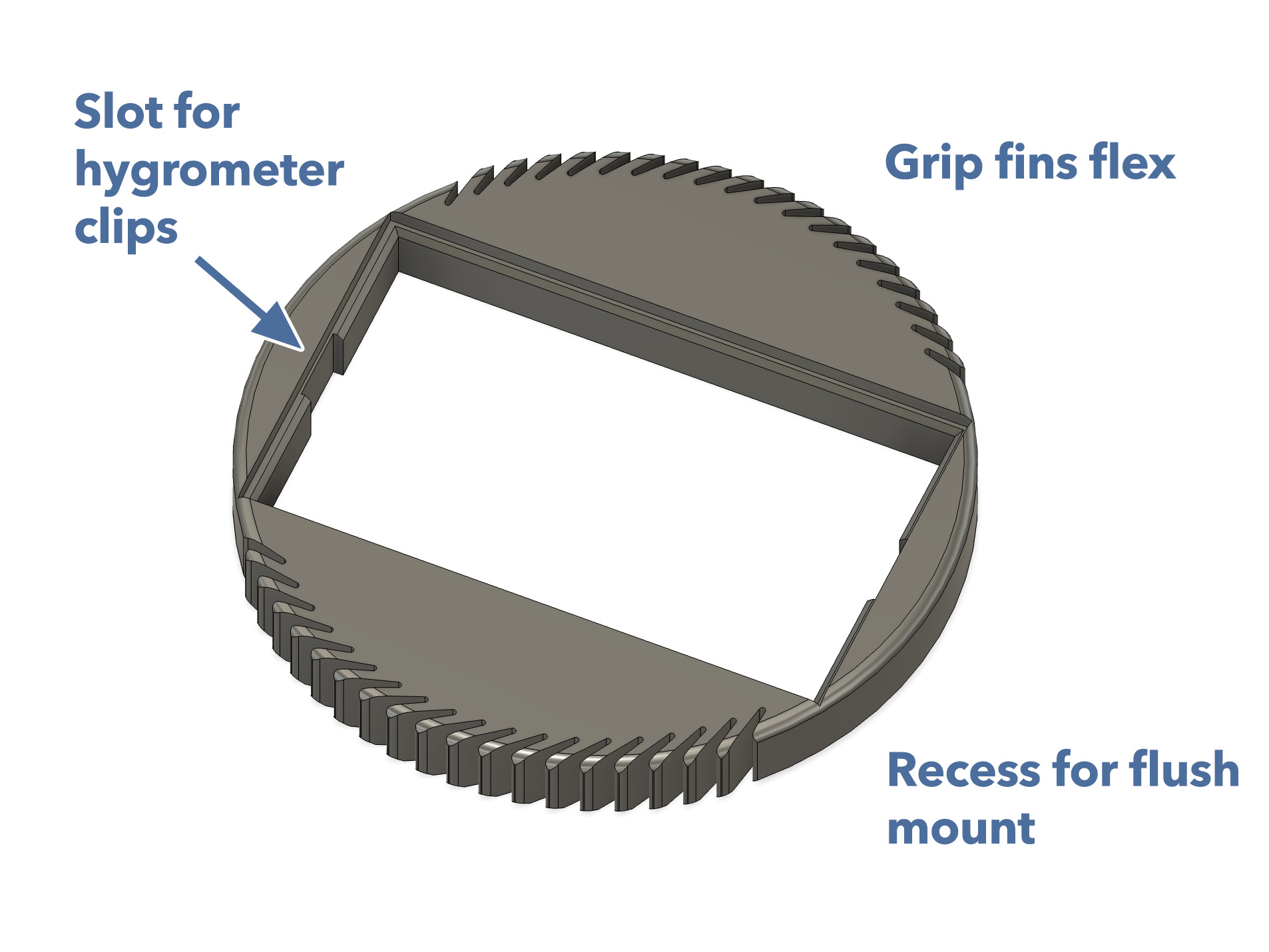

I wanted a model that fit well. Others have had to tune theirs or rely on hot glue. Grip fins solve this problem.

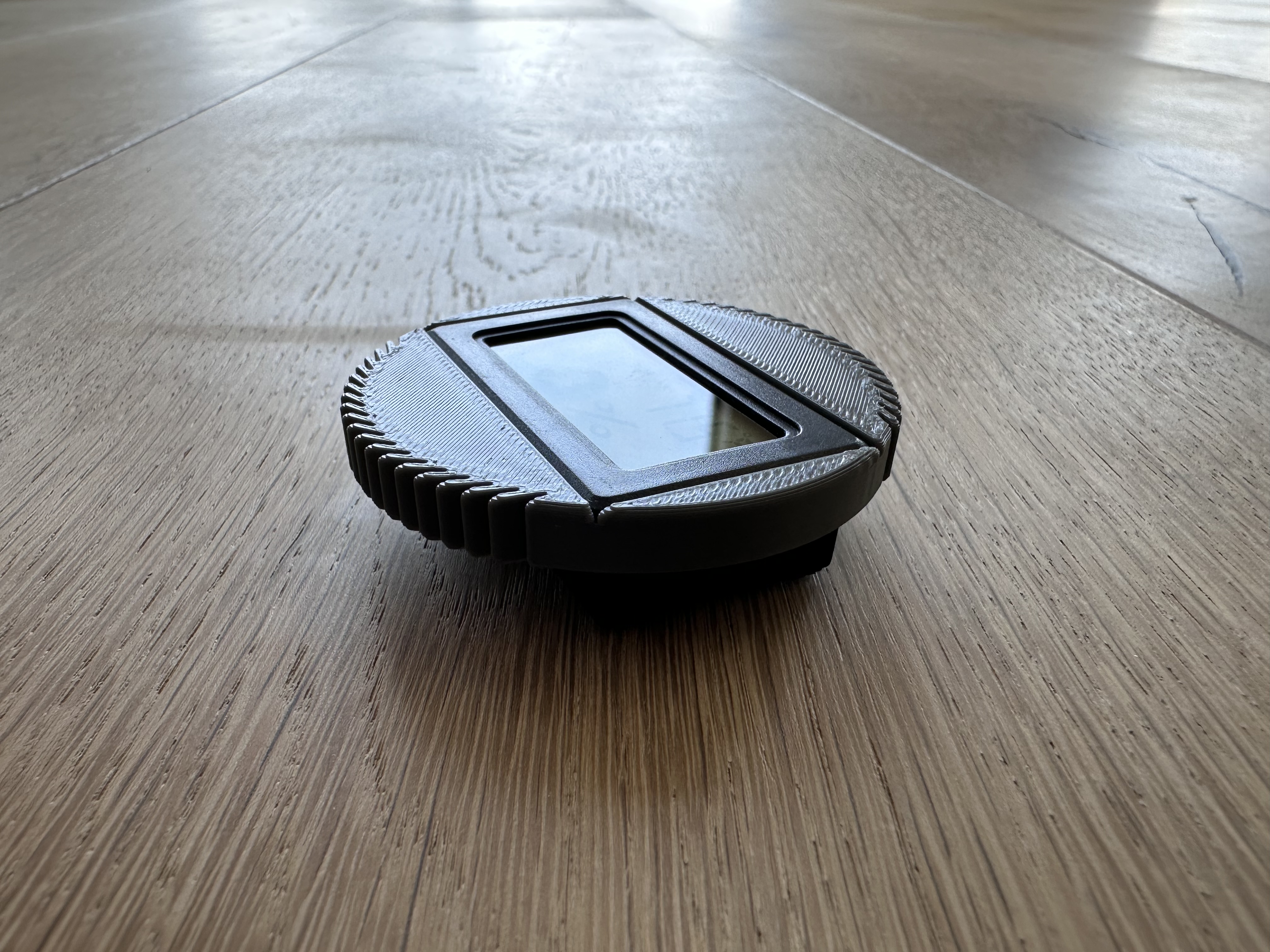

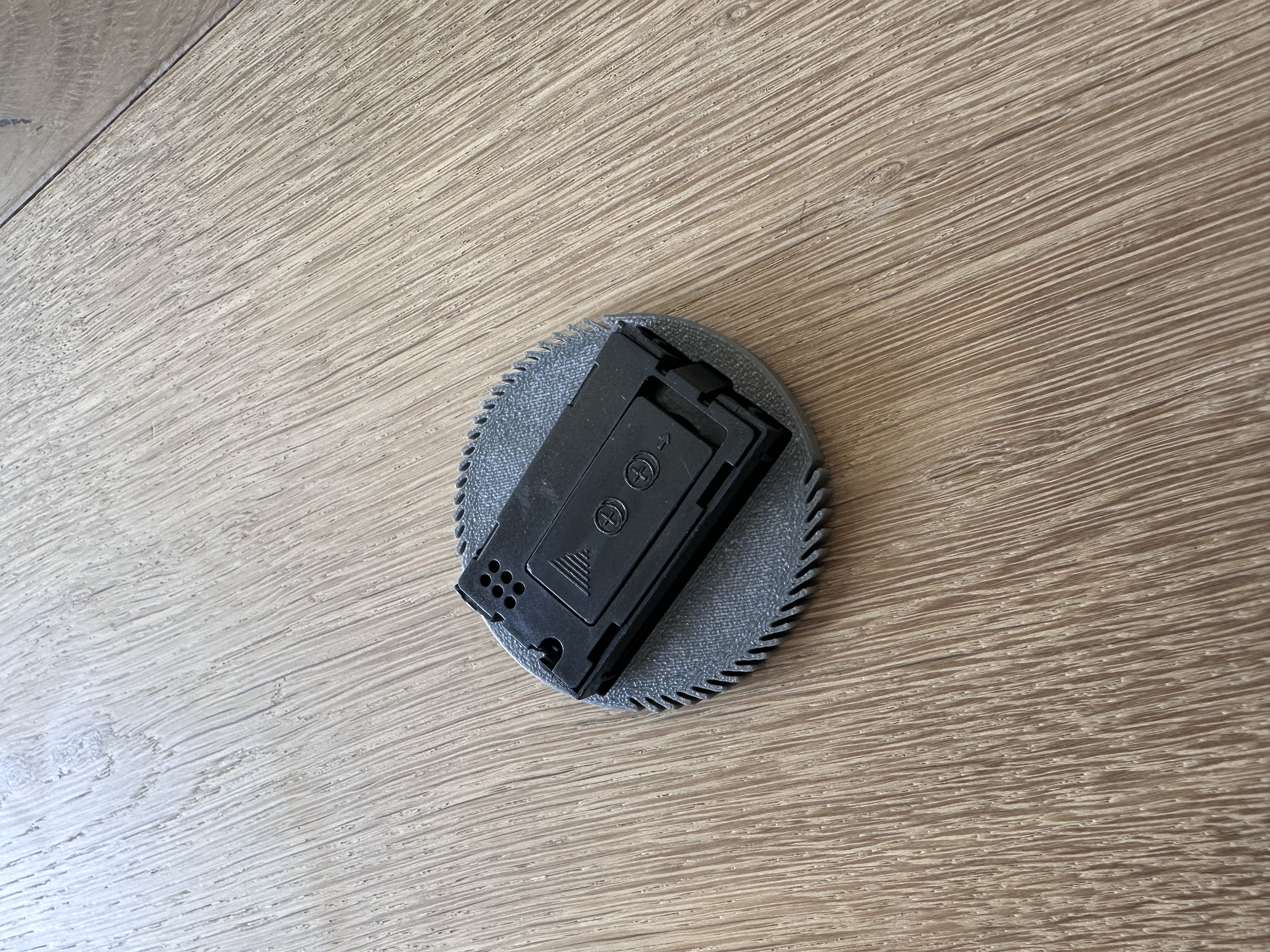

For me, this has a satisfying click when inserting the hygrometer into the holder, and the grip fins provide enough flex for a friction fit. To remove, twist the hygrometer as you pull it out.
Hygrometer: https://www.amazon.com/dp/B0CXHS6CYS?ref=ppx_yo2ov_dt_b_fed_asin_title
Cereal Boxes: https://www.amazon.com/dp/B08TWH2QHV?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
Dimensions:
- Hygrometer face plate: 47.6mm x 28.5mm
- Hygrometer insert: 45.6mm x 26.75mm
- Cereal Box inner cup diameter: 56mm
Be gentle removing the part from the build plate. The corners are small and delicate. It is pretty robust once the hygrometer is installed.
Recommended print settings:
- 3 wall loops
- Wall generator set to ‘Arachne’ - this gives you 2 outer wall loops that are needed for strength for those delicate corners.

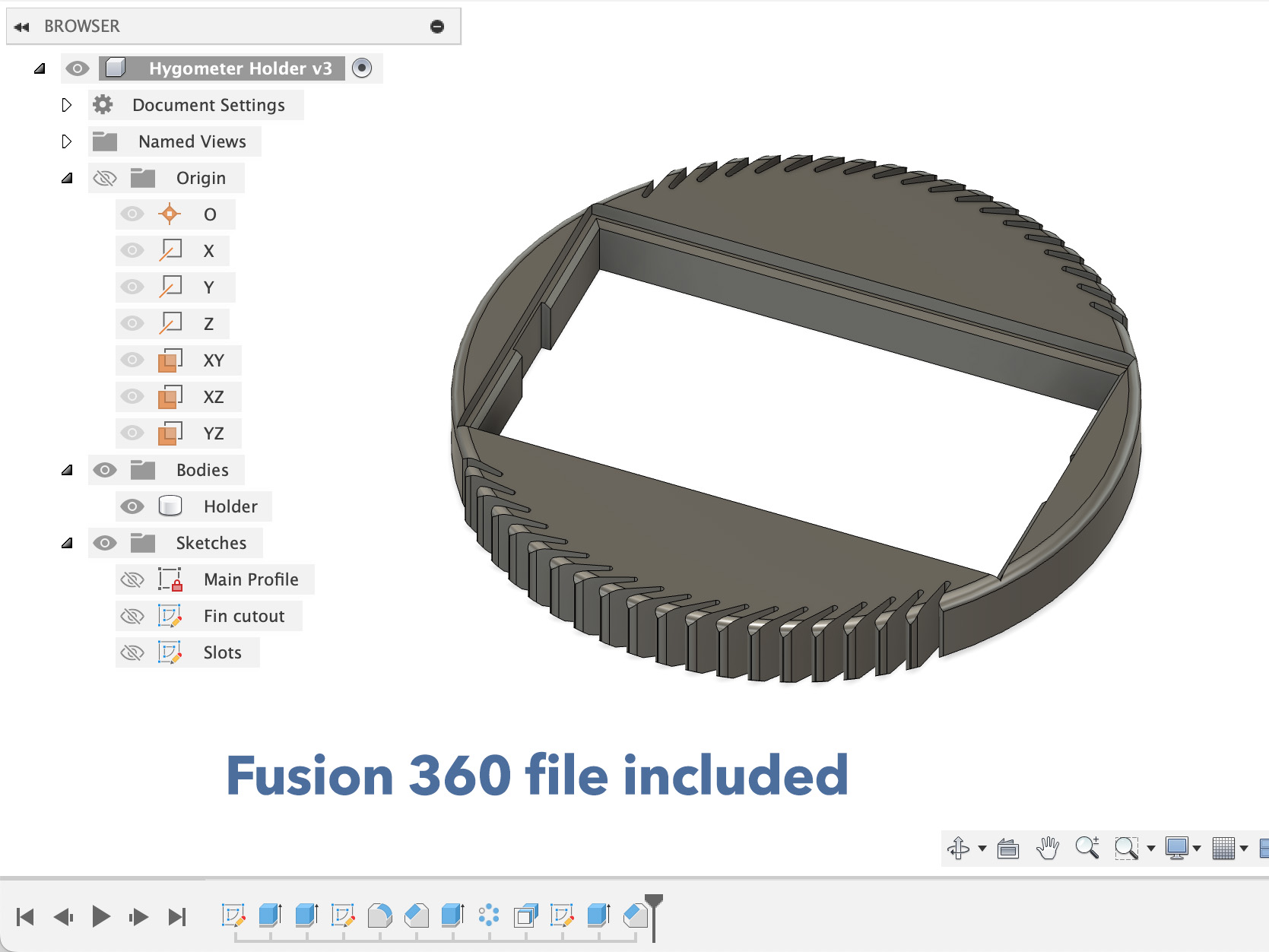

I also include STEP and Fusion 360 files to make it easy to alter.
