WWF Ring

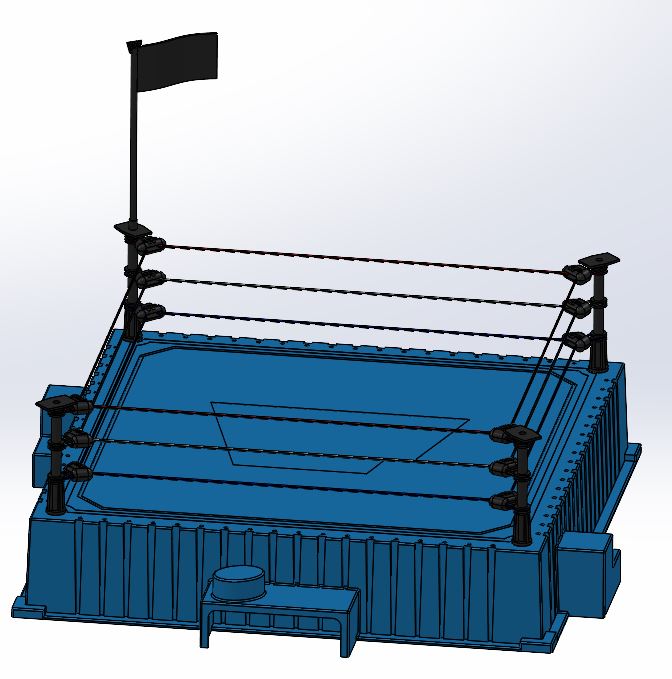

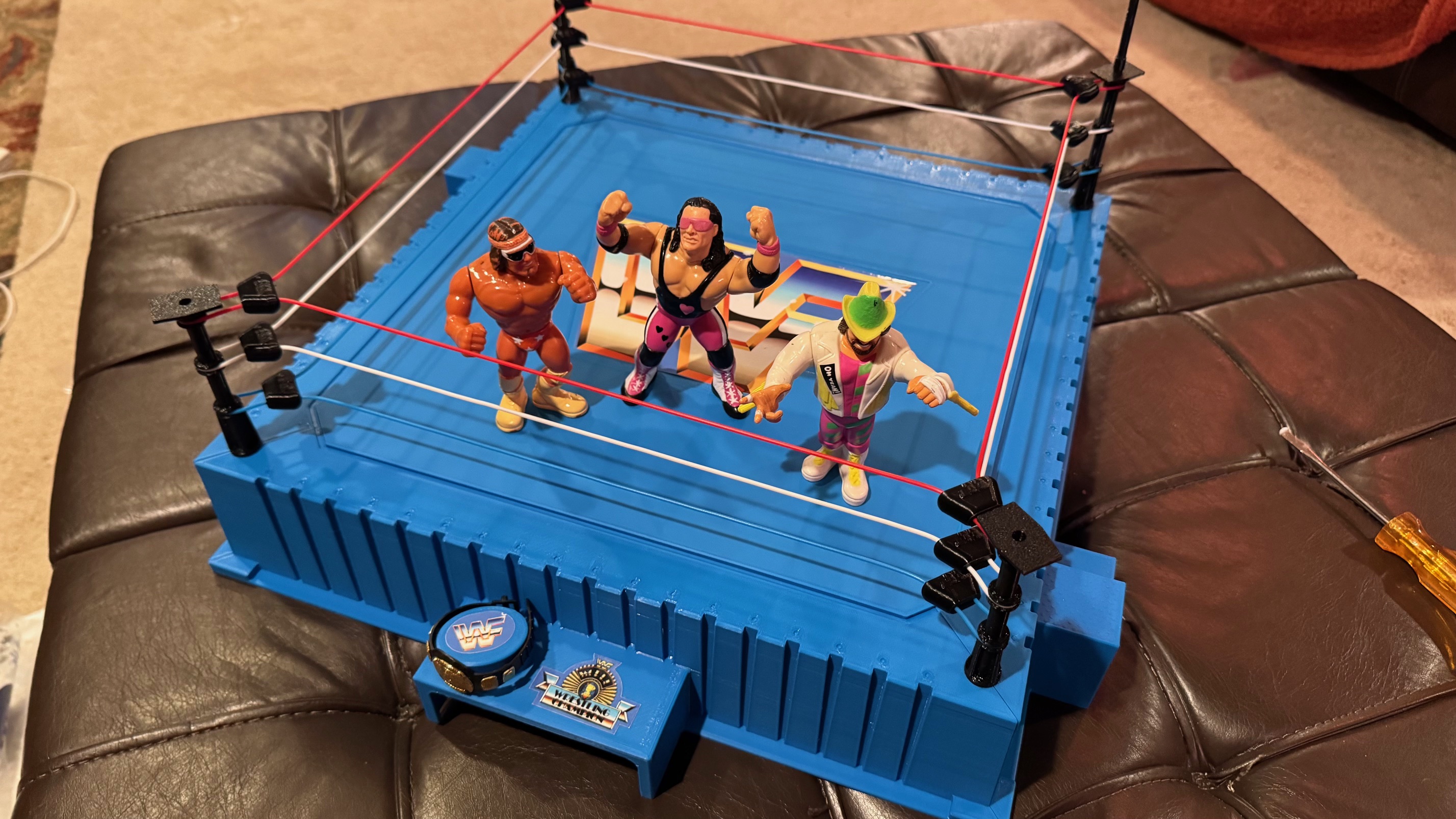

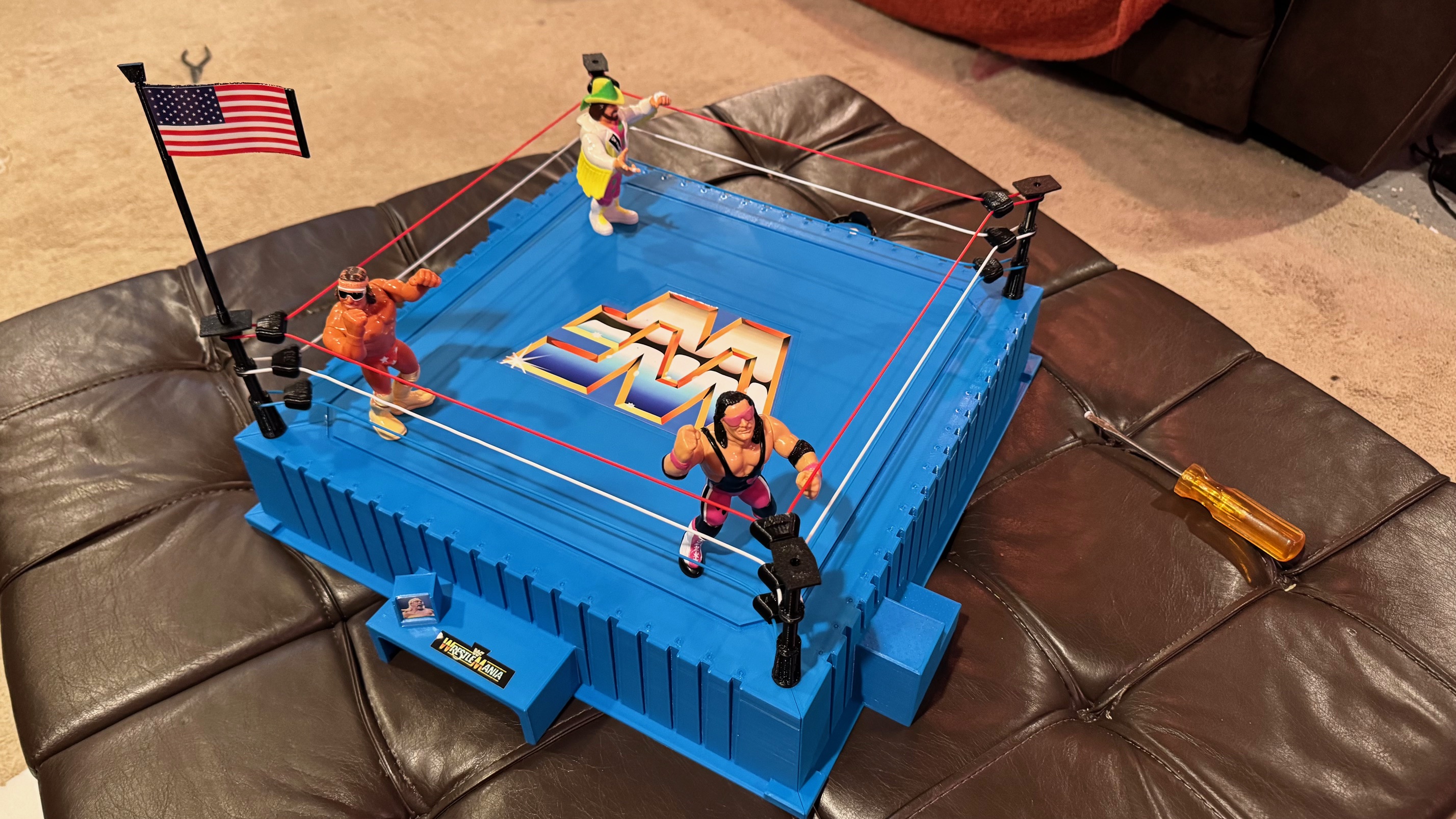

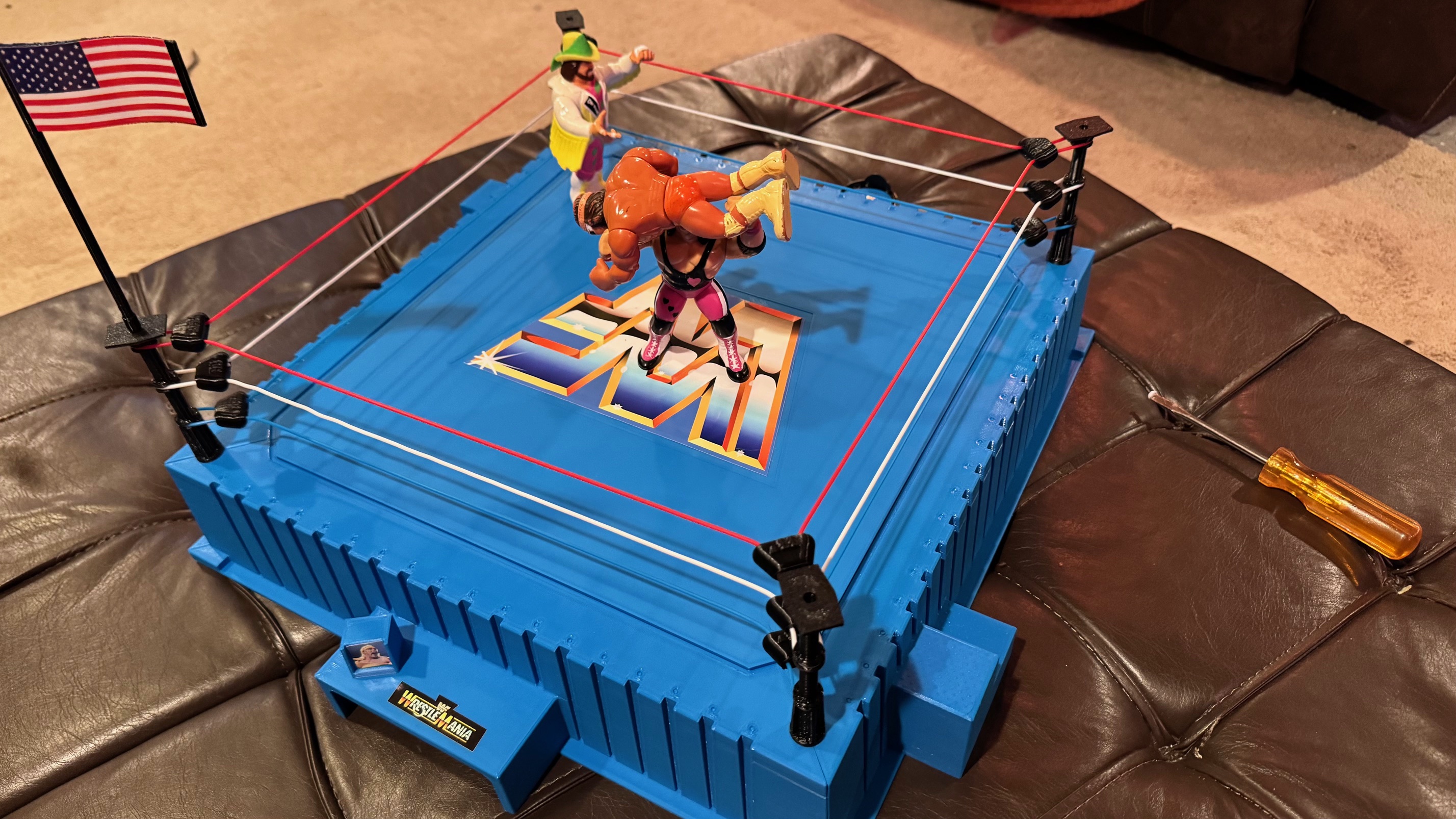

I designed this for my friend as a show piece for his action figures.  The photos supplied are his showing off how the figures look with it.  He also found the sticker kit on etsy: https://www.etsy.com/listing/1495581181/blue-wwf-hasbro-ring-replacement

print instructions:

USE PETG FOR THE MAIN ASSEMBLY! - I tried various PLAs, none worked, the shoulder/bridge warps really bad

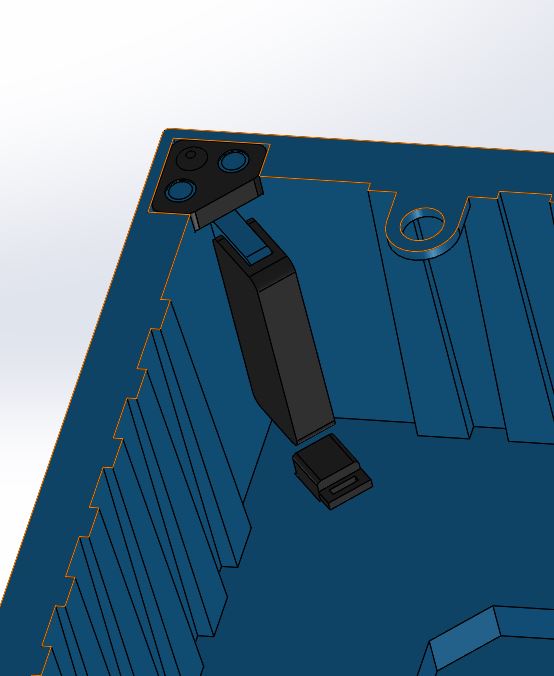

You will want to snip 3 of the corner jams to help hide your rope knots inside the corners

I used regular TPU filament for the ropes

There are holes underneath for hanging the assembly on a wall

1X top surface _ PETG >20% infill cubic

1X belt side _ PETG >20% infill cubic

1X monitor side _ PETG >20% infill cubic

1X flag _ PETG >50% infill cubic

1X flag top _ PETG >20% infill cubic

2X step sides _ PETG >20% infill cubic

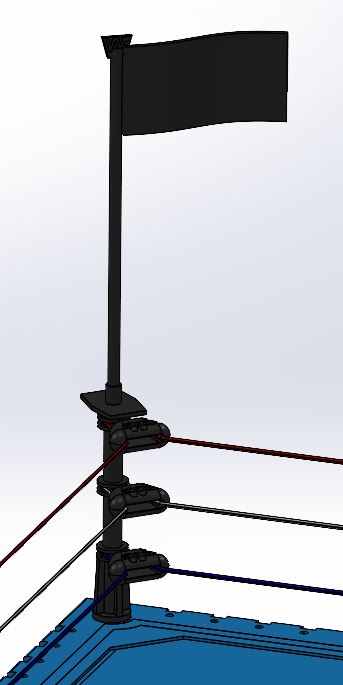

4X poles _ PETG >50% infill cubic

4X corner gussets _ TPU 35% infill gyroid

4X pole clips _ PETG 100% concentric/infinite perimeters

4X corner Clamps _ PETG 100% concentric/infinite perimeters

12X top plate securing bushings _ TPU 15% infill cubic

12X rope corners _ PETG 15% infill cubic

12x rope corner jams _ TPU 10% infill cubic

If there are any issues with the prints or questions please reach out, I will do what I can to assist.
