Drive hub kit for inline skate wheel
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
This is a hub kit for an inline skate wheel that uses 608 bearings, to make it a drive tire.
- Ocena
- 0 / 5
- Polubienia
- 4
- Pobrania
- 12
- Wydruki
- 0
- Wyświetlenia
- 89
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Mechanical Parts
- Licencja
- Creative Commons — Attribution

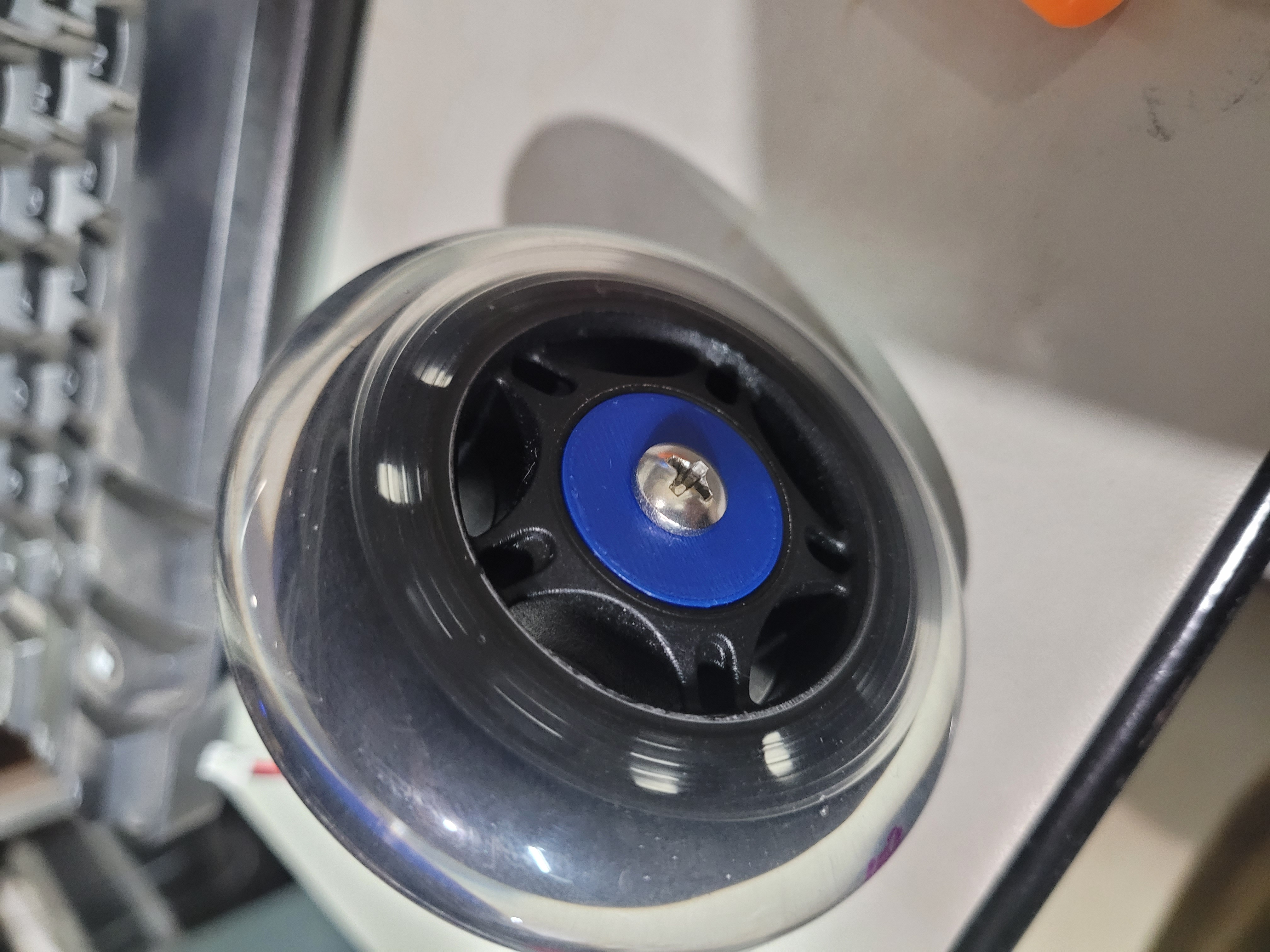

This is a drive hub kit for an inline skate wheel. The wheel I used is 76mm. The idea was to make a drive tire for an “Arduino Mobile Experimenters Platform”. otherwise known as the Arduino car. The hub fits quite snugly, I think it might be better to install it warm from the printer and let it shrink to the shaft. Let me know if you want changes or if you have improvements. I'd appreciate the feedback. Thanks much and enjoy. I printed with Overture PLA in about 30 minutes on a MK3S+. The parts are blue in the photo's.
Installation is easy. Knock out the bearings and press in the hub and hubcap. Install the clamp screw. I sized the holes for a 10-24 screw 1" long. Motor shafts are 6mm D type. Press on to the shaft and GO!
