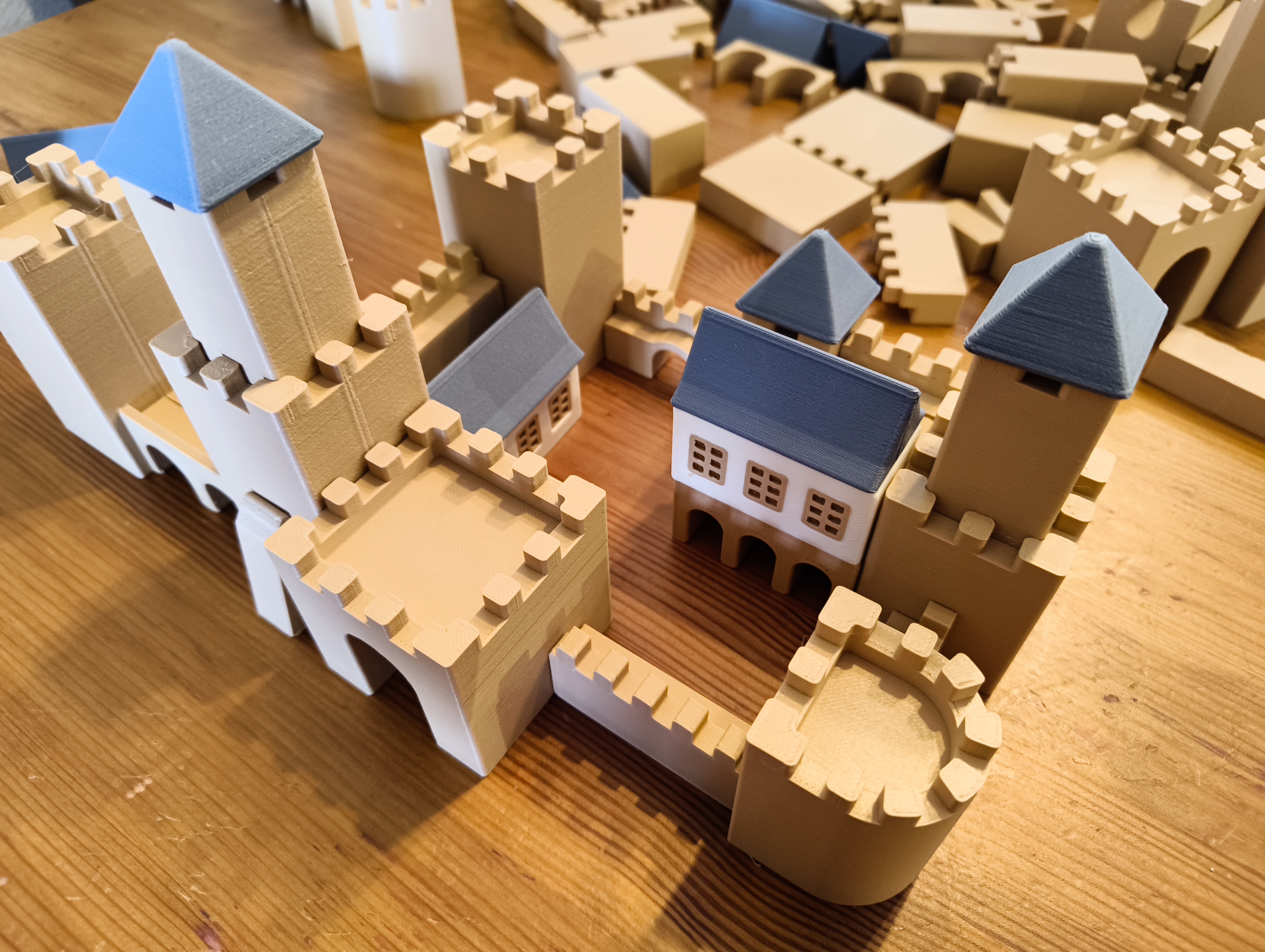

Castle building blocks

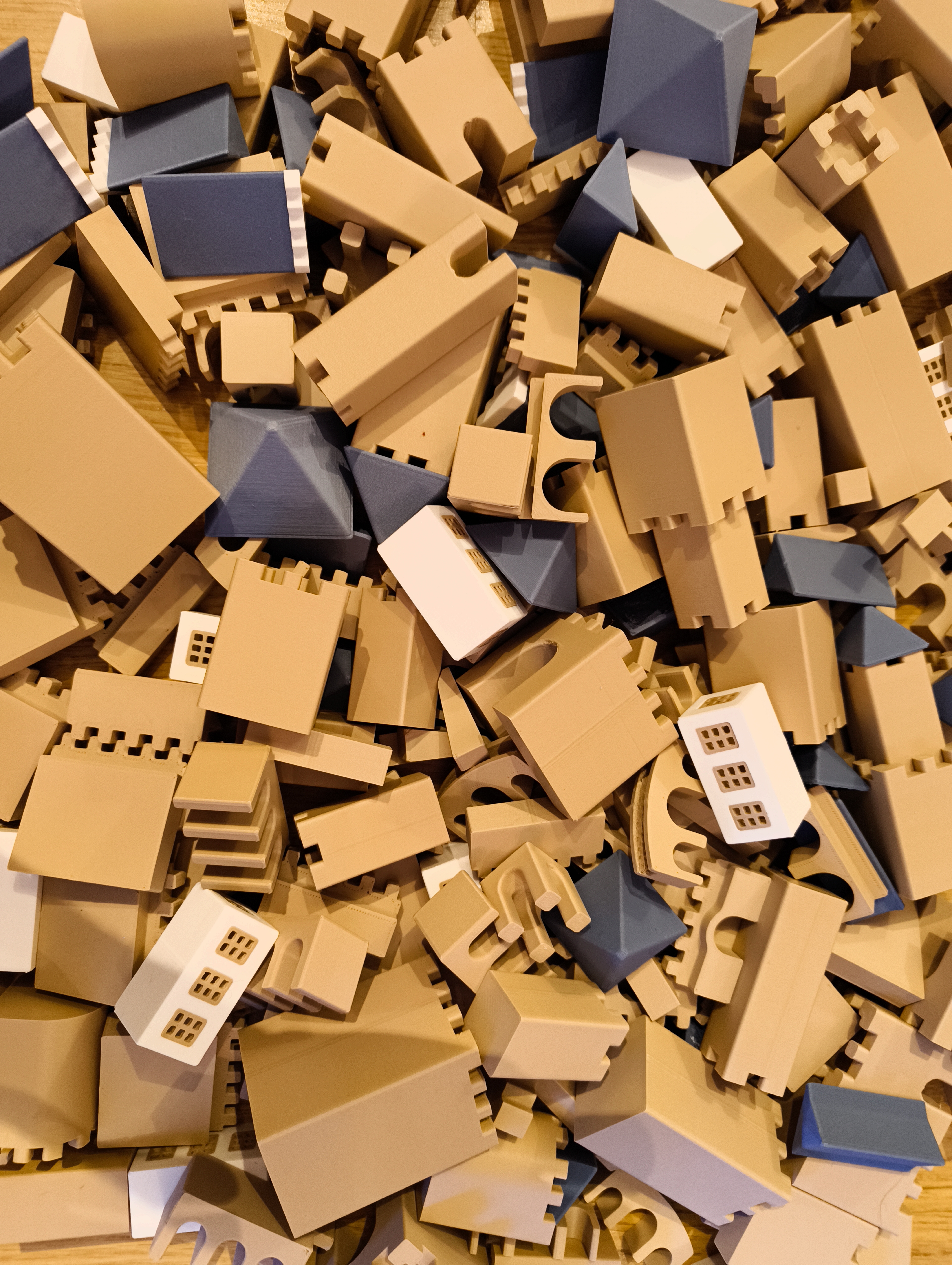

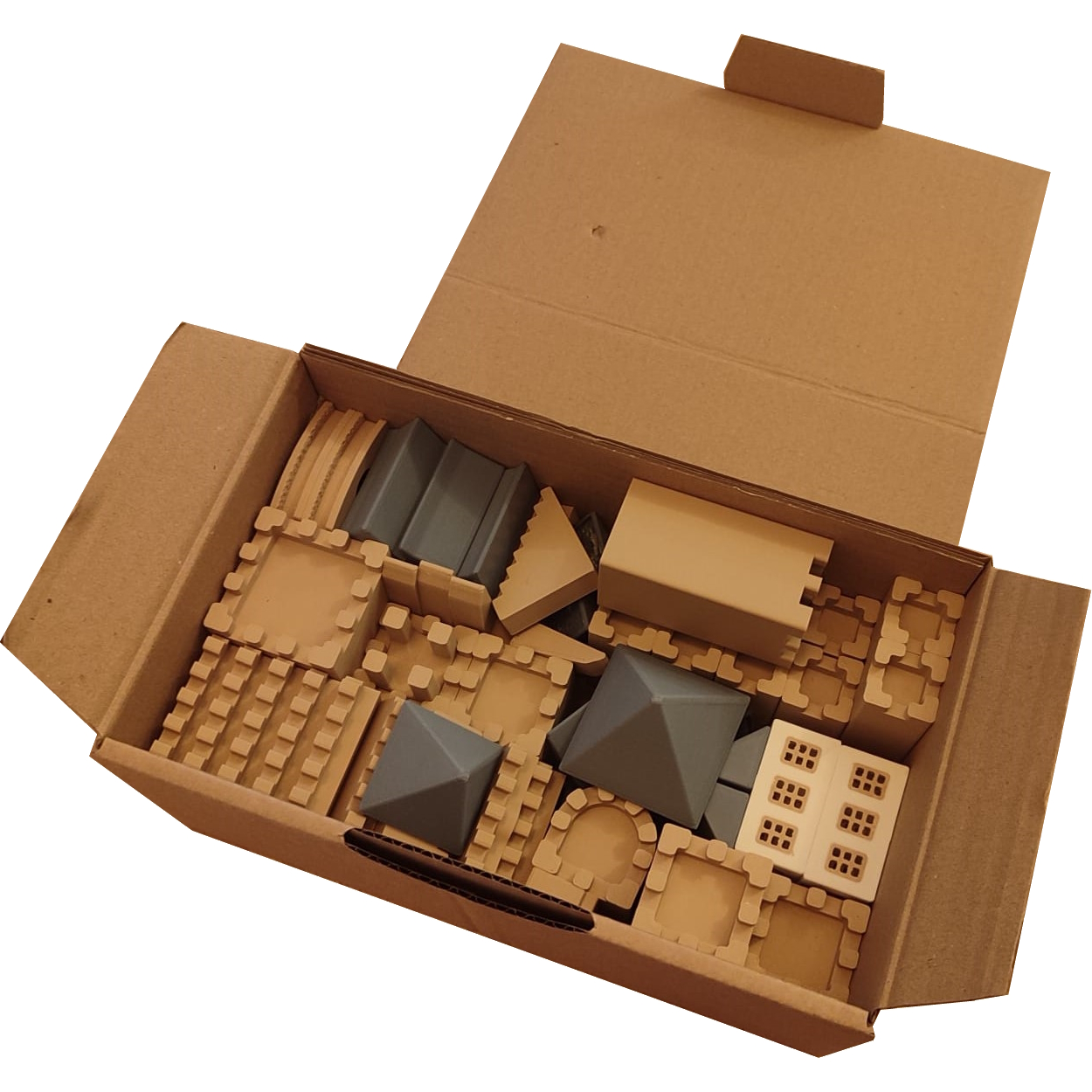

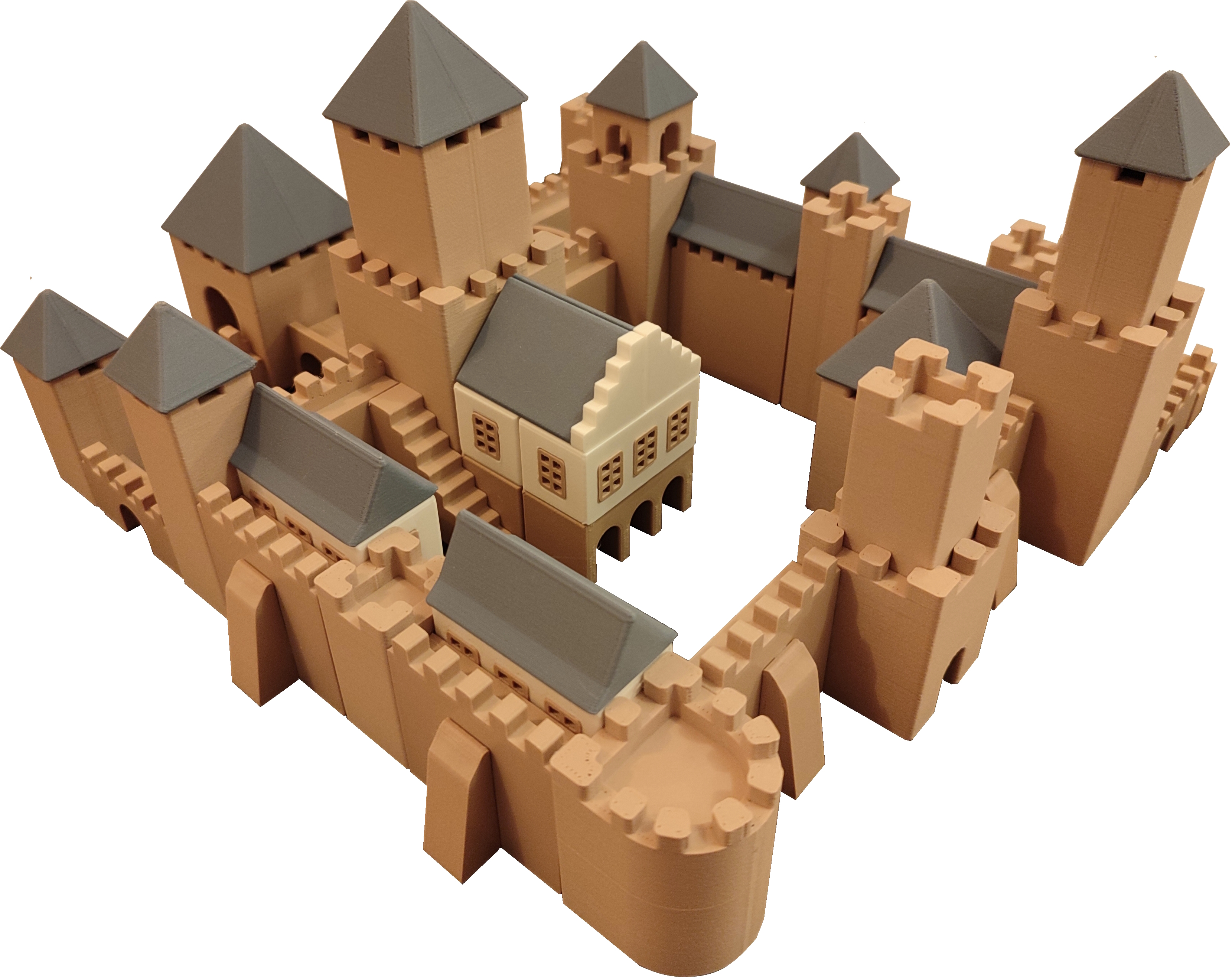

Building block system for creating cute miniature castles. The set includes all necessary parts to create imaginary castles or realistic miniature versions of existing castles and cities.

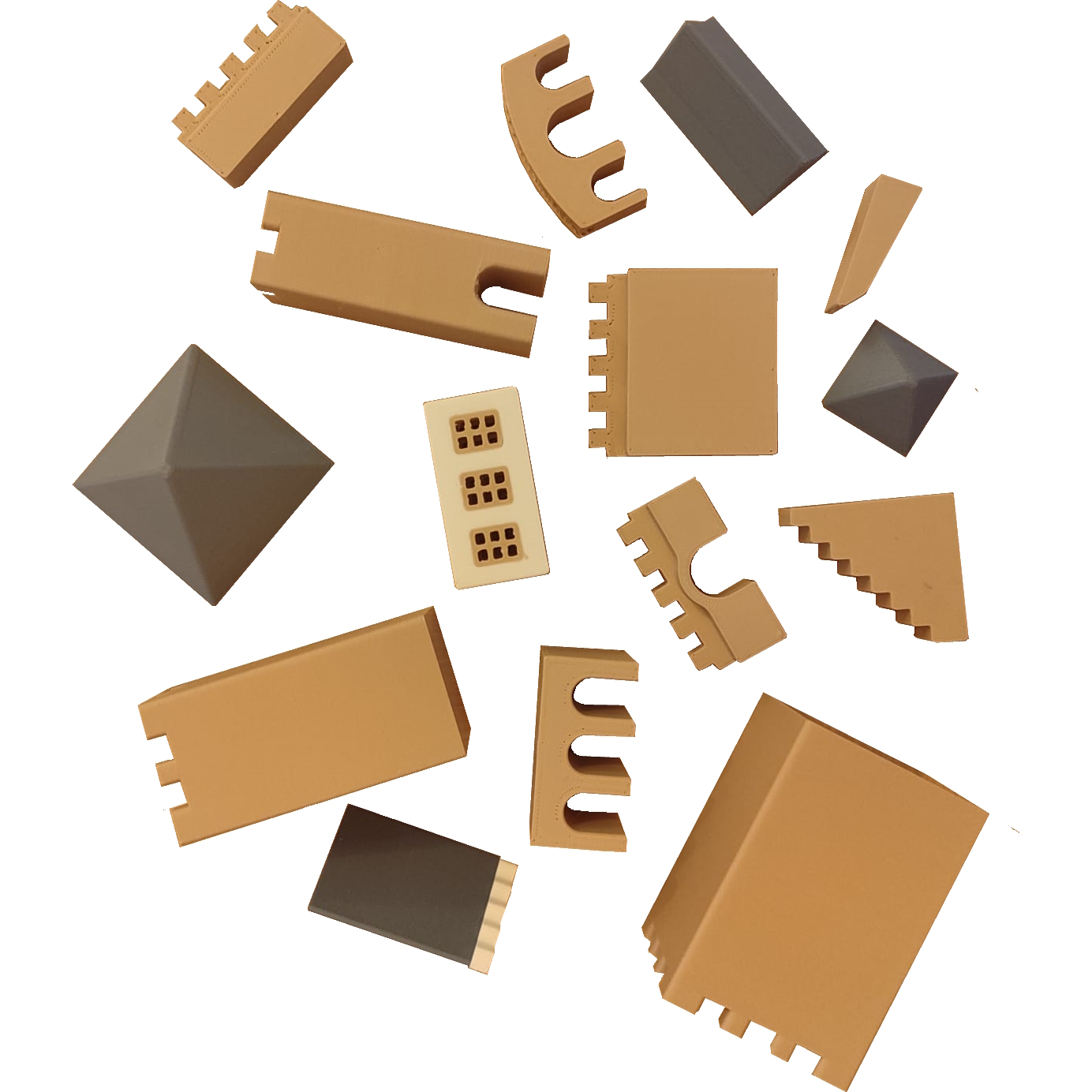

• Different wall types

• Towers in multiple sizes and shapes

• Arches and bridges

• Building blocks for houses

• Roof blocks

PRINT INSTRUCTIONS / SETTINGS

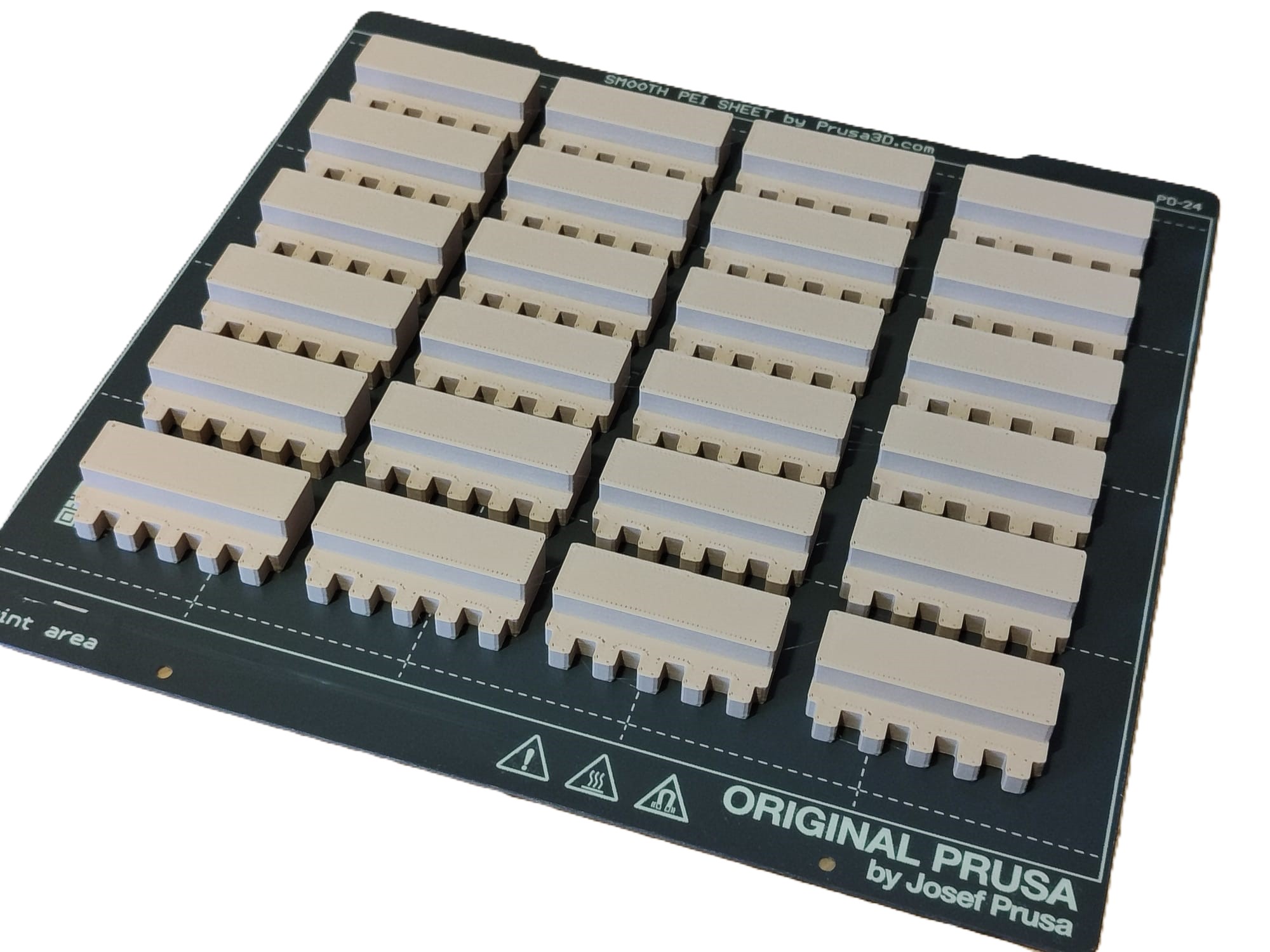

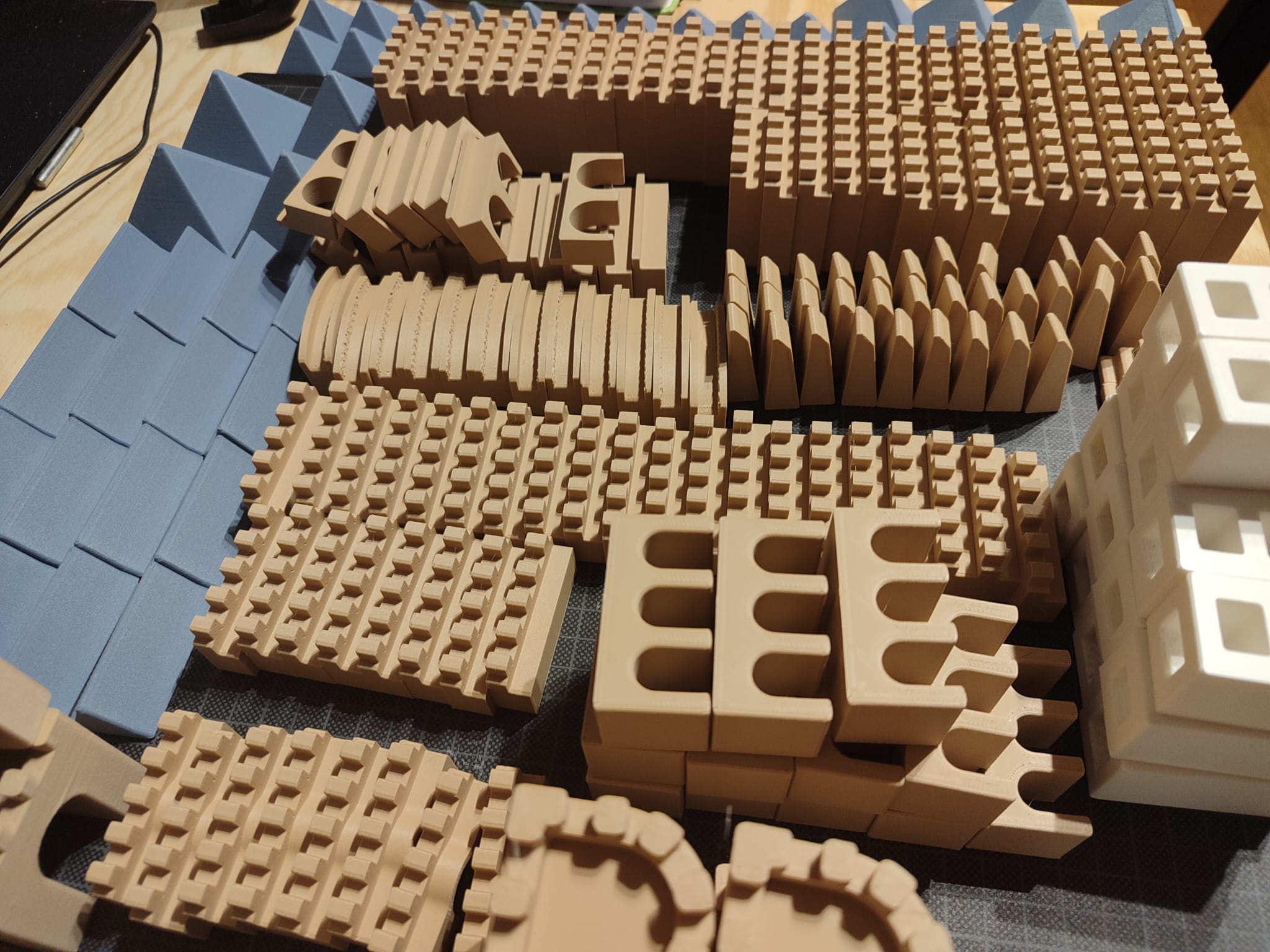

• Shown images printed on MK4 + MMU3

• Shown images printed in 0.2mm speed setting with input shaper

• Models tested in PLA (PolyTerra)

• Print with snug supports

• Scarf joints faced at the back

BLOCK NAMES

All blocks are named according following scheme and fit into a 12.5mm size grid system for full modularity and expandibility

Block name = First letter_Length_width_height_Last letter

Dimensions

12.5 mm = size 1
25 mm = size 2
37.5 mm = size 3
50 mm = size 4
62.5mm = size 5
75mm = size 6

First letter meaning:

T = Tower
R = Roof
A = Arch / Bridge
W = Wall
H = House / Buildings

Last letters:

B = Basic
G = Gate / Door
R = Ruin
S = Square
C = Circular
H = Half circular
V = Vault
L = Lancet arch
D = Double
CT = circular tower
CS = crow stepped
E = Edge
W = Window
DA = Double arch
TA = tripple arch
M = Misc.

Examples:

• A 50x12.5x25 mm wall without any features = W412B

  • W = Wall

  • 4 = 50 mm length

  • 1 = 12.5 mm width

  • 2 = 25 mm  heigth

  • B = Basic (without features)

• A square tower measuring 50x50x75 mm with a gate = T446SG

  • T = Tower

  • 4 = 50 mm length

  • 4 = 50 mm width

  • 6 = 75 mm heght

  • S = Square tower

  • G = Gate
