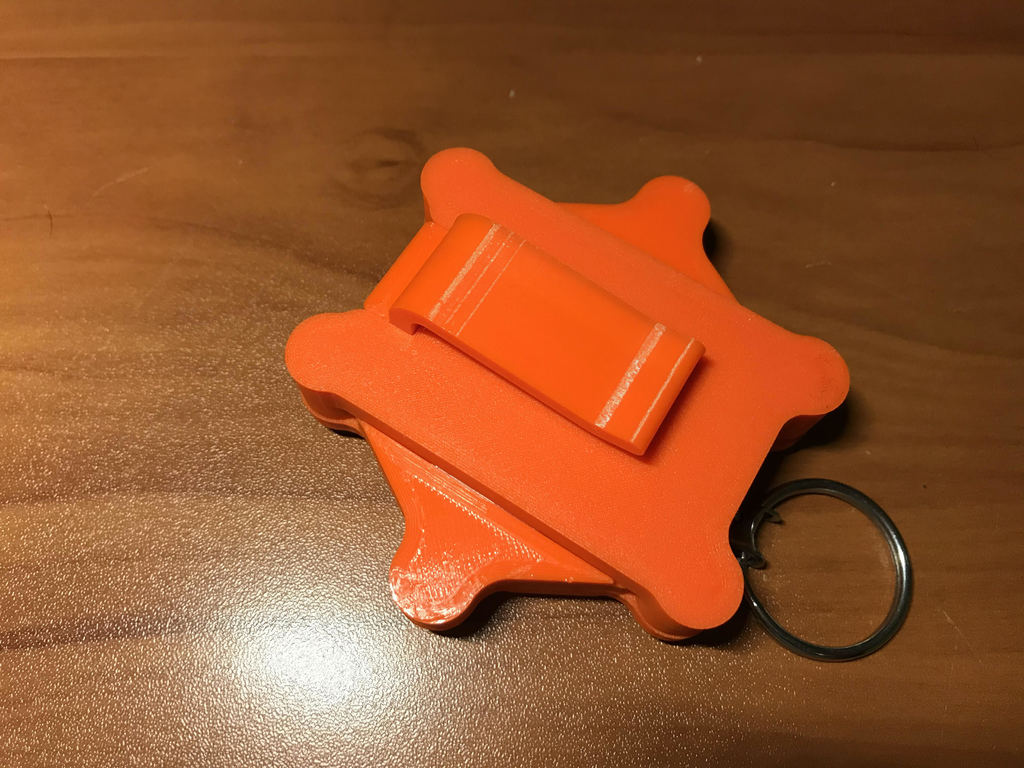

Belt clip holder with replaceable / printable clip for those of us who break off these clips far too often.
5 files: the clip, the back cover, the back spacer, and two versions of the front cover.
Made with this style mechanism. I removed the broken old clip and cut the prior clip mounting notch off - in a future update I'd like to just modify the print to allow for the existing prior clip mounting notch: https://www.lowes.com/pd/Hillman-Silver-Cable-Ring/50243993?cm_mmc=shp-_-c-_-prd-_-hdw-_-google-_-lia-_-203-_-keysandaccessories-_-50243993-_-0&store_code=726&placeholder=null&gclid=Cj0KCQjw3Nv3BRC8ARIsAPh8hgJM7aOY54bxl3-TnjETSNmf_MBoMMO716StMQTt_MPYDULOFi03jAUaApKPEALw_wcB&gclsrc=aw.ds
Bolts together with six 8-32 x 1/2 flat socket head cap screws. In that same future update I'd like to make it accept threaded inserts of some kind, as while it does screw together and unscrew easily, I could see the threads being damaged in short order.
Print the clip on its side, and choose a print setting for your setup that allows the clip to be made of just walls, no infill.
