Raspberry Pi 4 - Waveshare 3x Relais HAT Housing by Nerdiy.de

Build a professional protective housing for your Raspberry Pi 4 with Waveshare 3-Channel Relay HAT integration.

Here we offer you the STL files for 3D-printed housing parts, which have been specifically developed to securely hold the Raspberry Pi 4 and the Waveshare 3-Channel Relay HAT while protecting them from dust and physical damage.

With the provided STL files, you can easily create your own housing parts on your 3D printer and integrate them into your Raspberry Pi 4 automation and control projects.

Print settings

• Filament type: Weather and UV-resistant, e.g. PETG, ABS, etc.

• Layer thickness: 0.2mm

• Infill: 25%

• Wall lines: 5

• I highly recommend to print the parts in the already defined orientation. The defined orientation is intended to maximize the structural integrity of the part.

Material list, Assembly instructions & more

You can find additional info at the following GitHub repository.

• https://github.com/Nerdiyde/Nerdiy_Products/tree/main/products/raspberry-pi-4-waveshare-3x-relais-hat-housing

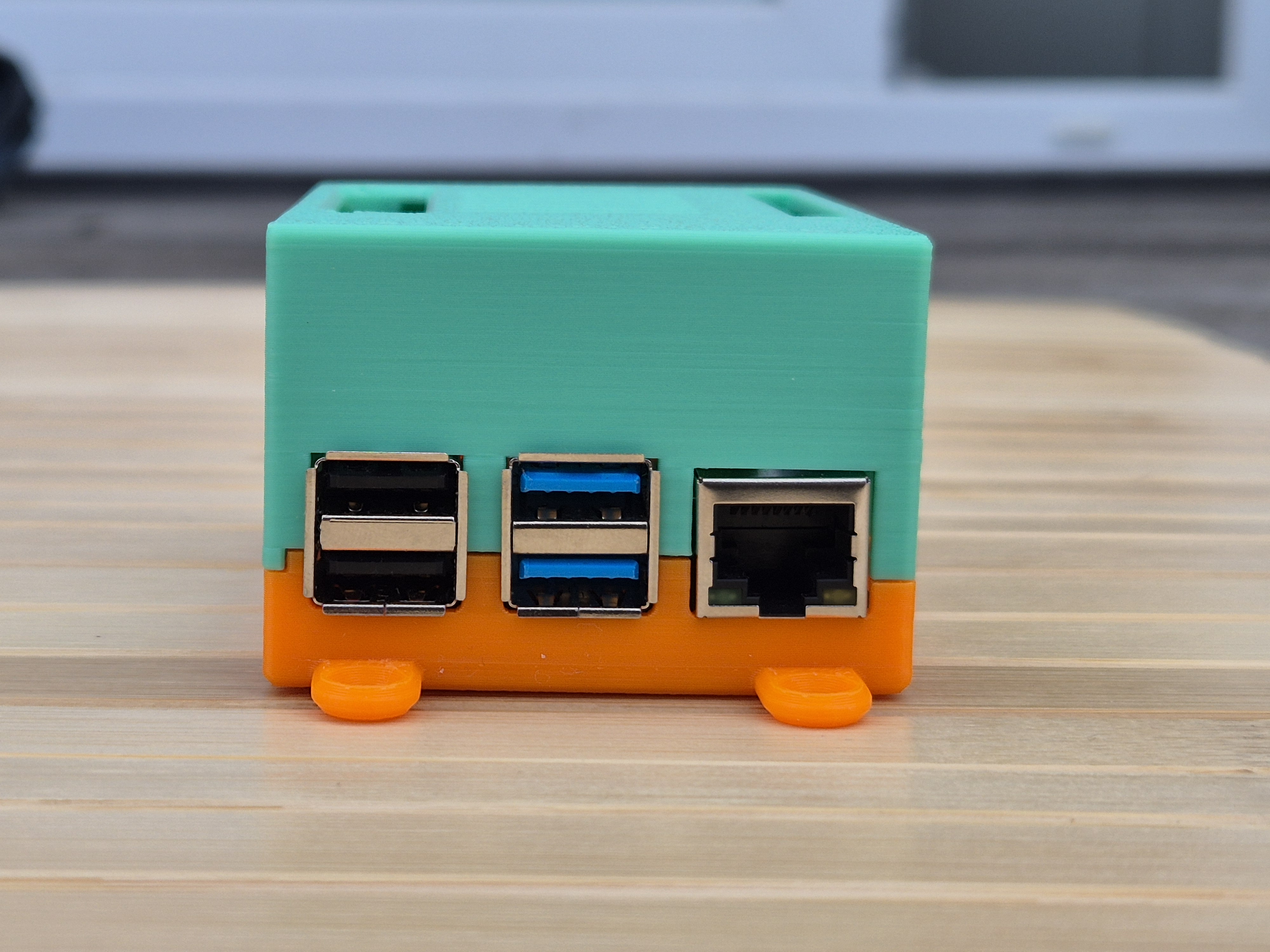

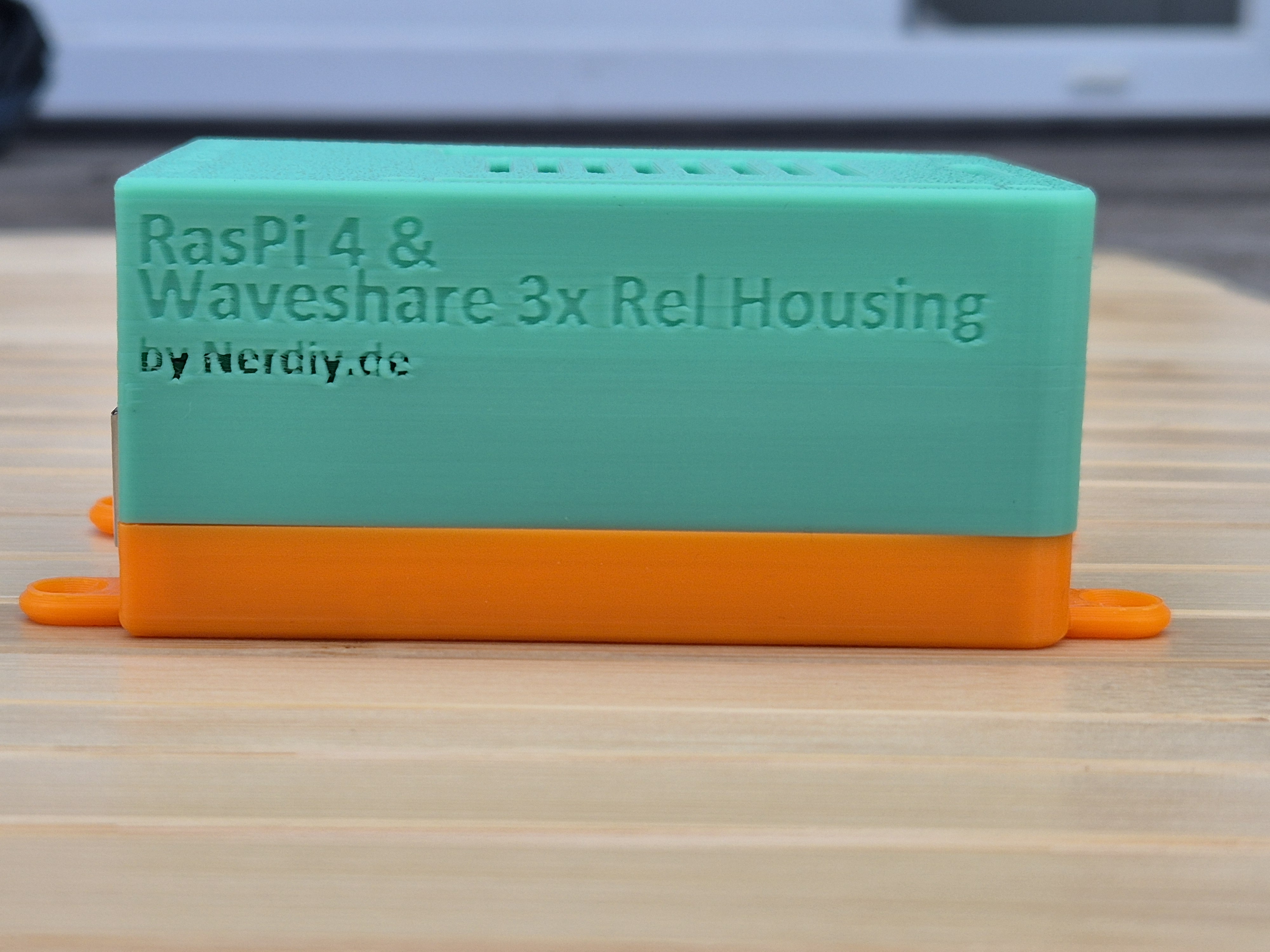

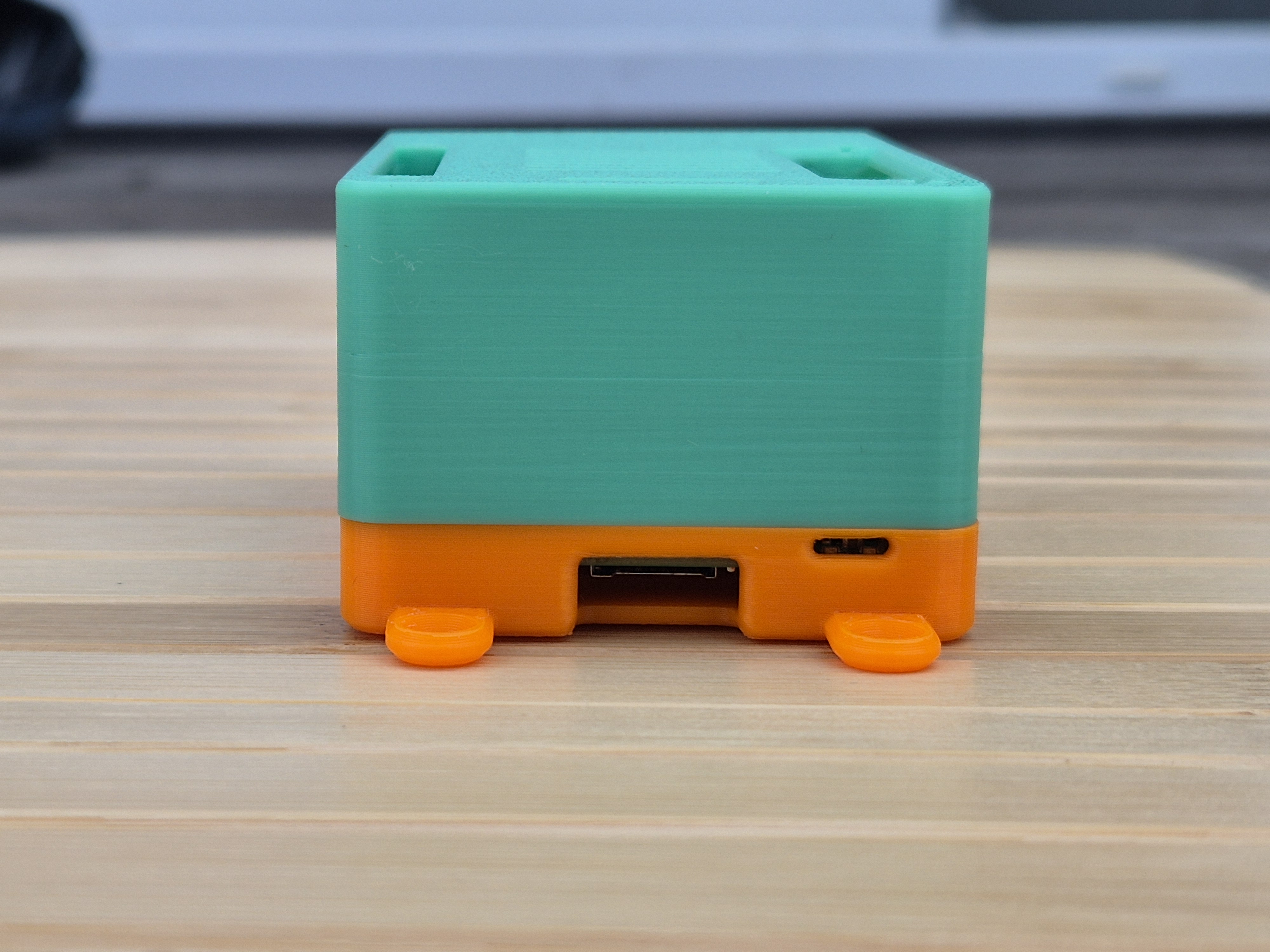

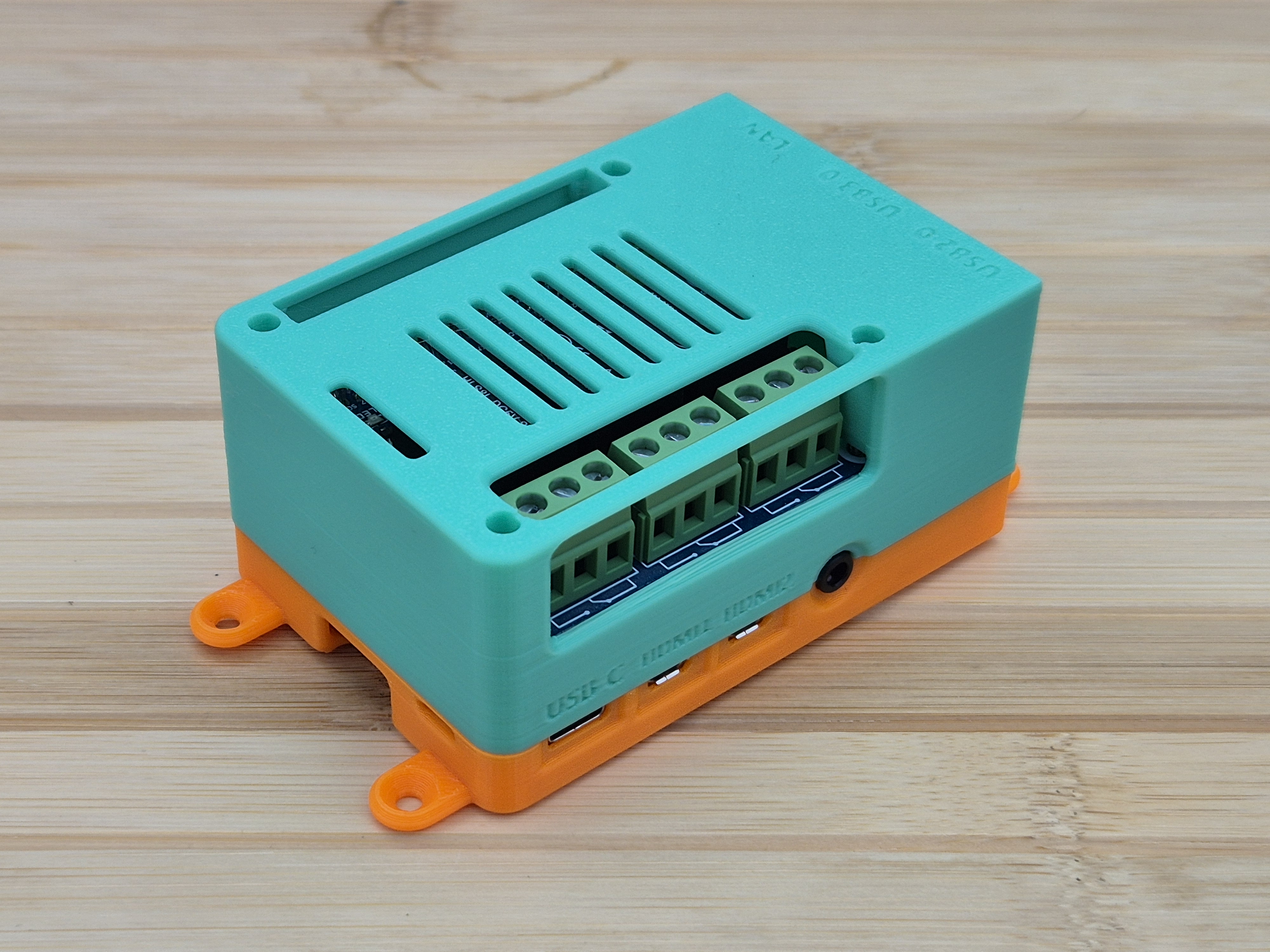

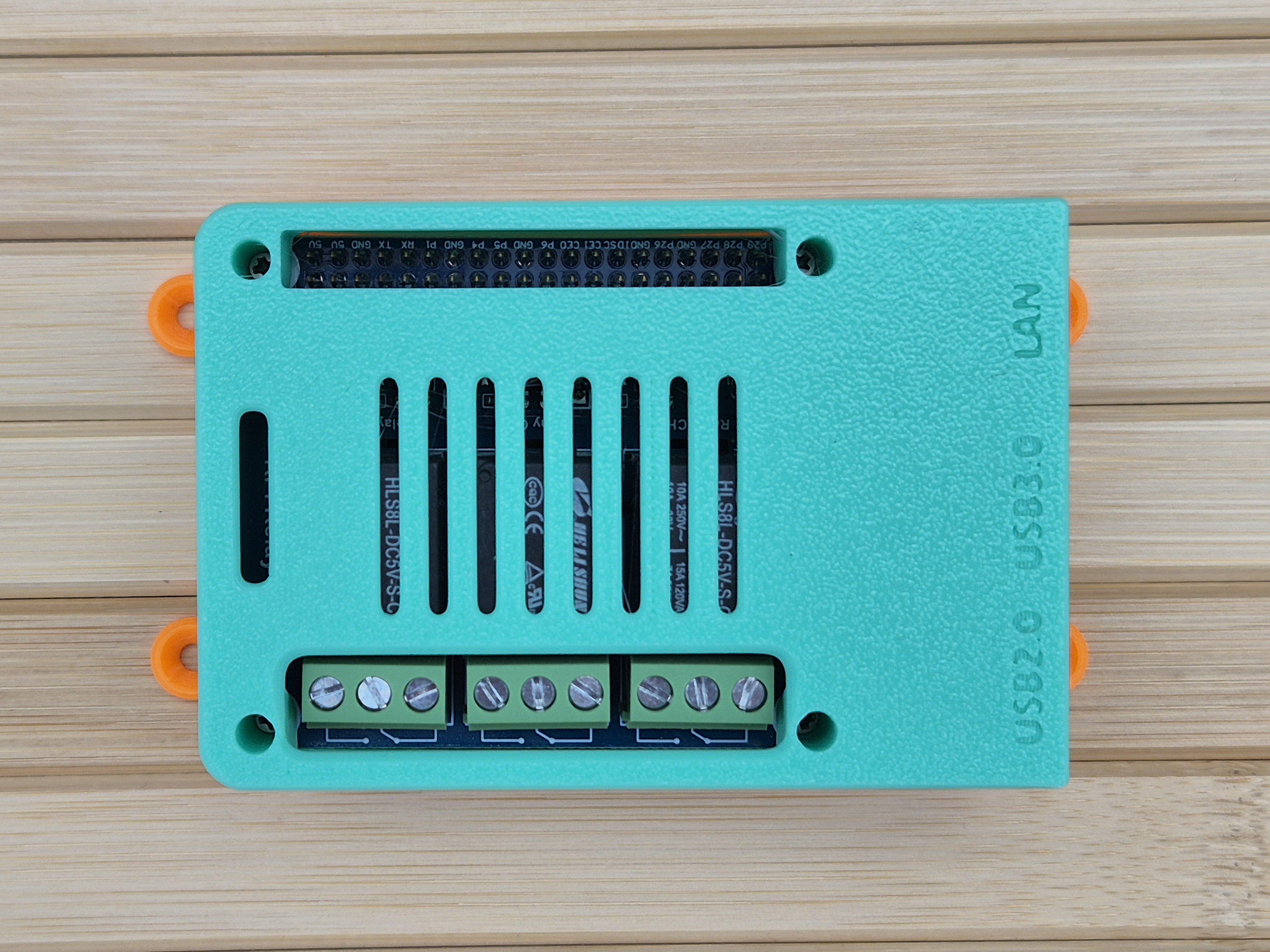

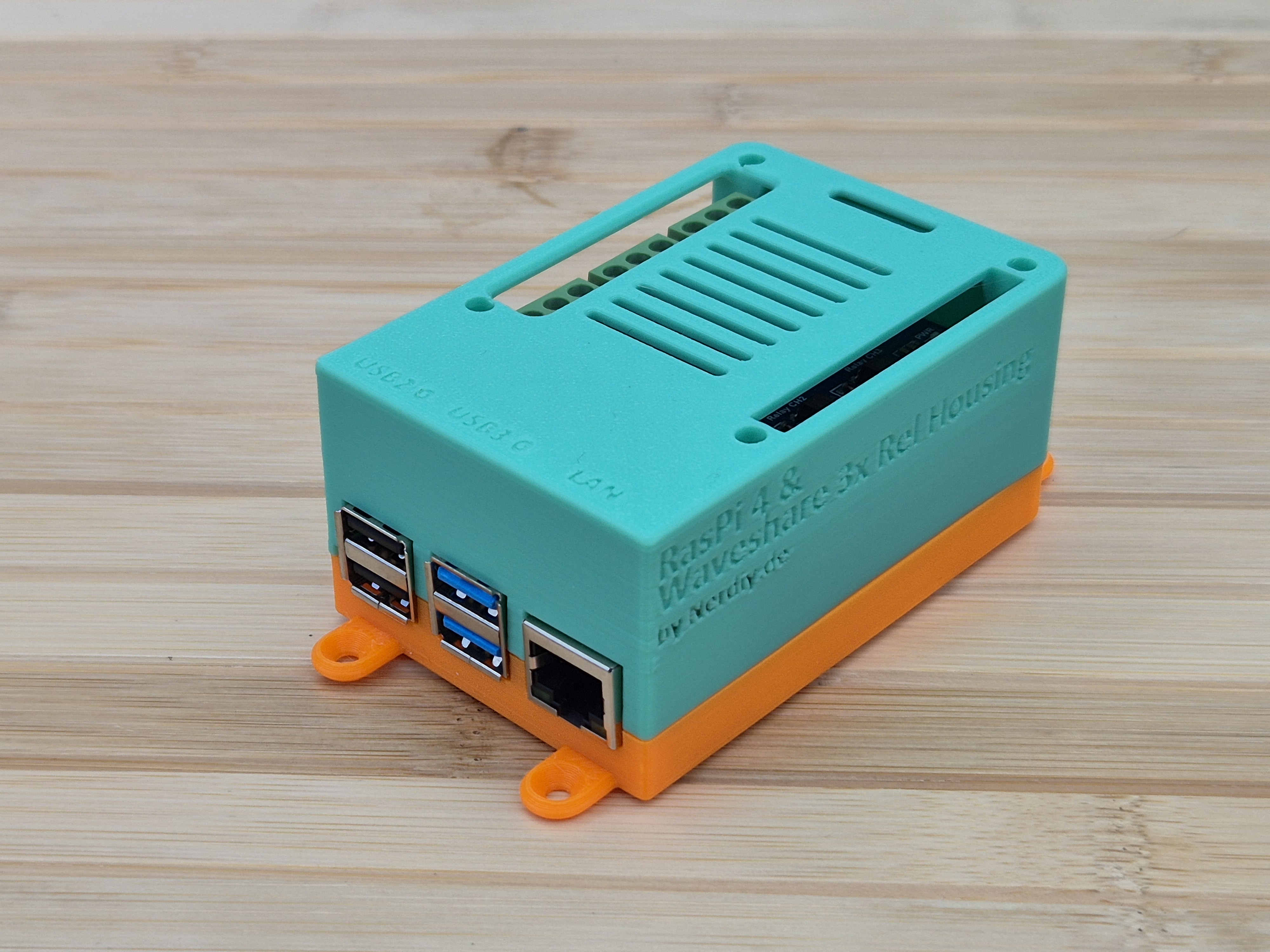

Additional Pictures
