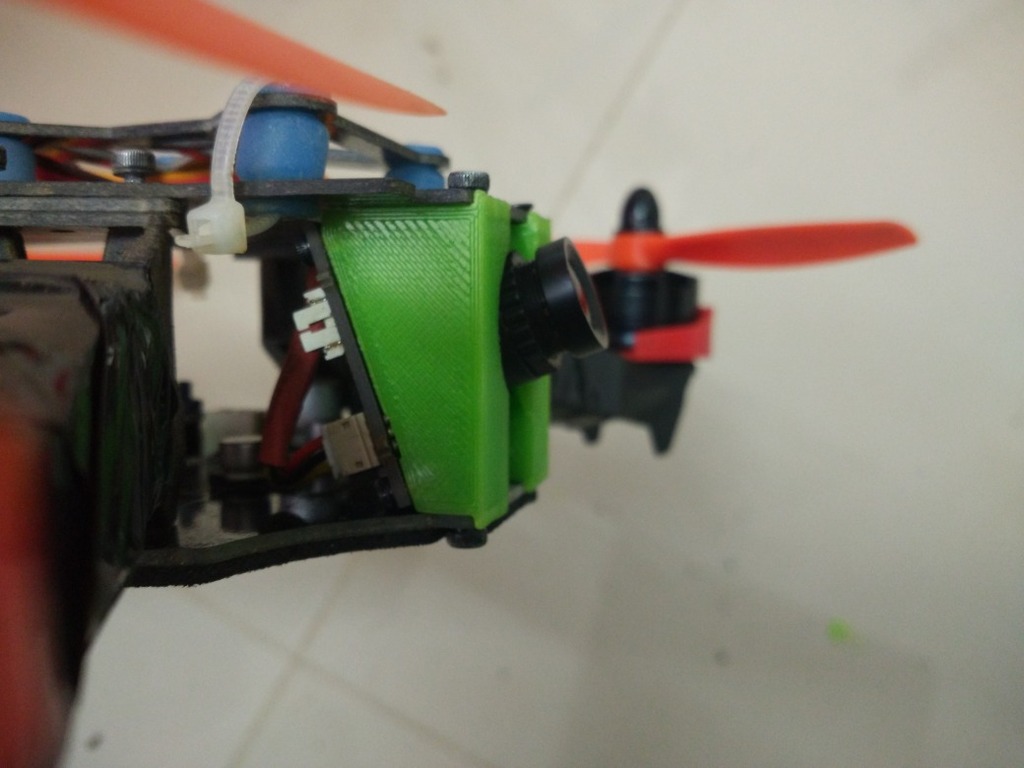

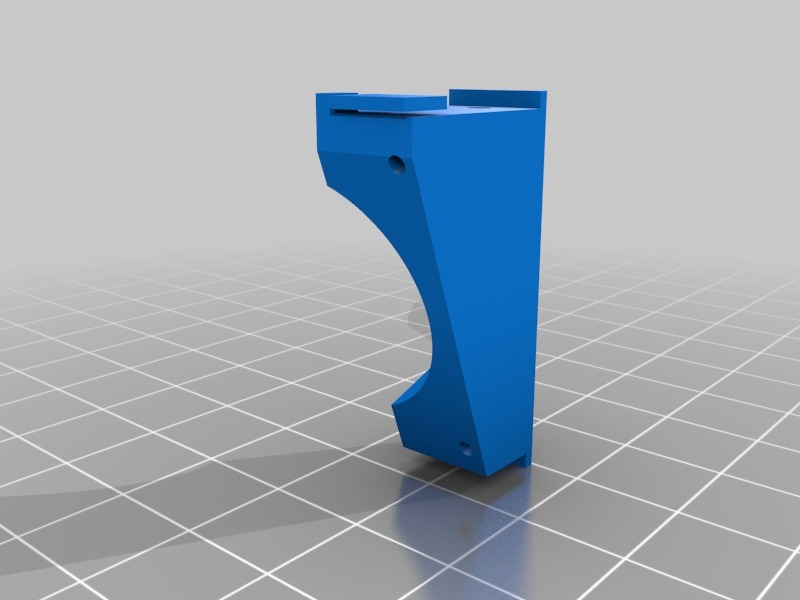

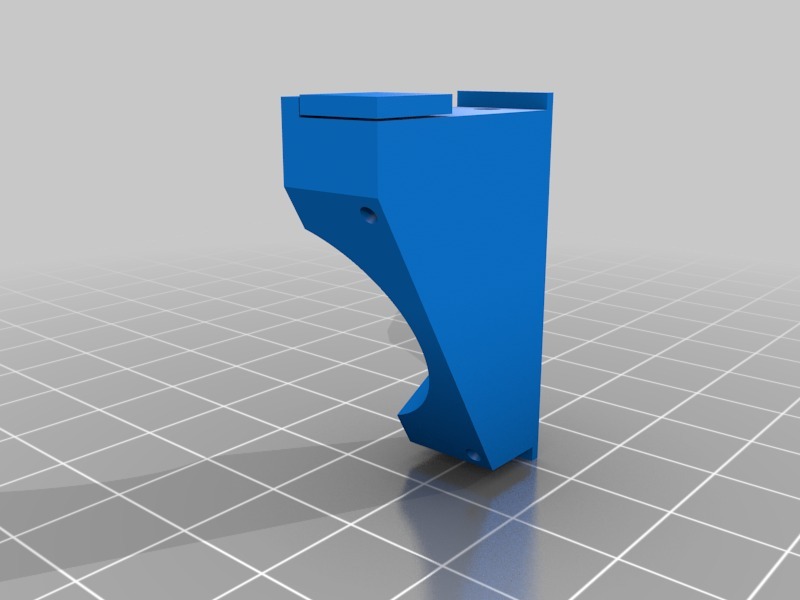

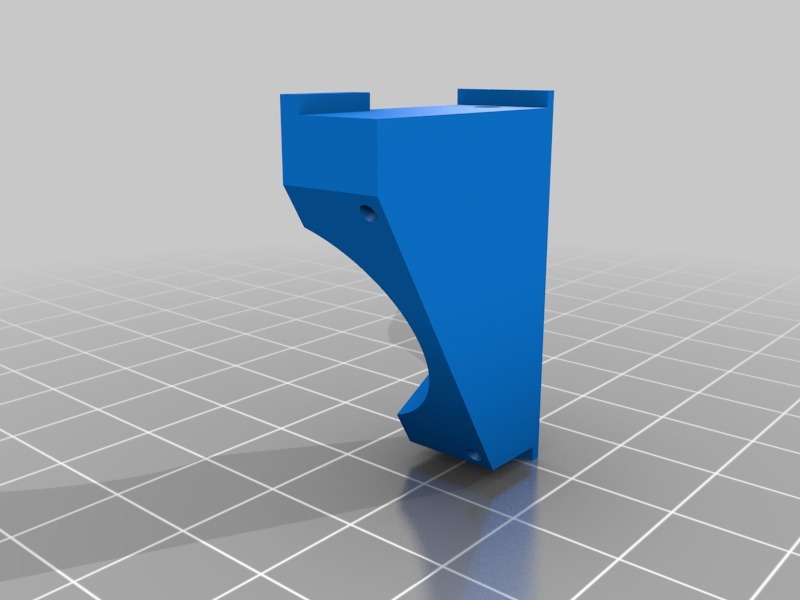

The stock FPV camera mounting option does not go beyond approx 10degrees. This is a mount design that lets you mount it at 20 and 30 degrees.
Print Settings
Printer:
Prusa i3 Rework
Rafts:
Doesn't Matter
No
Resolution:
0.2mm
20-30%
Notes:
Print 2 of them. One normal and another mirrored.
the*_WS version is with manually added support.
The stock screws should thread in just fine. The camera mounting screws might show stress on PLA. Relieve stress by exposing to a small gas flame for a short while.(the white marks should disappear)
