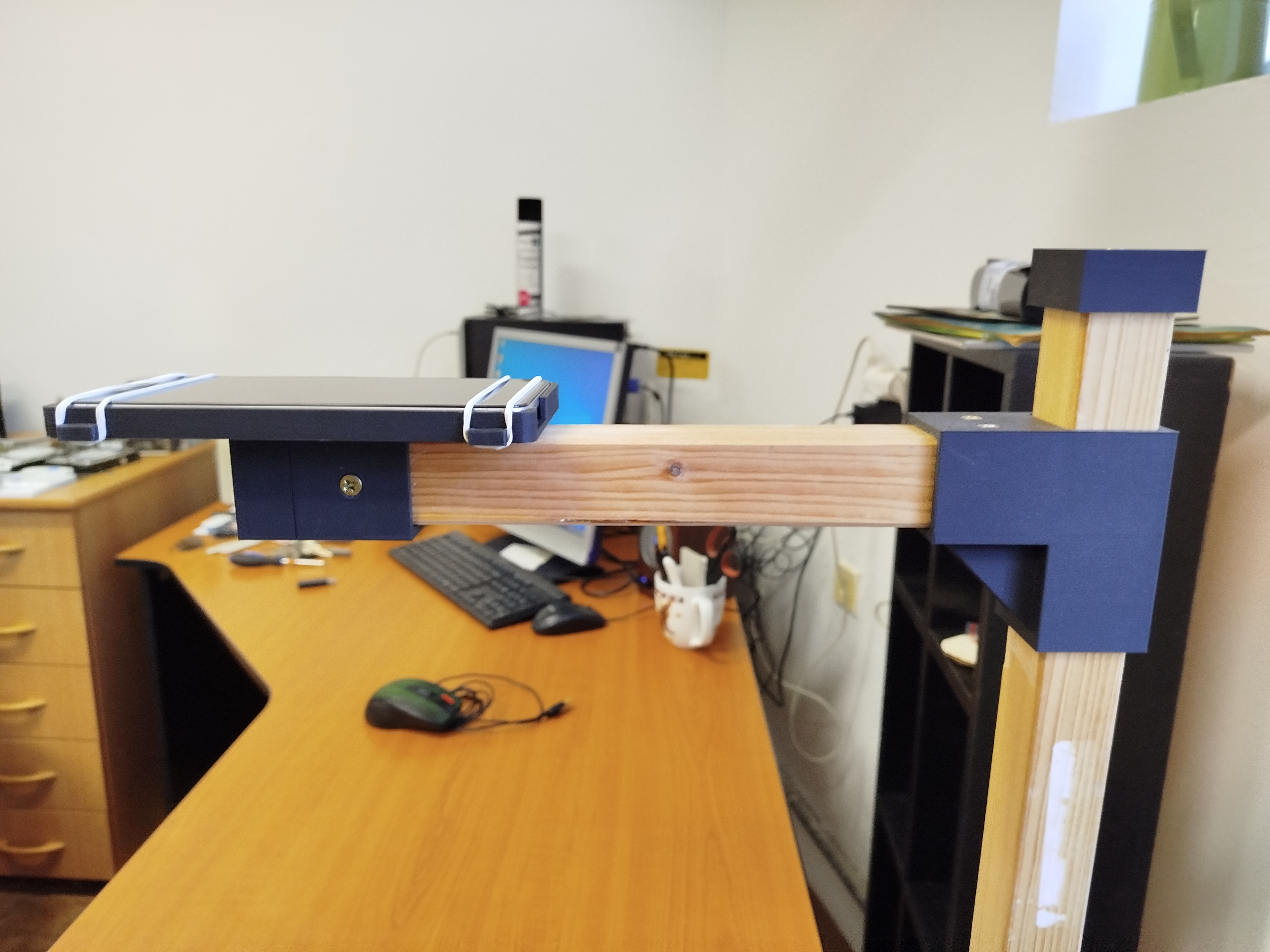

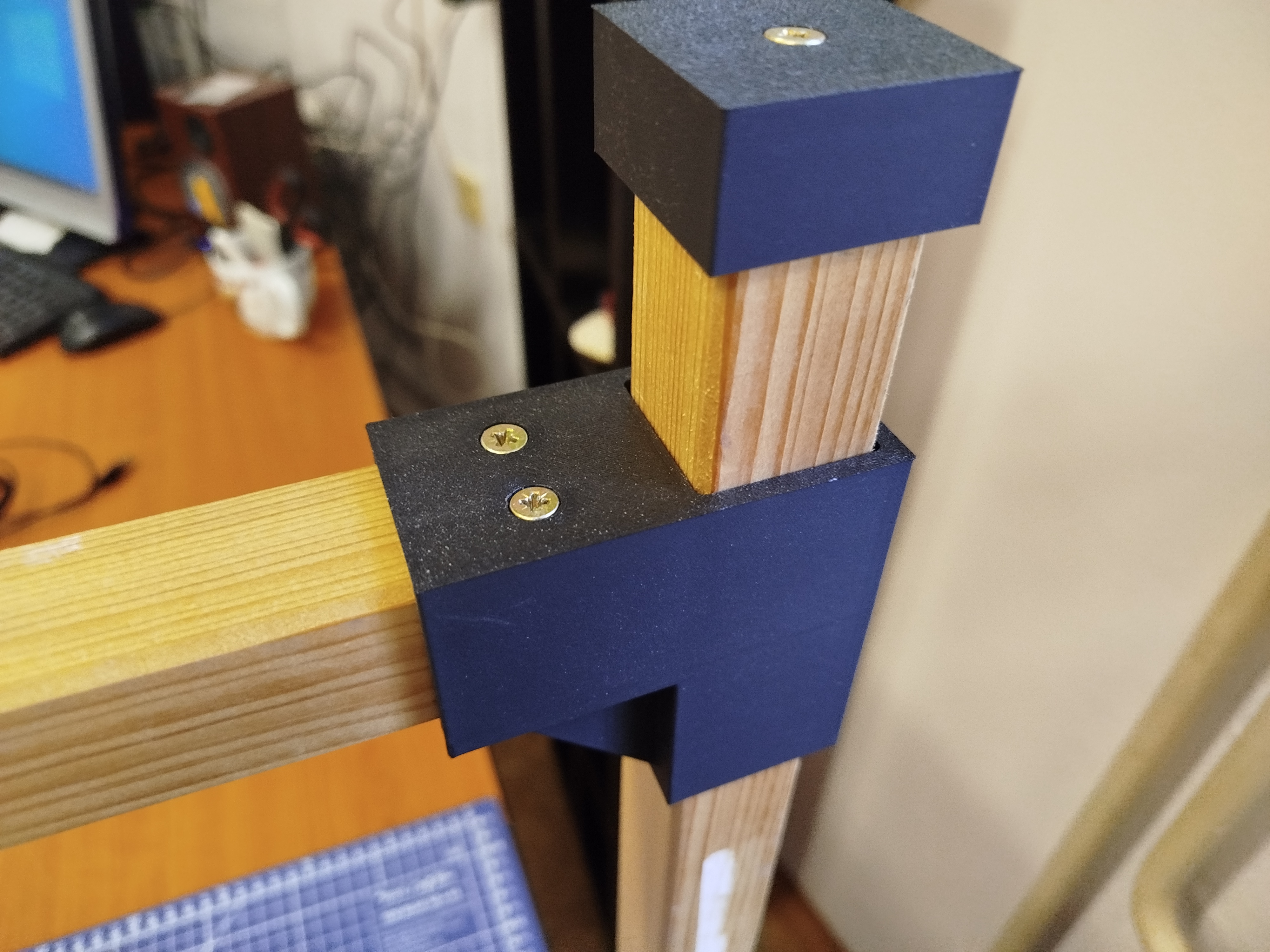

A very simple overhead mount for a various things - in this specific case for my old phone that now serves as a photo-station for book covers and other materials. In addition of printed pieces you will also need a 32x32mm wooden plank (see photos) and few wood screws.

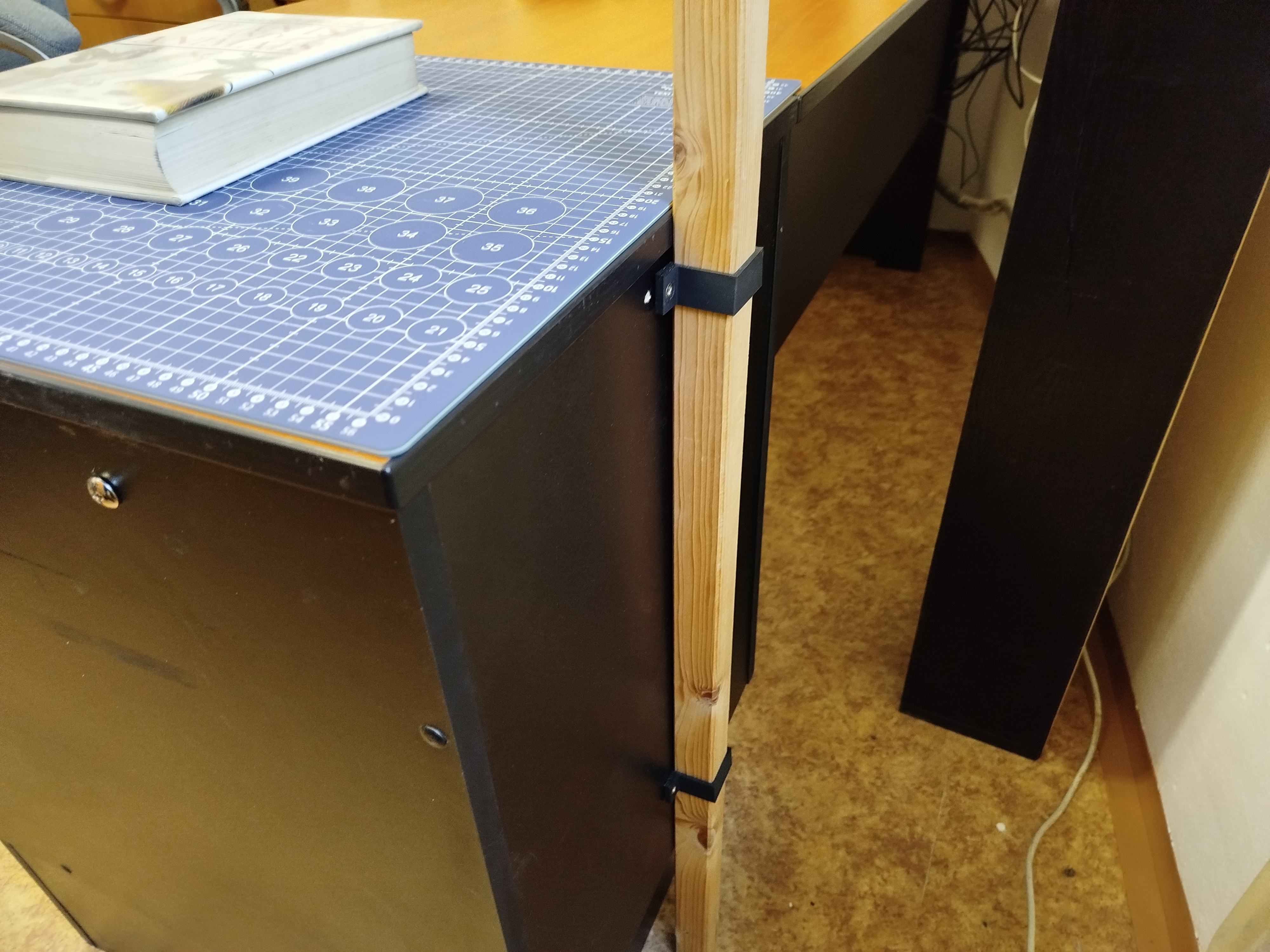

When I started I did not knew if I have long enough piece (I made this from a old leftover piece I have lying around) so I initially made a Side_Mount_End piece just in case. Ultimately I did not needed this as the wood plank was long enough to rest on the ground so I used two Side_Mount pieces to secure it to the table. You will therefore do not see this piece in pictures.
The "Mount_Base" is a universal connector - just glue to it whatever you need.

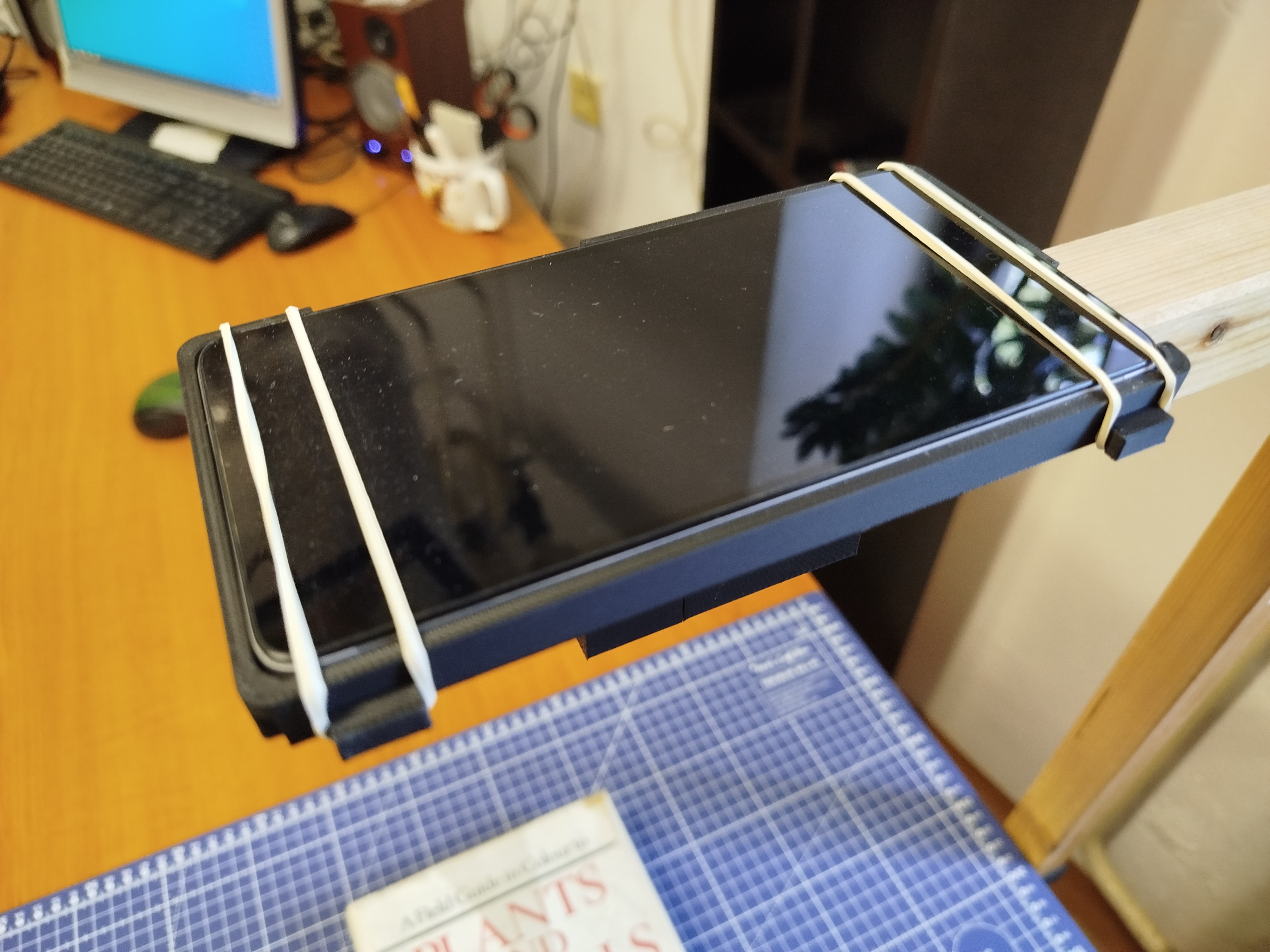

Included phone mount is designed for Redmi Note 3, if you want something similar, you need to design your own.
In the future, I might add a cable clip piece and I am also thinking about some light fixture.... maybe......not sure at the moment, so don't keep your hope up.
Resolution: 0,28
Infill: 50% or higher
Use at least 4 walls. Support is need only for L Bracket piece.
