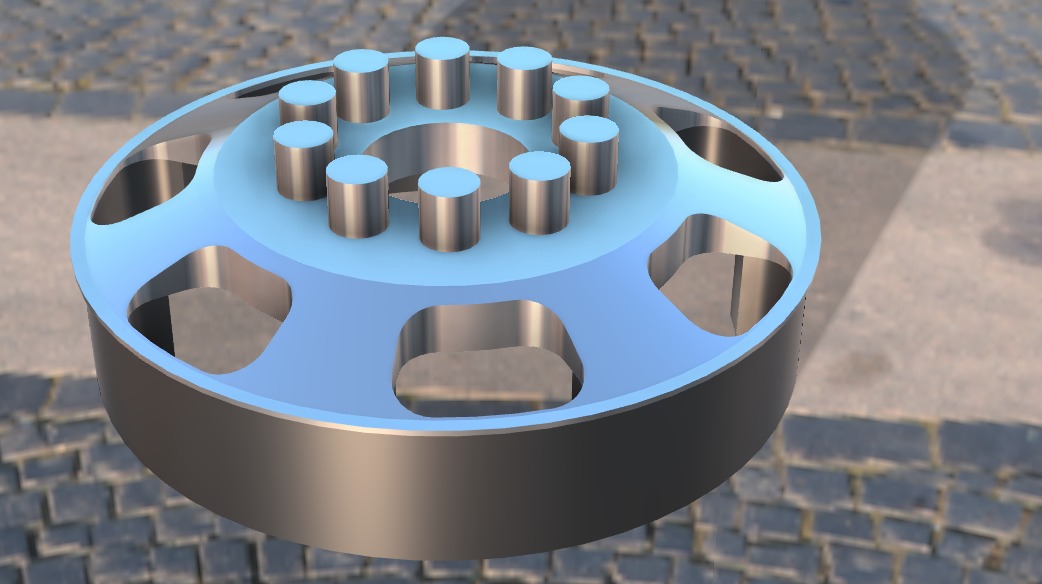

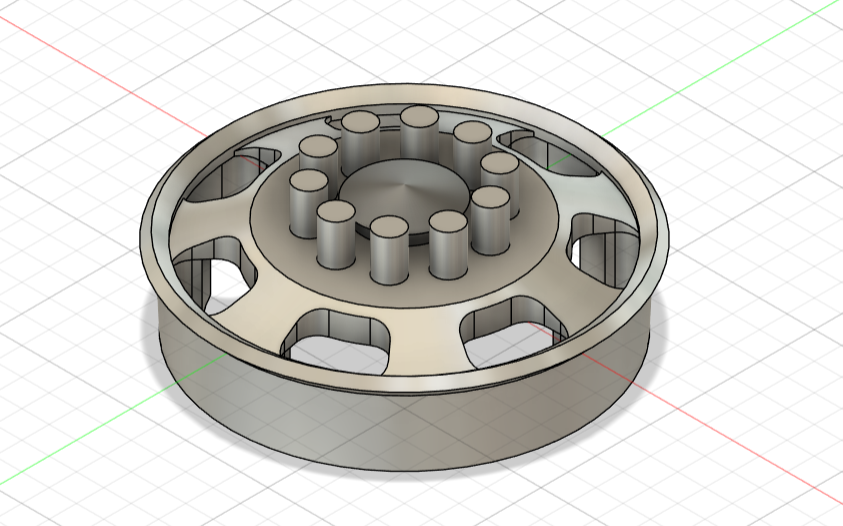

Custom Rim/Wheel Design

This is a custom-designed 3D printable rim, perfect for RC vehicles, model cars, or creative mechanical projects. The design includes detailed spokes and a bolt pattern area for added realism. It's intended as a static model or aesthetic upgrade—scaling may be necessary depending on your application.

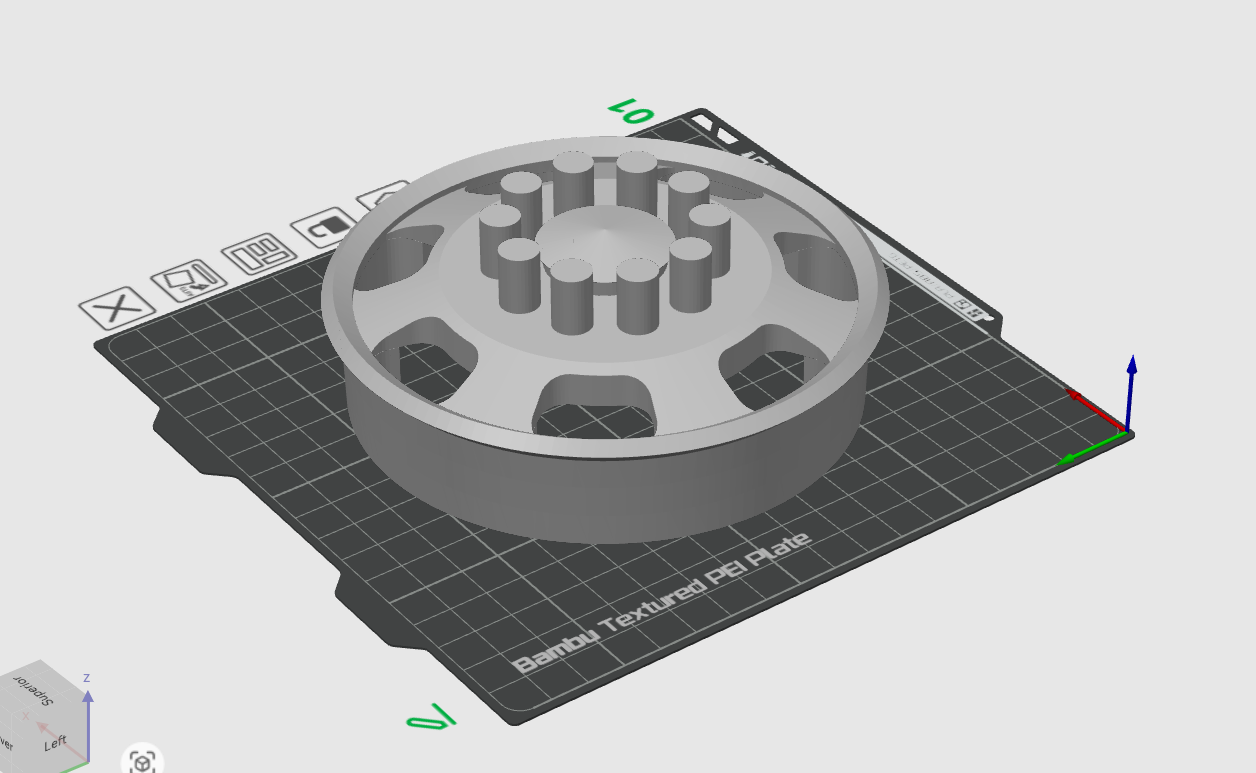

Printing Recommendations:

Printer Type: FDM (recommended) or resin for high detail

Layer Height: 0.12 – 0.2 mm

Wall Thickness: Minimum 2–3 perimeters for strength

Infill: 30–50% (higher infill suggested for load-bearing or display durability)

Supports: Required, especially under the inner spokes and bolt pattern area

Bed Adhesion: Brim or skirt (optional depending on bed type and material)

Material: PLA, PETG, or ABS — use PETG/ABS for more strength, PLA for ease

Post-Processing Suggestions:
Light sanding and painting can improve the realism. For mounting use, consider adding holes or modifying bolt patterns based on your project's fitment needs.

Ready to roll? Download and print your own custom wheels!
