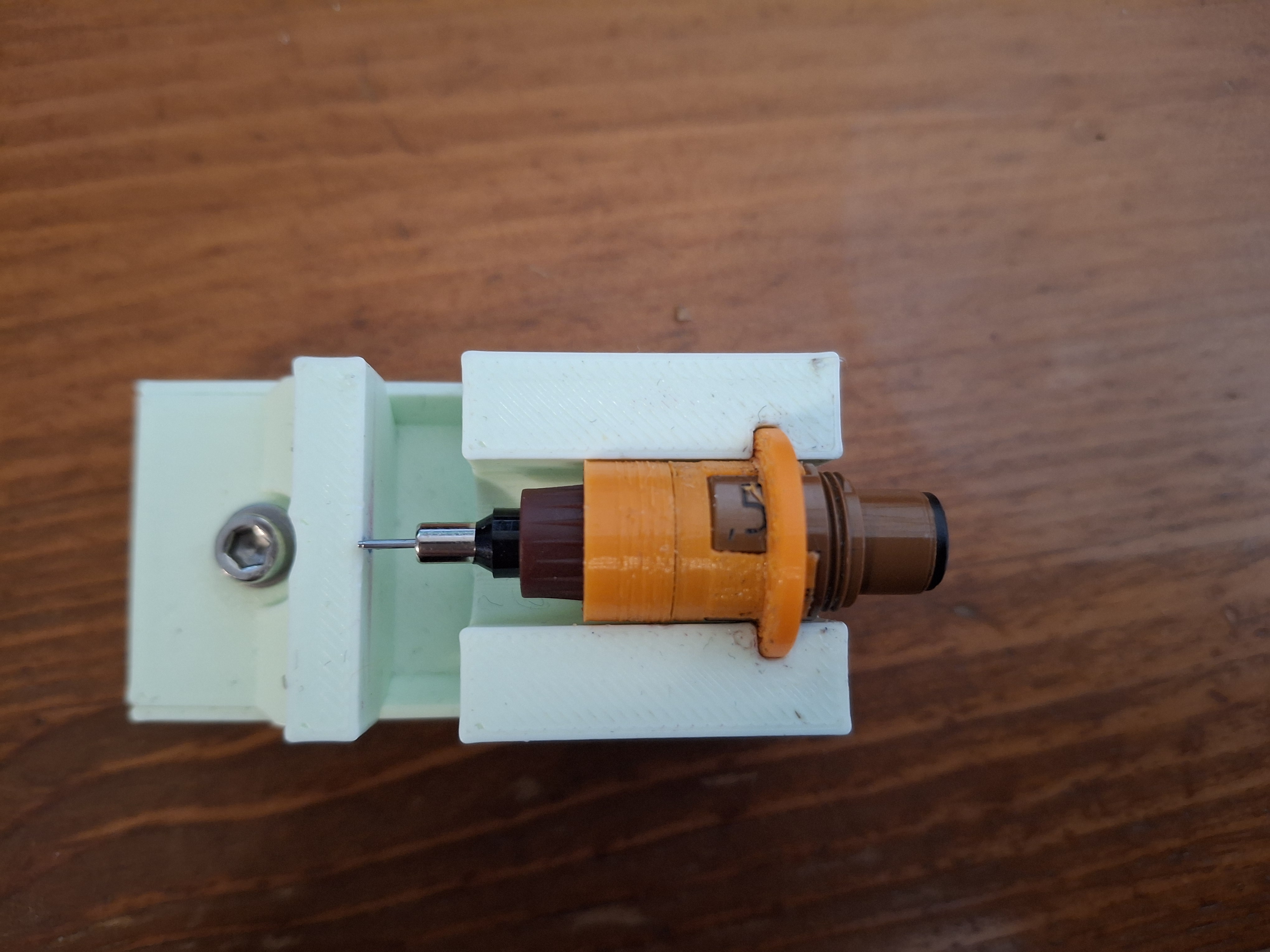

Designed for Rotring Isograph nibs. The ones which have the nib part integrated with middle section. R751xxx / S0217870 S0217940 S0218020 S0218100 S0218170 S0218250 S0218320 S0218400 S0218460 S0218540 S0218600 S0218680 S0218740 S0218810 S021880

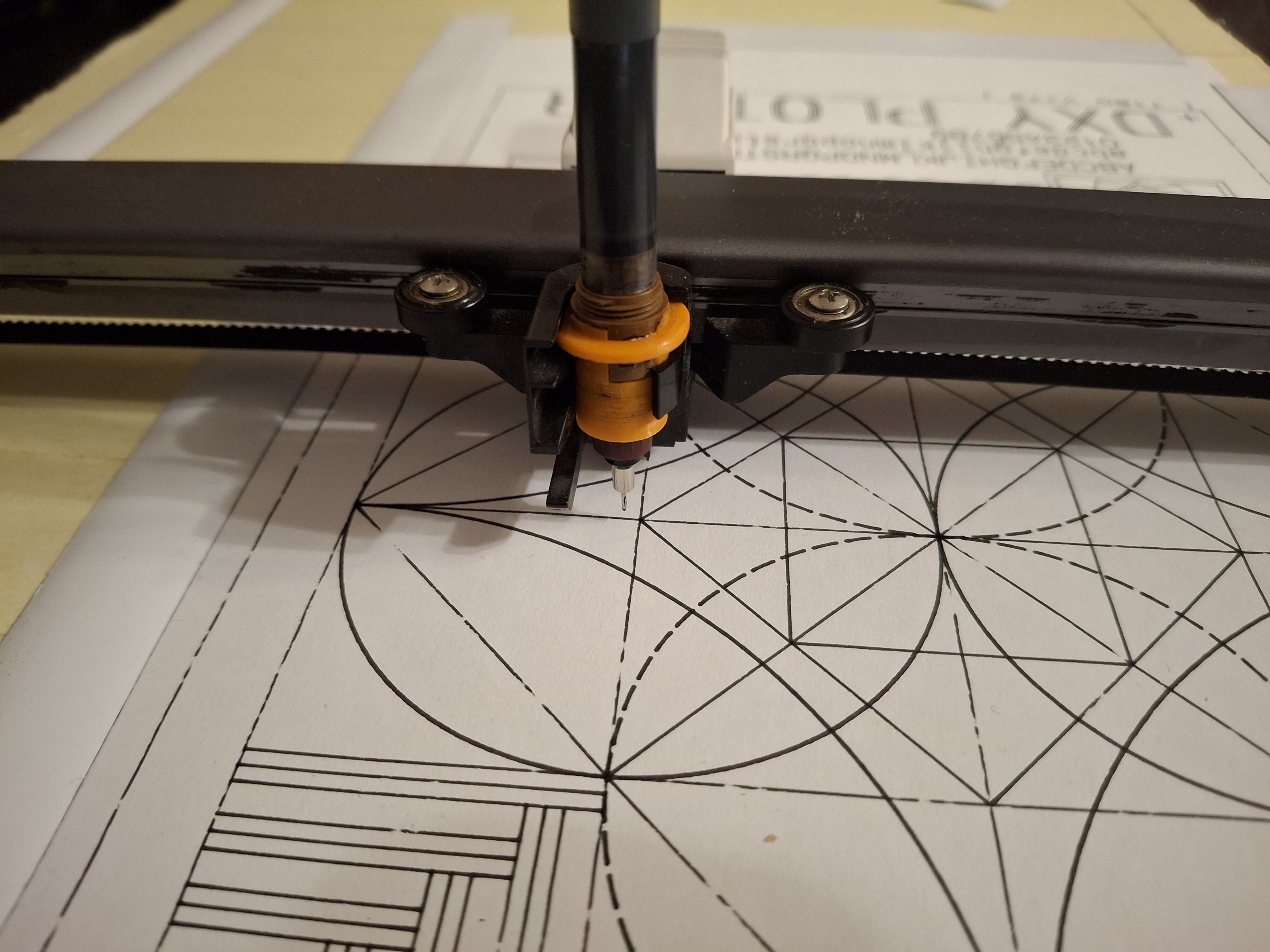

Tested with Roland DXY-1150A. Should work with most other Roland-DXY plotters.
From what I understand HP pen plotters use similar pen shape. But I don't have any to test with. In case the HP pen changer mechanism requires straight surface above the locating disc, you can print a second copy of locking ring and screw it from the top.
After printing with support make sure to clean the bottom surface of locating disc.
Changelog
Added version which can be printed with no support and disc laying on printbead
