Ahsoka Hueforge

Hi,

This is my first Hueforge design as I wasn't able to find it as this one.

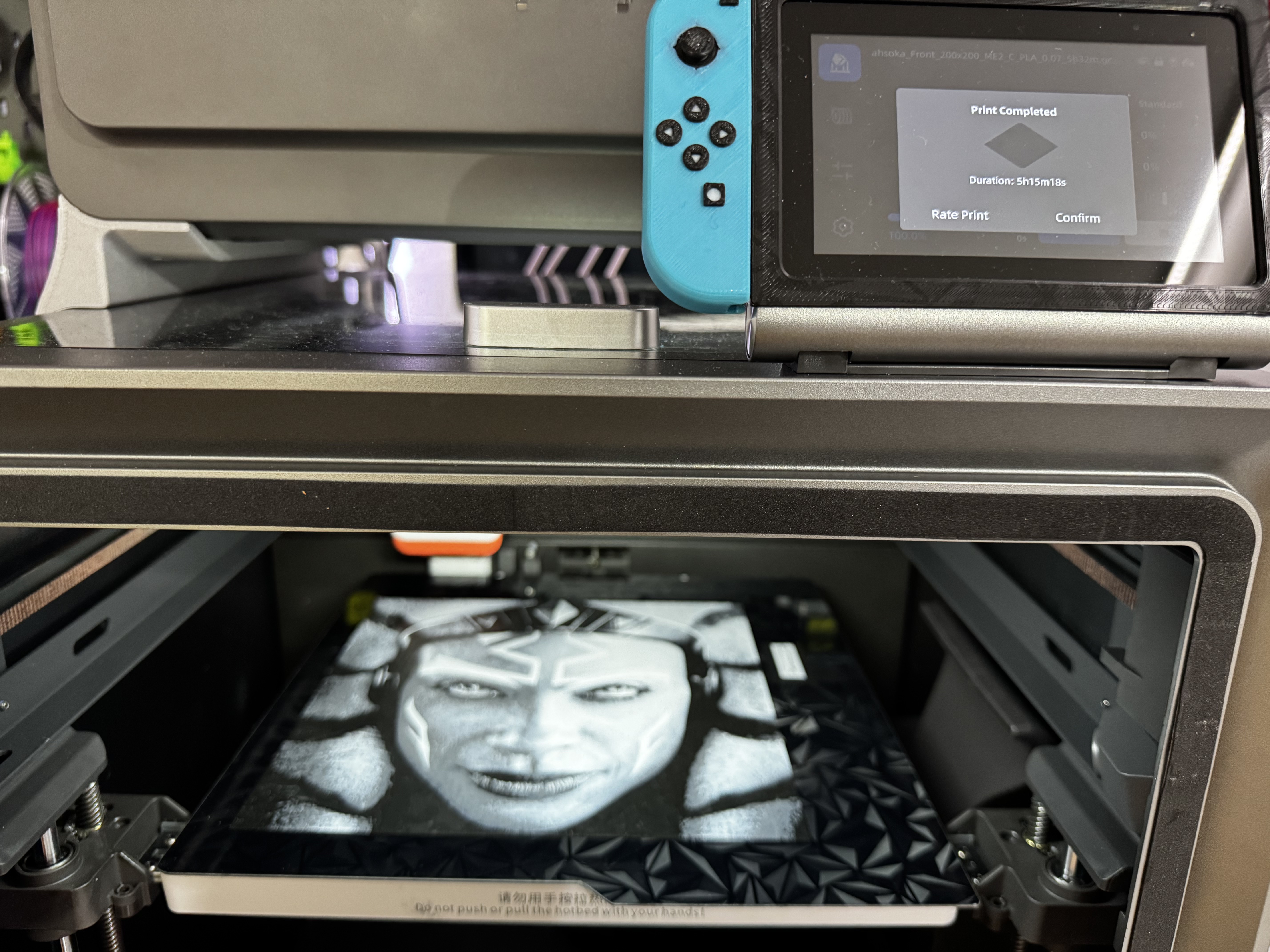

I've printed it with a Kobra S1 combo with an ACE Pro and 4 different filaments but you can print it on any other FDM with or without (MMU, AMS or ACE Pro) by changing manually the color filament.

Find below the instructions (if you'd like the same result as mine) :

Print at 100% infill with a layer height of 0.07mm(or 0.08) with a base layer of 0.16mm

The Model is 200x200mm in size

Filaments Used:

#000000 PLA Jayo Black Transmission Distance: 1.7

#444546 PLA Amazon Basics Dark Grey Transmission Distance: 2.2

#696c6d PLA Anycubic Grey Transmission Distance: 2.4

#ffffff PLA Jayo White Transmission Distance: 8.2

This print uses 4 unique filaments

Swap Instructions:

Start with Black

At layer #10 (0.79mm) swap to Dark Grey

At layer #13 (1mm) swap to Grey

At layer #18 (1.35mm) swap to White for the rest.

If you want to add the same frame I've used this one : https://www.printables.com/model/773178-fast-and-easy-wall-hueforge-frame-clip-in

Hope you'll enjoy it :)
