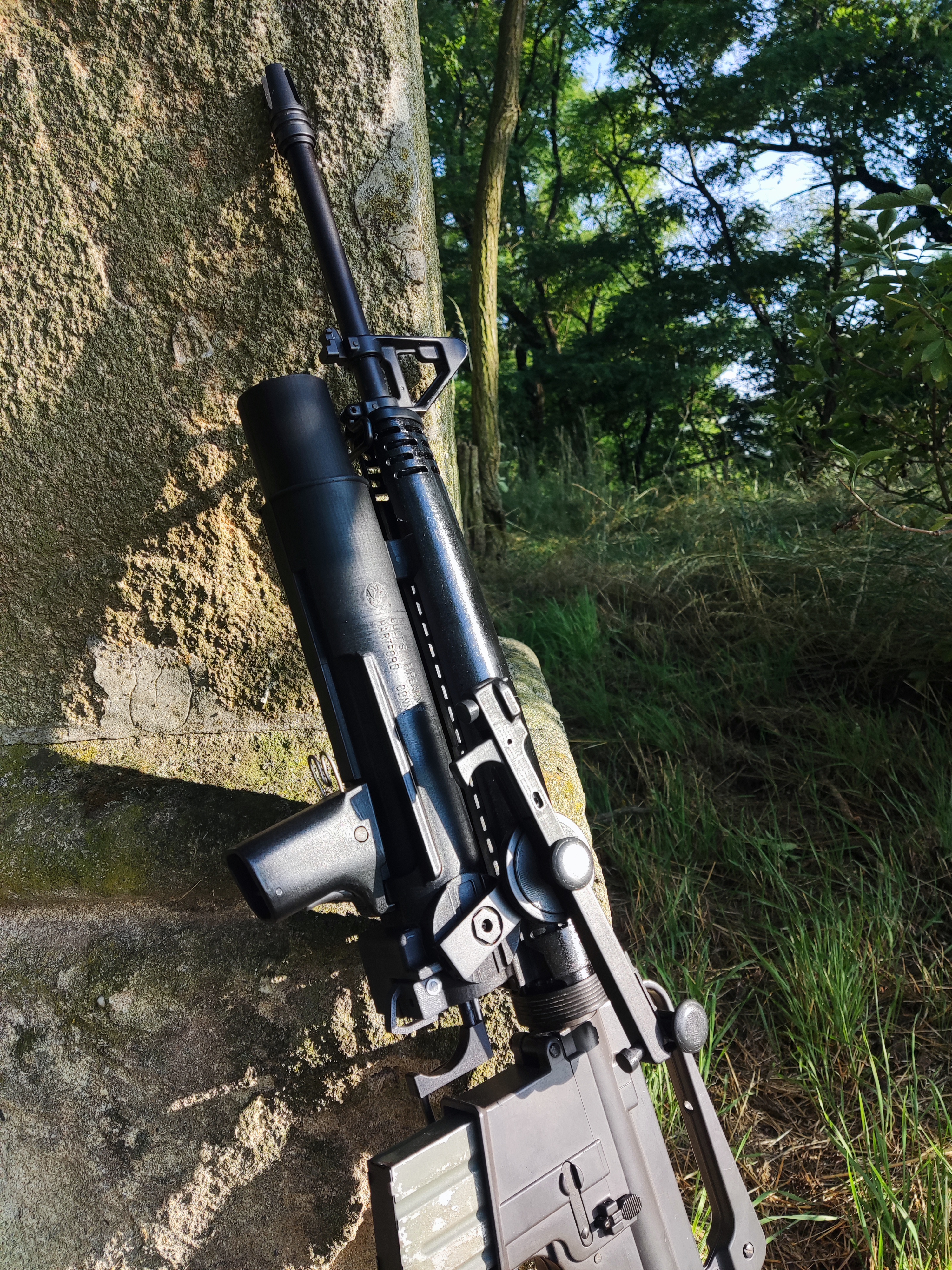

Funcional Airsoft grenade launcher parts for my replica of xm148.
I chosen a different style of mechanism for this project. This gun using striker system thats not common for airsoft launchers. I dont know if it is a batter system or not but I found that its effective and it works fine with this gun.
These are only the parts that are different from the original model.
Original non functional model can be find on Printables website on my profile. You can reuse few parts from it like:
- Grip assembly
- Sight system
- Main trigger
- Barrel mount
- First half of the barrel and body
- Handguard

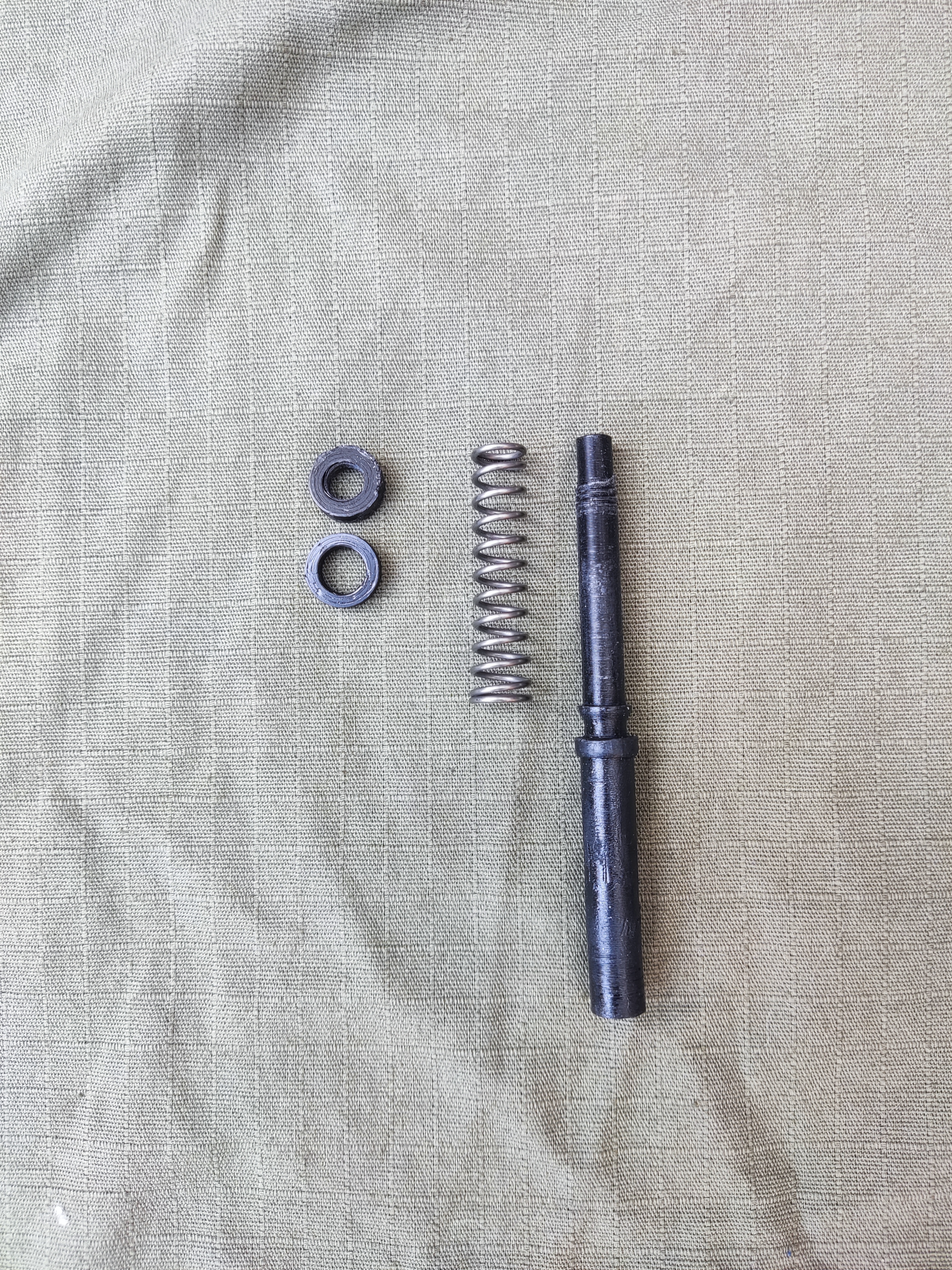

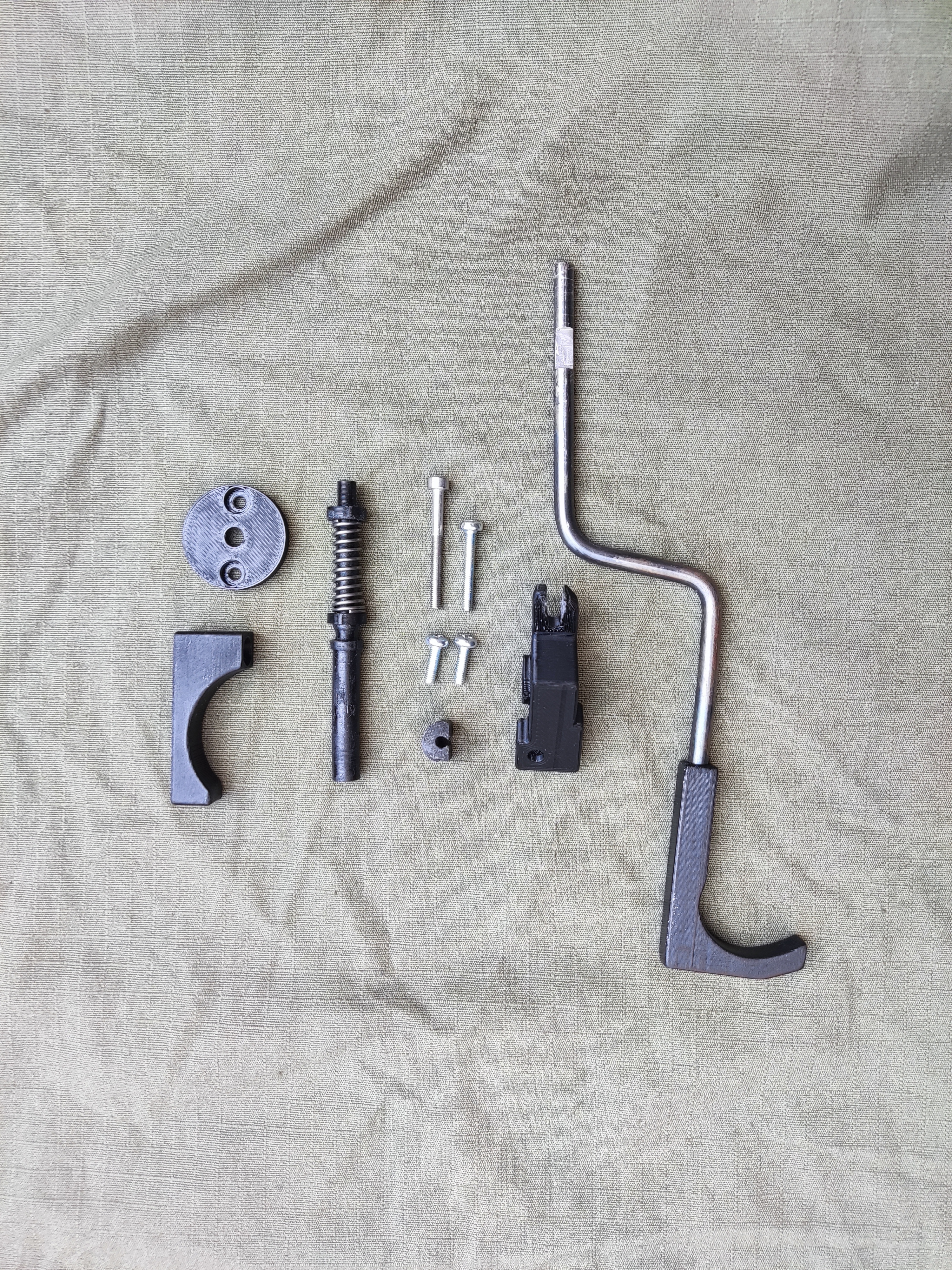

For the airsoft striker system you are gonna need:
- One 5mm steel rod - make the same cut in it like on the template
- One spring that will fit on the striker
- One spring that will fit between trigger and the trigger bar lock
- Two M3x10mm screw
- One M3x20mm screw - for cocking lever
- One M3x20mm screw - for the trigger
Launcher has no safety so be careful with it. Also do not try to shoot real grenades out of it.
This project is finished.
