Inline Skate Wheel Hard Case

Introduction

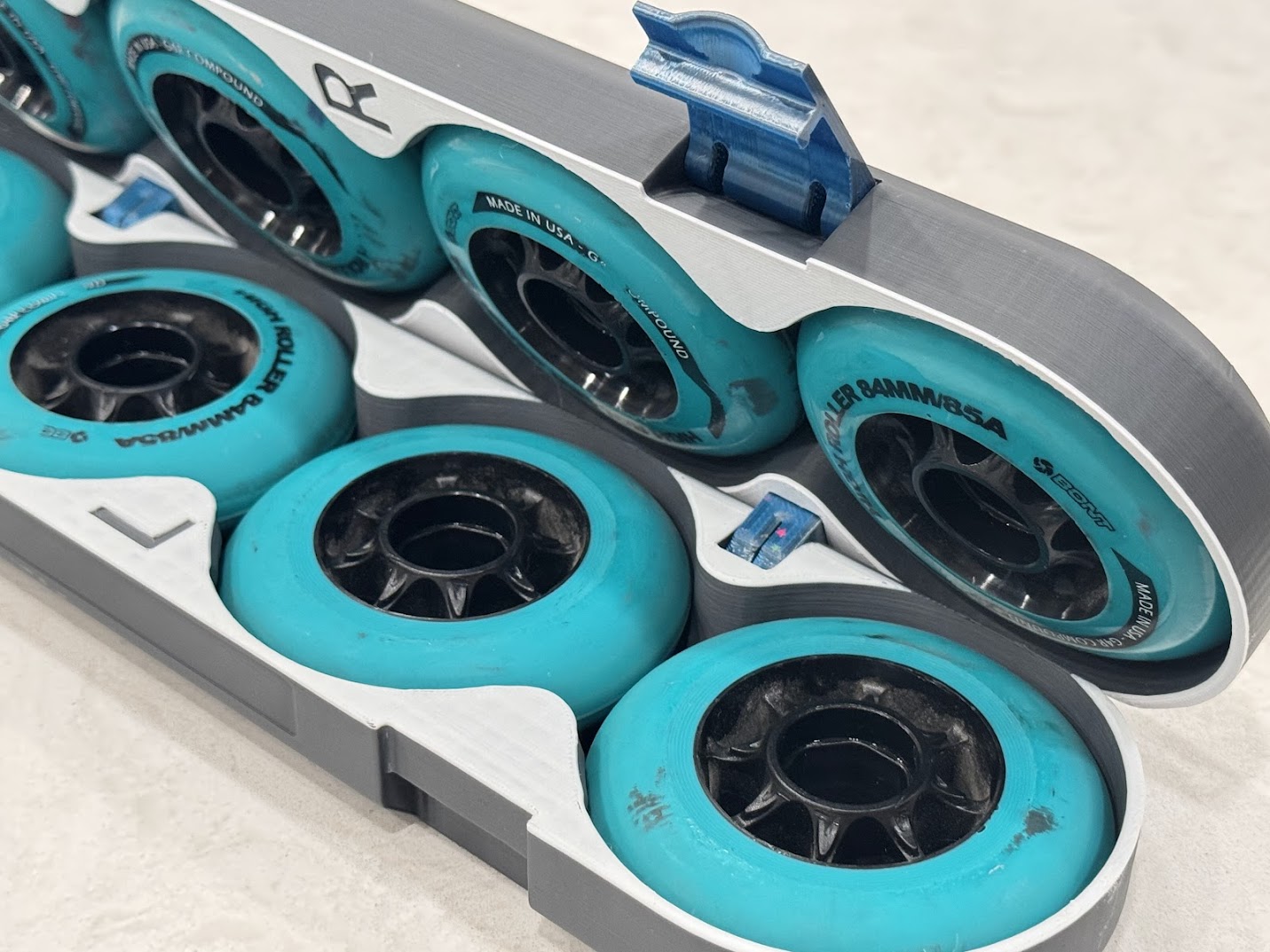

Keep your inline skate wheels safe, sorted, and easy to inspect with this robust, fully 3D-printed case!

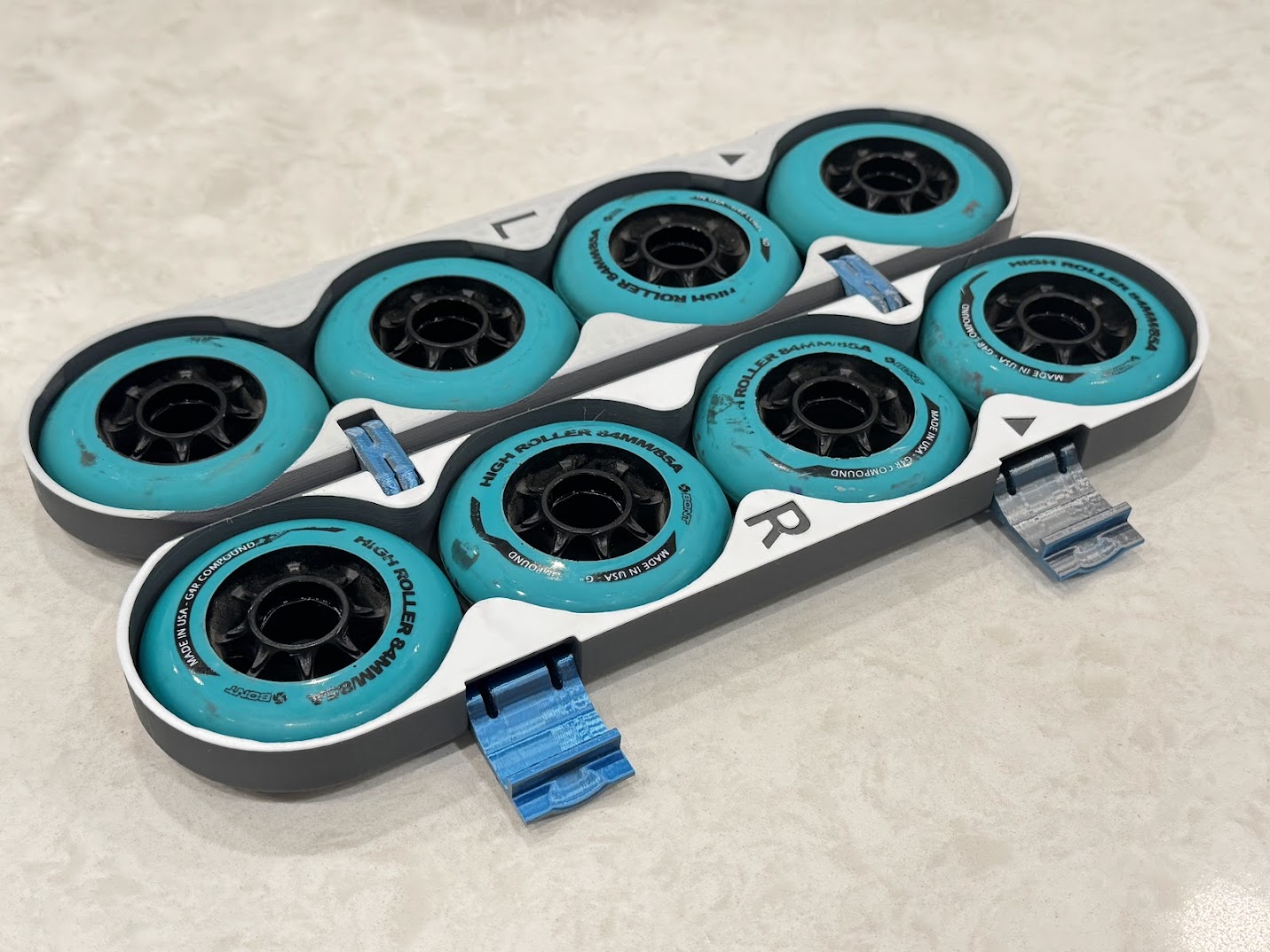

Perfect for organizing multiple sets (outdoor, indoor, competition) or for travel, it lets you store each wheel face-up so you can quickly check wear patterns and rotate individual wheels.


Key Features

• Hard-shell protection: Rigid top and bottom shells guard wheels against impacts and crushing.

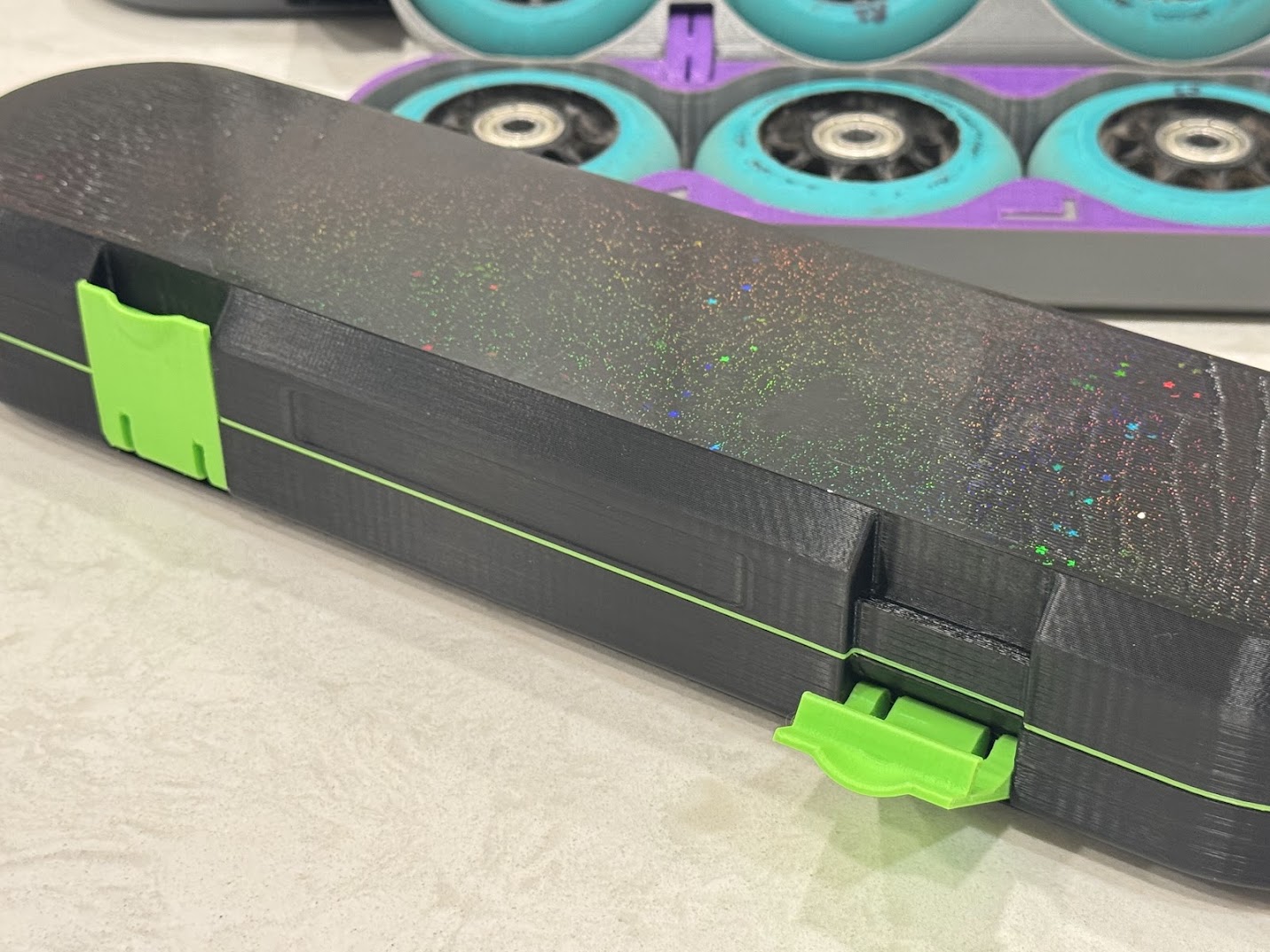

• Tool-free hinge & latch: Two snap-in links and two friction latches lock the halves together — no screws, pins, or glue needed.
• Easy identification: Emboss lettering on the inside surface makes it easy to identify each wheels.
• Anti-slip stops: Wheel pockets have side stops, preventing wheels from slipping off when  you close the case
• Dented label zone: A recessed area on the bottom shell side provides space for a custom sticker or handwriting.


Print-Ready Specifications

• Materials: PLA, PETG, or ABS
• Layer height: 0.2 mm (or your preference)
• Infill: 15% recommended
• Supports: none required
• Assembly: simply snap the hinge links into their pockets and close the latches.


Available Sizes

• 3x 100mm
• 4x 100mm (requires large-format printer)
• 3x 90mm
• 4x 90mm
• 4x 84mm


Customization

This design is fully parametric in Onshape—resize the compartments or add more pockets to suit your wheels. Reach out if you’d like a custom version!
