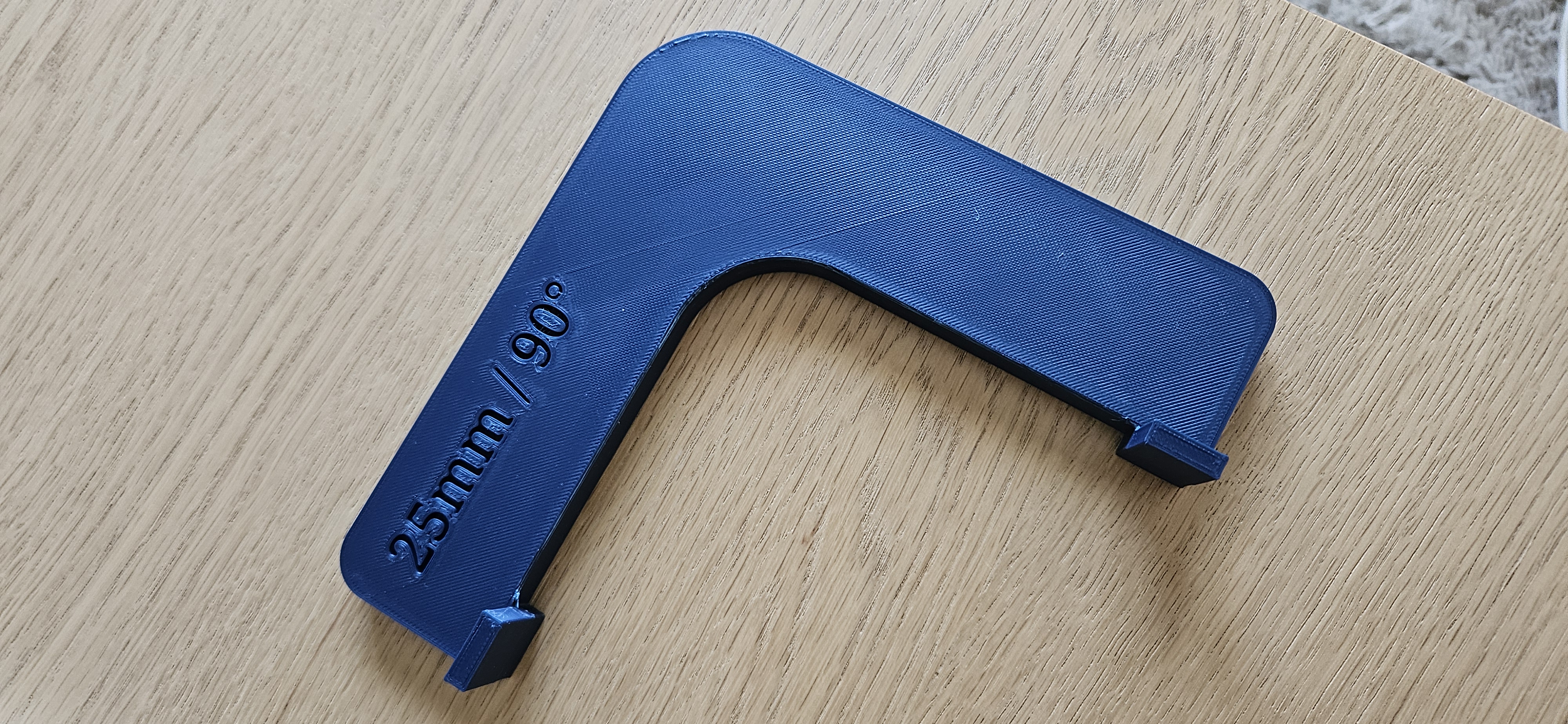

I needed to route two legs for a piece of furniture I was building, and one was at a weird 97-degree angle, so I decided to create my own. I'm uploading the two jigs I needed, with a 50mm and a 25mm radius, in 90 and 97-degree angles.
Designed in Onshape, this component can be adjusted by changing the radius or angle to suit your own needs. Changing the variables will also change the text; therefore, no extra work is needed. I did it in a rush, so forgive any design shortcut.
Feel free to copy/modify: https://cad.onshape.com/documents/e3c2e66f40c5662b5c13fd9b/w/6e609ea75fe2a2da84bf9713/e/d72fe8a6515fa5b1d4616963
