Kayoumini: Parametric Camera Frontend

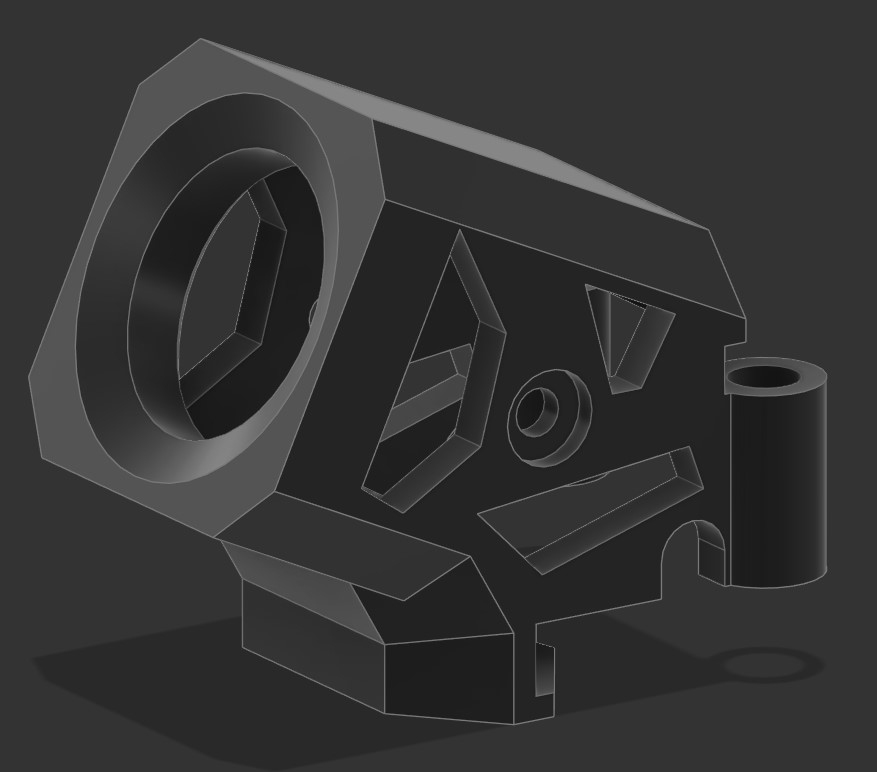

This is a fully parametric reproduction of the original Kayoumini frontend by Kayou Frames in Autodesk Fusion.

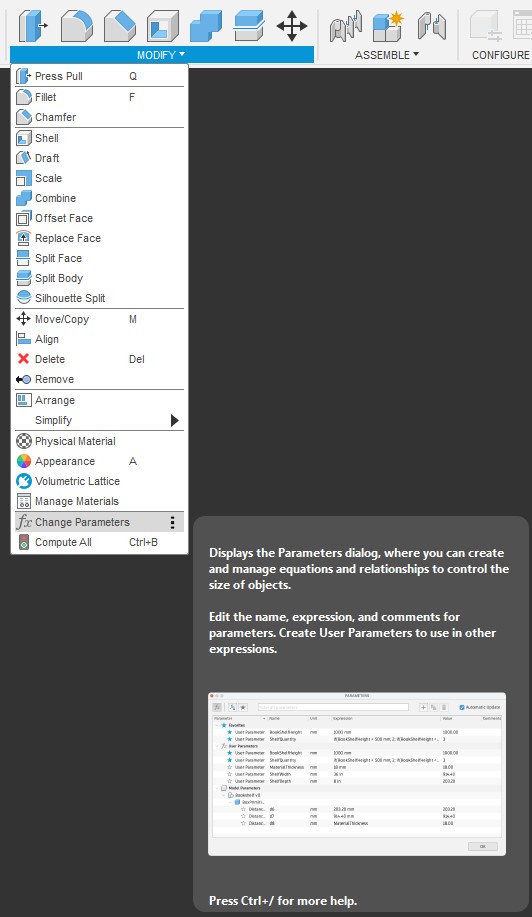

You can easily tweak it for any camera by changing the user parameters here:

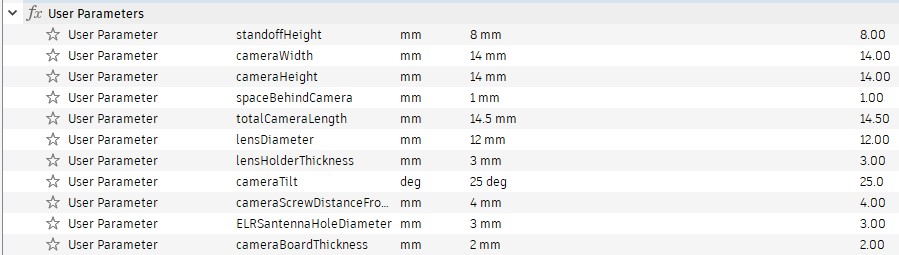

Here are the available parameters

A quick rundown:

• standoffHeight the height of the standoffs used to assemble the frame. Usually 8mm or 12mm.
• cameraWidth the width of the camera board.
• cameraHeigh the height of the camera board.
• spaceBehindCamera some extra room behind the camera. Required to use the camera board notches.
• totalcameralength length of the camera, from the back to the tip of the lens.
• lensDiameter the diameter of the lens at the front of the lens.
• lensholderThickness the thickness of the front part that holds the lens.
• cameraTilt the tilt angle of the fpv camera.
• cameraScrewDistanceFromBack the distance between the back of the camera and the mounting screw hole
• ELRSAntennaHoleDiameter the size of the hole for the ELRS antenna
• cameraBoardThickness the thickness of the camera board, when using the camera board notches.

Toggleable features

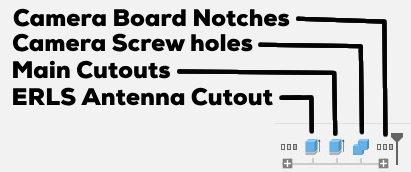

You can toggle certain features by using the “suppress feature” option:

Have fun with it!

Let me know how it goes for you.
