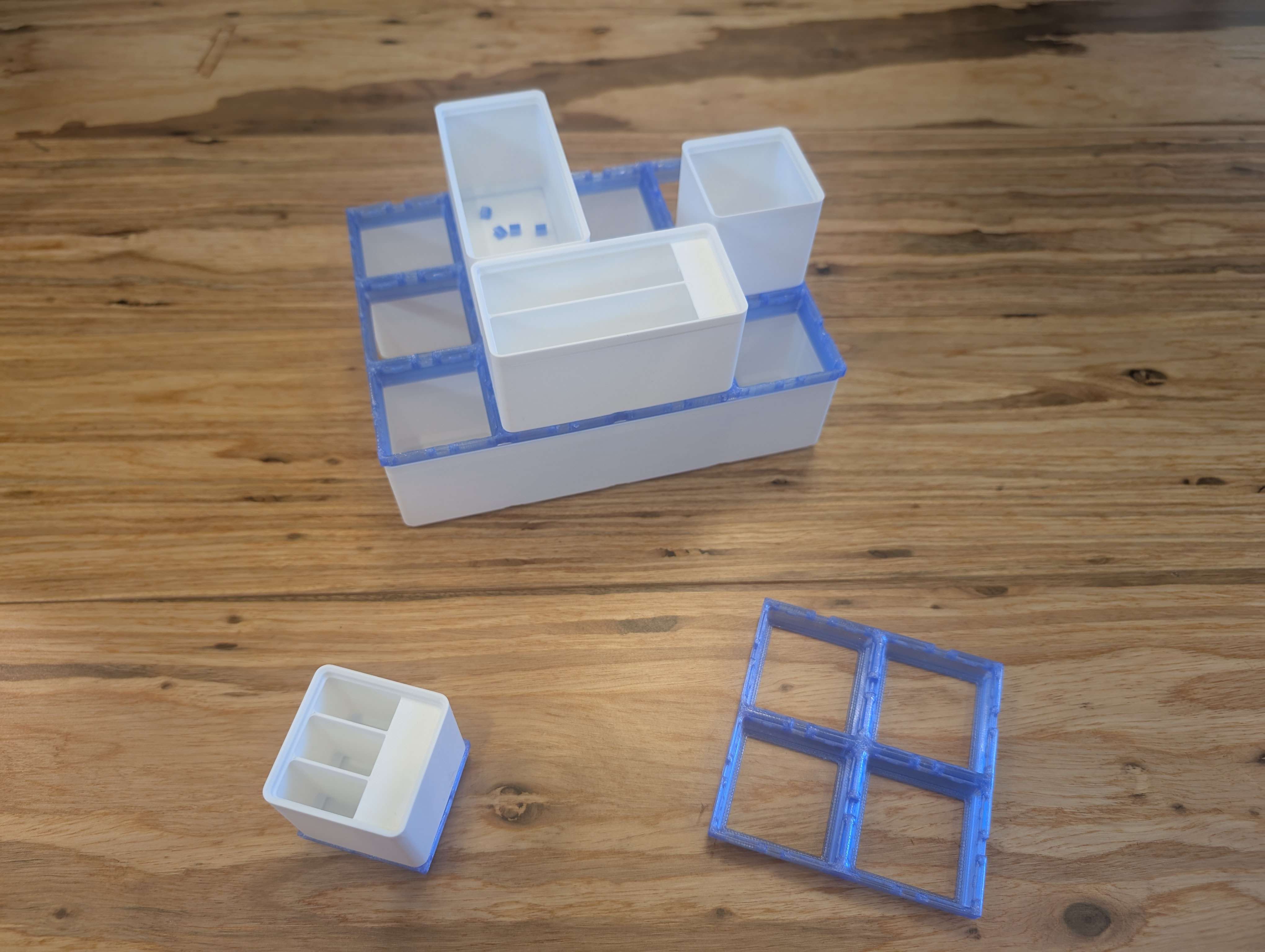

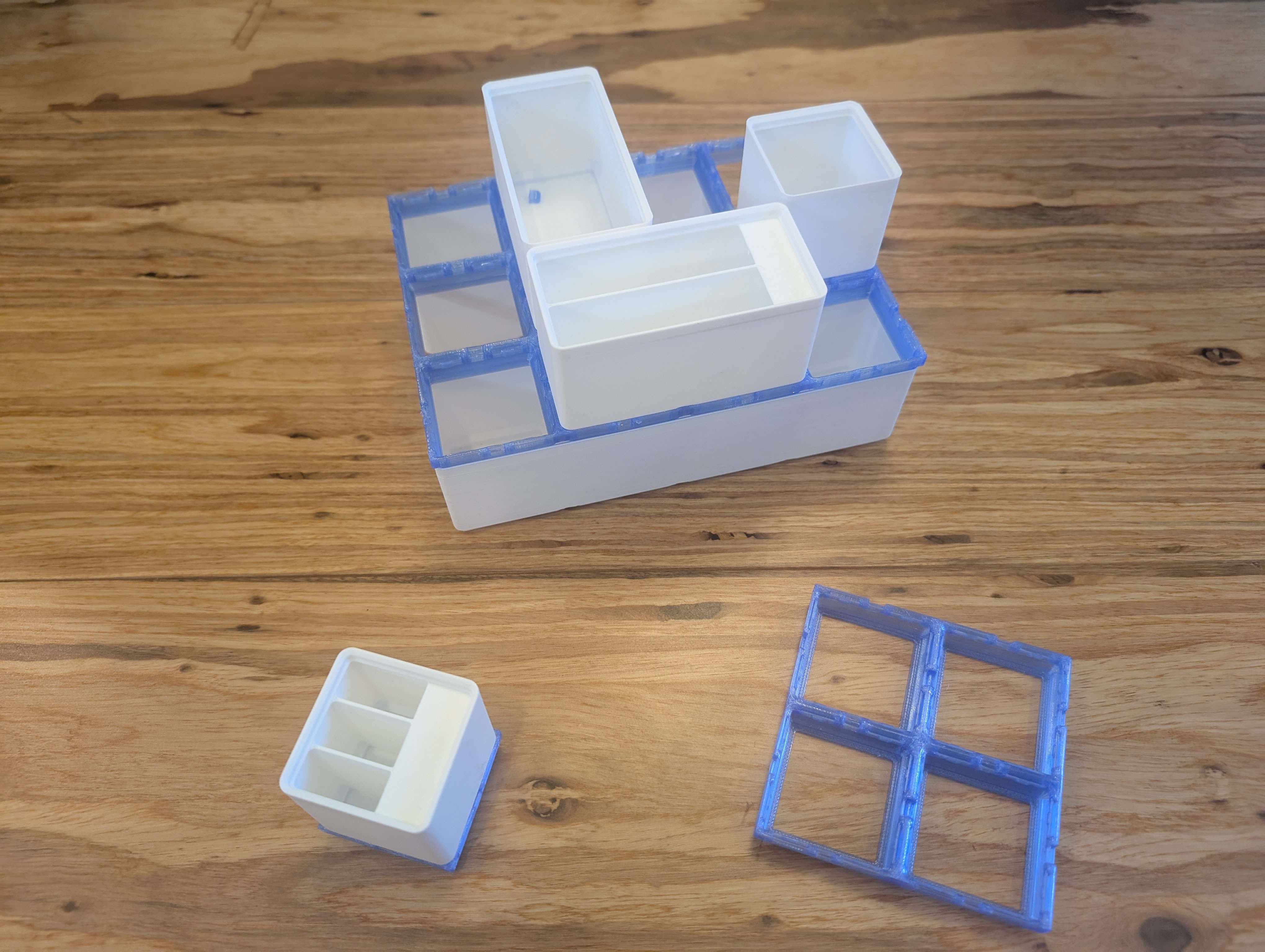

This is a remix of the CLICKbase baseplate, such that it can be placed on top of gridfinity bins. The thickness is 1u, to align with the rest of the system.

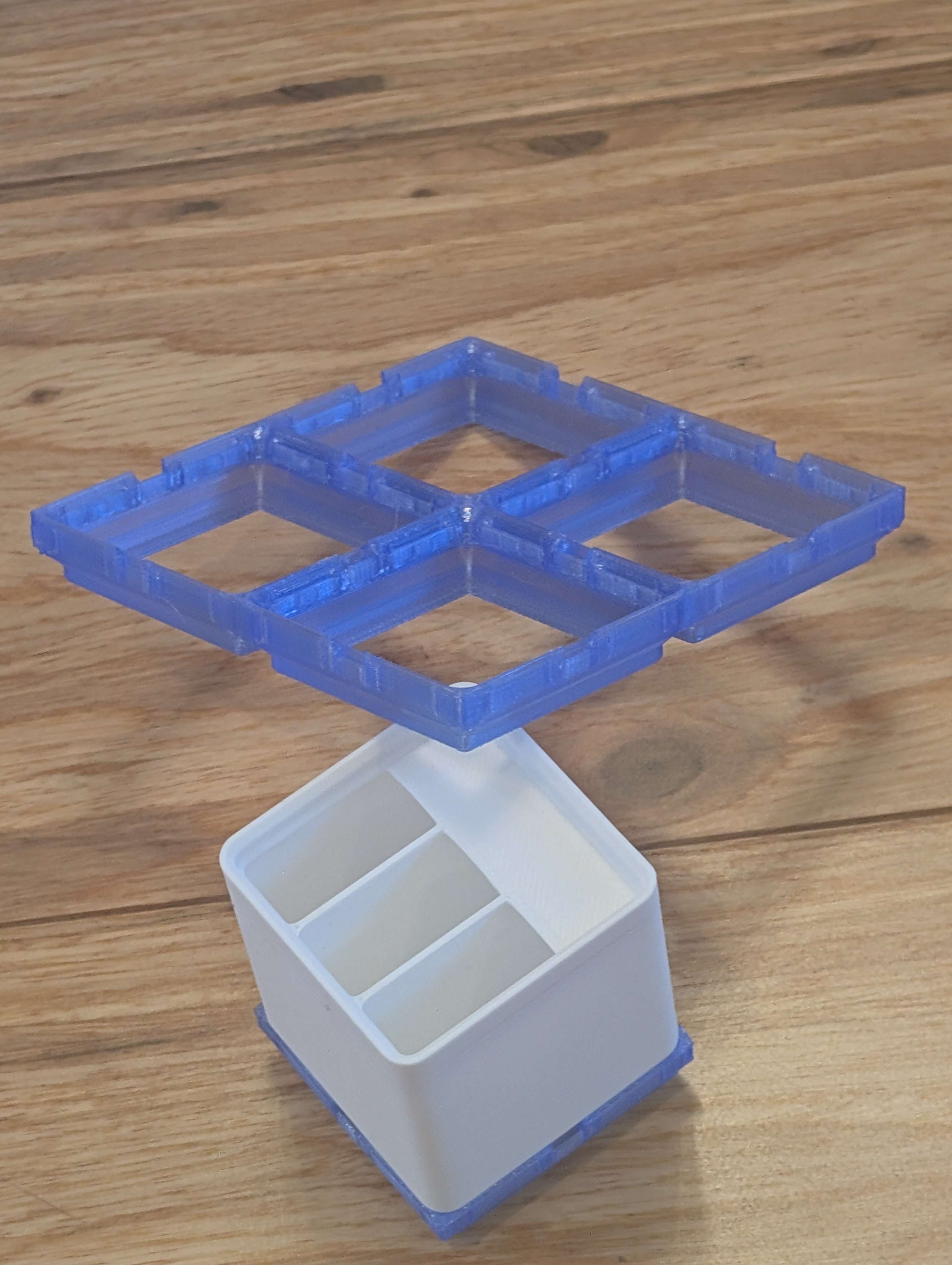

This helps solve the common problem of being unable to place smaller bins on bigger bins - Just print out a large size of this stack plate to fit over the large bin, and place your smaller bins in it. The strong, spring-loaded fit from the CLICKbase makes it easy to just pull out the whole group, without relying on magnets that normal gridfinity baseplates and bins would be limited to.
The bin bottom interface was pulled from the Ultra Light bins (though with some area removal that was unnecessary).

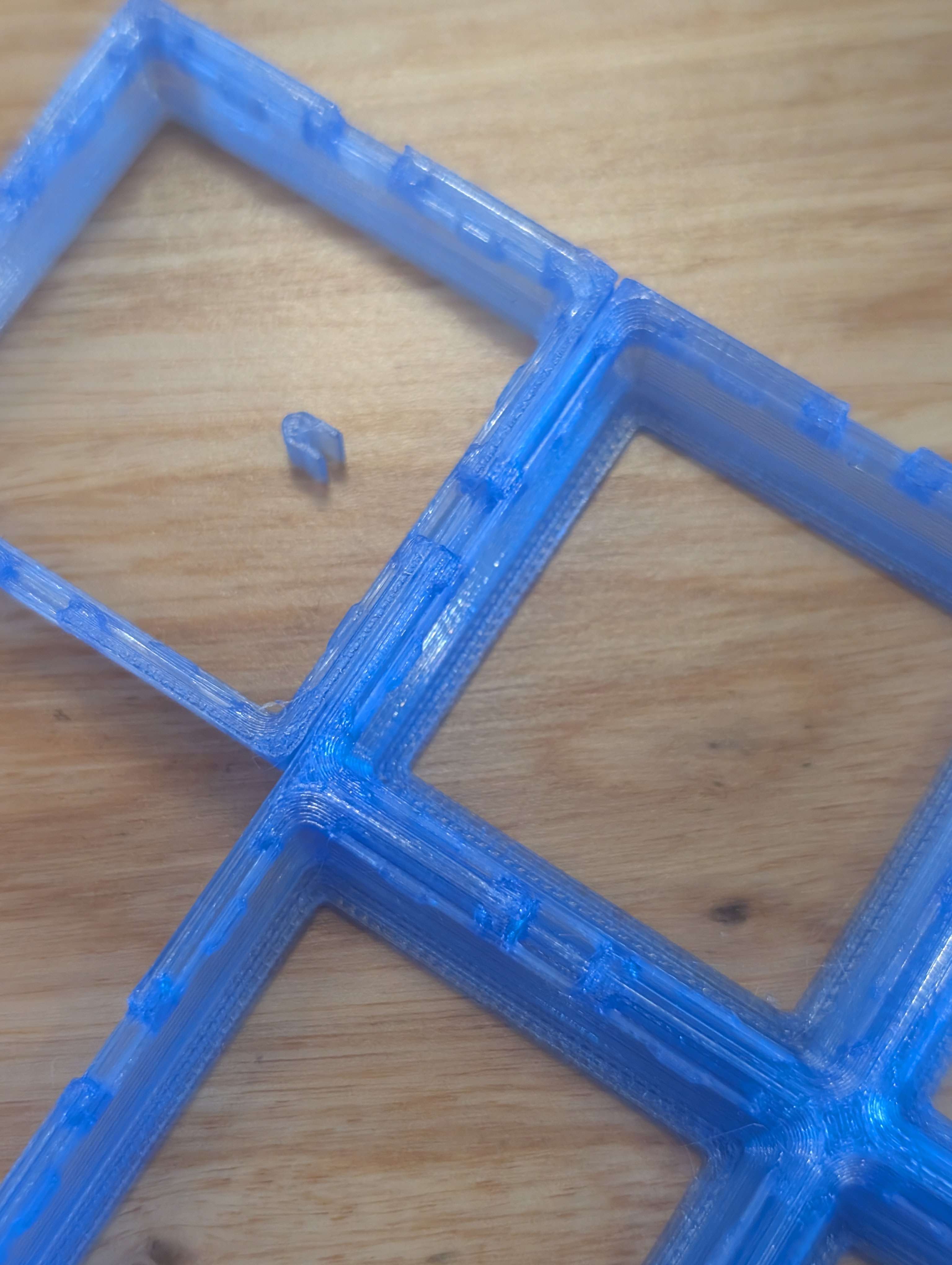

Please use the exact same print settings/materials as you would with the CLICKbase baseplates (50mm/s, PETG). They use the exact same clips as CLICKbase uses as well. They should be printed upright, with no supports.
If you want other sizes, the blend file can be opened, and you can adjust the array modifiers on the top/bottom parts.
