if you have problems folding, write to me on printables messenger
TUTORIAL COMING SOON…
This model is designed to last a long time, but print with PET G or better materials.
The model contains screws and bearings that must be purchased.
Nuts are inserted into parts during printing, if the model says insert and the number of nuts, you must go through the model and set a print pause.
Some parts are divided into multiple parts and are glued together I recommend high quality adhesives for outdoors marked glue and with the same number are only glued together.
- SCREWS
1x M14 150mm
10x M4 60mm
3x M4 95mm
2x M4 70mm
3x M4 20mm
2x M4 20mm
1x M3 15mm
- NUTS and WASHERS
1x M14 NUT (with rubber)
4x M14 WASHER
20x M4 NUTS
1x M3 WASHER
- BEARINGS
5x inner diameter 14mm outer diameter 35mm width 11mm
- ELECTRONICS

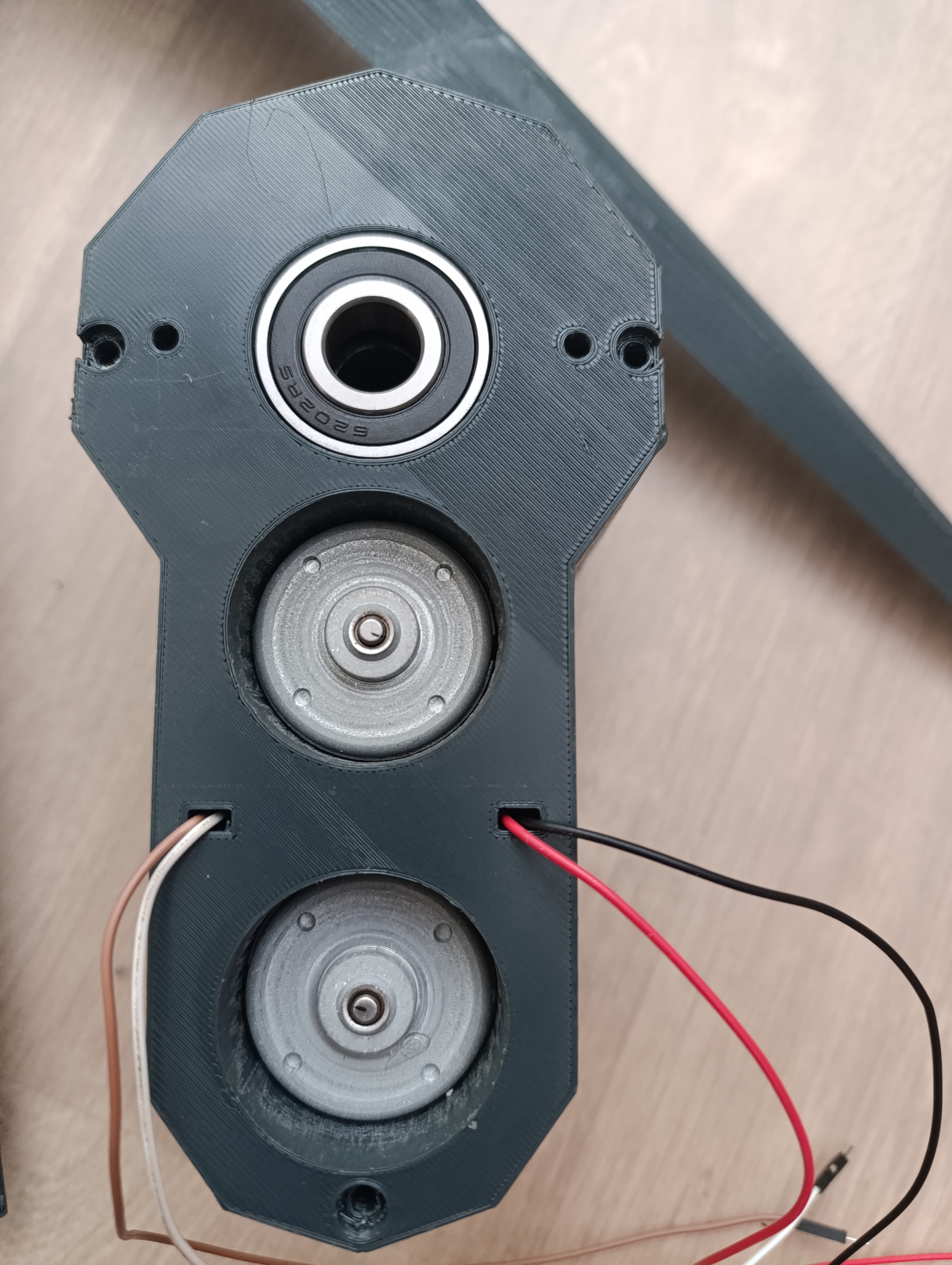

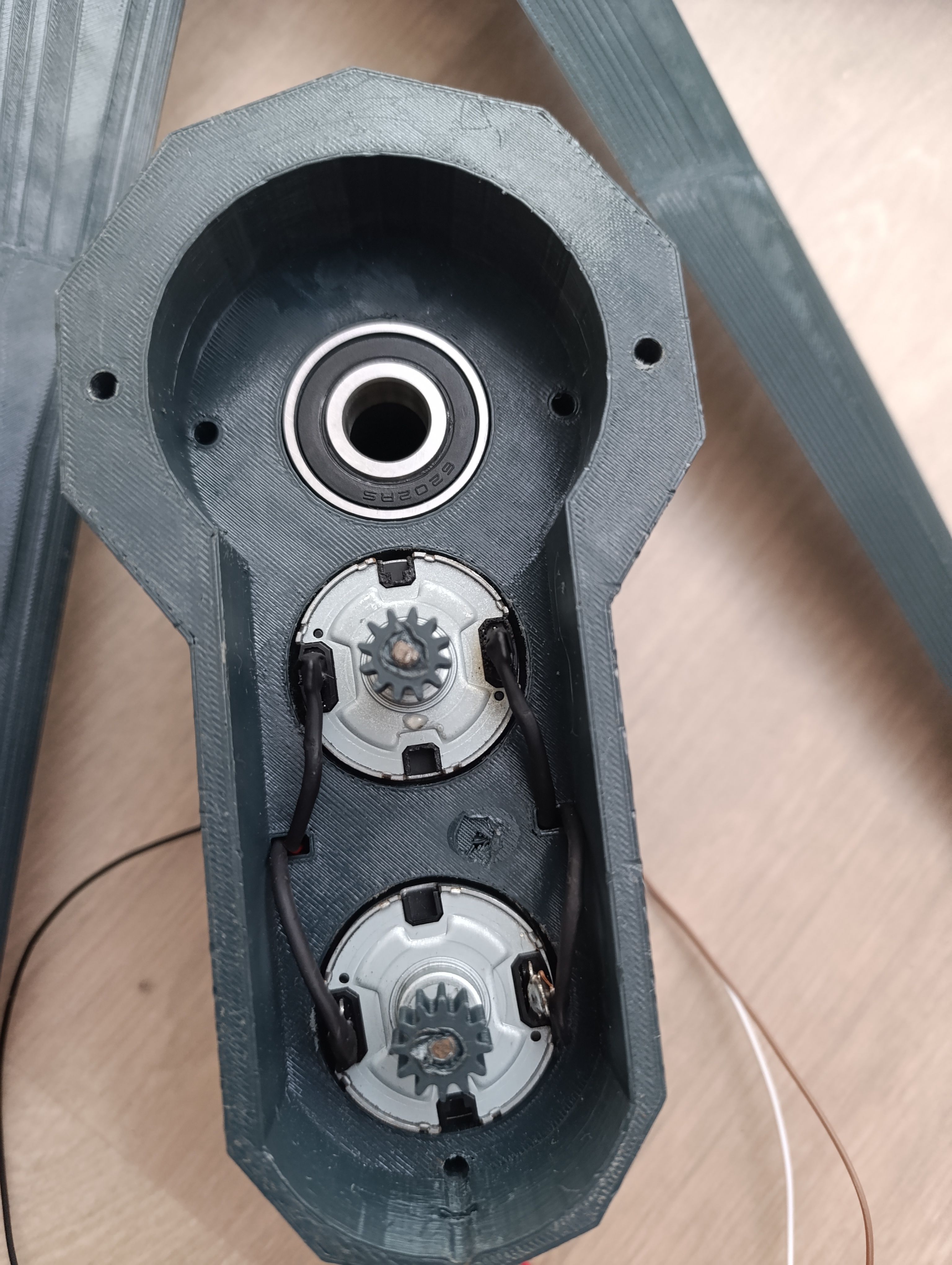

2x electric motor overall average 38,3mm and shaft diameter 4mm
Thank you if you downloud the model
