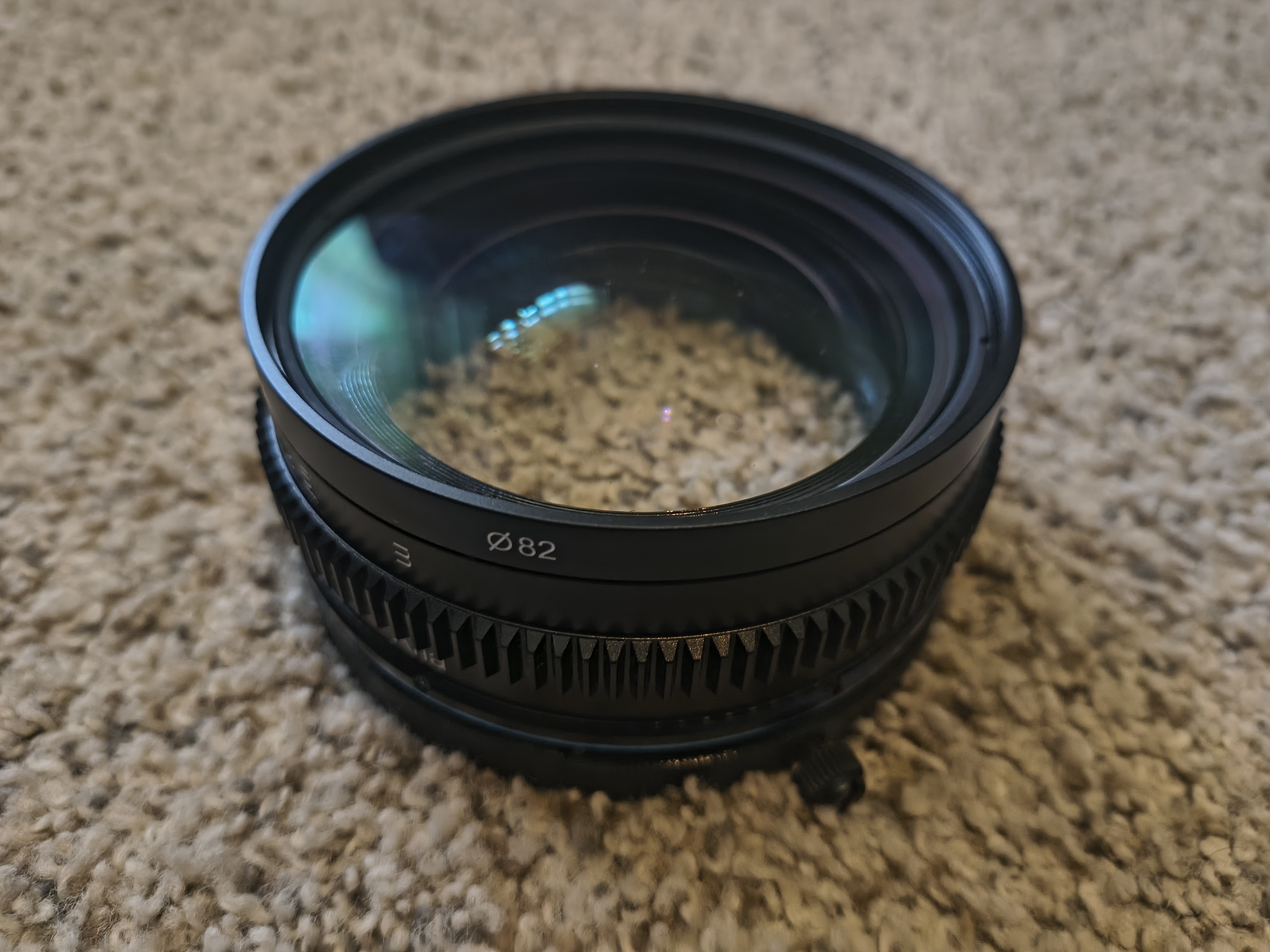

This model converts a Sirui 1.25x Anamorphic Adapter to a focuser/variable diopter for vintage anamorphic adapters.
- Ocena
- 0 / 5
- Polubienia
- 2
- Pobrania
- 75
- Wydruki
- 0
- Wyświetlenia
- 415
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Photo & Video
- Licencja
- Creative Commons — Attribution — Noncommercial

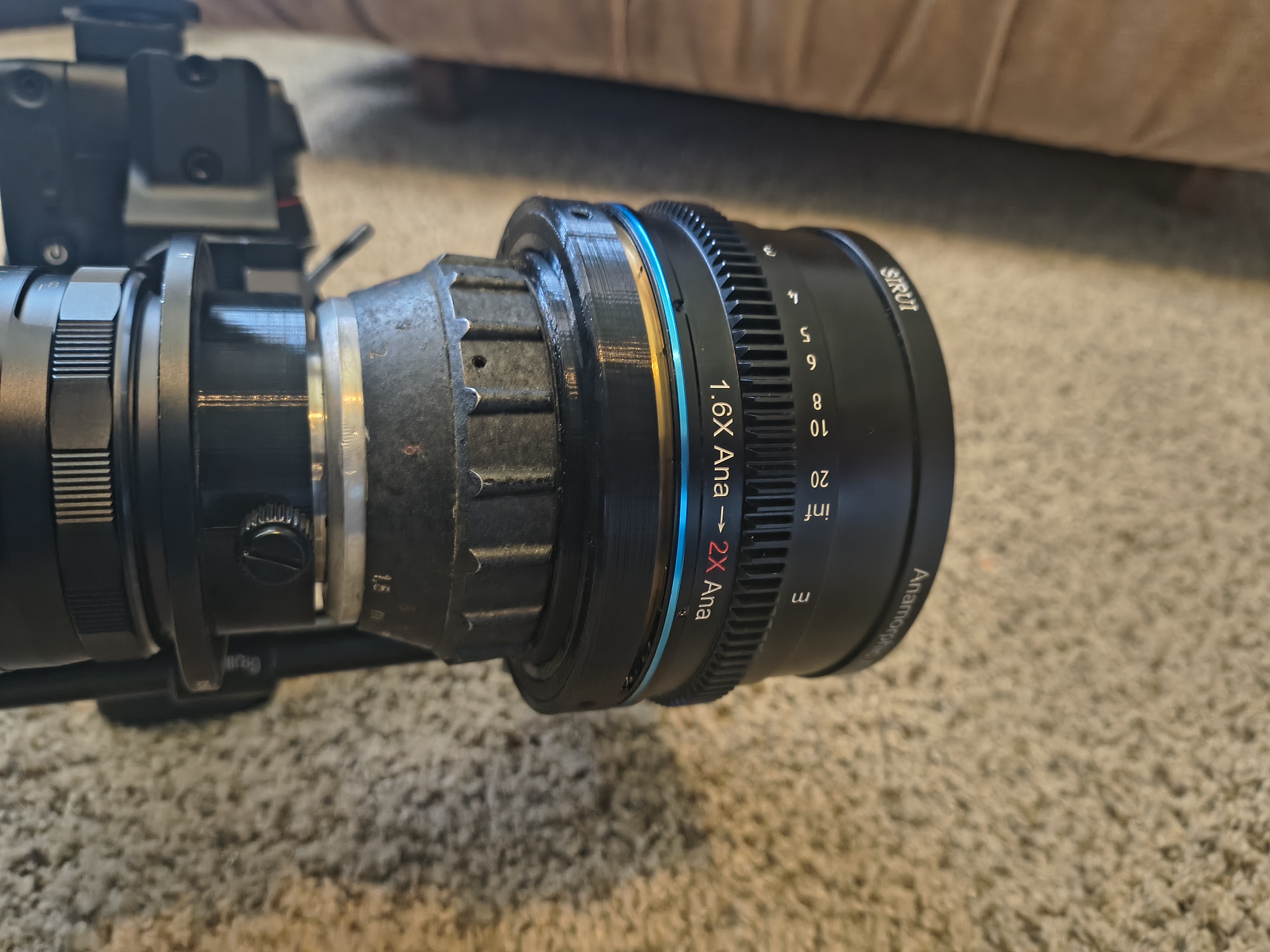

This model converts a Sirui 1.25x Anamorphic Adapter to a focuser for vintage anamorphic adapters. This focuser is tested to fit the following anamorphic blocks:
- Schneider ES Cinelux
- ISCO Ultrastar
- Moller 32/2x with included focuser adapter ring added
- Kowa 16h/B&H with front ring removed
See the instructions below on performing the mod.

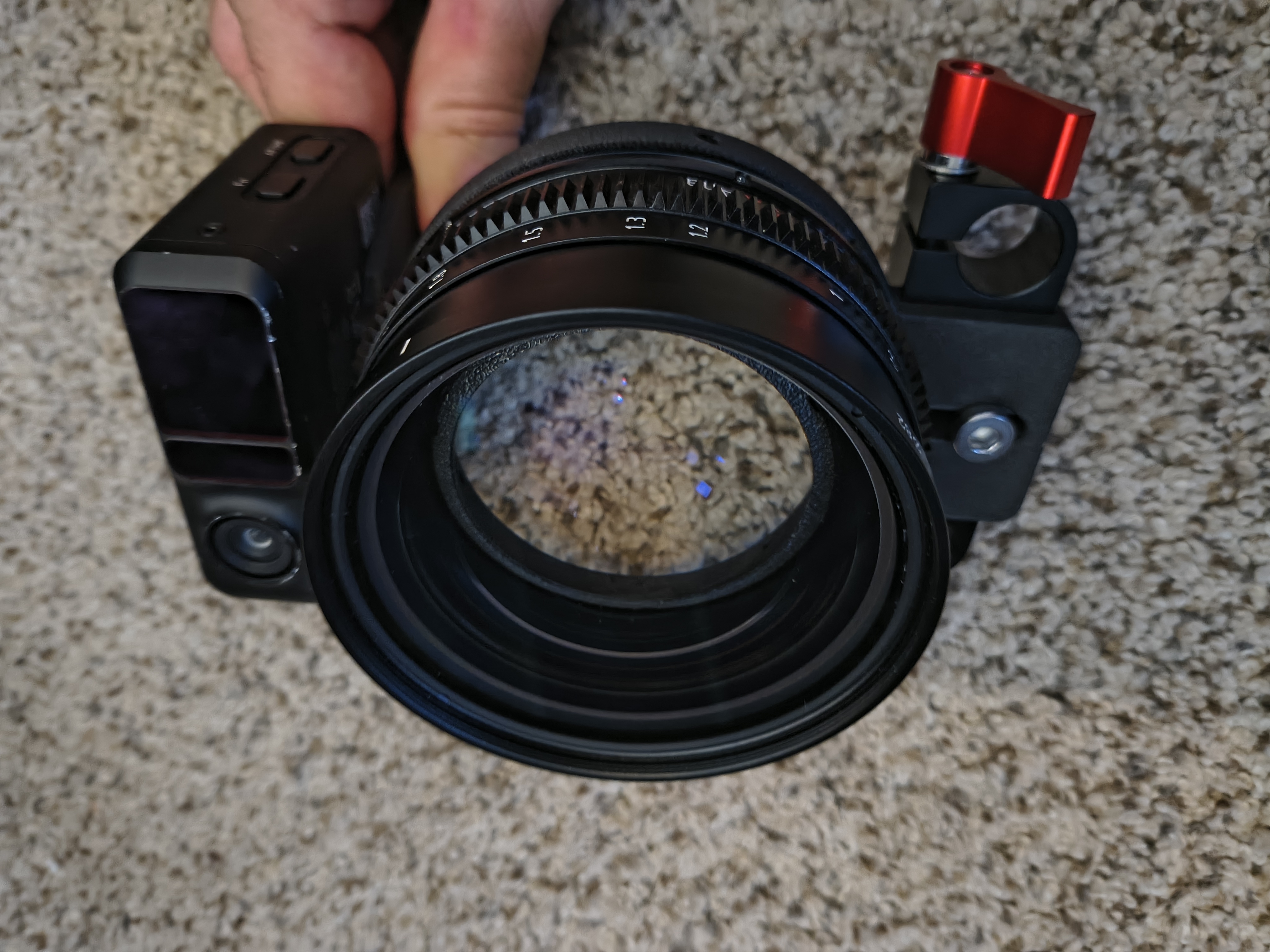

I use a DJI Focus pro so I included a top mount for the radar unit and rails mounting.
IMPORTANT NOTE: Tolerances for the parts are tight - you need a calibrated printer and dimensionally accurate, rigid filament for this to come together smoothly. You might need to tweak dimensions depending on your printer/filament - I included the original Fusion 360 file for you to do that.

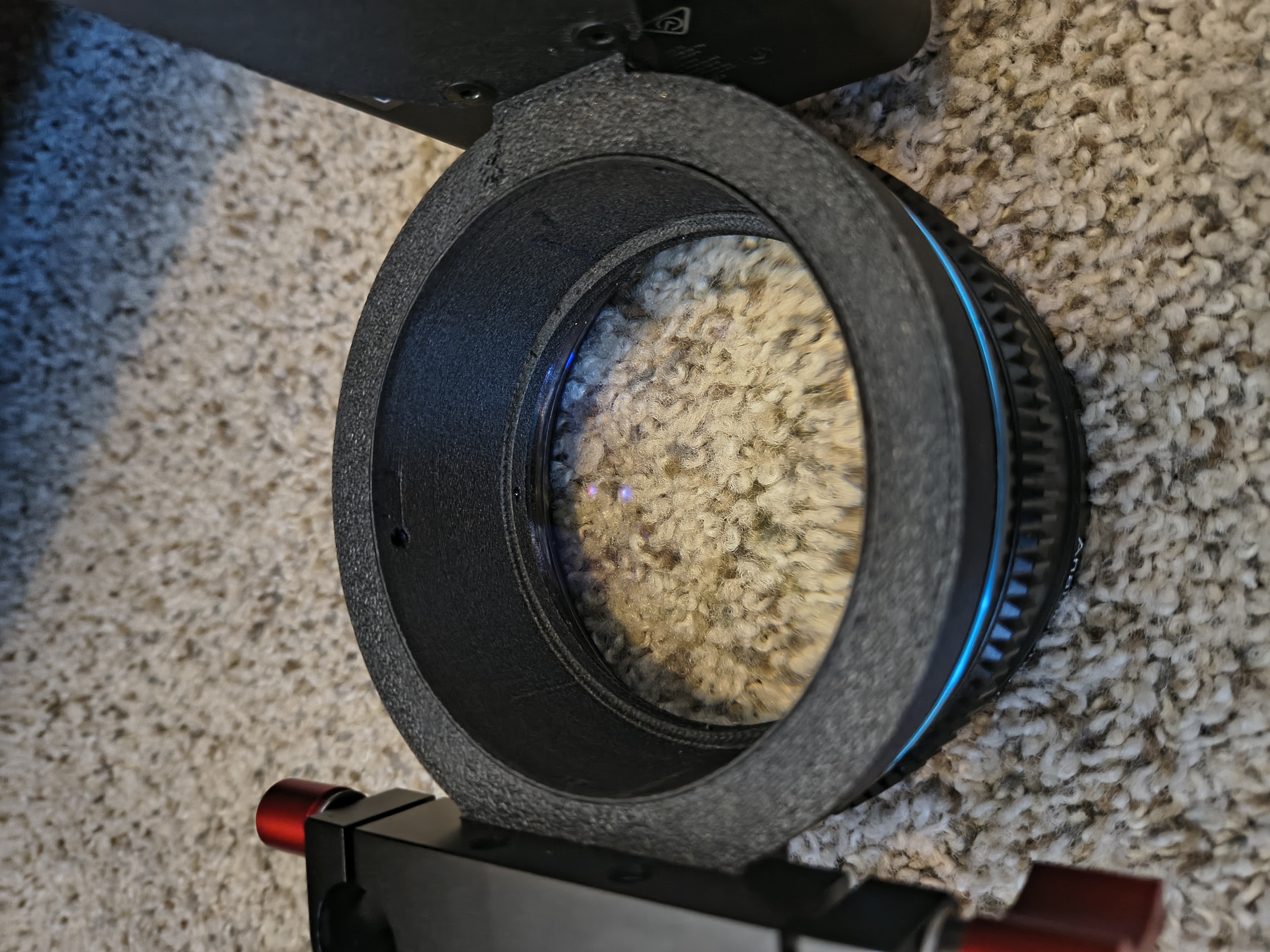

I printed my adapter parts on a Centauri Carbon using PPA-CF filament which worked well. You will need tree supports on the sleeve to support the clips.
For a video on how to disassemble the lens click here:
Make sure to join the Anamorphic Shooters community on Facebook and share your build: https://www.facebook.com/groups/anamorphicshooters
