Adjustable Camera Grip (MultiMaterial Optional)

Adds a simple grip to your camera (assuming you already have a camera cage).

Features a cold-shoe on top (remember to remove the sacrificial layer), and two ¼" 20 threaded inserts for mounting lights or microphones.

Multimaterial is optional. You can also choose to use Fuzzy Skin. My recommended settings for multimaterial are included in the 3MF.

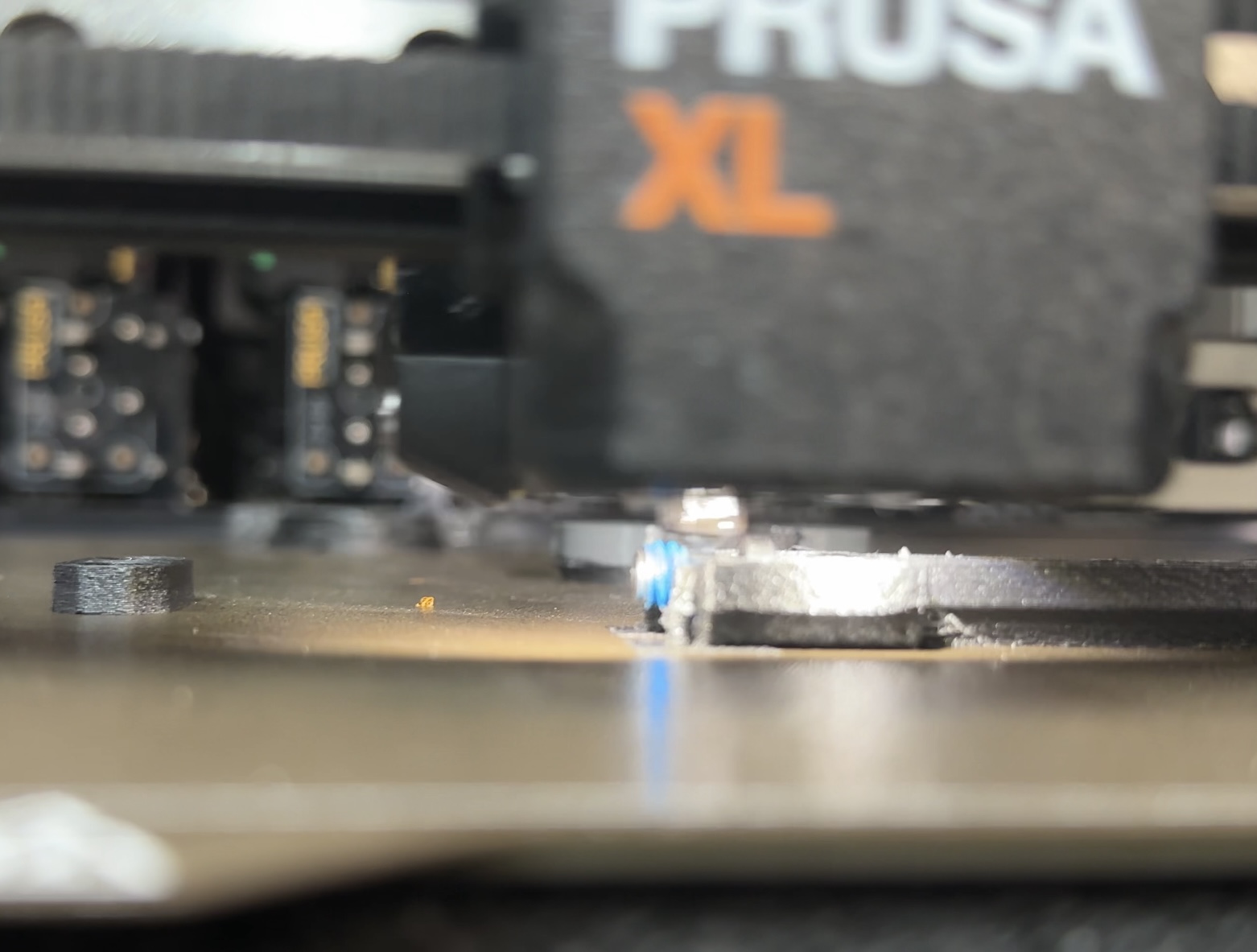

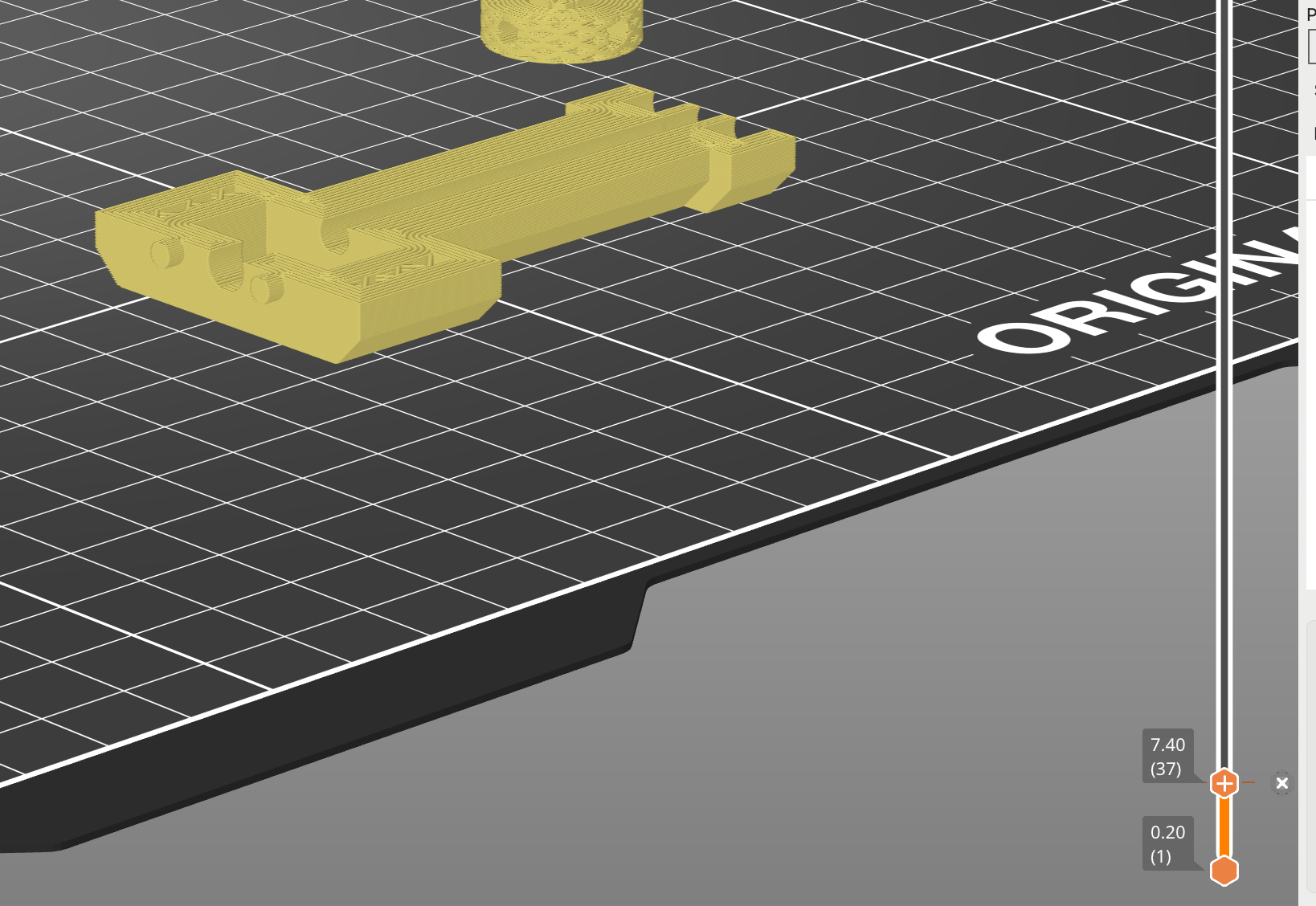

IMPORTANT: You will need to pause the print at the appropriate layer height to insert the screw.

Required Hardware:

• 2X M4x20 cap head screws: https://s.click.aliexpress.com/e/_onub3we
• 2X M4 Heat Set Insert: https://s.click.aliexpress.com/e/_on6trxu
• 2X ¼" 20 Heat Set Insert (8-10mm): https://s.click.aliexpress.com/e/_okF4Zp4
• ¼" 20 Small Camera Screw: https://tinyurl.com/yle9ukbv
• 2X M3 Heat Set Insert (Optional, for Screw Handle): https://s.click.aliexpress.com/e/_on6trxu
• 2X M3 Grub Screw (Also Optional)

Printing Instructions:

• Ideally, use a rigid material (ABS, PETG-CF, etc)
• Lots of perimeters…. 6+ (for main part of the body), but only 2 for TPU parts.
• No supports necessary except for the tiny alignment pins
• Import Front Grip, Grip Body, and Rear Grip together as one object.
• Multimaterial is optional, but recommended, particularly if you are using CF materials for the main body.
• Remember to pause for the bolt insertion, and monitor the print, as there is a risk of collisions!

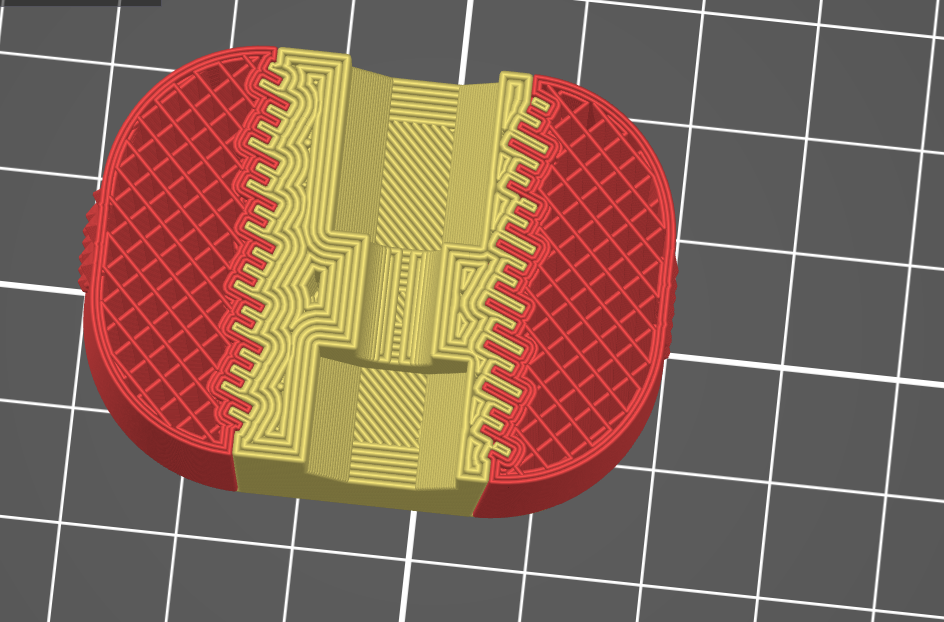

• Beam Interlocking recommended to hold the materials together
• See 3MF for print settings.

Assembly Instructions:

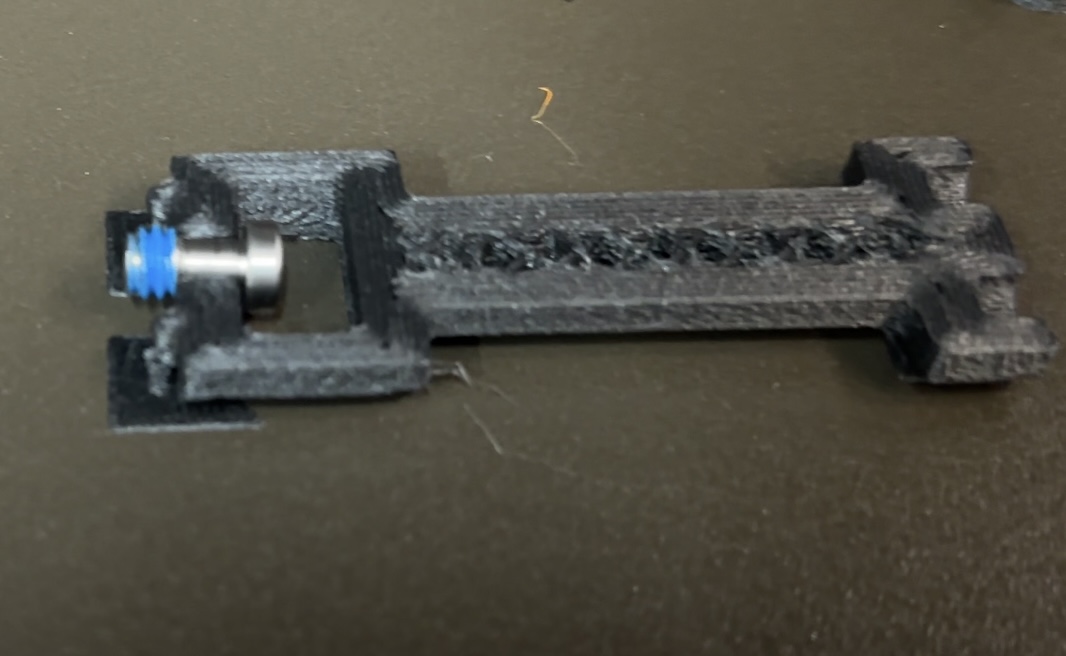

• Print the parts, inserting the screw mid-print
• Add appropriate sized Heat-Set Inserts in holes (should be self-explanatory, or just see the CAD).
• Optional: Add M3 Inserts + Grub Screws to the Screw Handle, insert into the hole in the arm, then force it onto the screw with flat heat screwdrivers. Tighten M3 Grub Screws.
• First, tighten the screw onto the camera body. If you're not using the screw handle, you can use a long Allen key or driver through the hole long hole in the arm
•

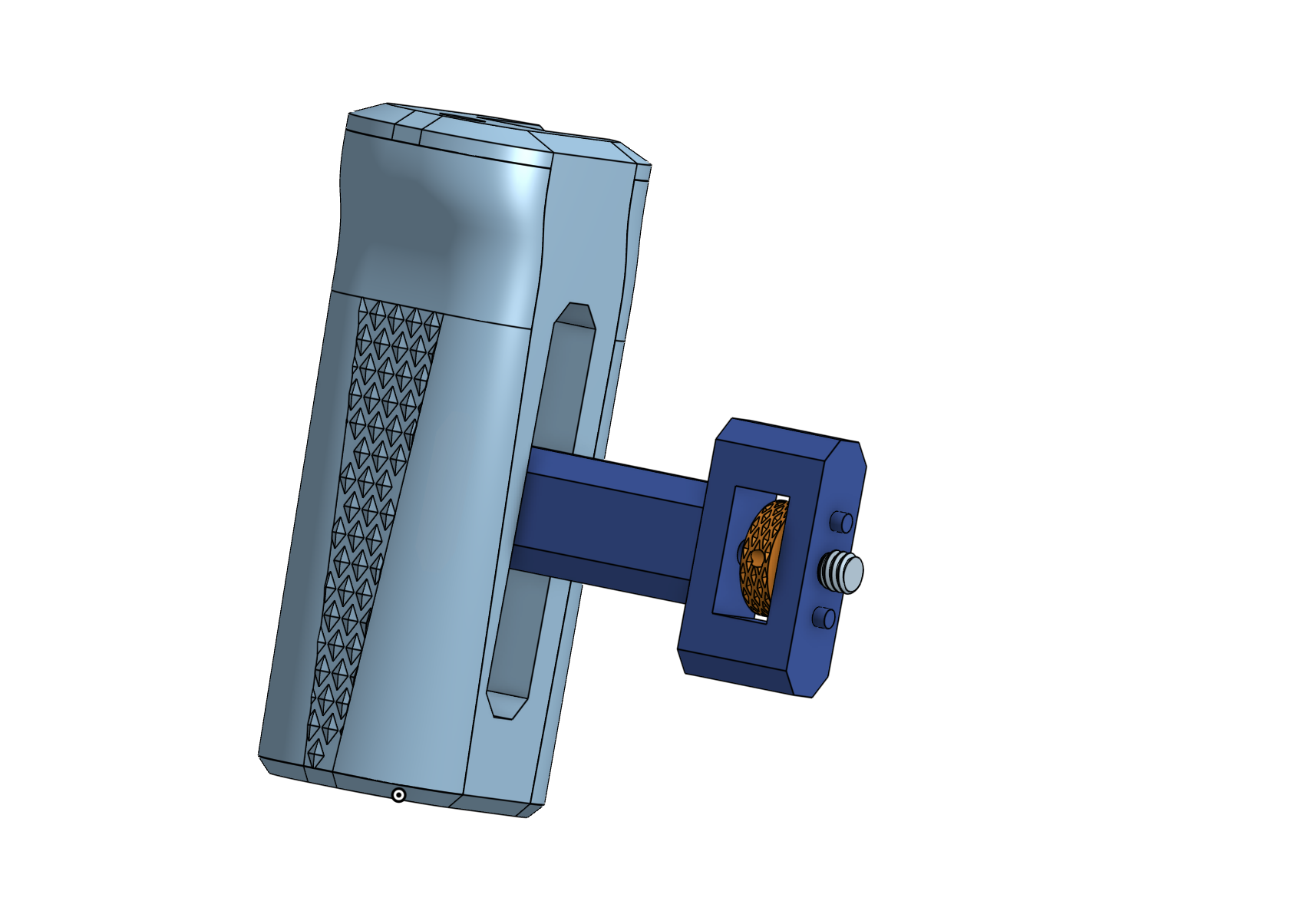

You can edit / modify / make it your own here:
https://cad.onshape.com/documents/cd54a87a00f14d62238f6961/w/cfb36488405b887f0c6a0194/e/2e52d51db5f4c1135f1d4dc3?renderMode=0&uiState=6878ad356324b94d6066336f

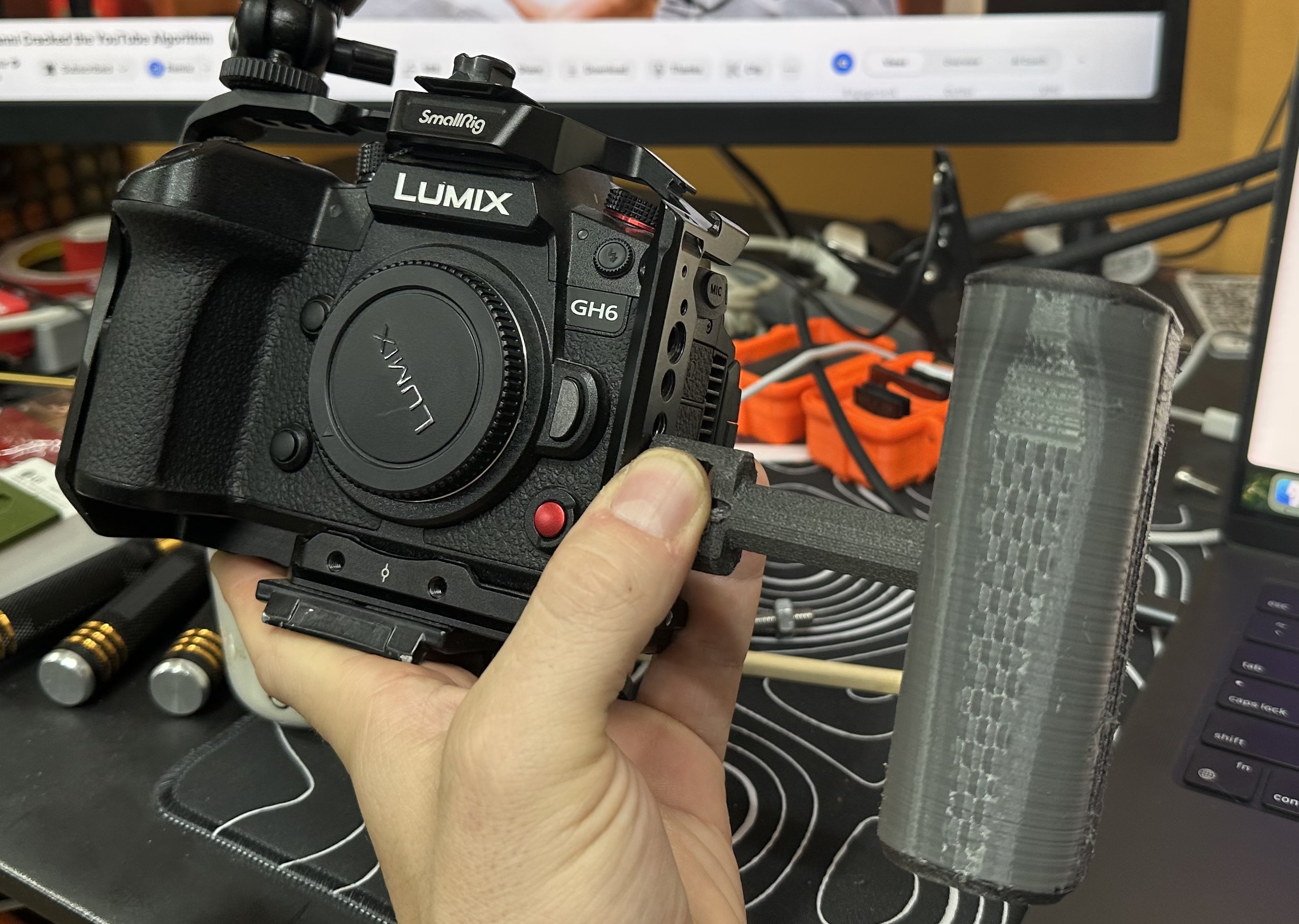

*The photo is of an early prototype, and the attachment part is much bulkier in the final version, but you get the idea!
