Nameplate for apartment mailboxes (parametric)
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other House Equipment
- Licencja
- Creative Commons — Public Domain

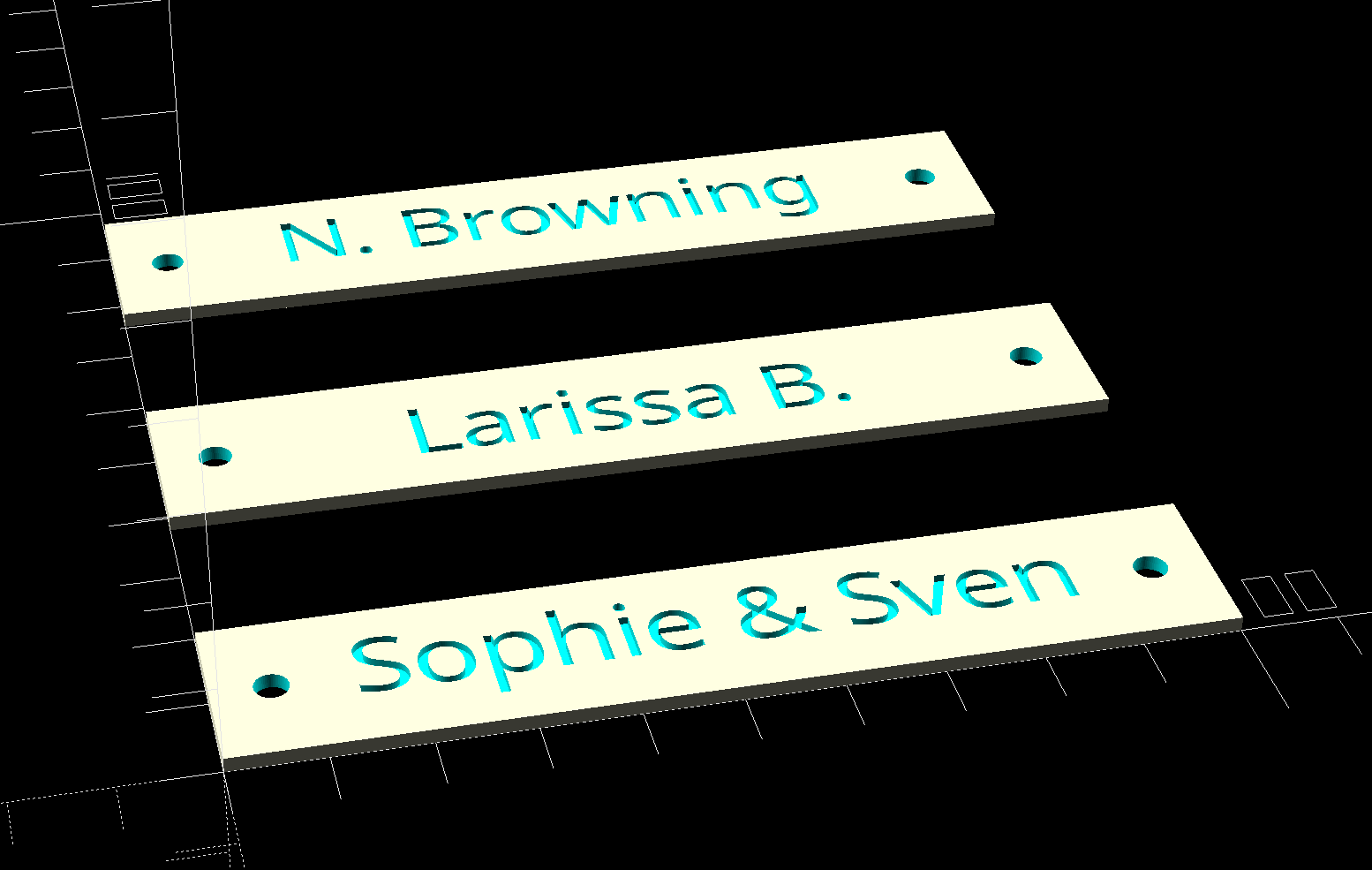

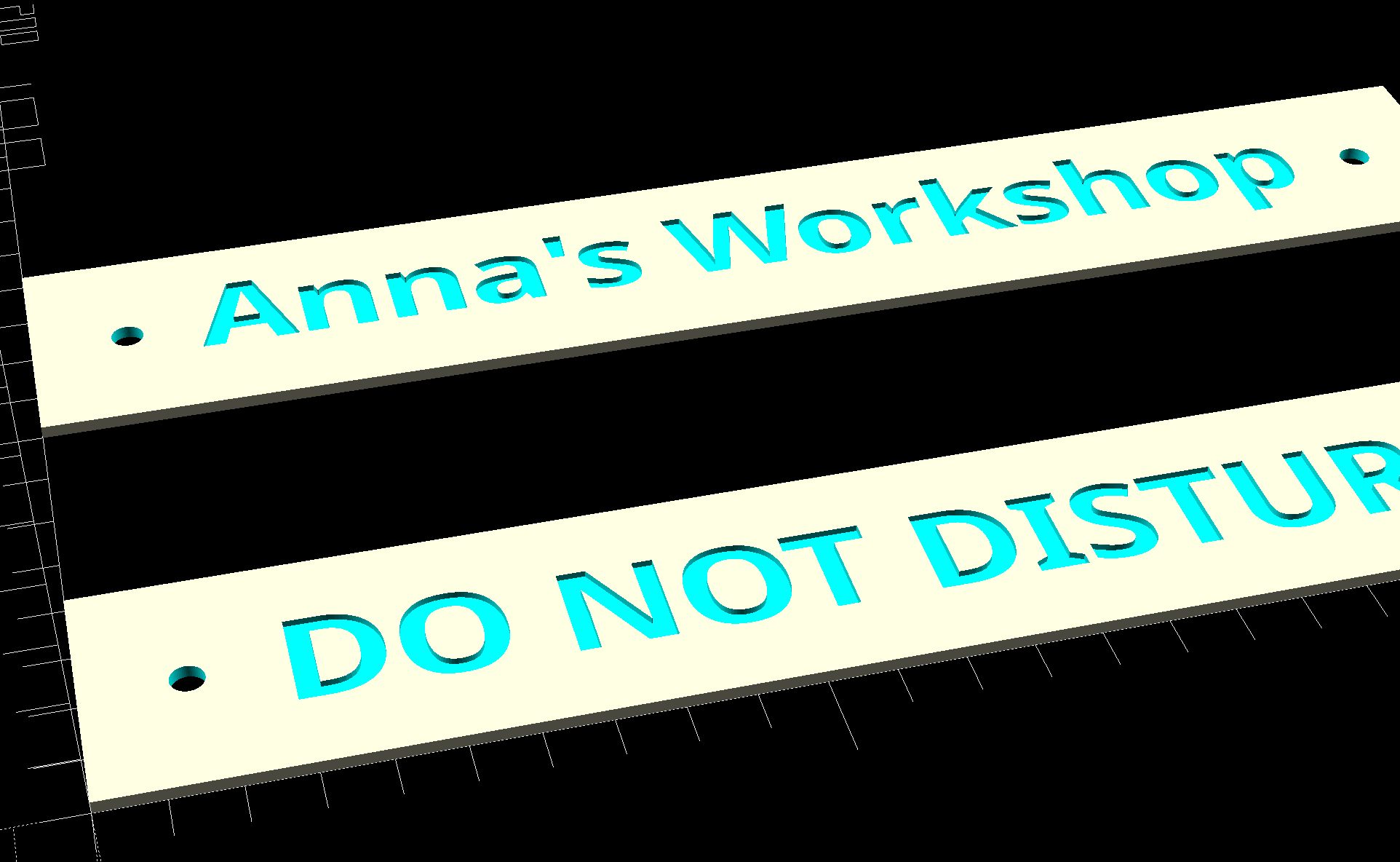

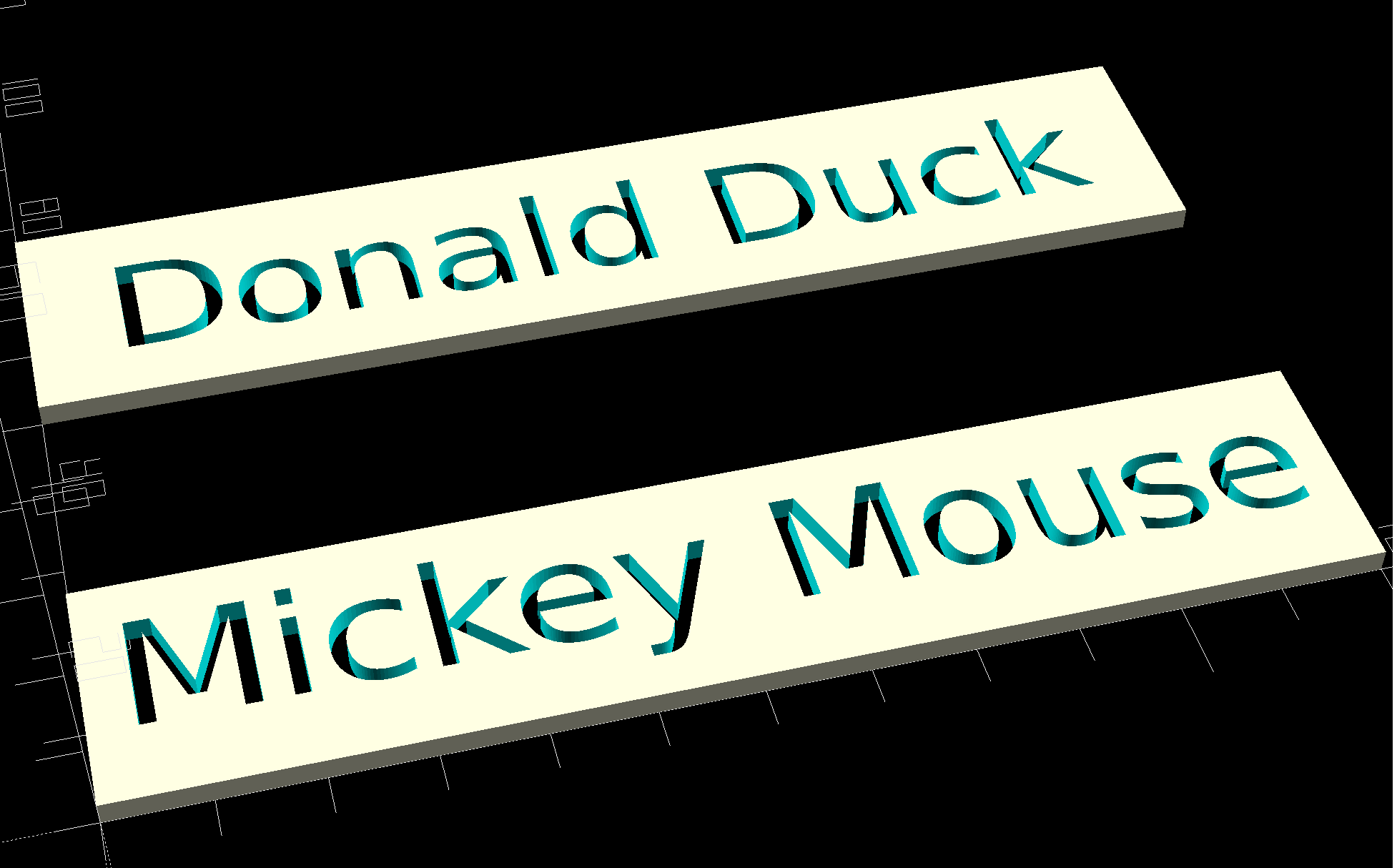

A friend asked me to print some name plates for his apartment building's mailboxes. I'm writing these instructions for myself, in case I need to print more later. You can use this model to make different sized signs with text – just modify the parameters. I have provided three examples.
Customize
You can customize these plates to any size, text &/or font:
download the openscad file
modify the parameters
render a new design
export the STL

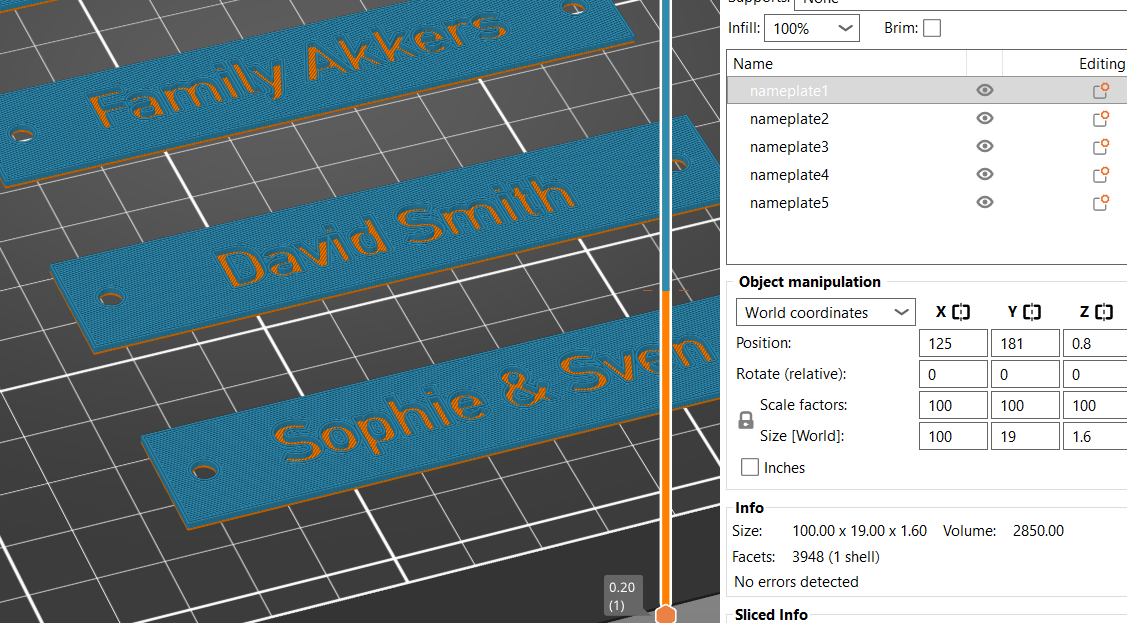

I used the following settings in PrusaSlicer.
Print settings: 0.20mm STRUCTURAL
Nozzle: HF0.4 nozzle
Infill: 100%
Layers and perimeters:
Layer height: 0.2mm
First layer: 0.2mm
Solid layers: 3 top and bottom
Minimum shell thickness: 0.6mm top and bottom
Infill:
Fill density: 100%
Fill pattern: Rectilinear
Top fill pattern: Monotonic lines
Add a color change at the depth of the text.
Other
Tested on Prusa MK4S, in Prusament PETG.
Model is available on Github, Printables, Thingiverse and Makerworld.
Feel free to ask questions.
Design updated on 2025-09-16: converted to parametric openSCAD, instructions simplified
v2 design added on 2025-11-02: added parameters to disable the holes, and to allow the text to be any depth.
