Version 02: https://www.printables.com/model/1381303-kryptonite-series-2-holder-v02
Changes
- Stronger
- Smaller screws, M5 → M4
- Draft for smoother “parking”
---

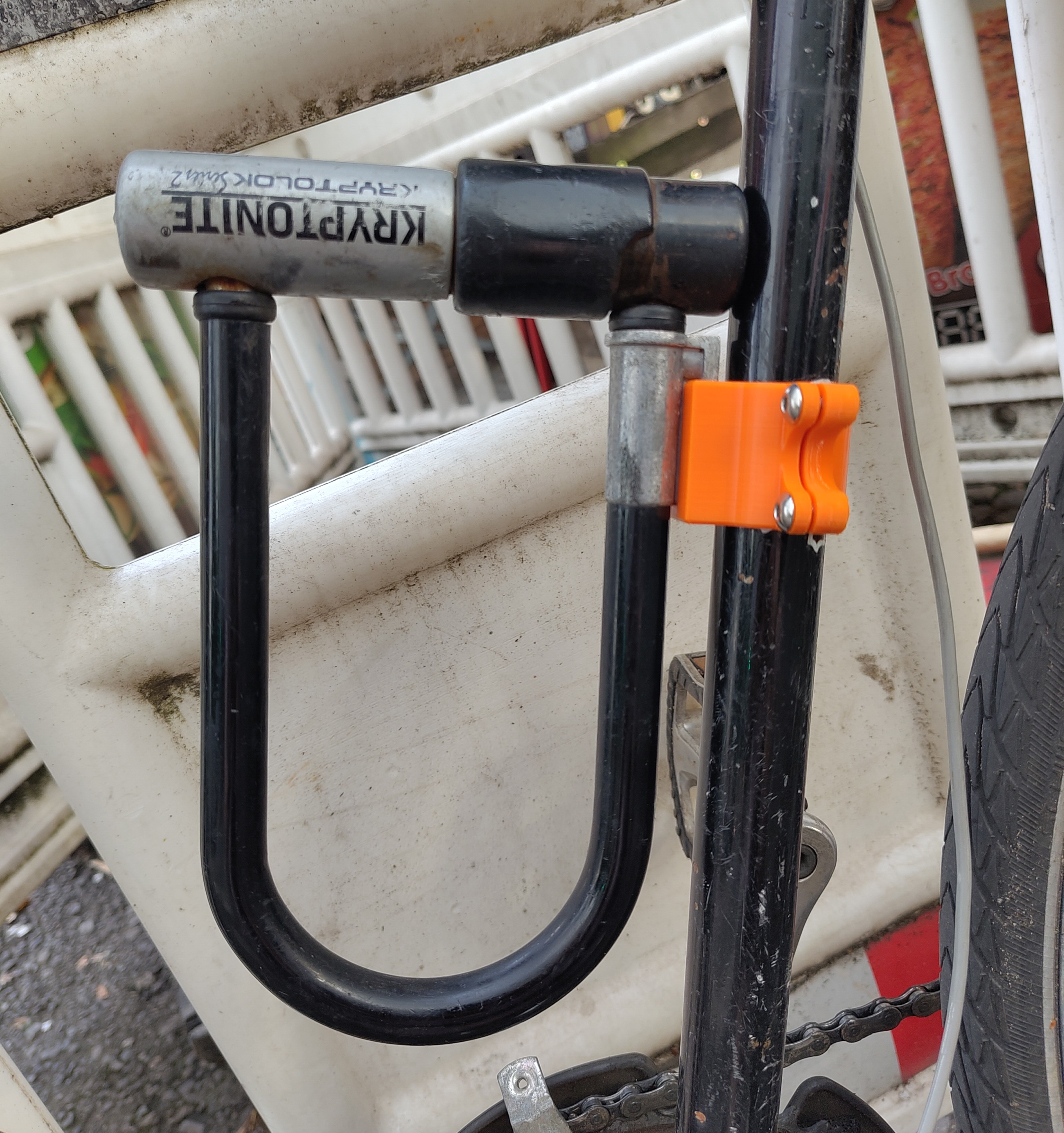

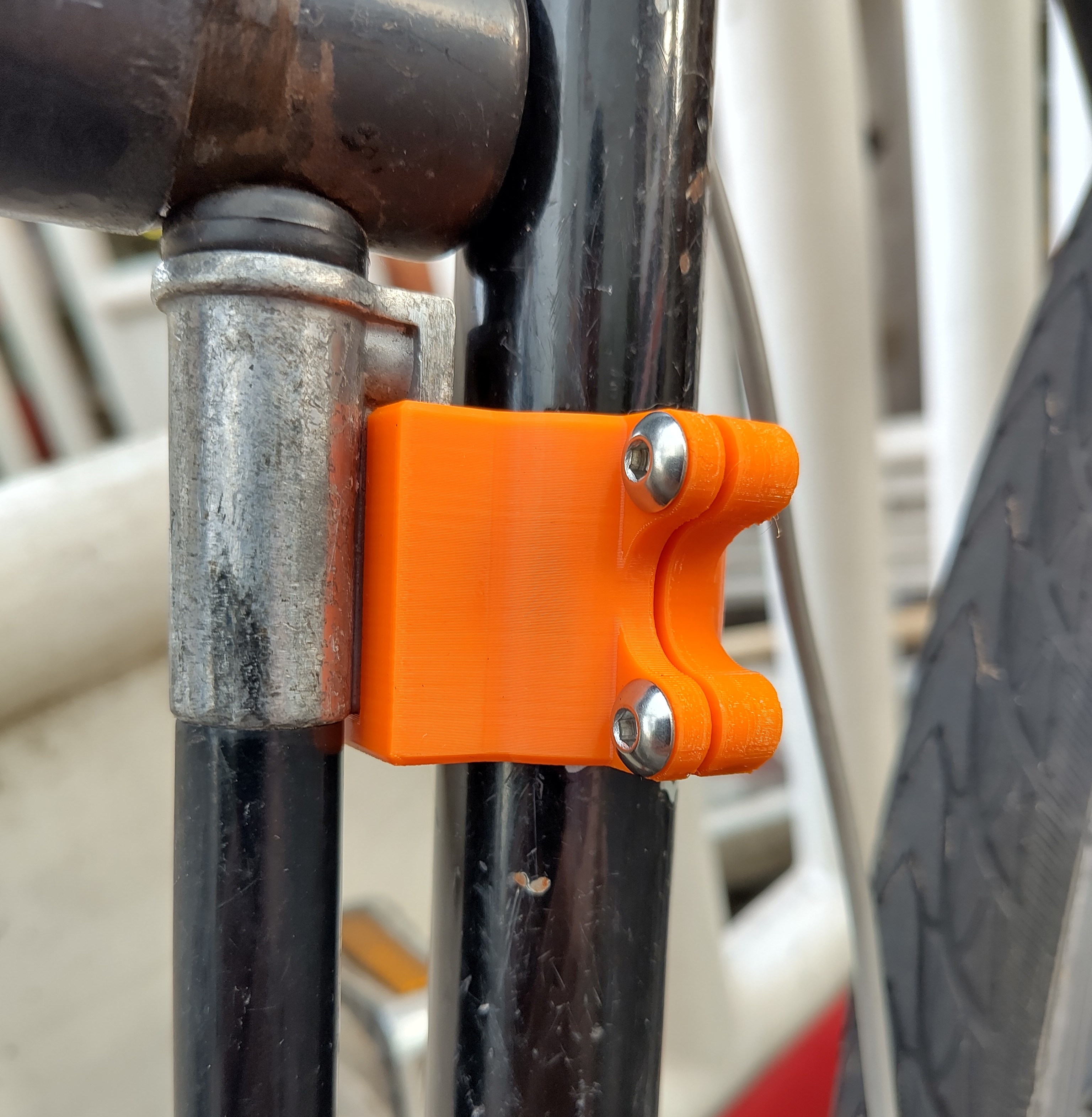

Kryptonite locks have an included holder. Usually they come with a counter-part that is attached to the bike. I didn't have this piece anymore, so I created one.

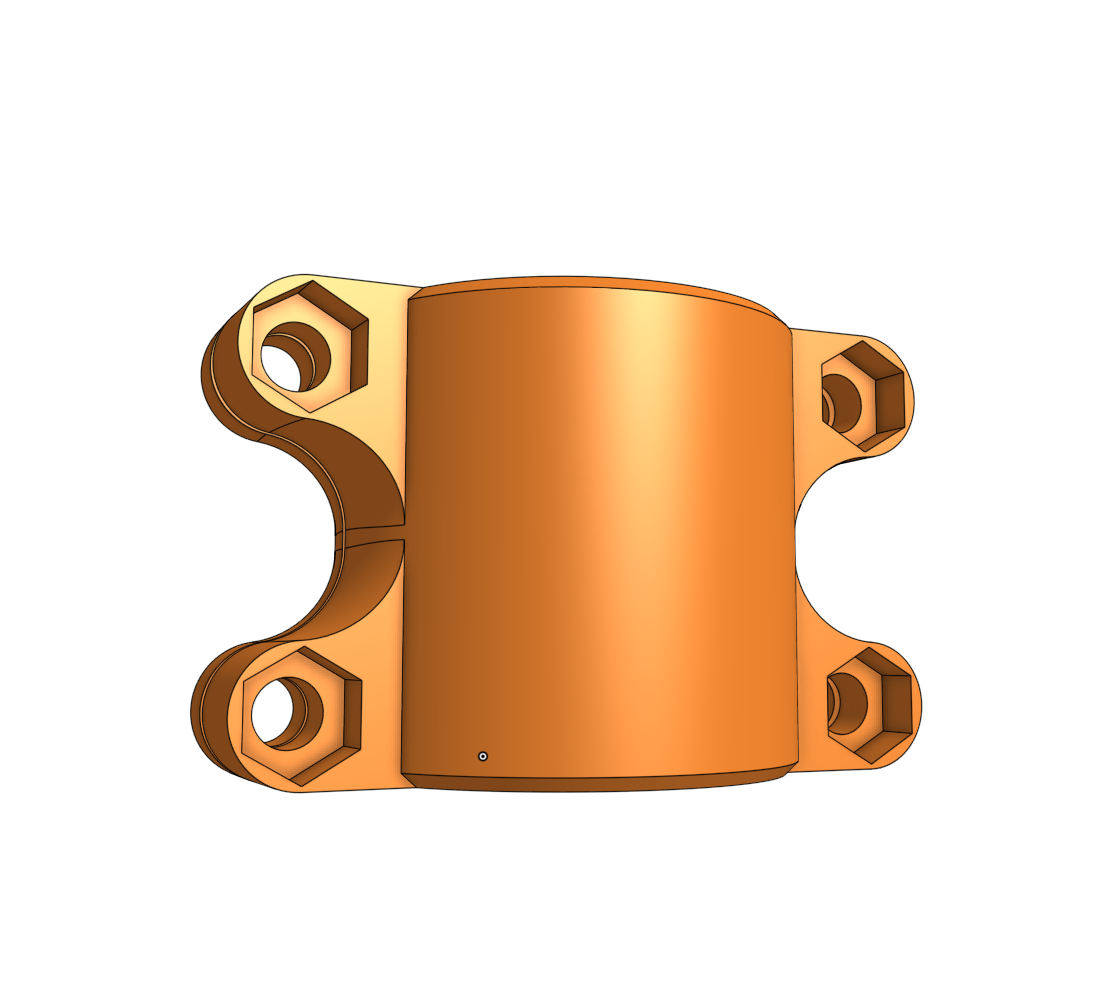

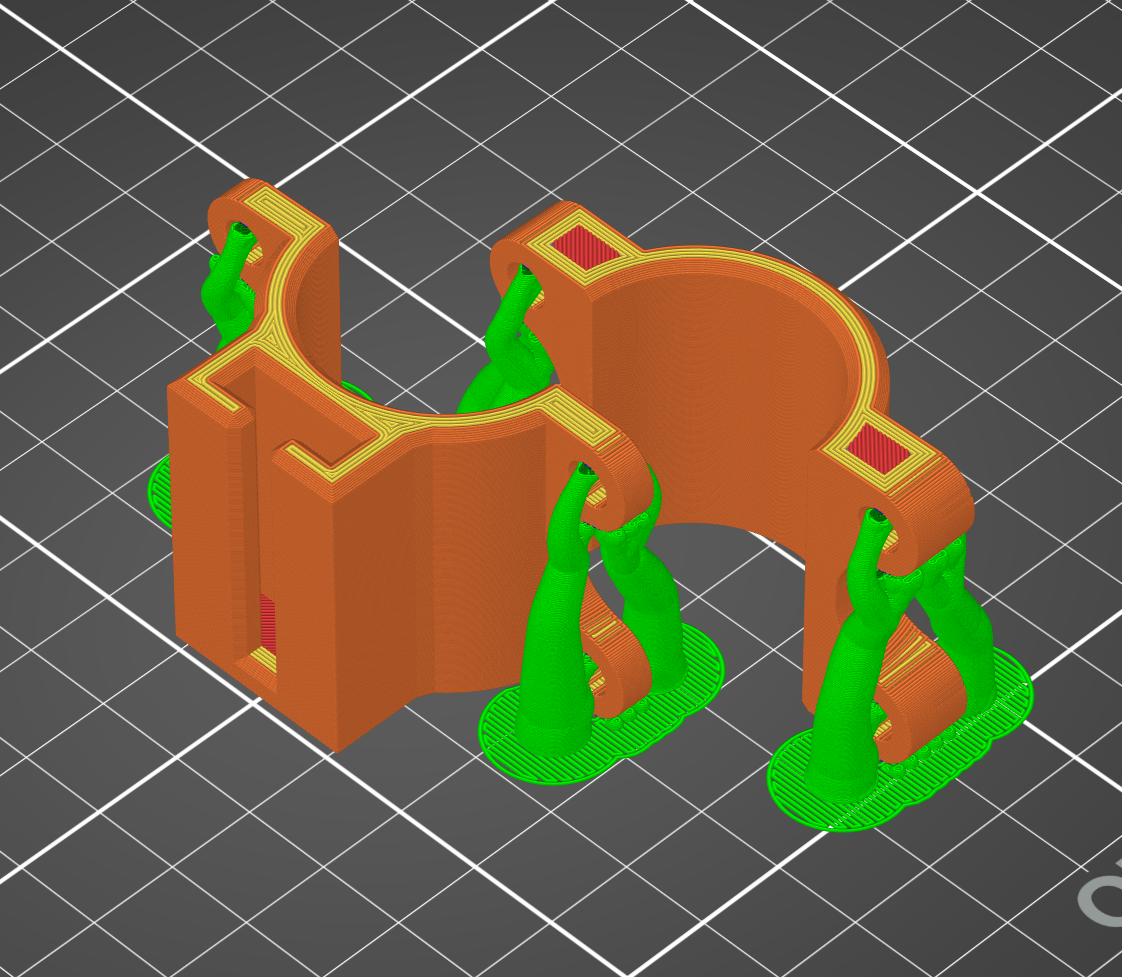

The model is made of two pieces that are printed standing upright for stability. It's recommended to print with support to keep the screw holes nice and round. On the back is a recess for the nuts. Use M5 screws.

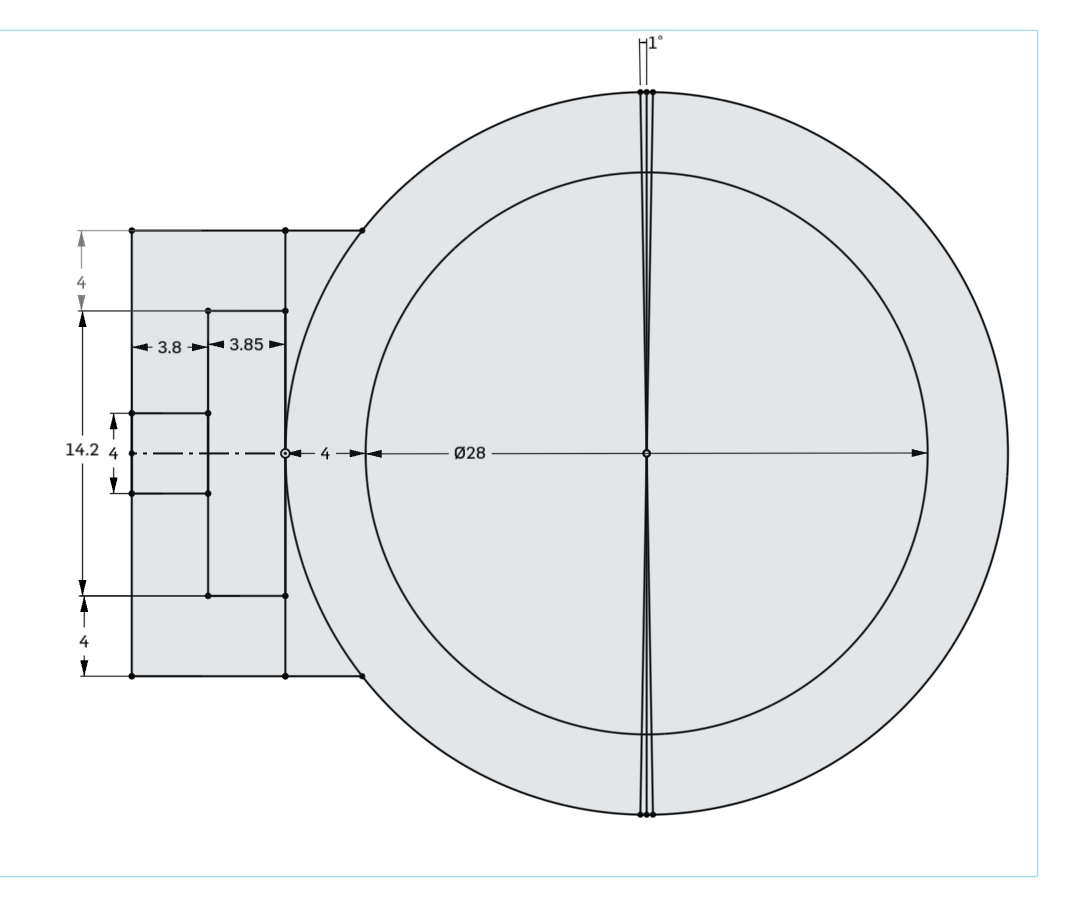

The geometry can be inspected on one of the pictures. The bike's pole has a 28 mm diameter.
If you want to use other screws or have a different bike poles you can create a copy of the model and change the geometry here: OnShape Link
Files are available as 3mf with the print instructions saved or as stl files in two separate parts.
Print instructions
- PETG or harder

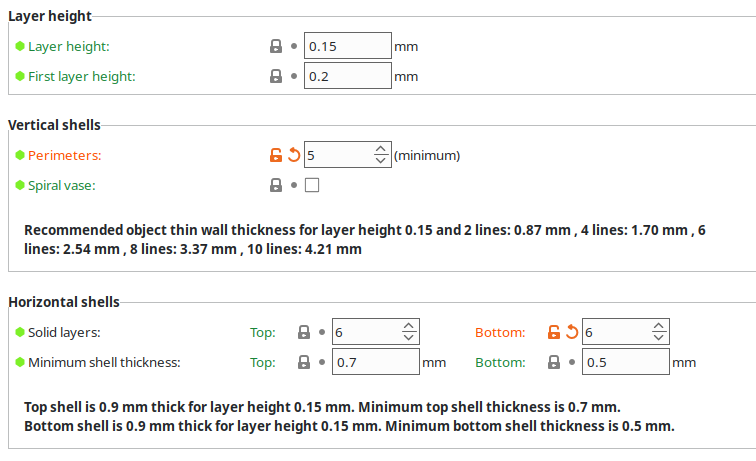

- 0.15 mm layer height
- 5 perimeters
- 6 top and bottom solid layers

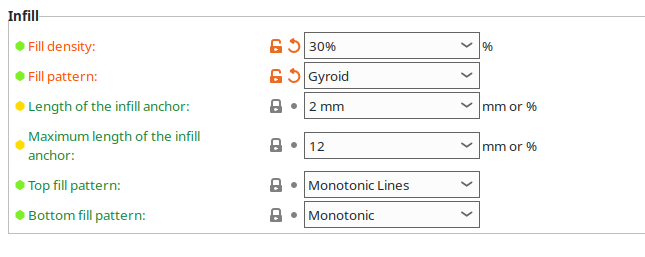

- ≥ 30% infill with a Gyroid pattern
- Organic support on
