Jabra Evolve 65e Buttonplate
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Audio
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
Credit:
Thanks to Lorenzo (@laurent.polese) from MakerWorld for sharing the original design.

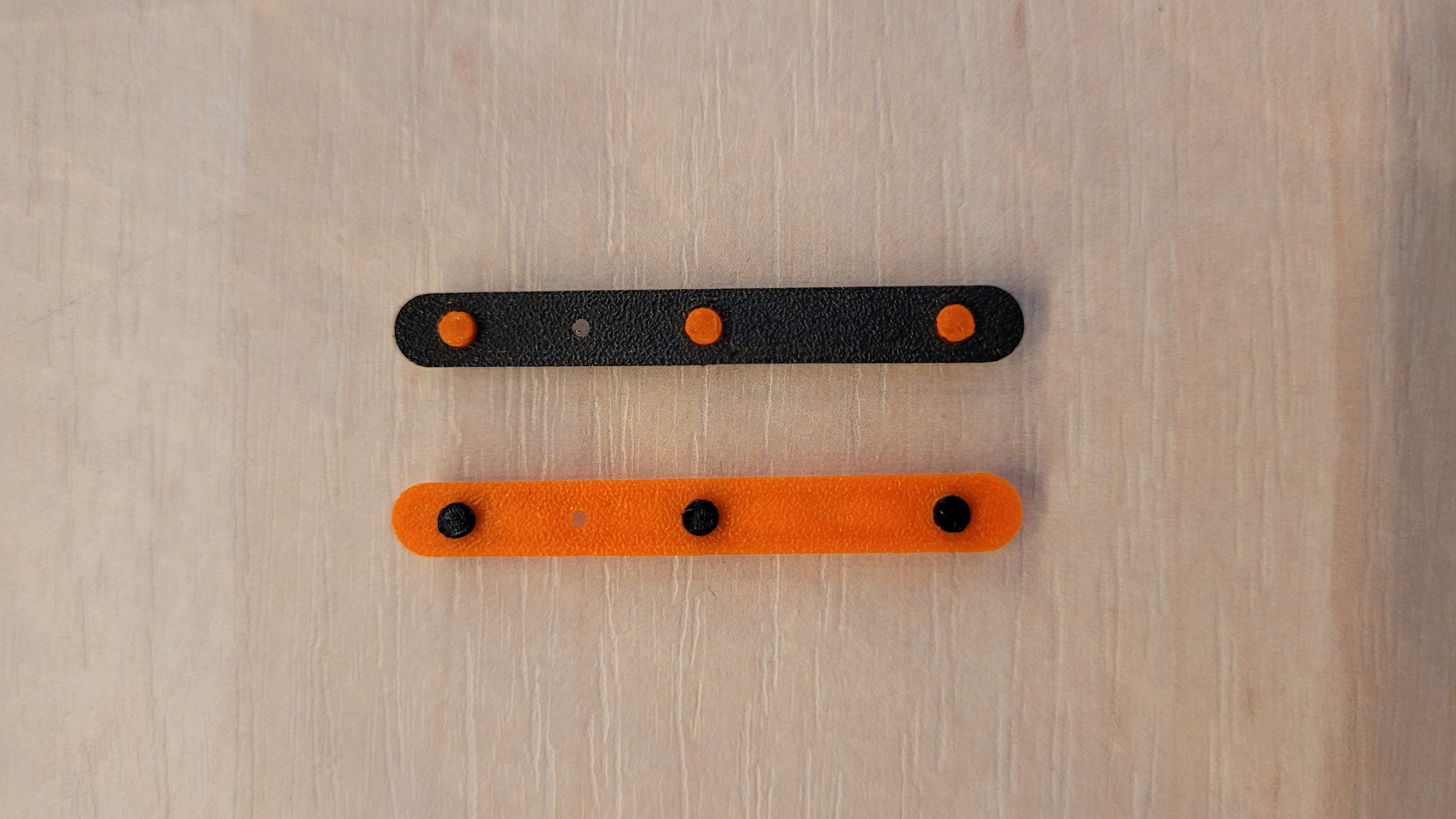

Modifications made to the original:
- Printed using a 0.25 mm nozzle for higher detail
- Buttons scaled to 92% on X and Y axes
- Buttons scaled to 88.37% on Z axis
Assembly Instructions:
- Carefully cut away the remaining part of the original rubber button plate using a precision (X-Acto-style) knife. Be cautious not to damage the LED.
- Apply masking tape around the button plate recess to protect the surrounding area.
- Apply a small amount of glue around the edges and near the button holes — avoid the LED area.
- Using small pliers, gently insert the 3D-printed buttons into the holes.

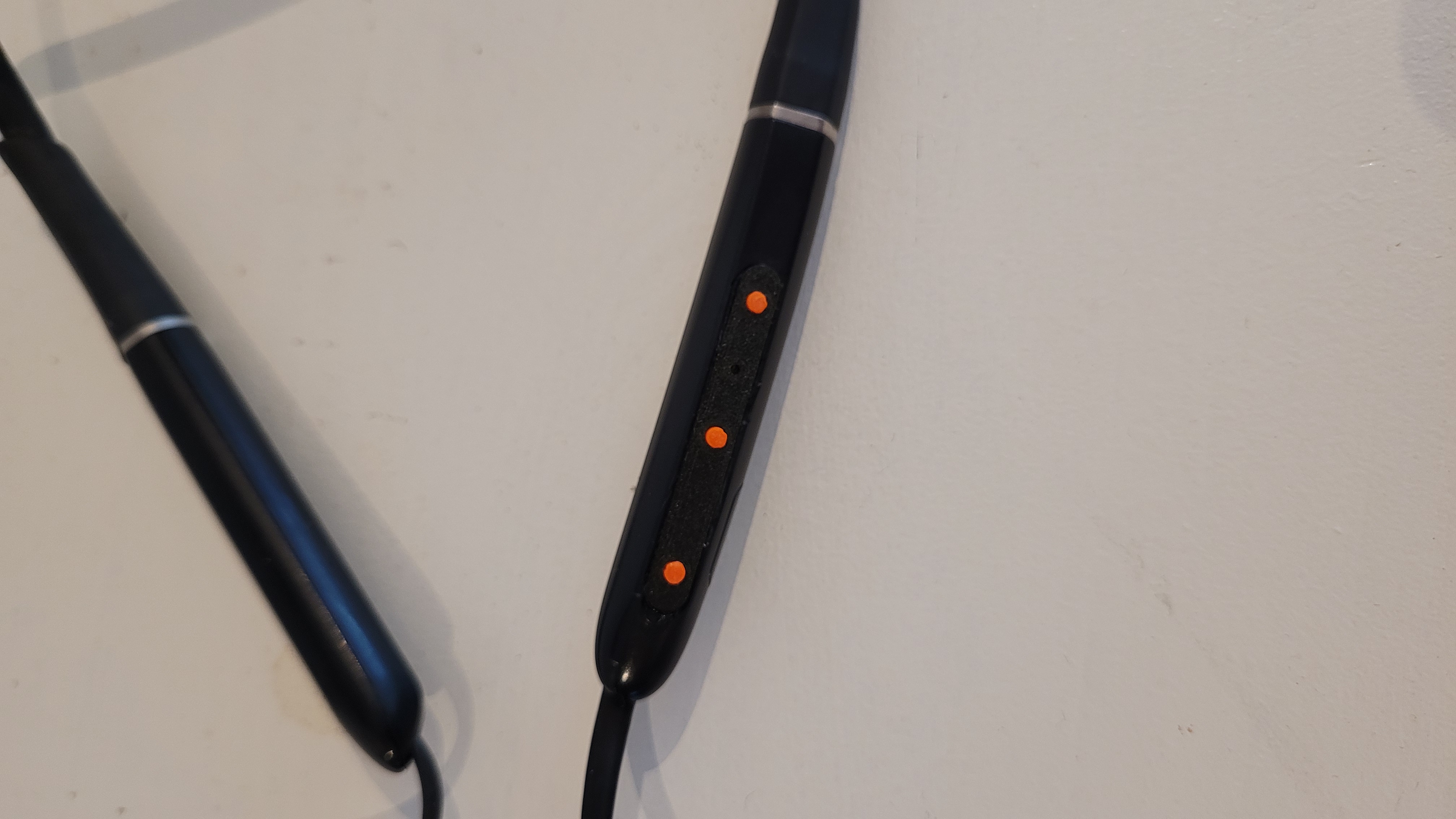

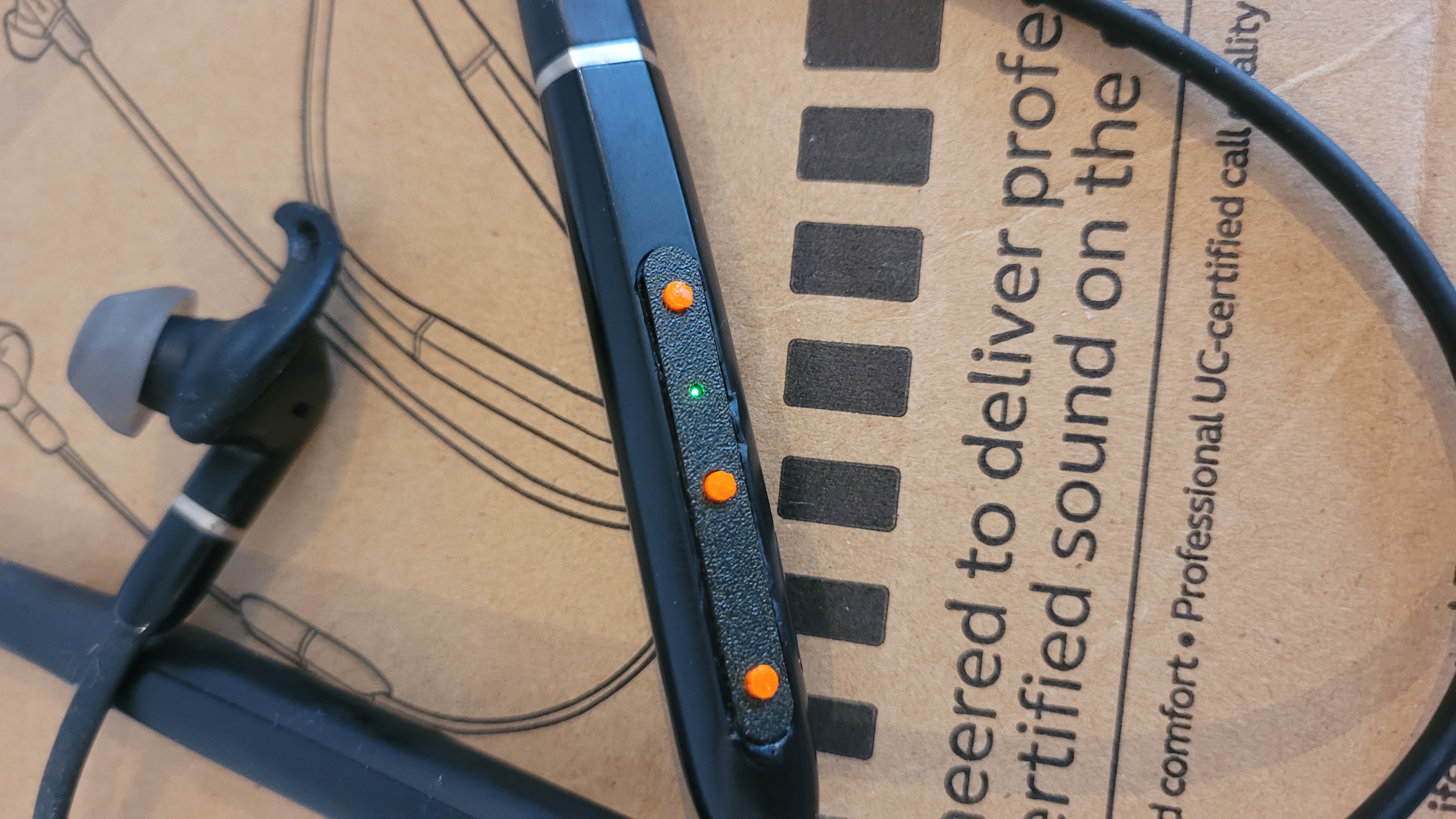

- Align and place the new button plate so the LED is visible through the small opening and the buttons come up cleanly through the three holes.
- Gently press down on the sides of the button plate with the pliers to ensure it adheres to the glued areas — take care not to press near the LED.
Filament used
Prusament PETG Jet Black and Prusa Orange
Print settings
Nozzle size 0.25
Layer height 0.12 Structural
Build plate
Textured Steel Sheet
