BosonBerry Studios made a belt holder, but it couldn't stack.
MilanT remixed it to make it stackable, but it was limited to smaller belts and more narrow belt buckles. Plus the model needed supports when printing.

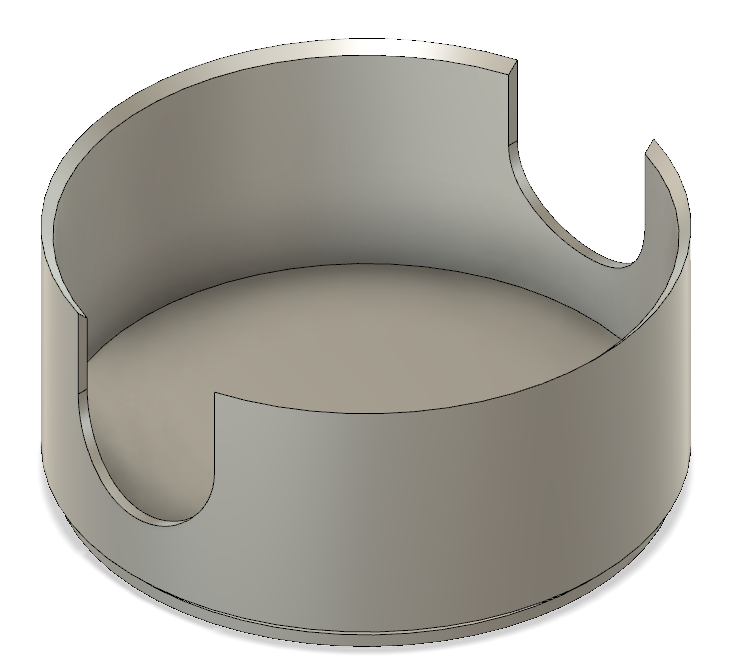

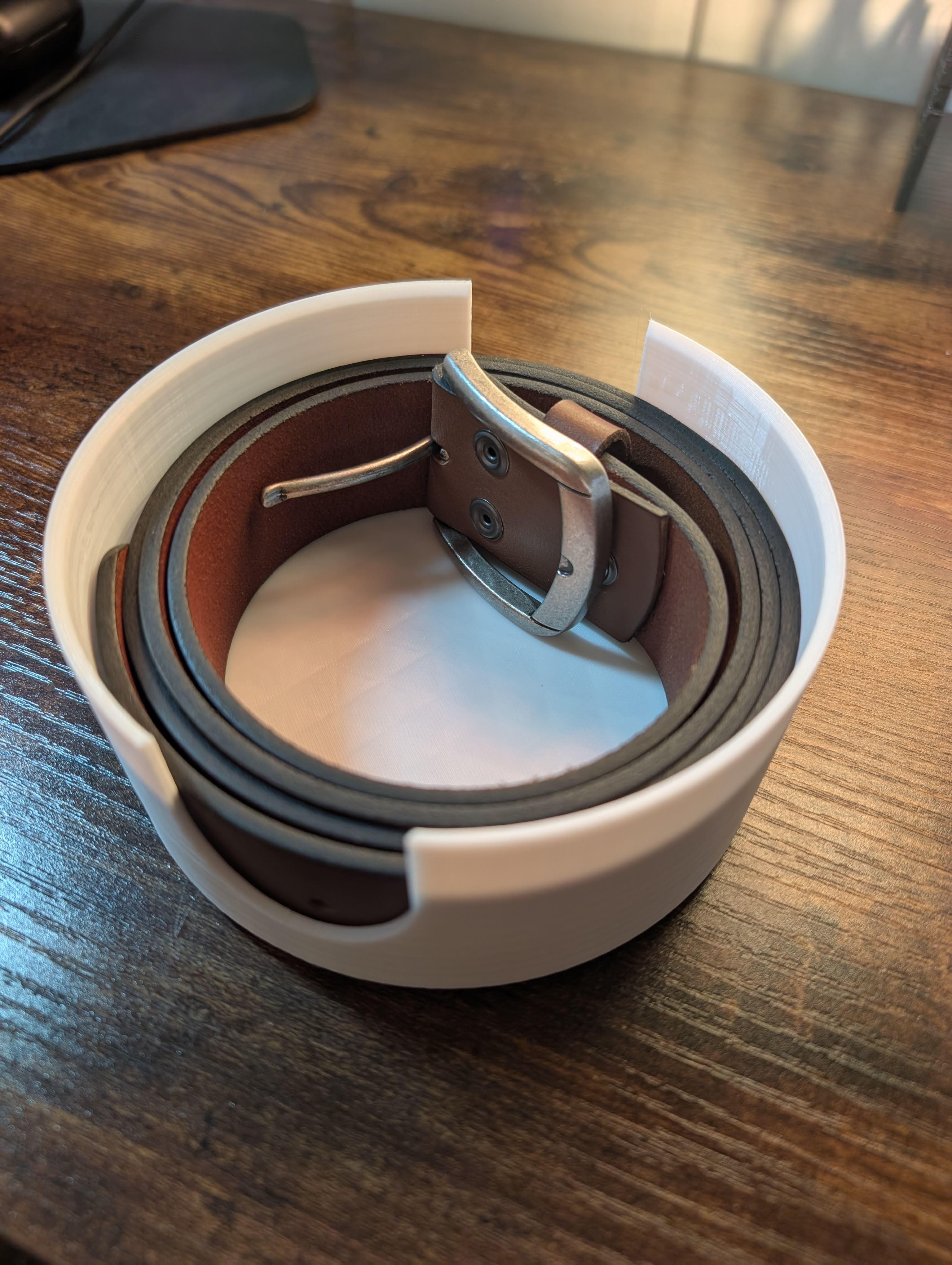

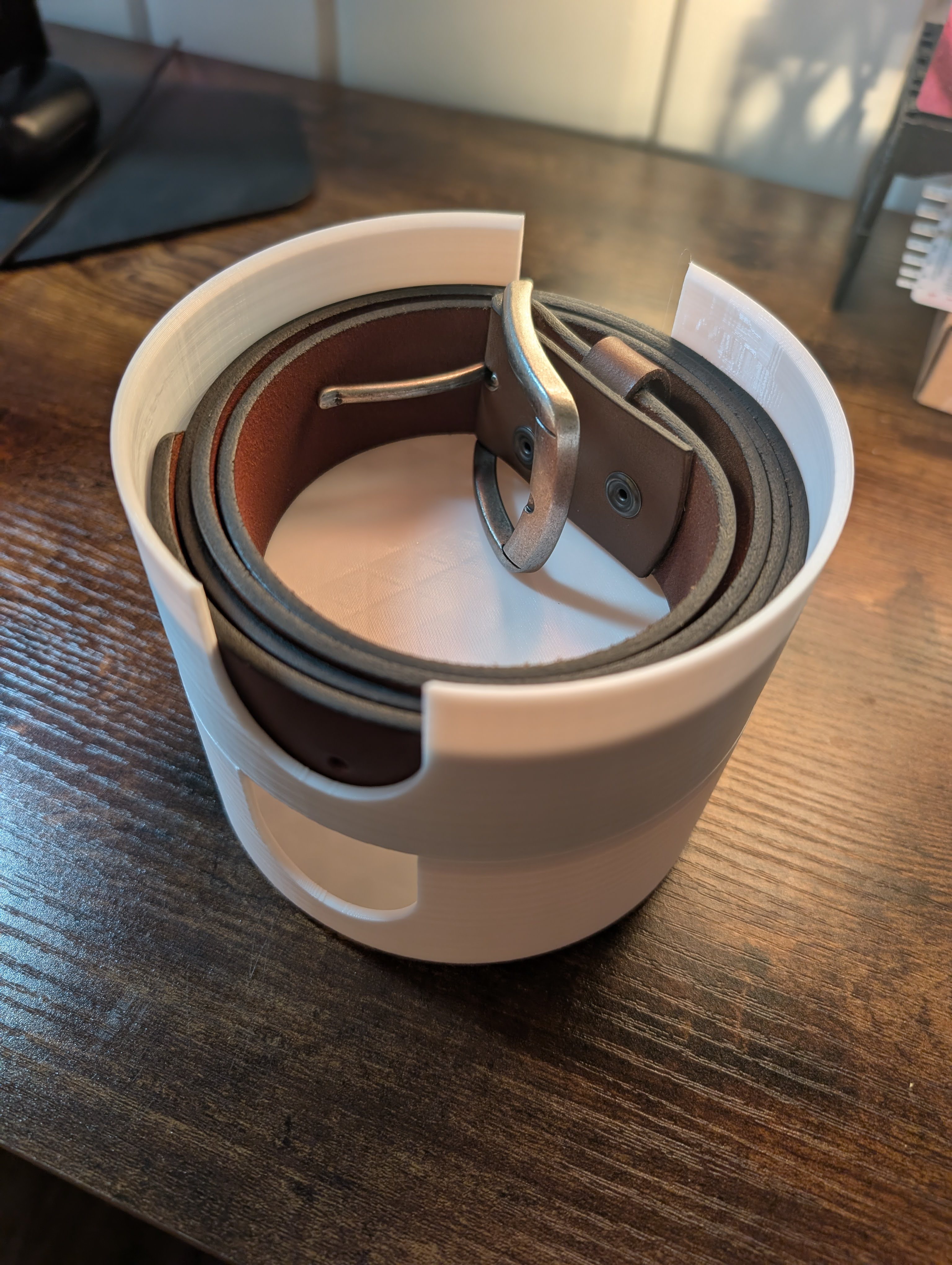

Stackable Belt Holder v2 is parametric to fit your belt storage needs. Got a big belt ‘cause you’re a big person? Print the holder wider to accomodate more belt leather. Need a taller belt holder ‘cause you’ve got a taller belt buckle? Print the holder taller to fit your belt's hardware. Either way, print without needing supports!

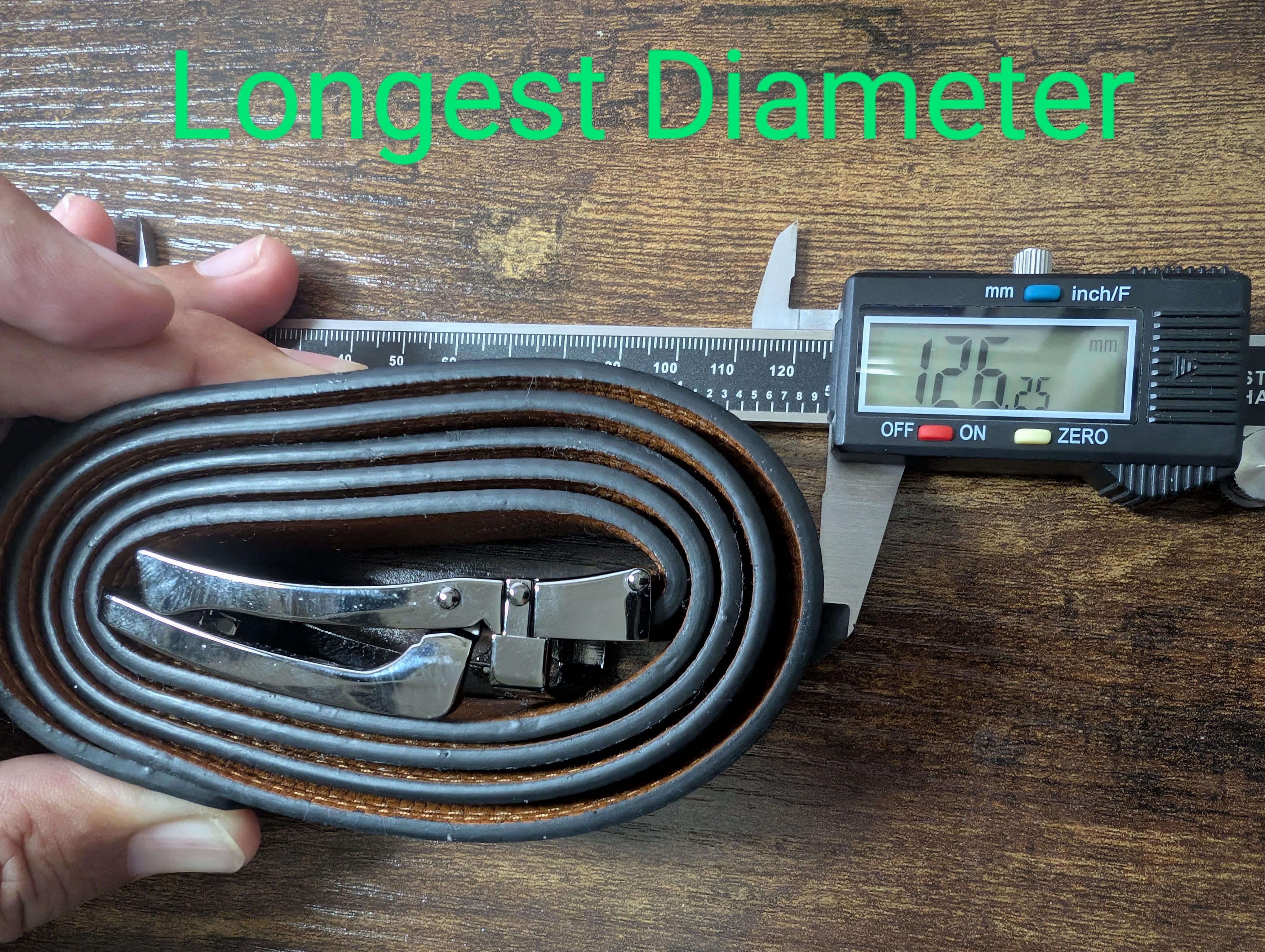

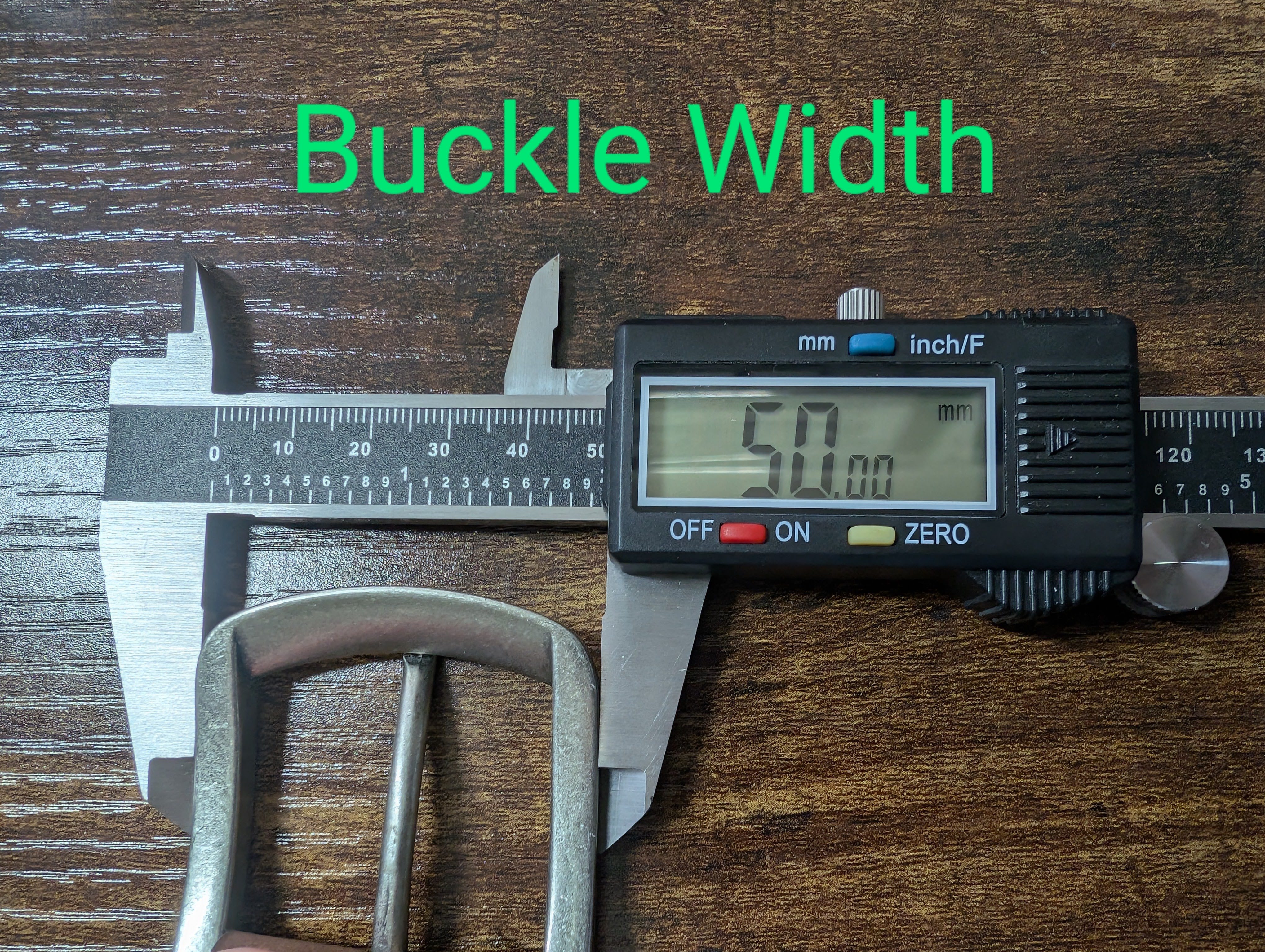

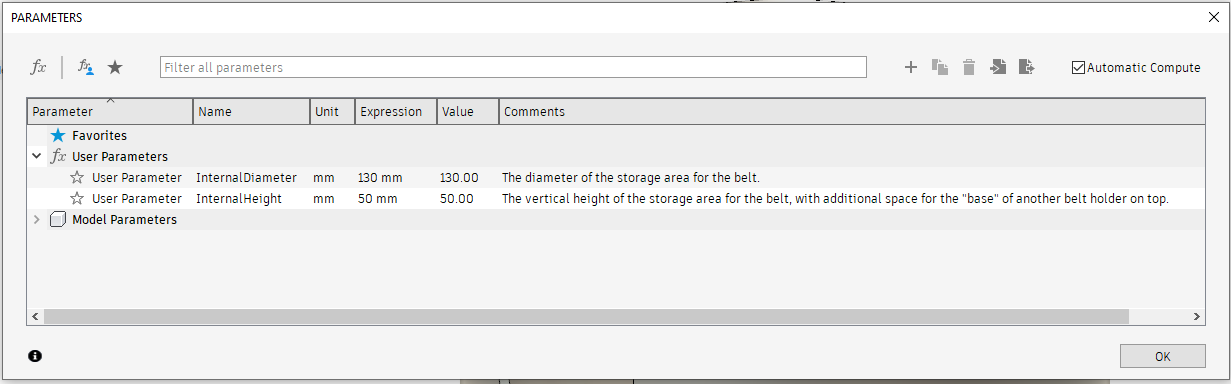

Open up the included Fusion 360 file. Take your longest belt and coil it up as tightly as possible, measure the longest diameter, and use that for the “InternalDiameter” parameter. Take your tallest belt buckle, measure the height, and use that for the “InternalHeight” parameter. This is the largest size you need to accomodate any and all of your belts. Print as many as you need and then stack 'em neatly to keep your drawers or shelves organized!
Thank you to BosonBerry Studios and MilanT for this iterative journey.
Click here to check out all of my other uploads. Happy printing!
