RFID-Rc522 holder

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Kategoria
Electronics
Licencja
GNU General Public License v2.0

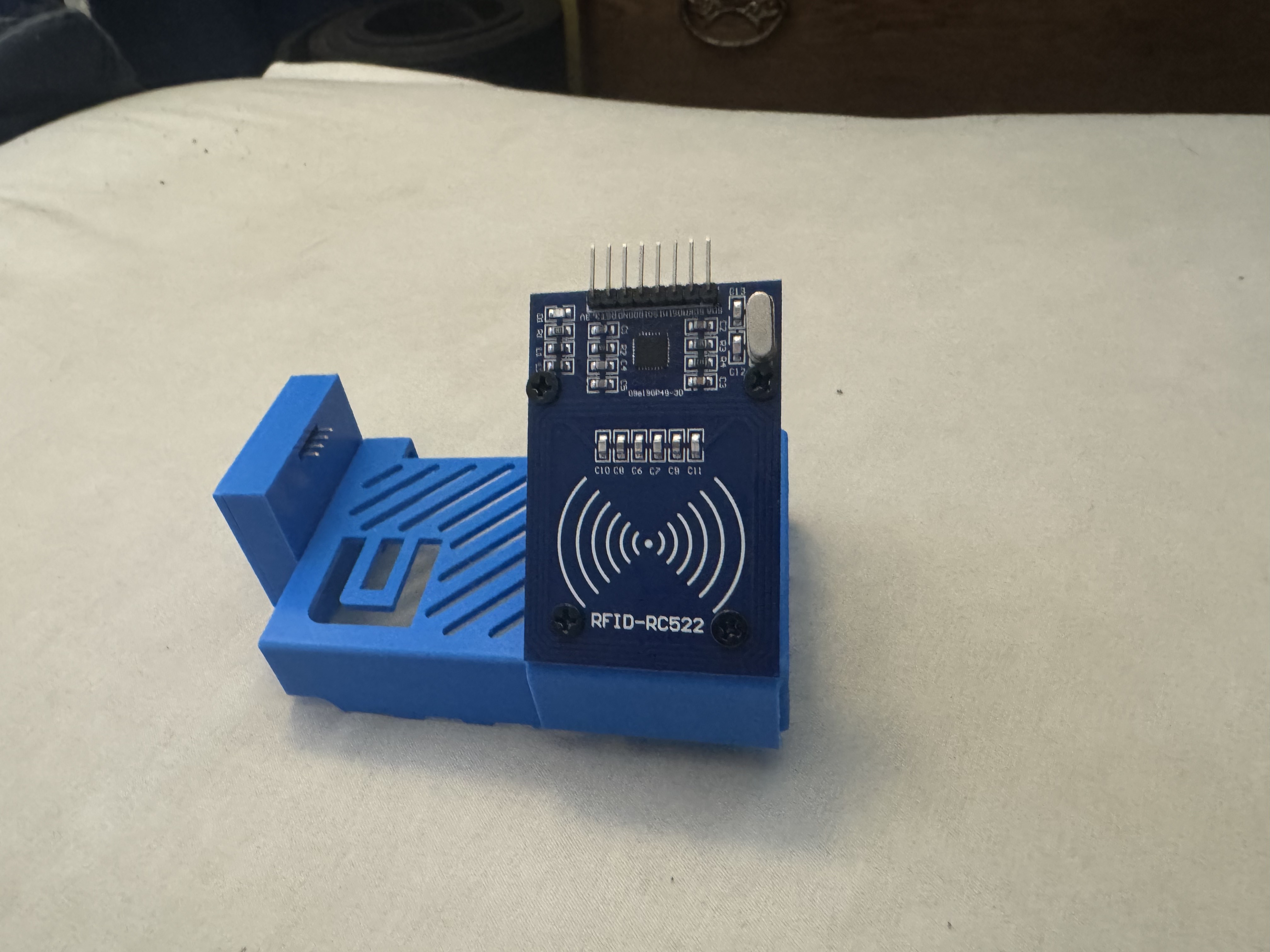

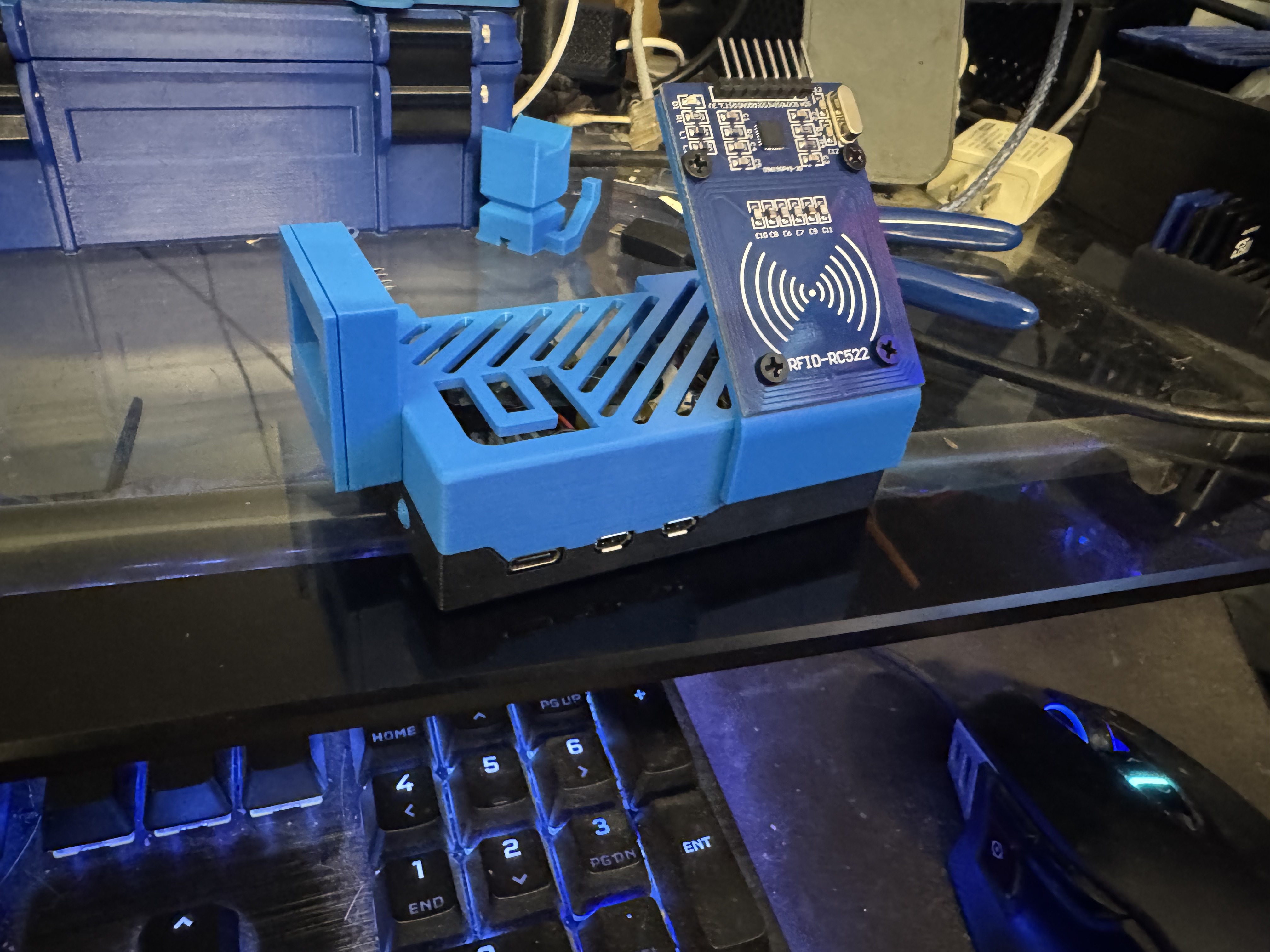

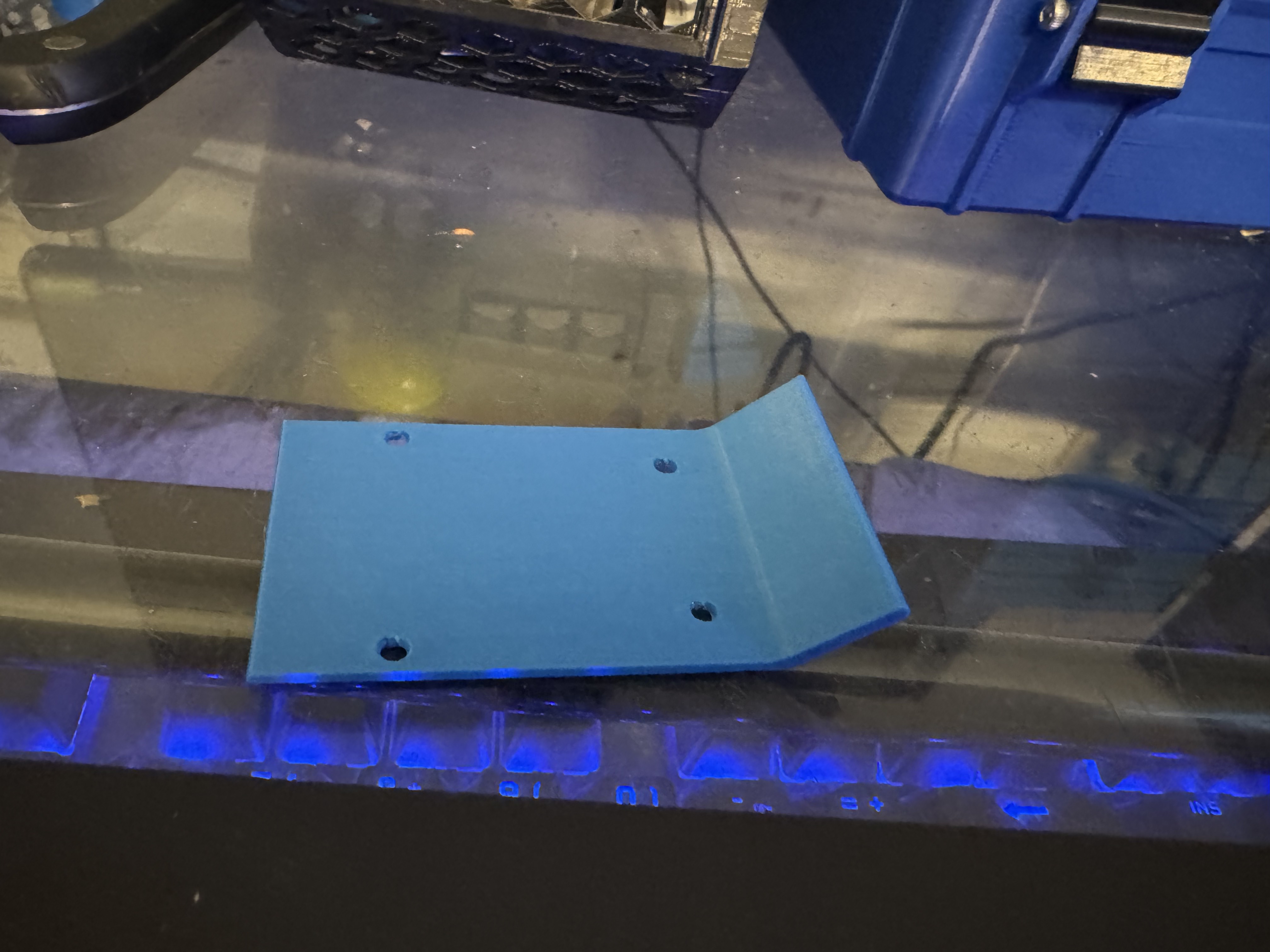

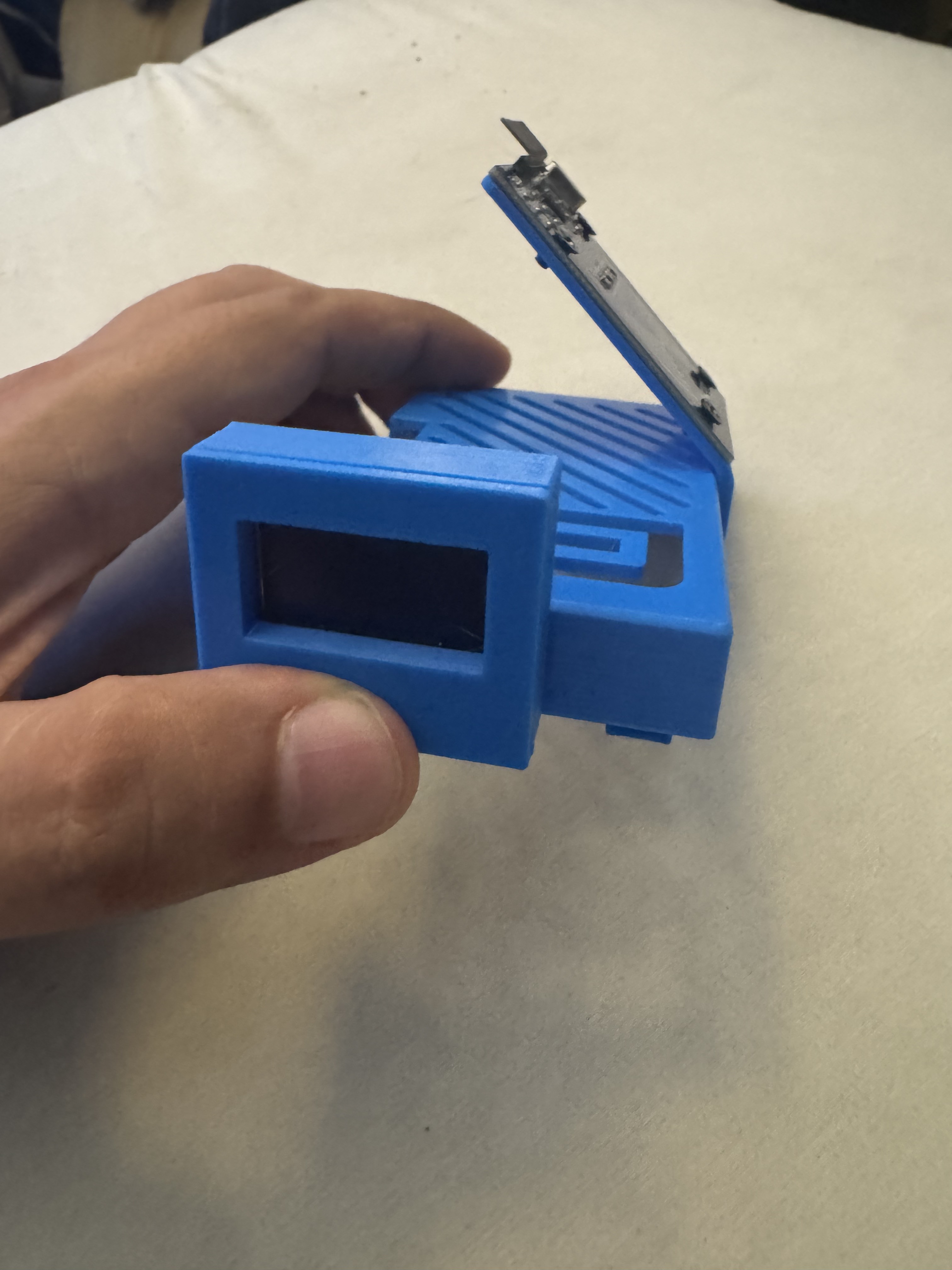

i printed out this raspberry pi case here. https://www.printables.com/model/605060-raspberry-pi-5-case-wpower-button-v2 but with my initial raspberry pi project id like a screen and rfid reader. I found a case for the oled screen no problem but nothing for the rfid reader. So I managed to learn Onshape enough to design my own holder that i can glue onto my case. Had it at an angle to not hinder ventilation of the pi very much and to provide a good angle to use the reader and have the pins point in the general direction of the gpio pins for cleaner cable management. This would be my 3rd thing i've ever designed myself.
