CoreOne-DoorHandle

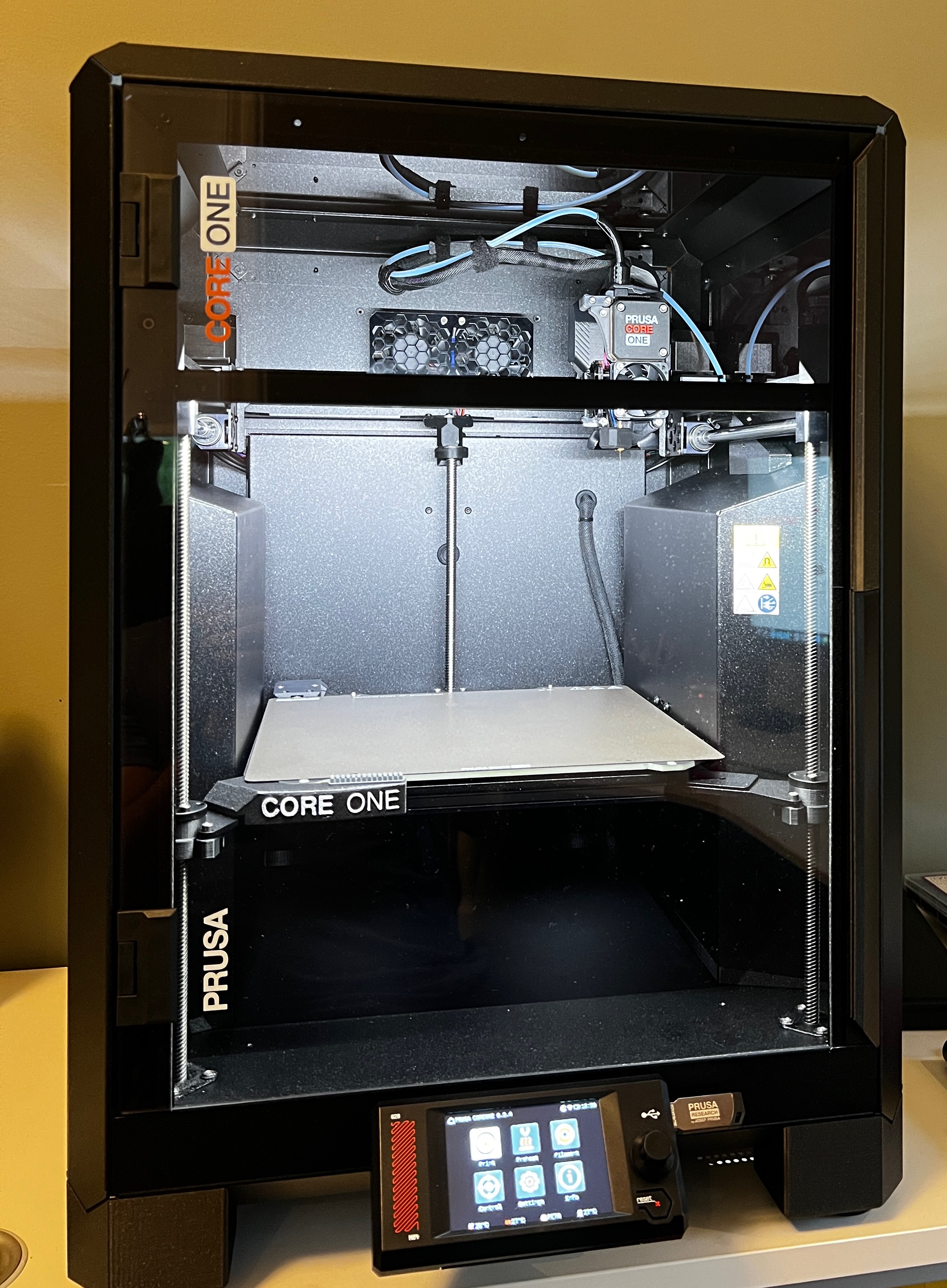

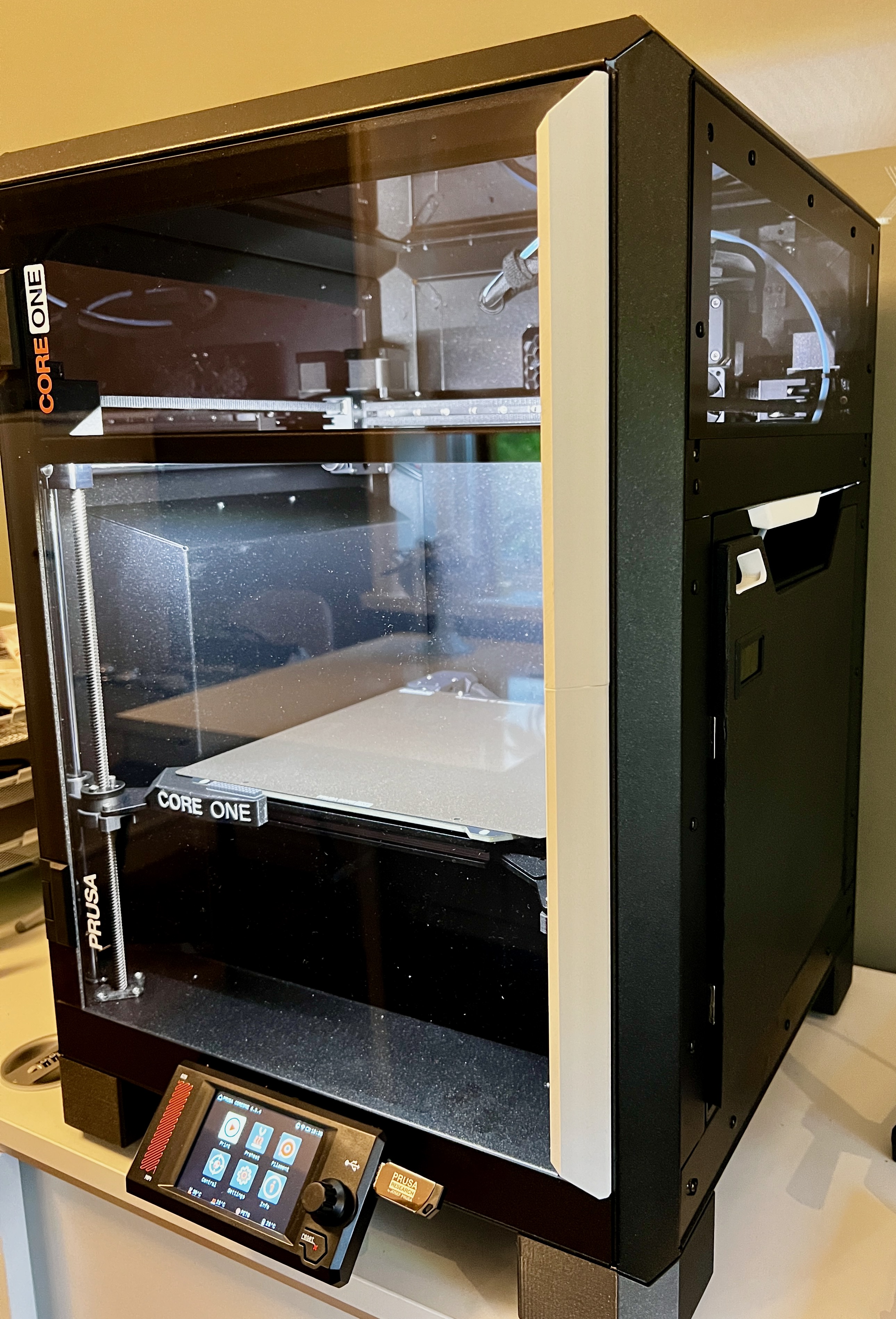

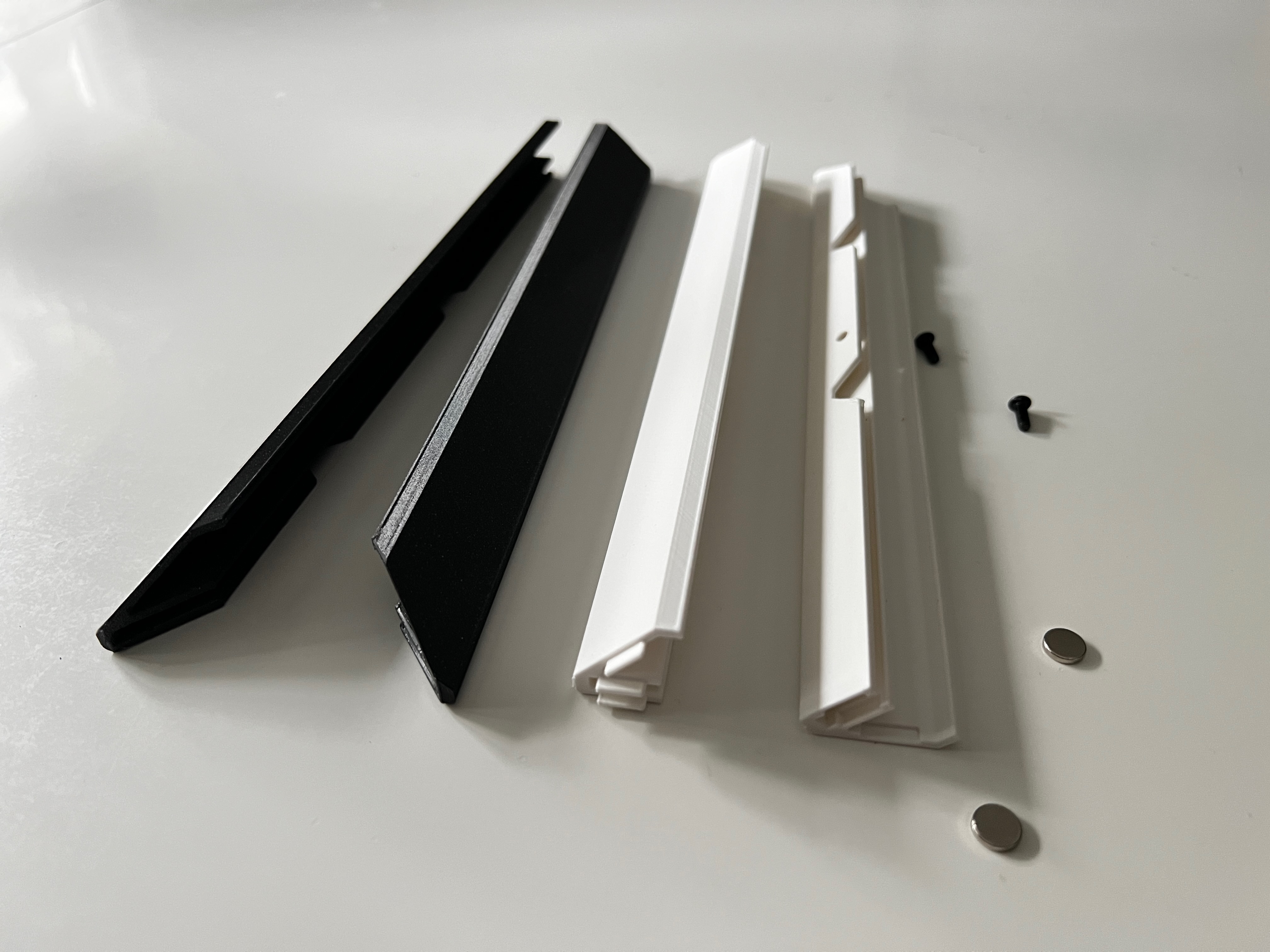

I wanted to make a door handle for the Prusa Core One that looks similar to the original one in steel. Hence I designed this two piece handle that you can just screw in existing holes using two M3x8mm screws. I also added slots for four 8x1,6m round magnets.

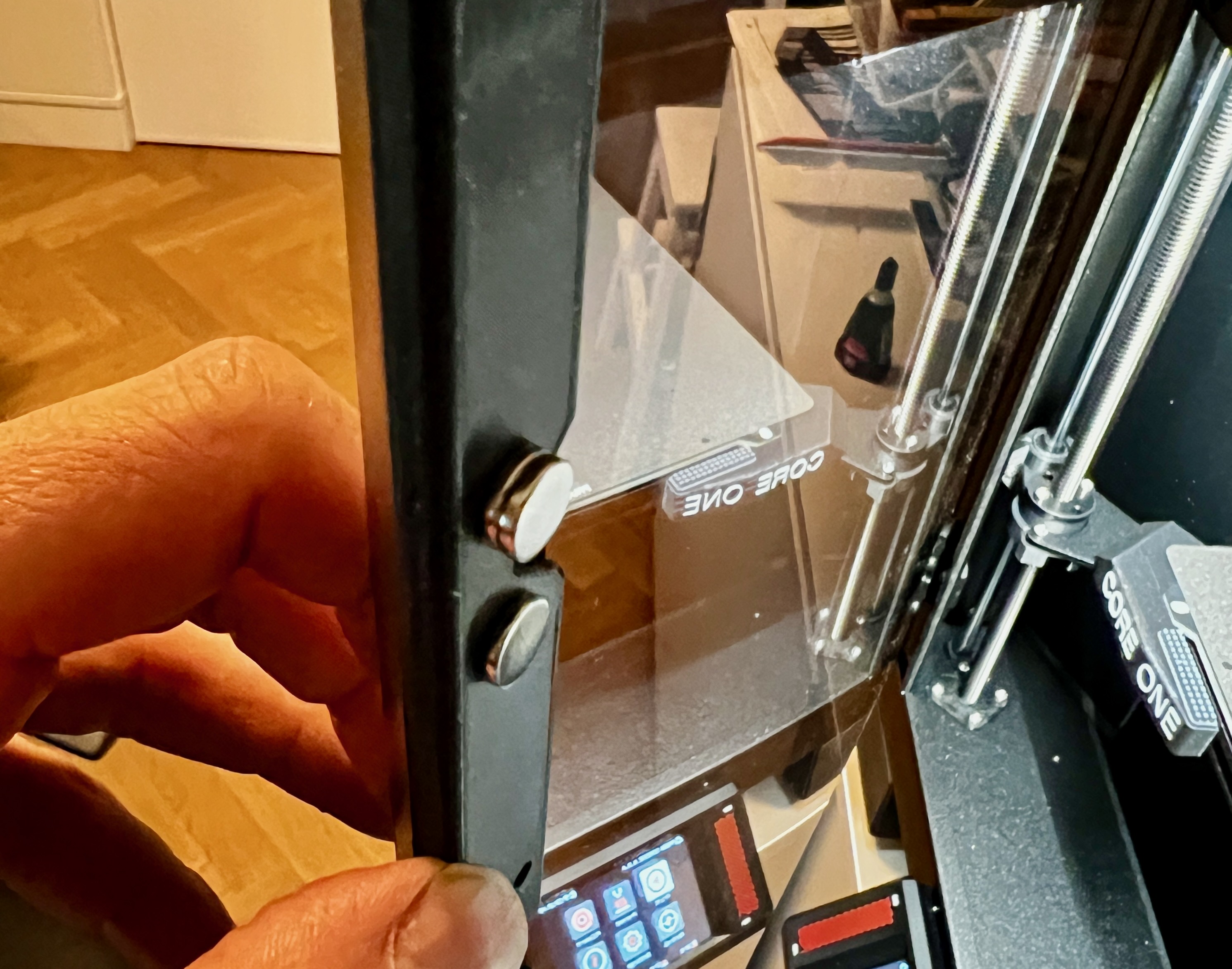

For easier assembly just keep some magnets on the outside as well like in one of the pictures so that the magnets in the slots stay in place when you slide in the door handle over the plexiglass.

I have uploaded FreeCAD and STEP files as well so that you can remake if you want to create your own design for your printer.

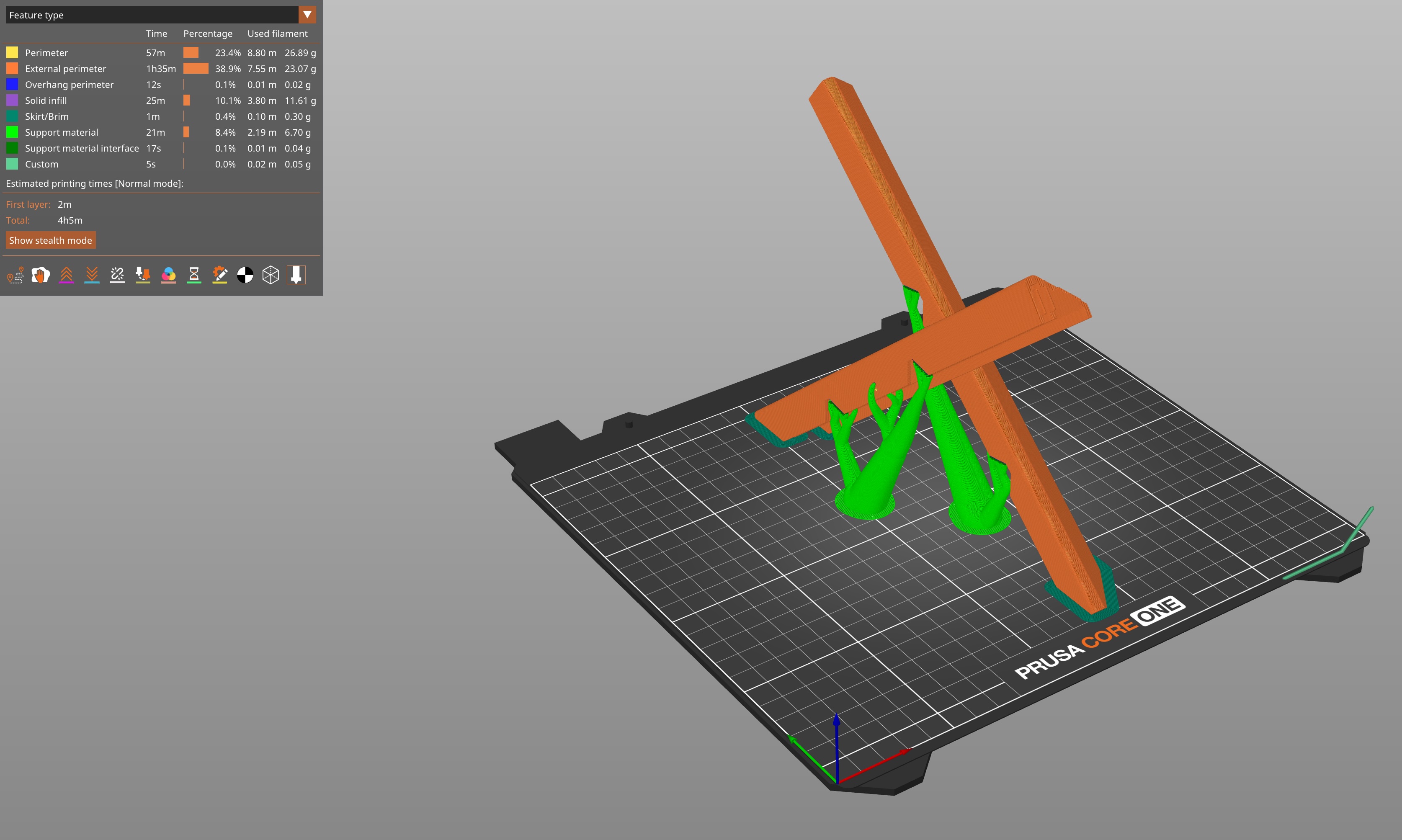

Recommend to print on the angled ends with three support, will give you a nice angled texture that switch to opposite angle on the other piece. I noticed the face quality was a bit different on the two parts so perhaps try to angle and rotate them so that they tilt in the same direction. Or it is just bad tuning of the belts in my machine.

Filament usage: ~68g

3 walls

no infill

brim 5mm
