Moccamaster Switch Snap-Fit Replacement

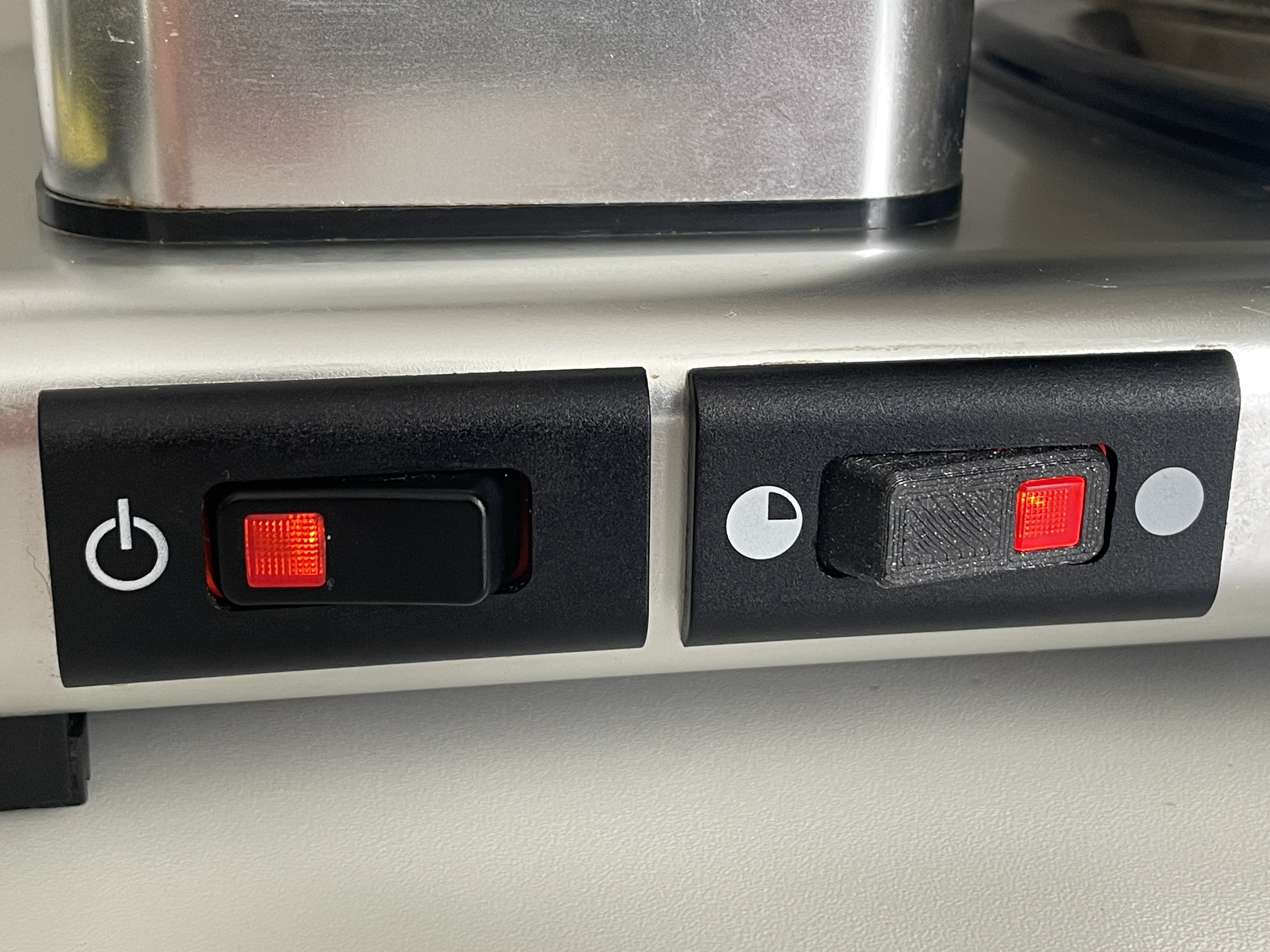

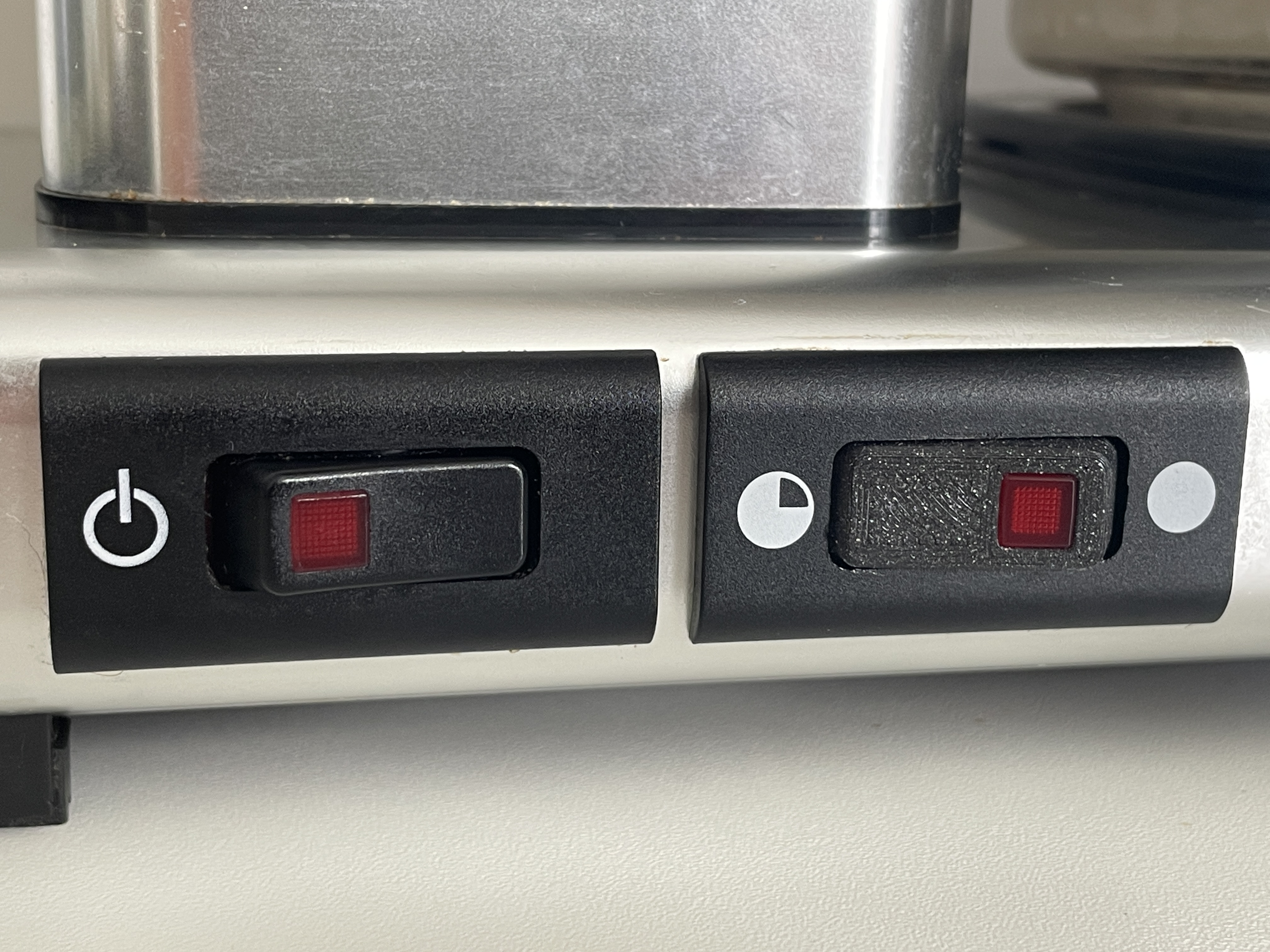

This is a replacement switch cap for the Moccamaster coffee maker. It’s modeled to match the original part and tested for a snug snap-fit—once installed, it stays securely in place and functions just like the original.
Features:
Designed to snap-fit directly onto the switch shaft
Tested on a Moccamaster Switch model
Printed at 0.1 mm layer height to ensure the fine tolerances needed for the snap-fit (may work with other layer heights)
No supports required
Printing Info:
Printer: Prusa Core One
Layer height: 0.1 mm
Material: PLA or similar rigid filament
Supports: Not needed
Infill: 100%
Notes:
This part was modeled based on the original switch for a precise fit. Installation may require firm pressure—once snapped in, it's difficult to remove.
Tested only on a Prusa Core One using Prusament PLA at 0.1 mm layer height.
