K1C Fillament Buffer Mounting Plate

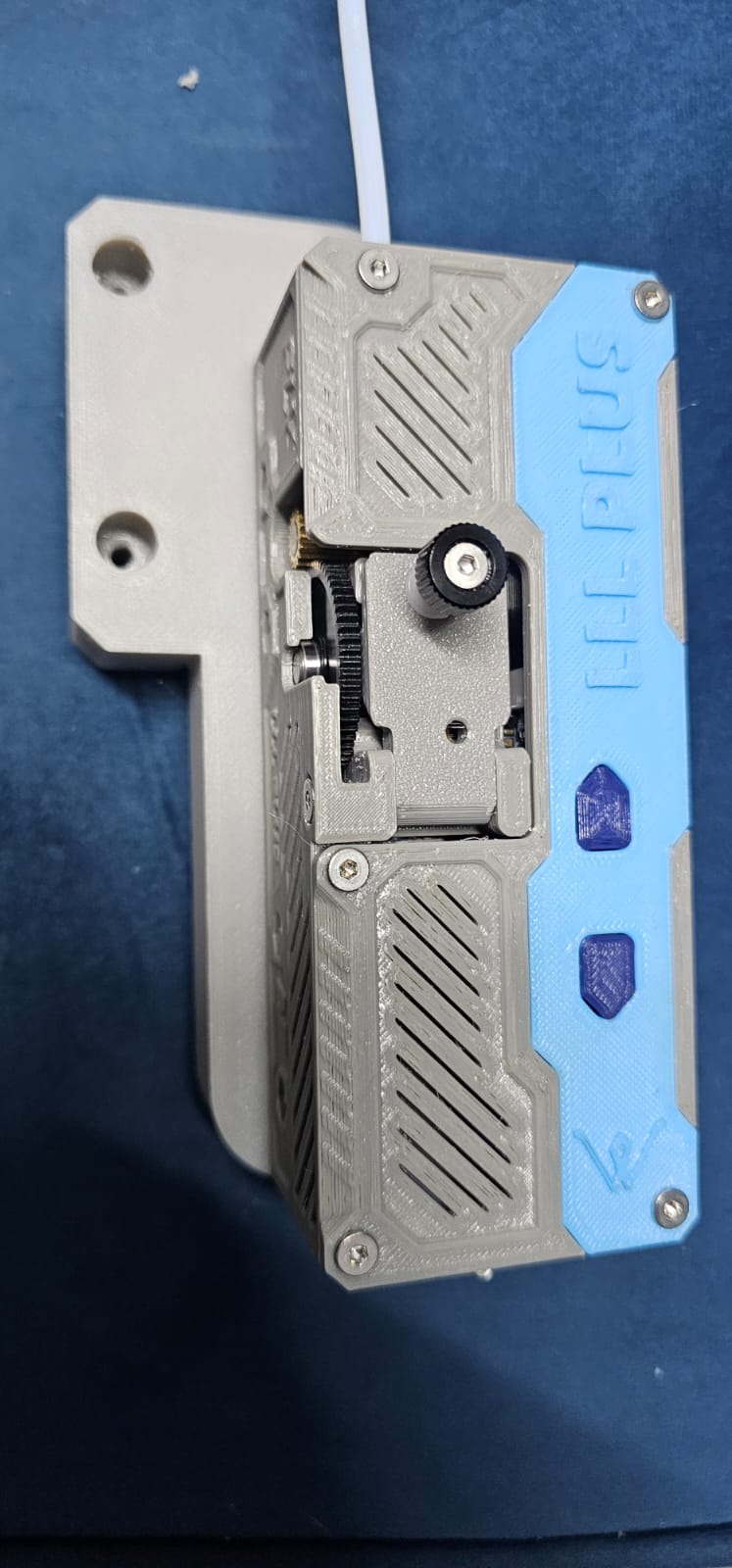

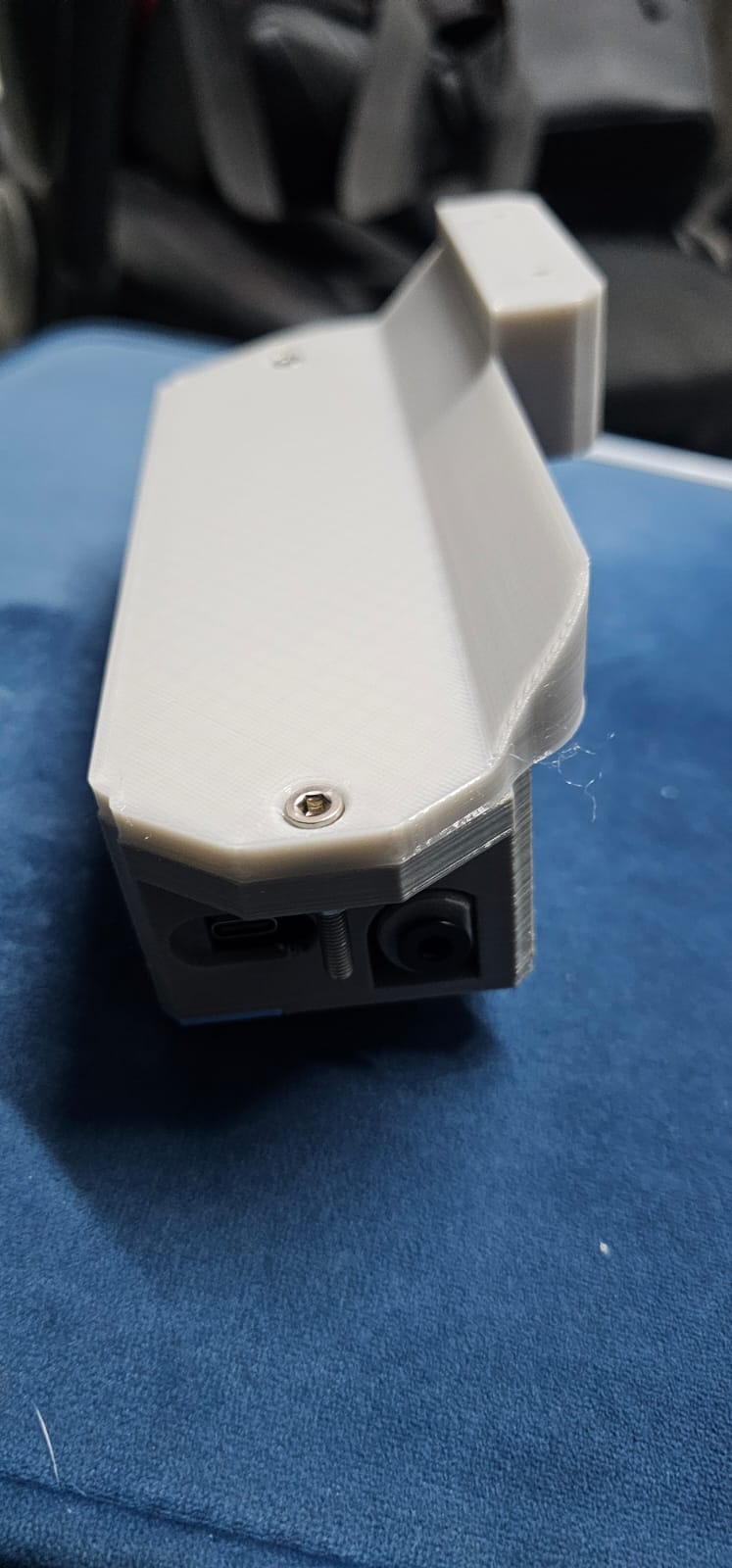

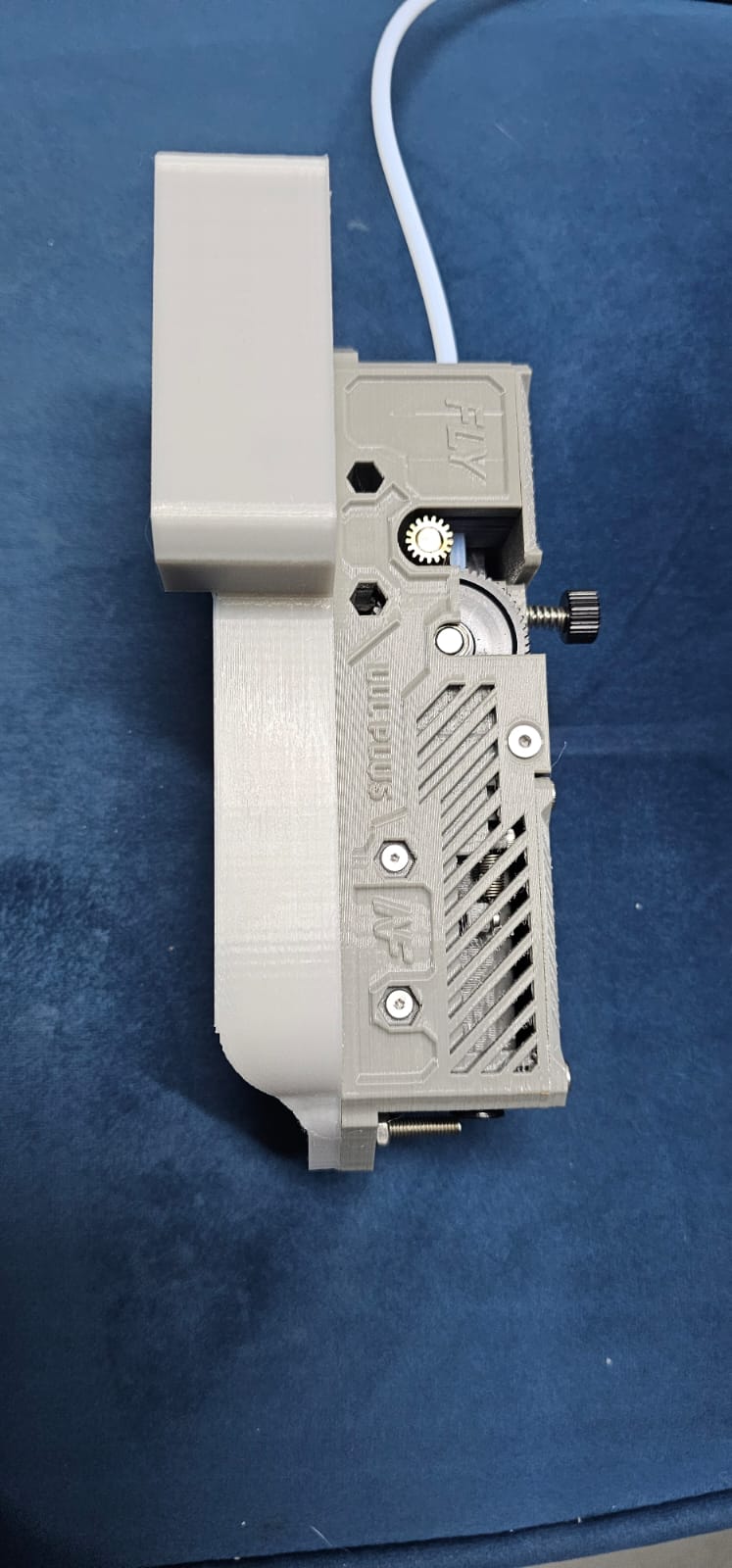

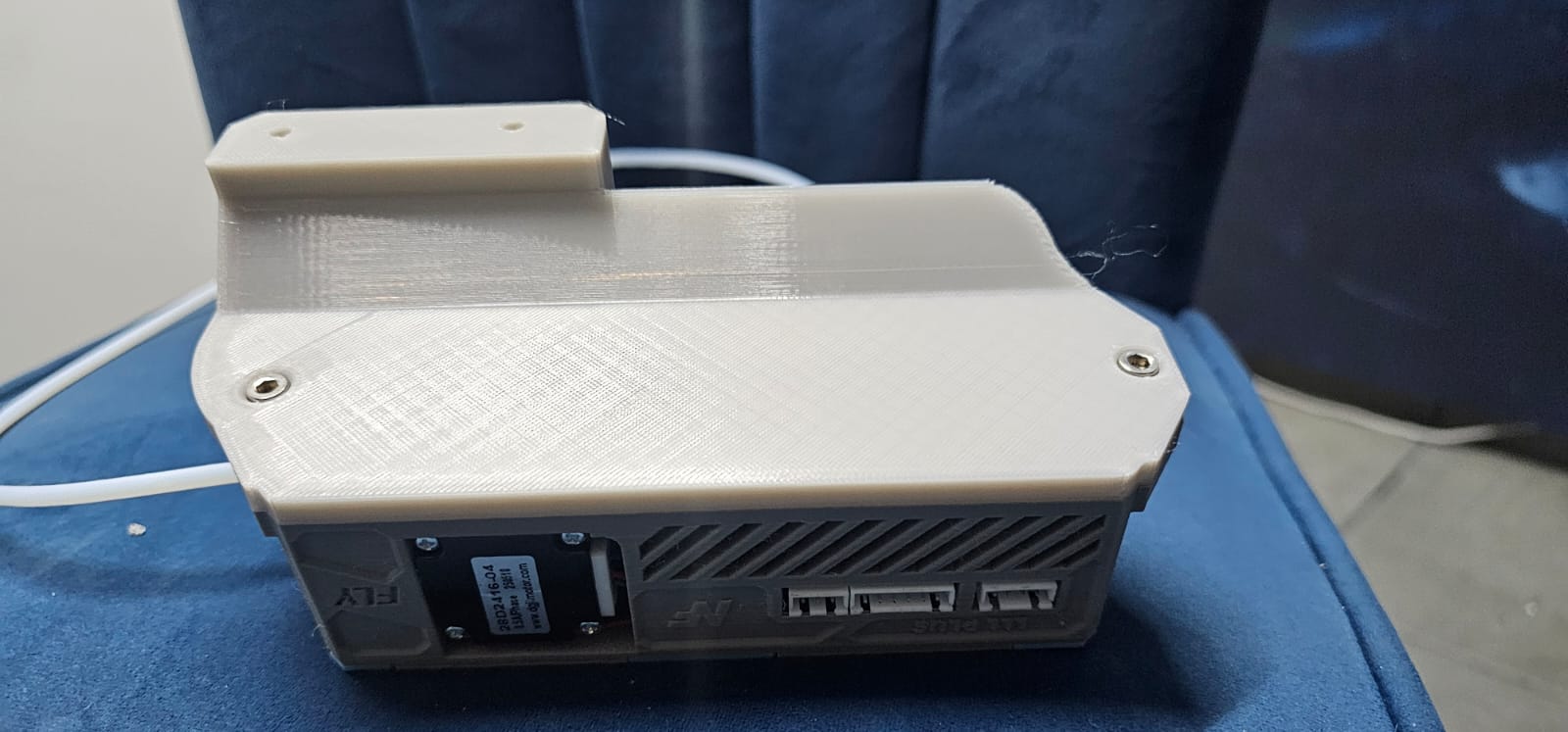

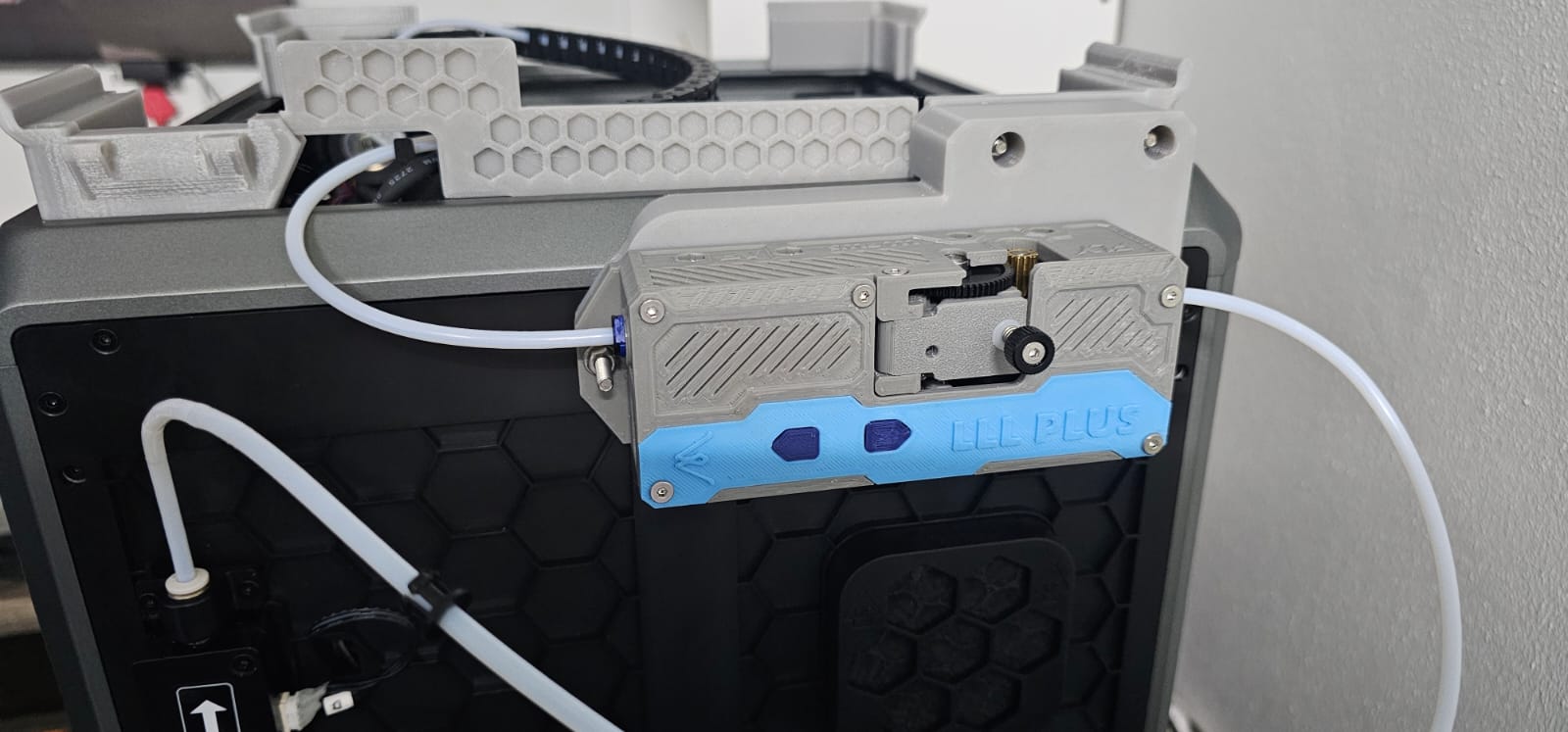

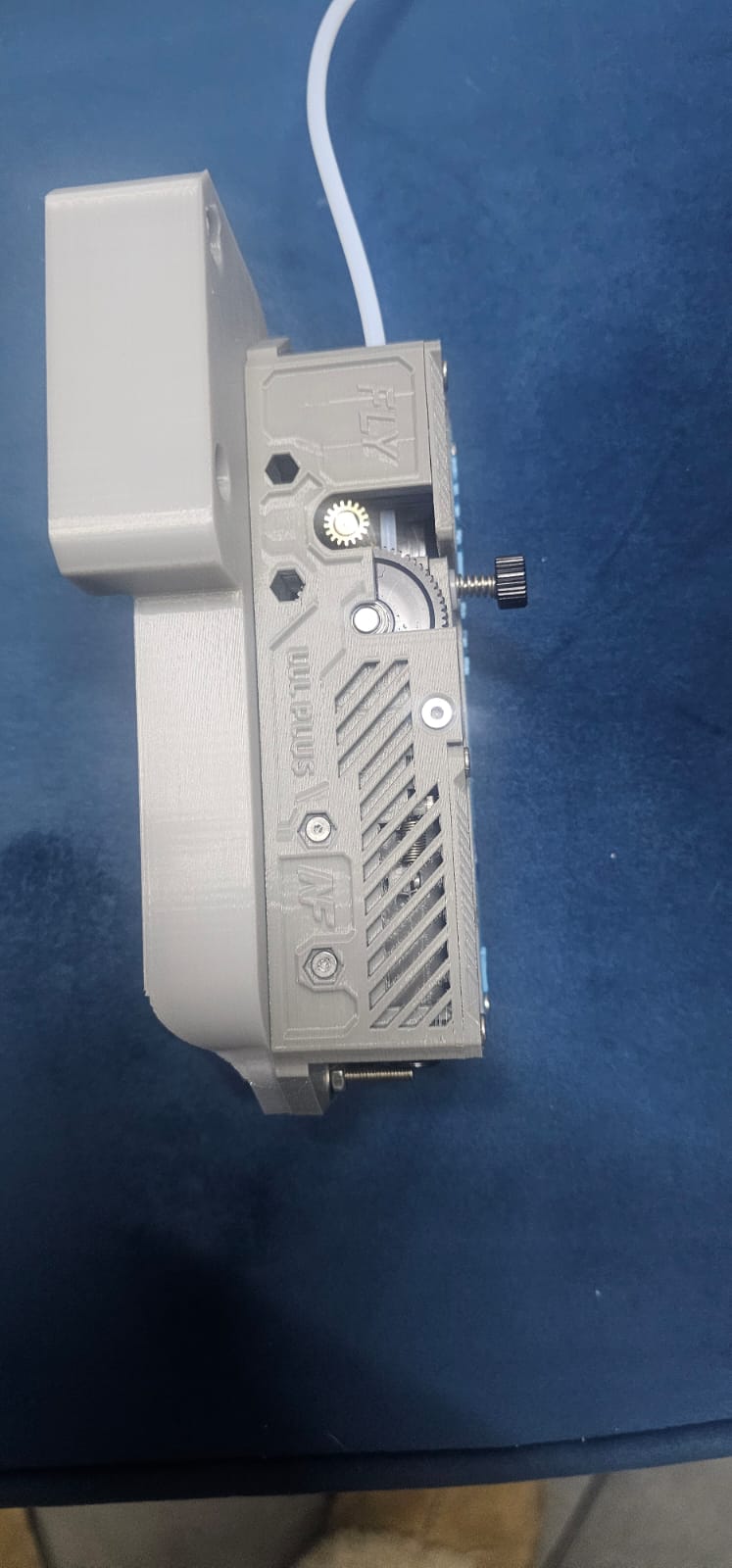

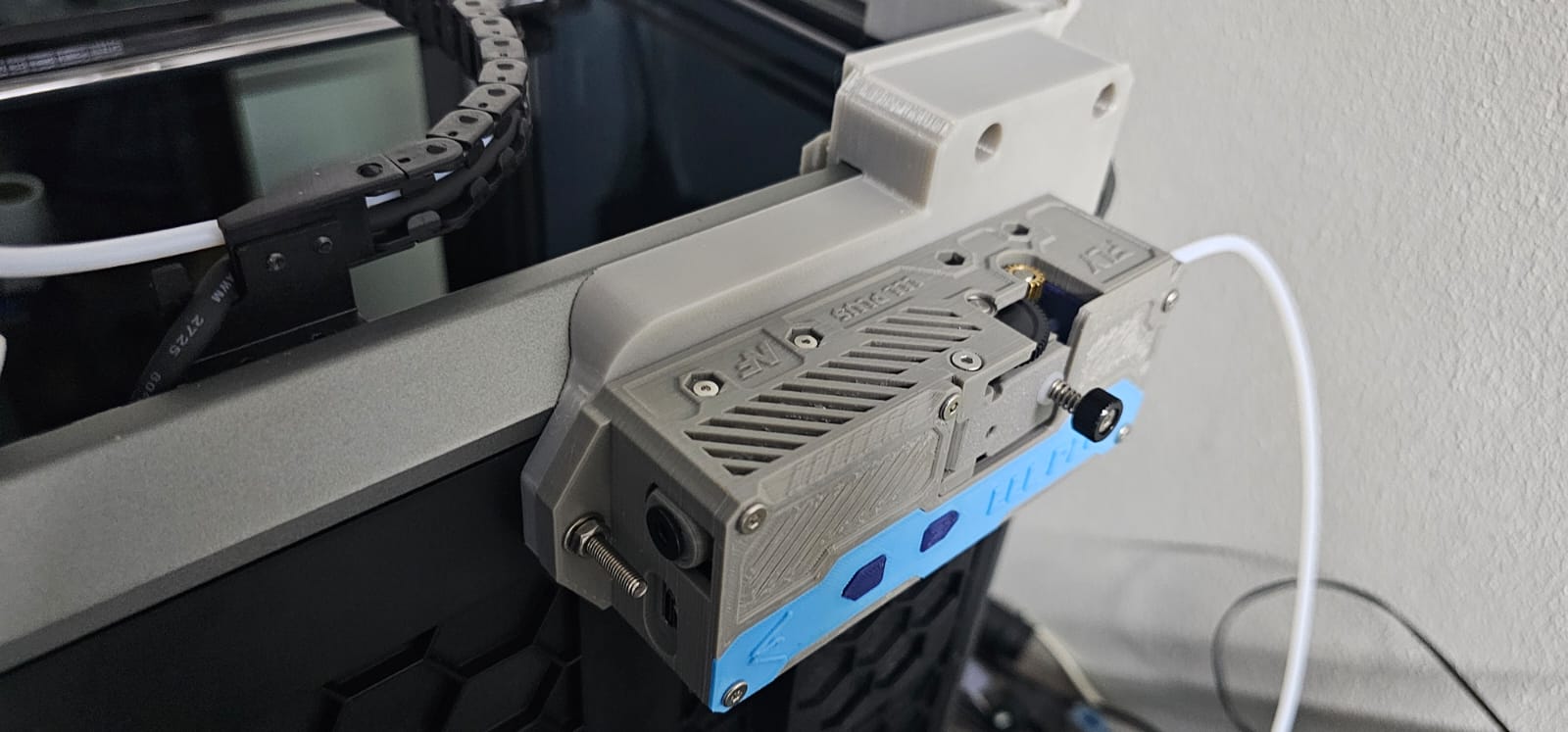

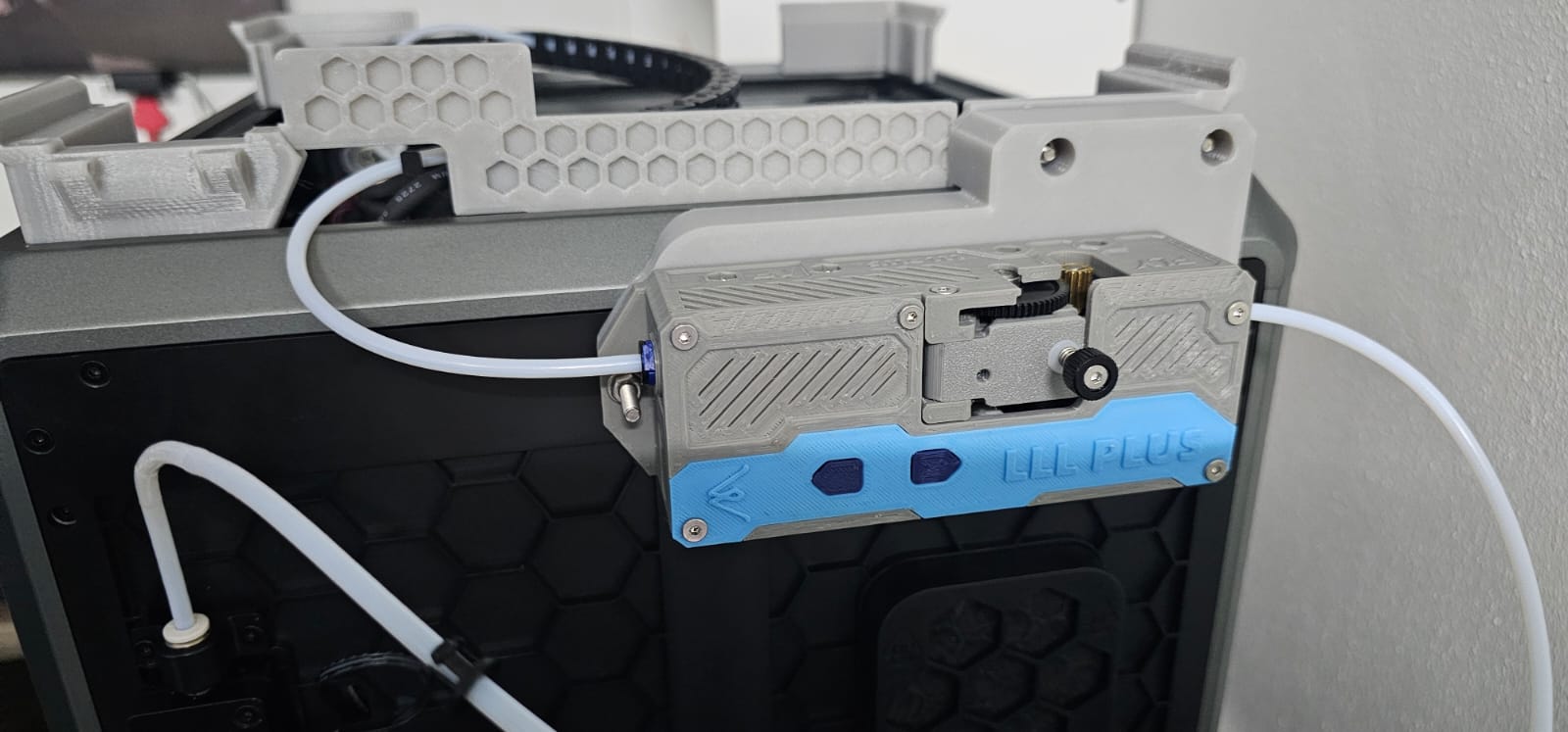

I bought the Mellow Fillament buffer from aliexpress but could not find a bracket to mount it on the k1c . So i design a bracket to hold the Mellow Fly LLL Plus filament buffer https://www.aliexpress.com/item/1005008820016221.html?spm=a2g0o.order_list.order_list_main.5.7b171802kBPhyU

You also need to print the lid riser 2 front brackets and right rear bracket  with the sides and front inserts .

https://www.printables.com/model/928599-creality-k1k1c-hinged-lid-riser-using-stock-hardwa

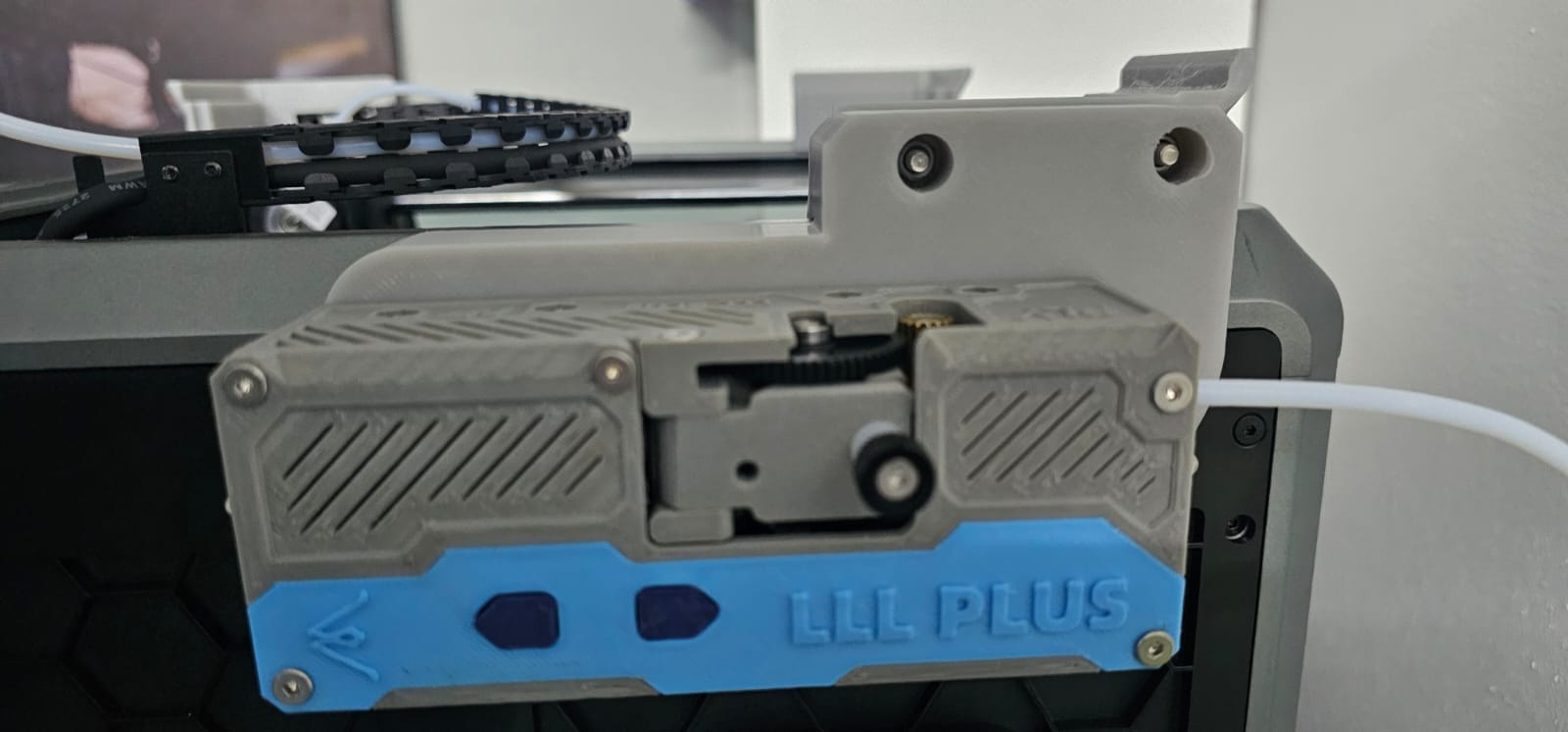

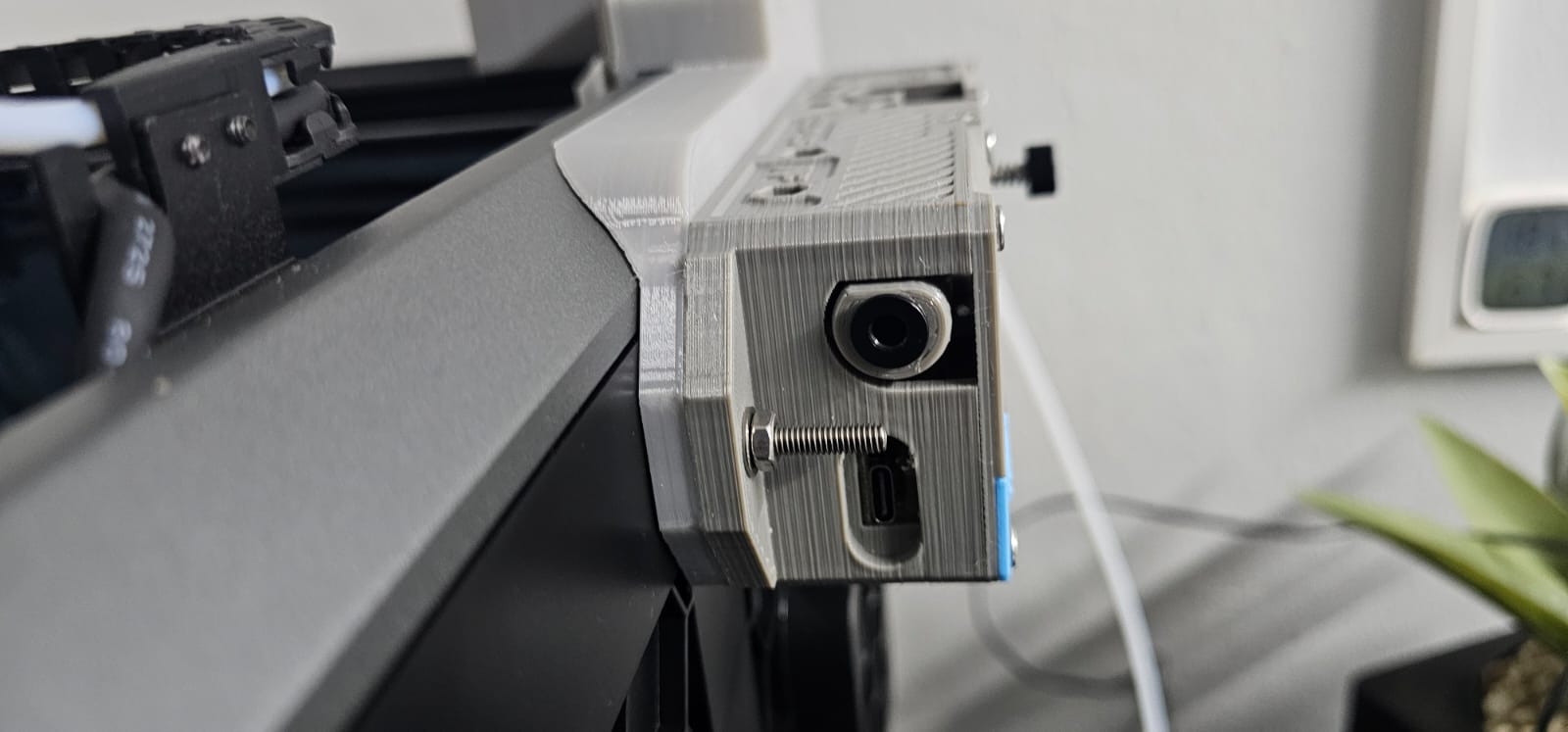

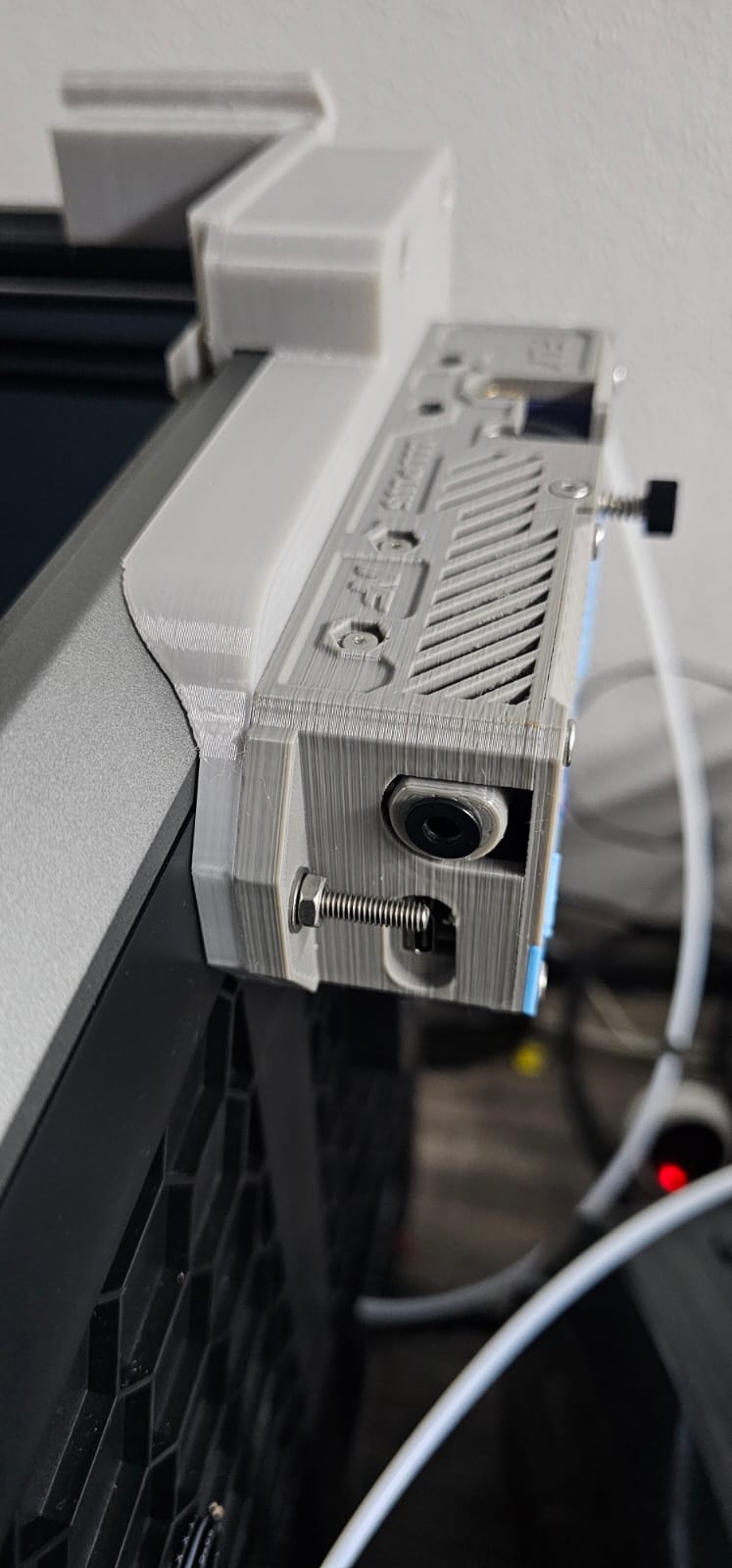

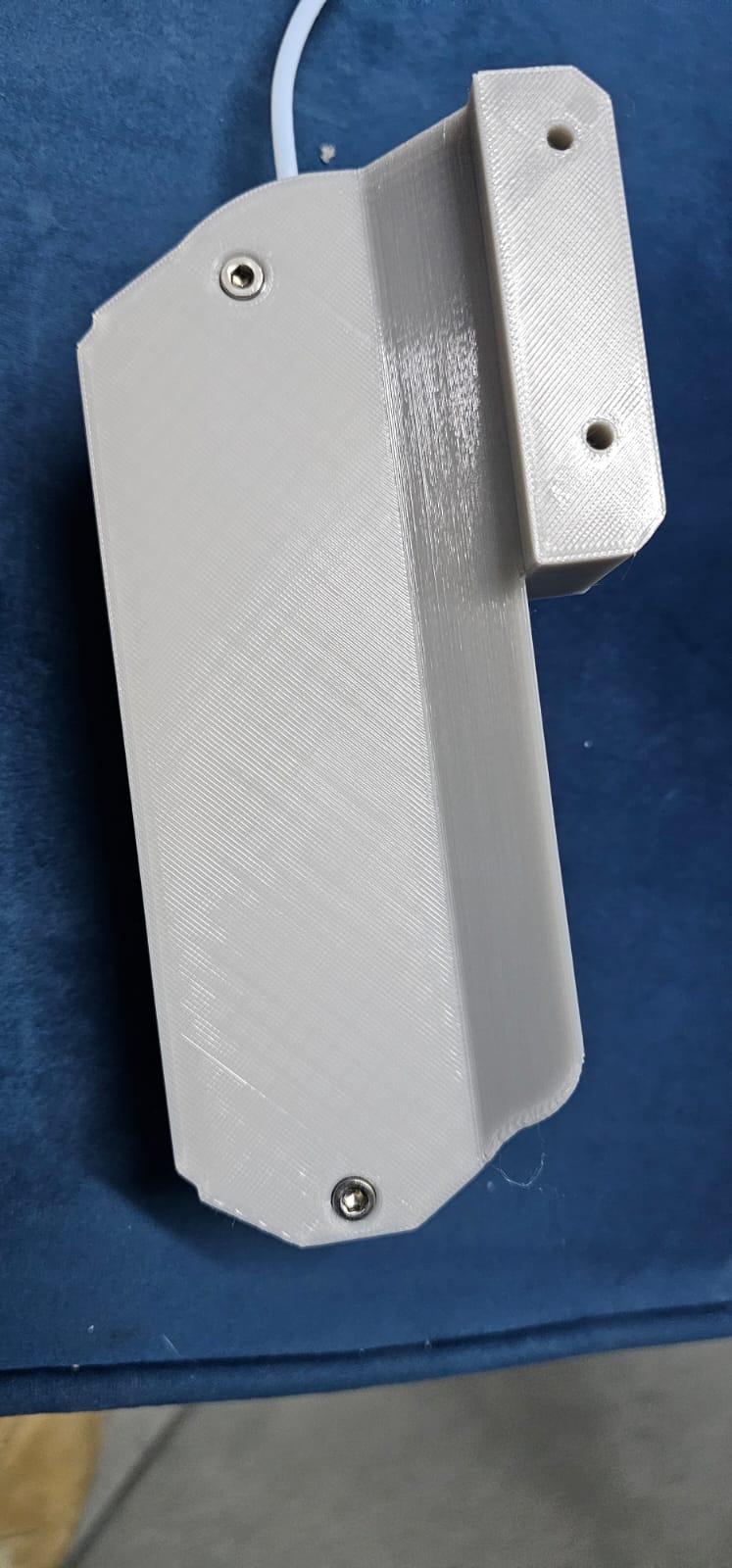

You will need 4x 4x25mm capscrews with nuts to mount the filament bracket to the corner bracket.

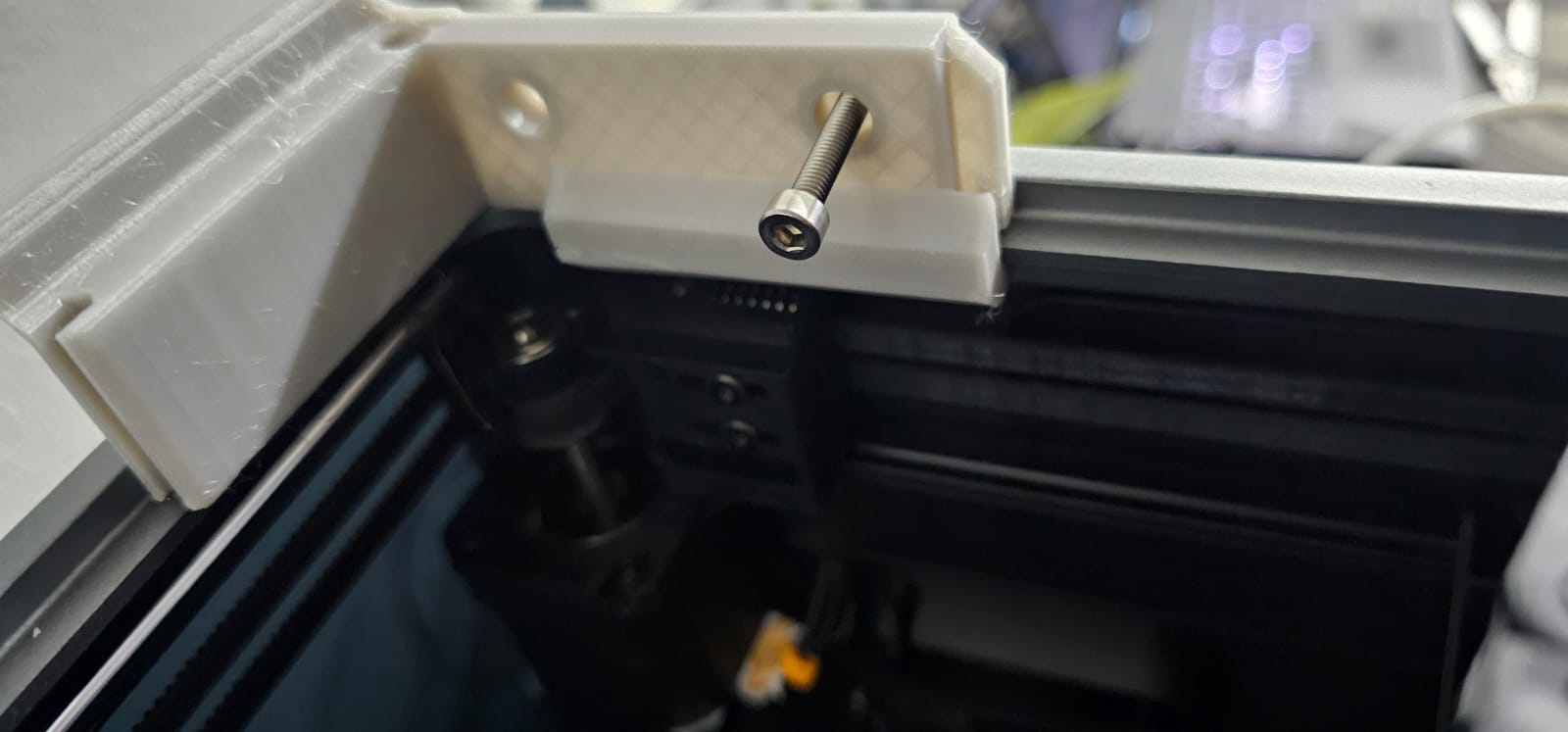

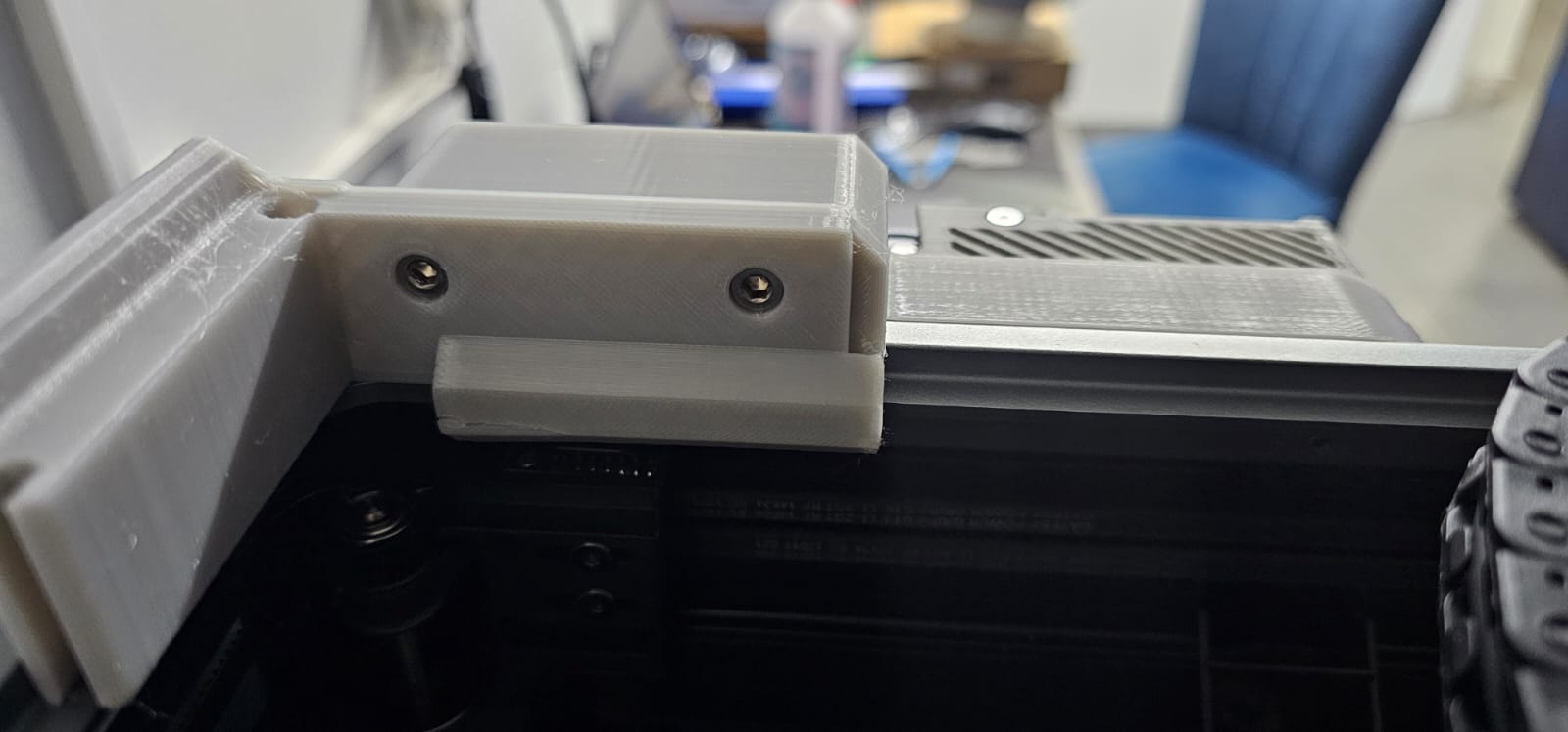

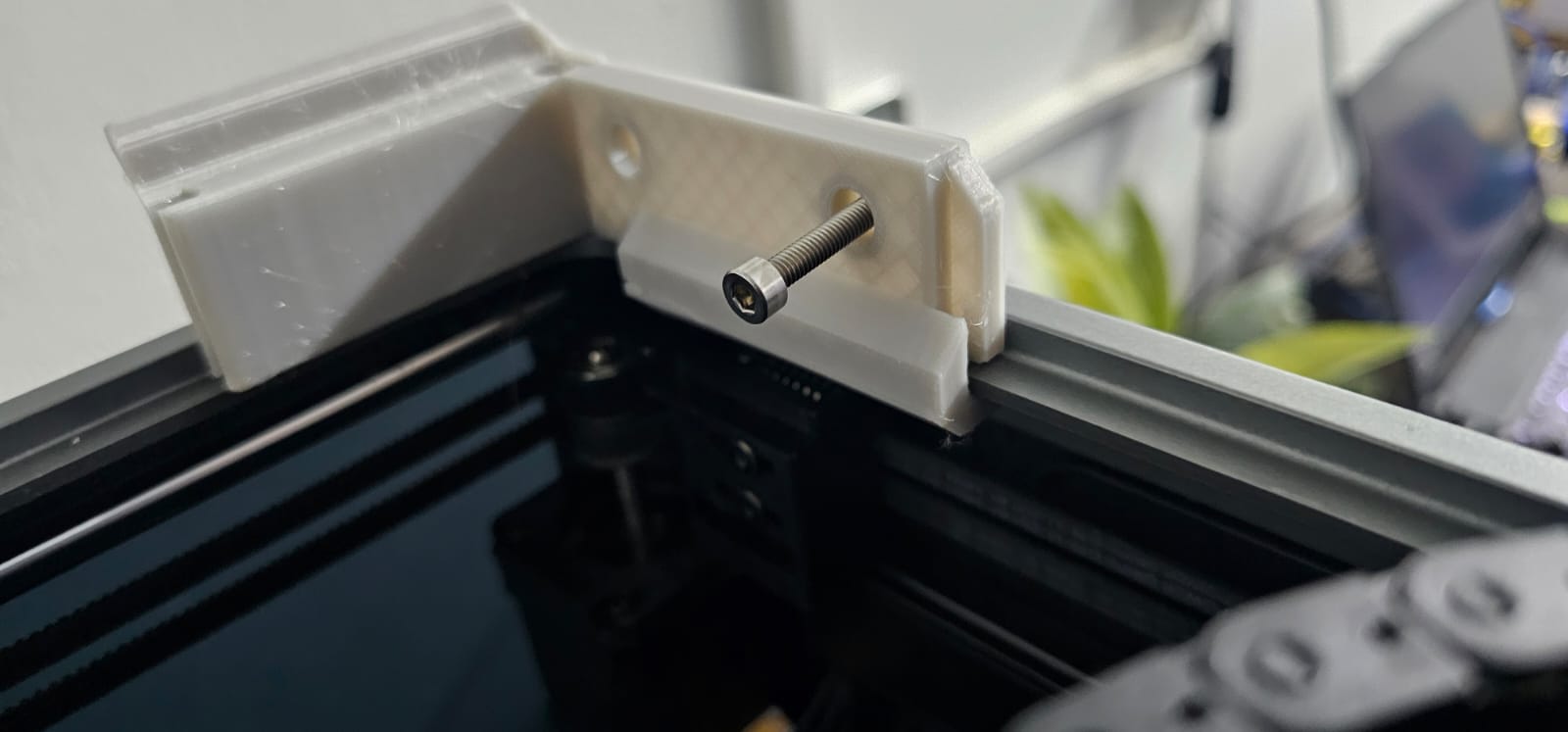

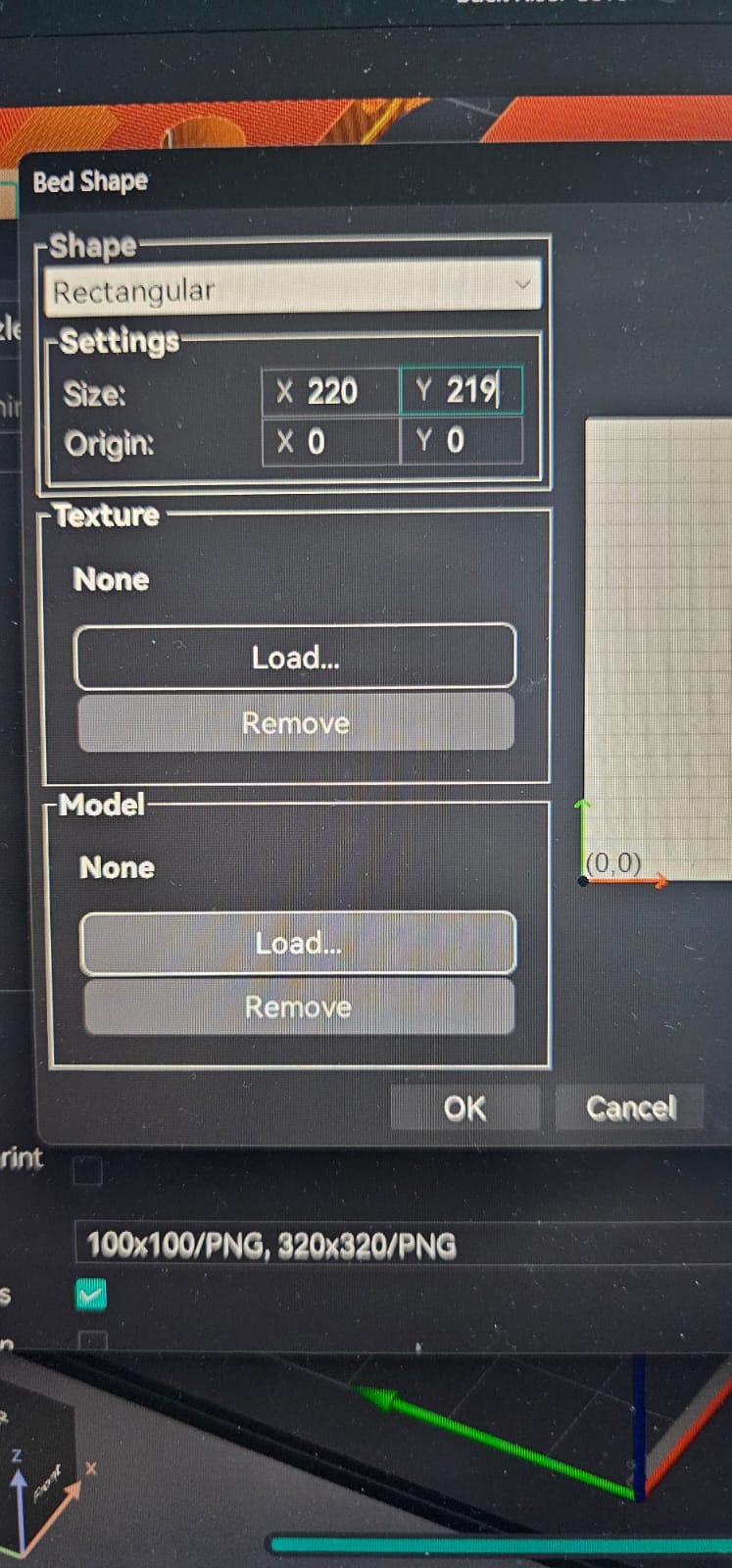

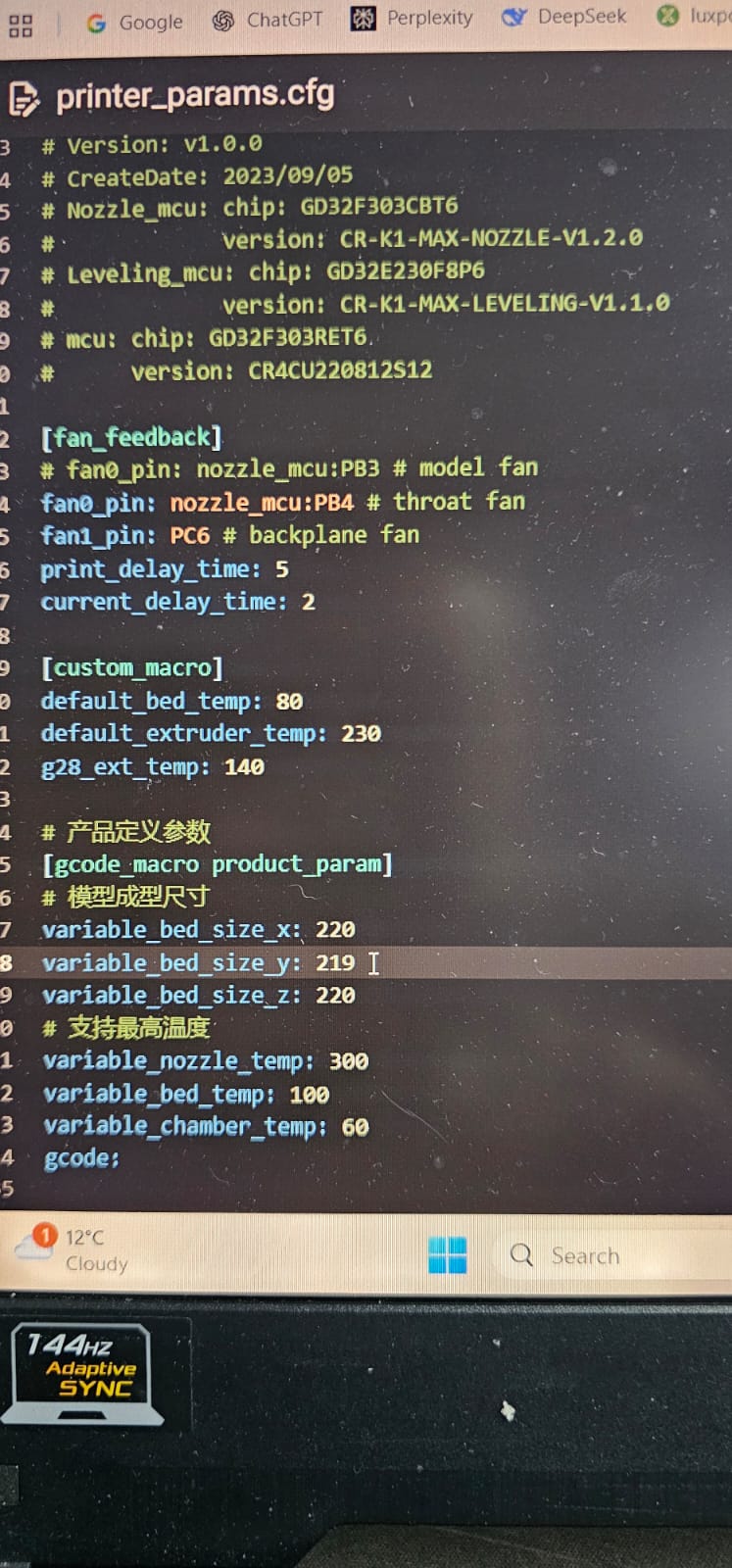

I modify the corner riser bracket to have a lip to slide onto the k1c body but afterwards i notice the toolhead might touch it not that i think it will so i modify the printer parametrs in klipper from 220mm to 219mm 1mm closer and also did it on orcaslicer pictures included.

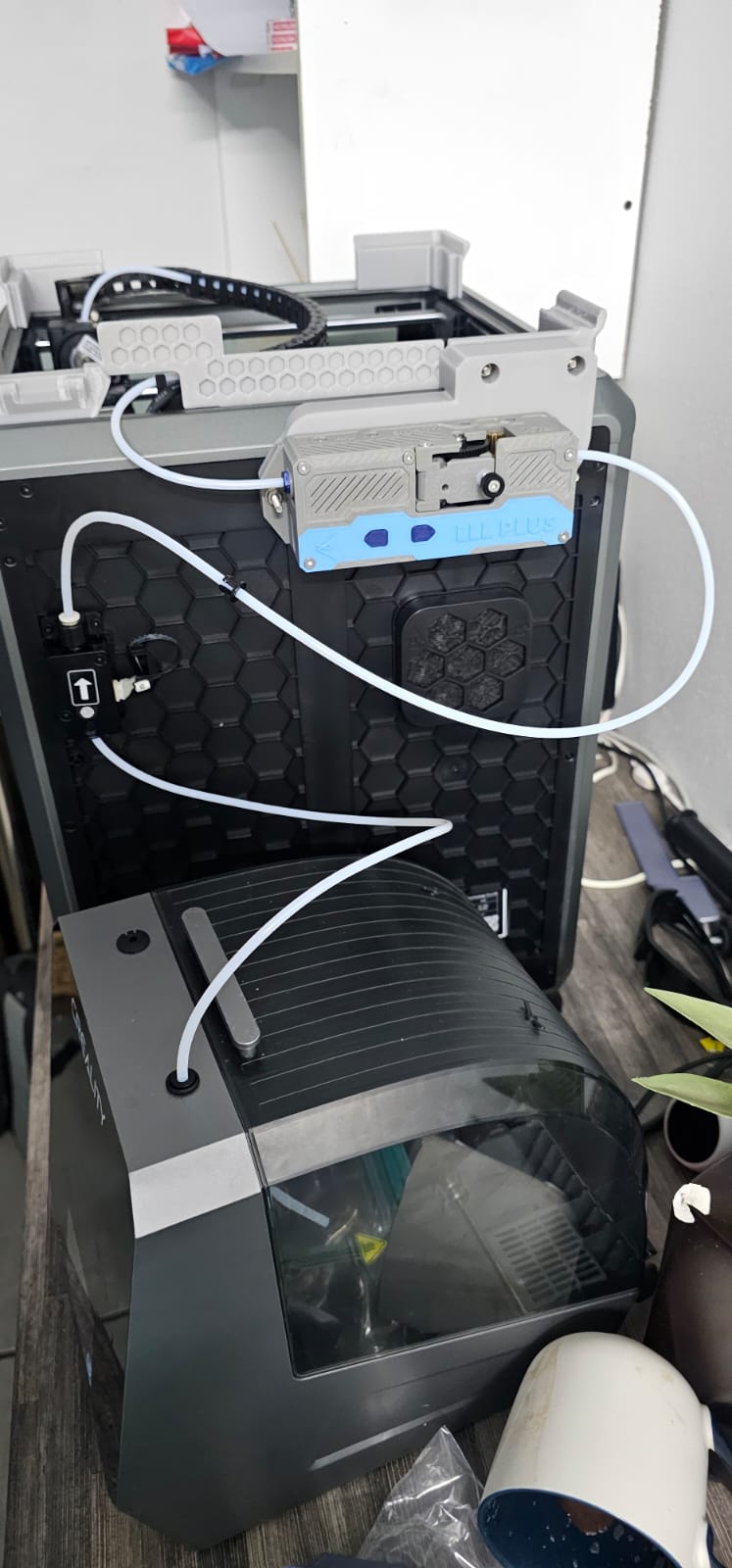

with the Fillament buffer i can print TPU straight from the filament Dryer, because the buffer do the hard work pulling the fillament from the dryer and feed it to the extruder.

You can use this model with stock fillament runout sensor .

please leave a comment if this has worked for you ?
