🧩 Model Title
Kindle Stand
---
📌 Description

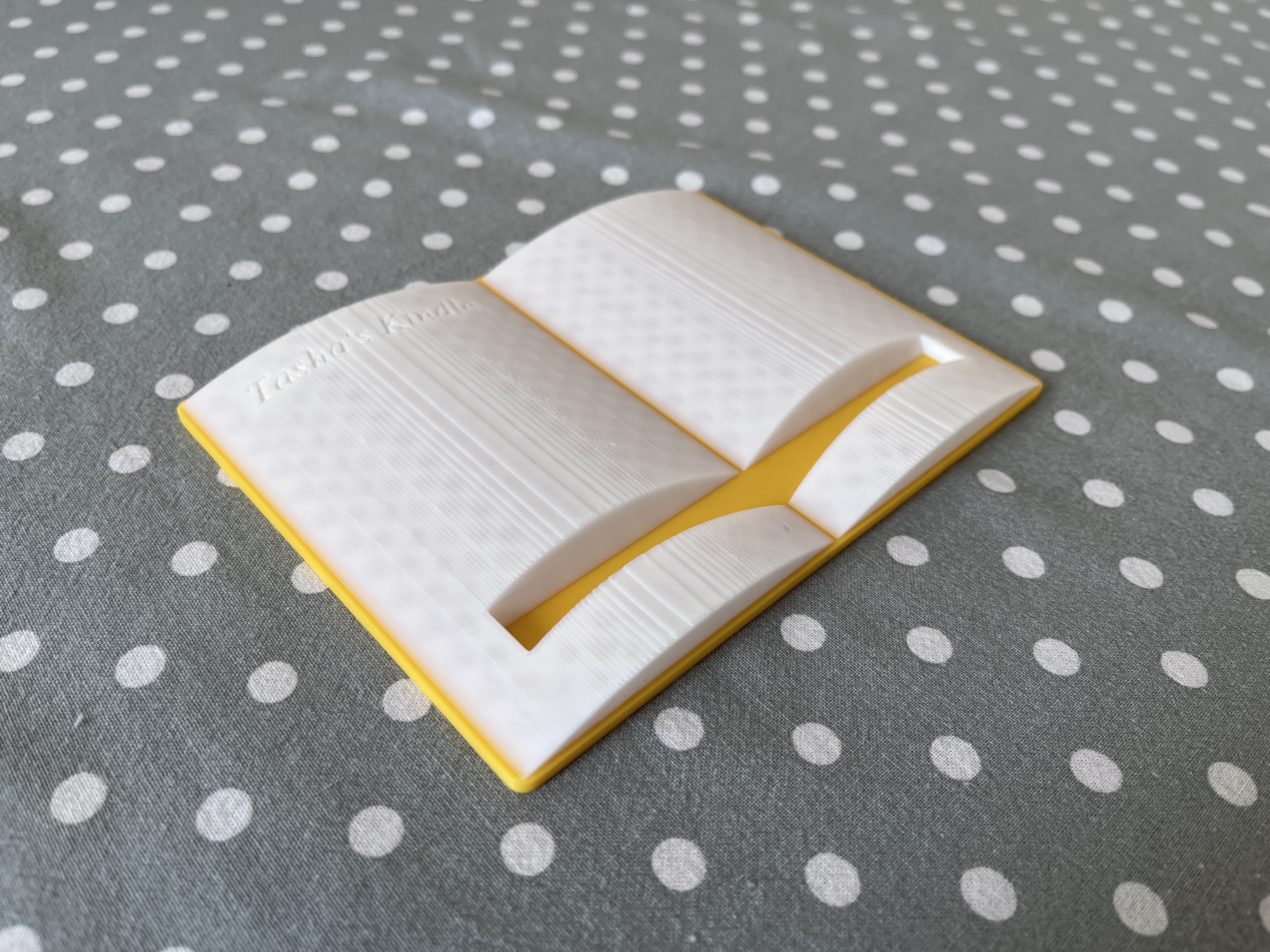

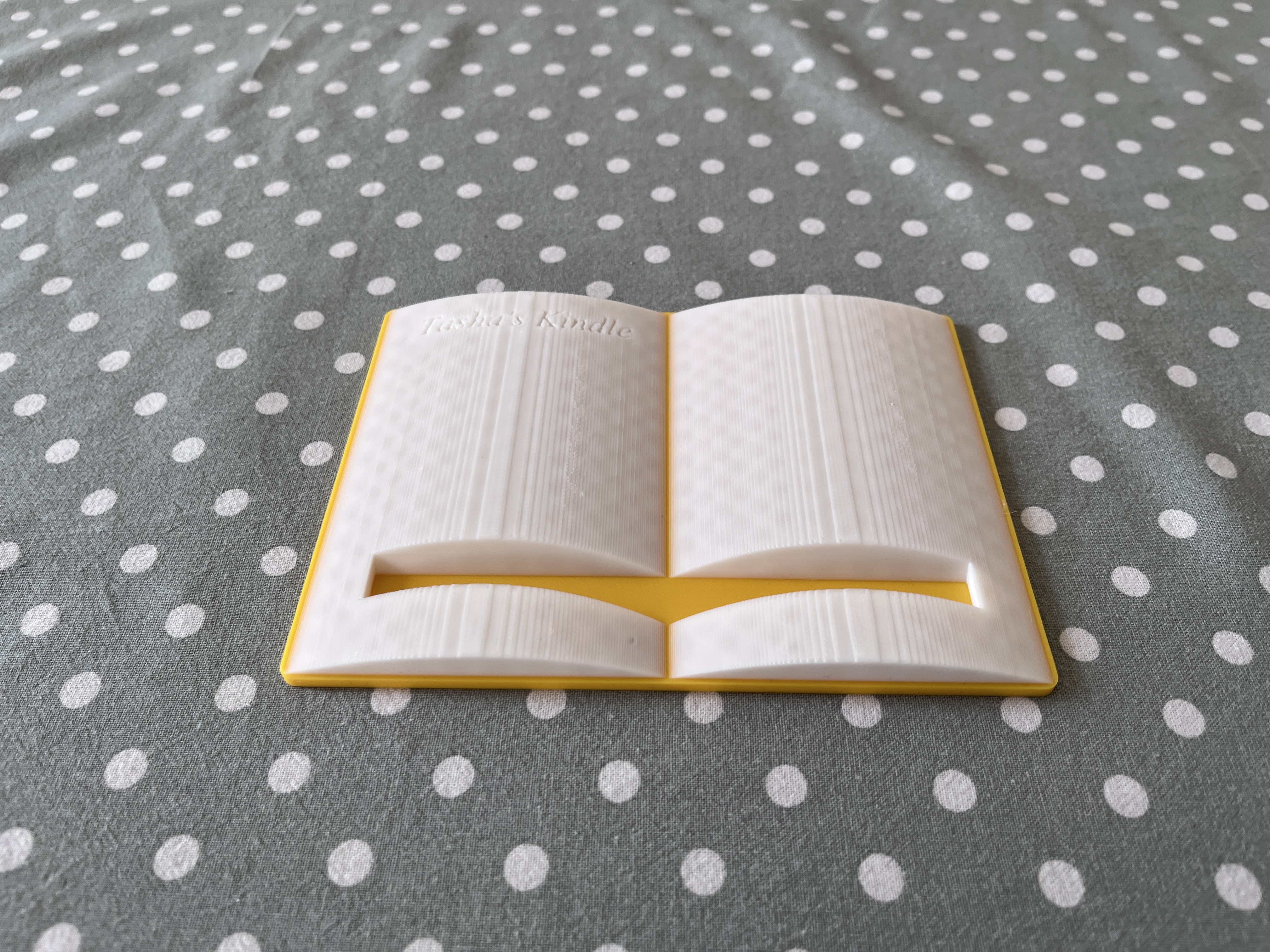

This 3D model is a custom-designed stand for the Kindle Paperwhite, styled to resemble an open hardcover book. The stand combines functionality with a touch of literary charm, making it ideal for book lovers and tech enthusiasts alike.
The stand mimics the appearance of an open book lying flat, with gently curved “pages” with a central cradle is integrated into the inner "pages" of the book, perfectly sized to hold the Kindle Paperwhite at a comfortable viewing angle around 60 degrees that holds the device without obstructing the screen.
---
⚙ Print Settings
- Printer: Prusa MK4S + MMU3
- Layer Height: 0.15mm
- Infill: 15%
- Supports: None
- Brim/Raft: None
- Orientation: As shown
- Material: Two colours of PLA
- Nozzle Size: 0.4mm
- Perimeters: 2
- Additional settings:
- Multi-material Painting
- Alternatively add filament change at layer 20
---
🧪 Tested Notes
- Print time: 1h 56m
- Any tuning required: Retraction on layer change 0.7mm
---
📏 Dimensions

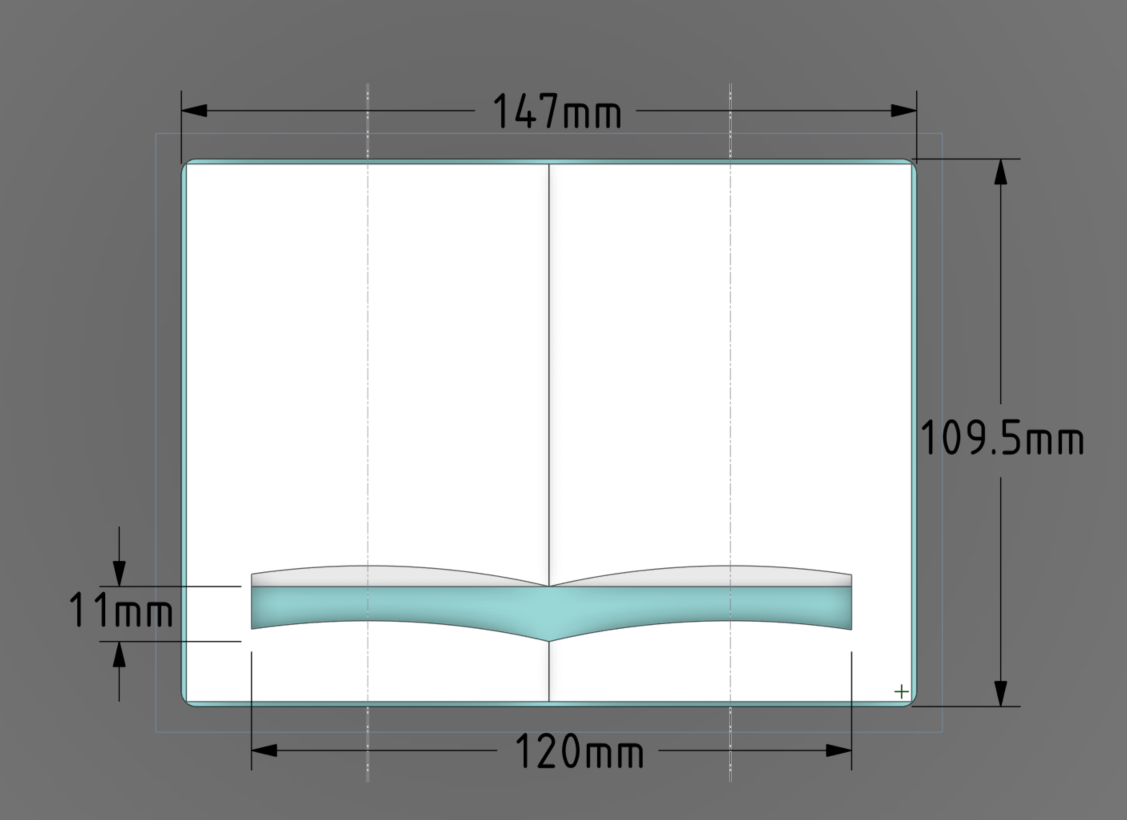

- Overall size (L× W × H): 147mm x 109.5mm x 10mm
---
🔄 Customization
- The model has set dimensions to house a Kindle.
---
⚠ Notes
- Designed using RS Design Spark Mechanical V6.0.3
- Slicer used PrusaSlicer V2.9.4
---
